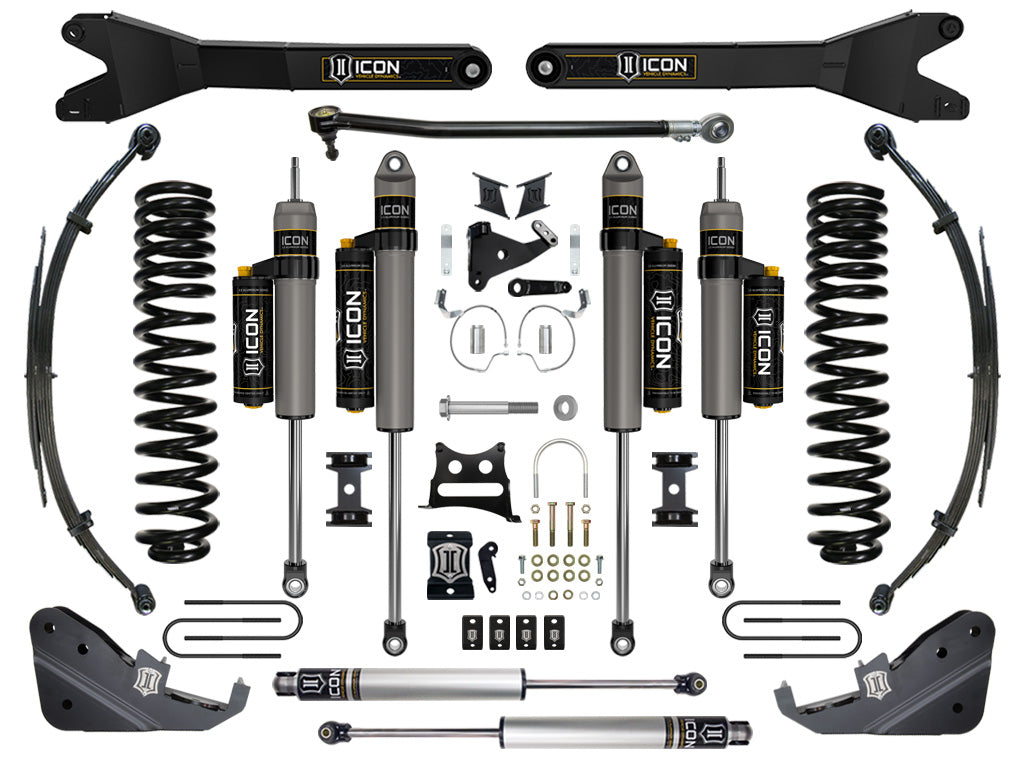

ICON 2017-2022 Ford F250/F350, 7" Lift, Stage 5 Suspension System, w/Radius Arm

Name: ICON 2017-2022 Ford F250/F350, 7" Lift, Stage 5 Suspension System, w/Radius Arm
Brand: ICON Vehicle Dynamics
SKU: K67115R
Price: 8630.43 USD
Availability: OutOfStock

ICON 2017-2022 Ford F250/F350, 7" Lift, Stage 5 Suspension System, w/Radius Arm

PART #

$8,630.43

SALE CALL OR CHAT TO ORDER

Shipping calculated at checkout.

Product variants

Quantity

Inventory: Special Order (Live Chat or Call)

View full details

Important: Always read the entire product description, including Important Notes and Fitment information, before making a purchase. Components contained in images and descriptions may change based upon your selections.

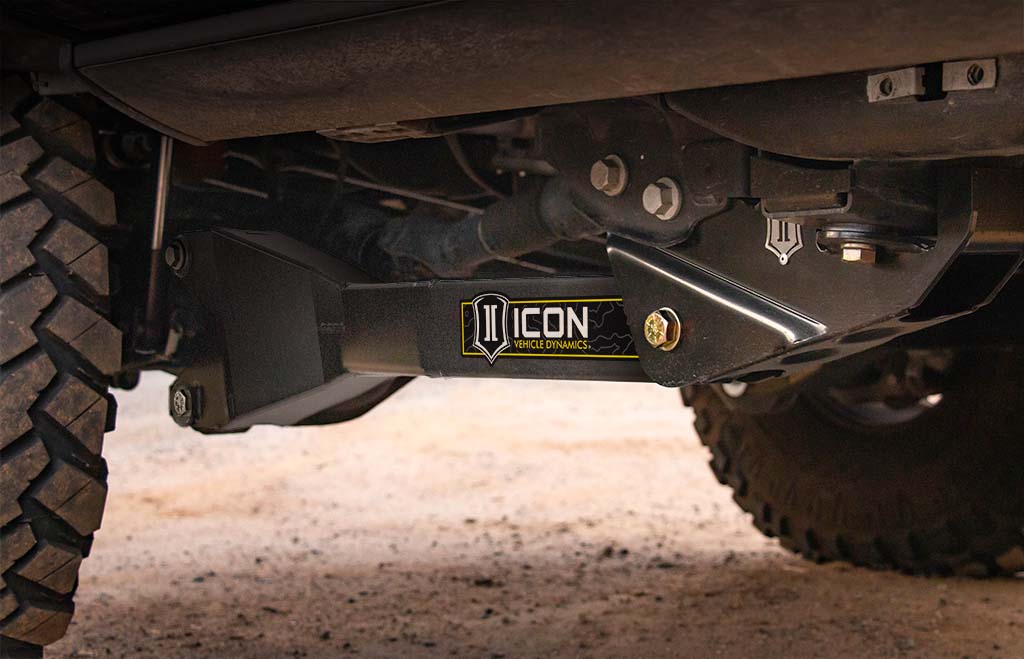

This Stage 4 system sees the inclusion of the ICON Vehicle Dynamics Ford Super Duty Radius Arm System that feature a sealed pivot bushing that minimizes road feedback and ensures a long life and quiet operation. Additionally, their fabricated, fully boxed design ensures strength and utilizes a profile optimized for tire clearance at full steering lock, making a 37” tall tire clear without coming in contact with the radius arm.

Features

Fits 2017-2022 F-250 / F-350 4WD applications
Progressive leaf springs improve ride quality without reducing towing capacity
Fabricated radius arms with drop brackets offer on vehicle caster adjustment increased strength and improved tire clearance at steering lock
ICON shocks feature vehicle specific tune for superior performance and ride quality
ICON CDC Valve allows for 10 clicks of quick and easy compression adjustability
Shocks are fully rebuildable and revalvable
One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish (2.5 Aluminum Series shocks)
FK Rod End bearings provide extended longevity and minimal deflection
Lifetime guarantee against coil spring breakage or sag
Lifetime guarantee against ICON fabricated component breakage or manufacturer defect
Approximately 50% increased front wheel travel over stock
ICON-engineered dual rate coil springs deliver exceptional vehicle control over varying terrain

Oem wheels & tires fitment: yes; application note #57: factory block must be used in conjunction with icon leaf springs for truck to sit level; application note #118: oem stabilizer does not work with required drag link flip on this kit; tech note: 2017-2019 super duty models will have front lift height of 7" over stock.
; tech note: 2020-2022 super duty models without tremor package will have front lift height of 7.
75" over stock.
May require taller rear blocks with springs to sit level.
; tech note: 2020-2022 super duty models equipped with tremor package will have front lift height of 6.
75" over stock.
May require taller rear blocks with springs to sit level.
; tech note: brake line kit (part # 61110) is optional for end users who do not want to bend the factory steel lines or are looking for a braided stainless upgrade (not necessary for complete install); ships in multiple boxes; recommended aftermarket wheels: icon alloys - 17x8.
5" w/ 5.
00” backspace / 6mm offset; recommended aftermarket wheels: icon alloys - 18x9" w/ 5.
25” backspace / 6mm offset; recommended aftermarket wheels: icon alloys - 20x9" w/ 5.
25” backspace / 6mm offset; recommended aftermarket tires: 37" x 12.
50" (larger tires may fit but fender trimming and modifications will be required.
); application note #6: springs are rated for diesel engines only; application note #8: this system may require a carrier bearing drop bracket kit (33700); application note #31: ‘08 - current superduty models with gas engines may need exhaust modified to clear front driveshaft; application note #55: shocks are fully serviceable.
Coilover heights indicated are for a stock equipped vehicle

Quick SpecsOverview:

Spring Material: Steel
Bushings Included: Yes
Mounting Hardware Included: Yes
Spring Color: Black
Shocks Included: Yes
Grade Type: Performance
Maximum Lift: 7.75 IN
Coils Quantity Front: 2
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
California Prop 65 Warning: Yes
California Proposition 65: WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
Dual Rate Coil Springs: Yes
OEM Wheels &
Tires Fitment: Yes
Recommended Aftermarket Tires: 37" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.25” Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5” Backspace / 6mm Offset
Title: ICON 2017-2022 Ford F250/F350 7" Lift Stage 5 Suspension System w/Radius Arm

Additional Specifications:

Country of Origin: US
Warranty: See Rep
Weight (lbs): 613.0
Vehicle Specific Fitment: Y

Instructions

I37705CP_REVB.pdf

Fitment

: N/A
