ICON 2017-2022 Ford F250/F350, 7" Lift, Stage 4 Suspension System
- Front lift 7"
- Shocks included
Questions about fitment? Live chat or call 866-235-4715
Complete your build
Optional add-ons
Recommended Add-Ons
Add-ons selected:
Couldn't load pickup availability
- Free shippingMost orders $500+
- 30-day returnsSee policy
- Warranty supportWe work with the maker
Questions about fitment?
Talk to a TRU specialist
We’ll help you verify fitment before you buy.
Veteran-owned · Austin, Texas · Mon–Fri 9:30a–11:00a & 1:00p–5:30p CT
Important notes before you order
- APPLICATION NOTE #6: Springs Are Rated For Diesel Engines Only
- APPLICATION NOTE #8: This System May Require A Carrier Bearing Drop Bracket Kit (33700)
- APPLICATION NOTE #29: 7” Systems Using A 4-Link In Place Of The Factory Radius Arms Do Not Require The Use Of Alignment Cams. Caster Can Be Adjusted By The Lower Link Arms.
- APPLICATION NOTE #31: ‘08 - Current Superduty Models With Gas Engines May Need Exhaust Modified To Clear Front Driveshaft
- APPLICATION NOTE #55: Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
- APPLICATION NOTE #57: Factory Block Must Be Used In Conjunction With ICON Leaf Springs For Truck To Sit Level
- APPLICATION NOTE #118: Oem Stabilizer Does Not Work With Required Drag Link Flip On This Kit
- TECH NOTE: 2017-2019 Super Duty models will have front lift height of 7" over stock.
- TECH NOTE: 2020-2022 Super Duty models without Tremor package will have front lift height of 7.75" over stock. May require taller rear blocks with springs to sit level.
- TECH NOTE: 2020-2022 Super Duty models equipped with Tremor package will have front lift height of 6.75" over stock. May require taller rear blocks with springs to sit level.
- TECH NOTE: Brake line kit (Part # 61110) is optional for end users who do not want to bend the factory steel lines or are looking for a braided stainless upgrade (not necessary for complete install)
- Ships in multiple boxes
TRU specialist notes
From the Trucks R Us fitment and install team, beyond the manufacturer's information.
- Plan for a professional wheel alignment after installing any lift or leveling kit.
- Going to bigger tires as well? Speedometer recalibration may be needed, and some tire and wheel combinations need trimming. Check the recommended wheels and tires, or ask us before you order.
Specifications
| Brand | ICON Vehicle Dynamics |
|---|---|
| Part number | K67114 |
| UPC / GTIN | 840103418933 |
| Front Lift Height | 7" |
| Active or Passive Suspension | Passive |
| Adjustable Compression | No |
| Adjustable Damping | No |
| Adjustable Rebound | No |
| Bushing(s) Included | Yes |
| Coil Spring Color | Black |
| Coil Spring End 1 Type | Closed |
| Coil Spring End 2 Type | Closed |
| Coil Spring Material | Steel |
| Coils Quantity Front | 2 |
| Dual Rate Coil Springs | Yes |
| Front Reservoir Style | Piggyback |
| Front Shock Body Diameter | 2.5 IN |
| Front Spring Rate Type | Progressive Dual Rate |
| Grade Type | Performance |
| Leaf Spring Bracket Color | Black |
| Leaf Spring Color | Black |
| Leaf Spring Material | Steel |
| Maximum Lift | 7 IN |
| Maximum Lift Height Front | 7 IN |
| Maximum Lift Height Rear | 5 IN |
| Mounting Hardware Included | Yes |
| Rear Reservoir Style | Piggyback |
| Rear Shock Body Diameter | 2.5 IN |
| Shocks Included | Yes |
| Spring Color | Black |
| Spring Material | Steel |
| Country of Origin | US |
| Warranty | See Rep |
California Proposition 65 warning applies to this product. www.P65Warnings.ca.gov

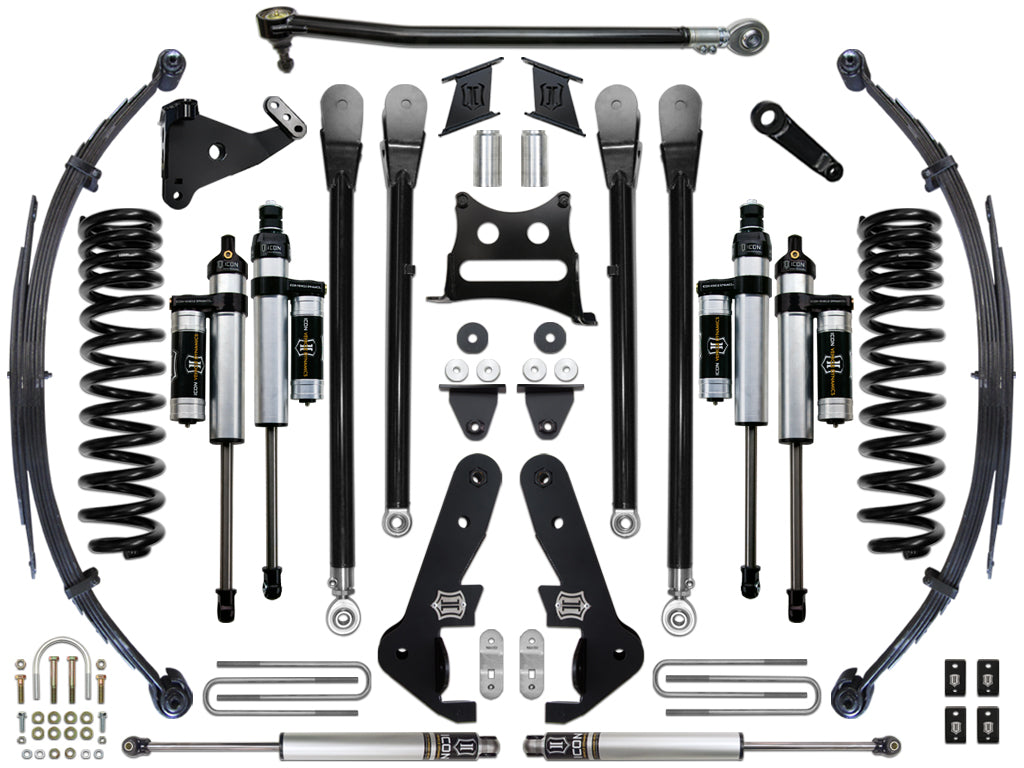

What's in the box
| Qty | Part | Description |
|---|---|---|
| 1 | 67015 | 05-25 FSD FRONT 7" DUAL RATE SPRING KIT |
| 1 | 67035 | 17-22 FSD FRONT 7" BOX KIT |
| 1 | 64038 | 17-25 FSD ADJ TRACKBAR KIT |
| 1 | 164501 | 05-22 FSD FRONT UPPER LINKS |
| 1 | 164502 | 05-25 FSD FRONT LOWER LINKS |
| 1 | 164504 | 17-22 FSD 4 LINK FRAME BRACKET KIT |
| 2 | 168506 | 17-25 FSD 5" REAR LEAF SPRING PACK |
| 1 | 65505H | 17-25 5" LEAF SPRING HARDWARE KIT |
| 1 | 65501 | 11-25 FSD U-BOLT PLATE KIT |
| 1 | 67003 | 11-25 FSD REAR 15" U-BOLT KIT |
| 1 | 67031 | 11-22 FSD REAR 7" BRAKE BRACKET KIT |
| 1 | 67720P | 05-25 FSD 4WD 7" FRONT 2.5 VS PB PAIR |
| 1 | 37701P | 99-25 FSD 3-6" REAR 2.5 VS PB PAIR |
| 1 | 65000 | 05-22 FSD DUAL STABILIZER KIT |
| 2 | 36511 | 99-25 FSD 4WD STABILIZER (DUAL OPPOSING) 2.0 VS IR |
Features
- Fits 2017-2022 F-250 / F-350 4WD applications
- Approximately 50% increased front wheel travel over stock
- ICON-engineered dual rate coil springs deliver exceptional vehicle control over varying terrain
- Progressive leaf springs improve ride quality without reducing towing capacity
- ICON 4-Link system eliminates binding during articulation and maintains positive caster through the entire range of travel
- ICON shocks feature vehicle specific tune for superior performance and ride quality
- Shocks are fully rebuildable and revalvable
- 2.5 Aluminum Series shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
- FK Rod End bearings provide extended longevity and minimal deflection
- Lifetime guarantee against coil spring breakage or sag
- Lifetime guarantee against ICON fabricated component breakage or manufacturer defect
Recommended wheels & tires
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.00” Backspace / 6mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.25” Backspace / 6mm Offset
- Recommended Aftermarket Tires: 37" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
Installation
Free install support from the Trucks R Us tech team, for you or your shop.
Overview
This ICON Vehicle Dynamics 7” suspension system is a great way to lift your 4WD 2017-2022 Ford F-250/F-350 Super Duty while drastically improving ride quality and performance. This suspension system is perfect for on-road and off-road use including towing, job site duty, and hardcore off-road adventure. ICON's 7" Stage 4 System is comprised of dual rate coil springs, progressive leaf springs, 4-Link kit, adjustable track bar, dual opposing steering stabilizer kit, ICON 2.5 Aluminum Series piggyback reservoir front and rear shocks, plus all of the necessary hardware for installation.
The Stage 4 system sees the inclusion of the ICON Vehicle Dynamics Ford Super Duty 4-Link kit, which further improves performance by eliminating suspension bind commonly experienced with factory radius arms during articulation. This “freeing up” of the front end and the ability of the 4-Link Kit to maintain positive caster through the range of travel equates to an unparalleled ride quality in all conditions. With the endless hours ICON has spent testing and tuning our suspension components and shocks as a complete package, you can rest assured knowing that you have the best suspension solution on the market.
Questions
Will this fit my truck?
Select your truck at the top of the page and the fit check will confirm it. If your exact trim is not listed, call 866-235-4715 or live chat and a fitment specialist will check it before you order.
Do you help with installation?
Yes. Our technical team helps you or your shop with installation and troubleshooting after delivery, on top of the manufacturer’s support.
What if the part has a problem?
We work the warranty claim with the manufacturer on your behalf, within the manufacturer’s warranty policy.
Can I return it?
Most items can be returned within 30 days. See our return policy for details.
Do I need an alignment after installing?
Yes. Any lift or leveling kit changes suspension geometry, so get a professional alignment after installation.
