ICON 2023-2026 Ford F-250/F-350 Super Duty 4WD, Gas, 2.5" Lift, Stage 3 Suspension System w/ Radius Arms and Expansion Packs
- Front lift 2.5"
- Shocks included
Questions about fitment? Live chat or call 866-235-4715
Couldn't load pickup availability
- Free shippingMost orders $500+
- 30-day returnsSee policy
- Warranty supportWe work with the maker
Questions about fitment?
Talk to a TRU specialist
We’ll help you verify fitment before you buy.
Veteran-owned · Austin, Texas · Mon–Fri 9:30a–11:00a & 1:00p–5:30p CT
Important notes before you order
- APPLICATION NOTE #1: Only fits 4WD models
- APPLICATION NOTE #3: Not compatible with F-350 Cab & Chassis models
- APPLICATION NOTE #55: Shocks Are Fully Serviceable. Lift Heights Indicated Are For A Stock Equipped Vehicle.
- APPLICATION NOTE #151: Fits single rear wheel models only
- APPLICATION NOTE #155: Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install
- APPLICATION NOTE #156: Springs are rated for gasoline engines
- APPLICATION NOTE #157: Lift heights based on 4WD Crew Cab gas
- APPLICATION NOTE #161: If equipped with OnBoard Scales also requires sensor bracket part number 66203
- APPLICATION NOTE #166: If equipped with Dynamic Bending Headlamps and/or Onboard Scales part # 611081 is also required
- APPLICATION NOTE #209: Reduction in rear spring rate may reduce accuracy of OnBoard Scales, if equipped
- APPLICATION NOTE #462: Brake line kit (Part # 61111) is optional for end users who do not want to bend the factory steel lines or are looking for a braided stainless upgrade (not necessary for complete install)
- APPLICATION NOTE #494: ICON track bar bracket part # 64039 is also recommended to correct bump steer geometry
- APPLICATION NOTE #519: Trucks equipped with Tremor package with have front lift height of 1.5" over stock
- APPLICATION NOTE #549: Replaces OE rear blocks for .5" of rear lift over stock on F-250. Lowers F-350 rear ride height by .5" compared to stock.
TRU specialist notes
From the Trucks R Us fitment and install team, beyond the manufacturer's information.
- Plan for a professional wheel alignment after installing any lift or leveling kit.
- Going to bigger tires as well? Speedometer recalibration may be needed, and some tire and wheel combinations need trimming. Check the recommended wheels and tires, or ask us before you order.
Specifications
| Brand | ICON Vehicle Dynamics |
|---|---|
| Part number | K65897RL |
| UPC / GTIN | 840103433509 |
| Front Lift Height | 2.5" |
| Active or Passive Suspension | Passive |
| Adjustable Compression | No |
| Adjustable Control Arm | Yes |
| Adjustable Damping | No |
| Adjustable Rebound | No |
| Bushing(s) Included | Yes |
| Coil Quantity Front | 2 |
| Coil Spring Color | Black |
| Coil Spring End 1 Type | Closed |
| Coil Spring End 2 Type | Closed |
| Coils Quantity Front | 2 |
| Front Reservoir Style | Piggyback |
| Front Shock Body Diameter | 2.5 IN |
| Front Spring Rate | 410 PPI, 550 PPI |
| Front Spring Rate Type | Progressive Dual Rate |
| Grade Type | Performance |
| Leaf Spring Color | Black |
| Leaf Spring Leaf Quantity | 7 |
| Leaf Spring Material | Steel |
| Maximum Lift | 2.5 IN |
| Maximum Lift Front | 2.5 IN |
| Maximum Lift Height Front | 2.5 IN |
| Maximum Lift Height Rear | .5 IN |
| Maximum Lift Rear | .5 IN |
| Minimum Lift Front | 1.5 IN |
| Mounting Hardware Included | Yes |
| Rear Reservoir Style | Piggyback |
| Rear Shock Body Diameter | 2.5 IN |
| Shocks Included | Yes |
| Spring Color | Black |
| Spring Material | Steel |
| Country of Origin | US |
| Installation Instructions | I168507/REVA.pdf |
California Proposition 65 warning applies to this product. www.P65Warnings.ca.gov

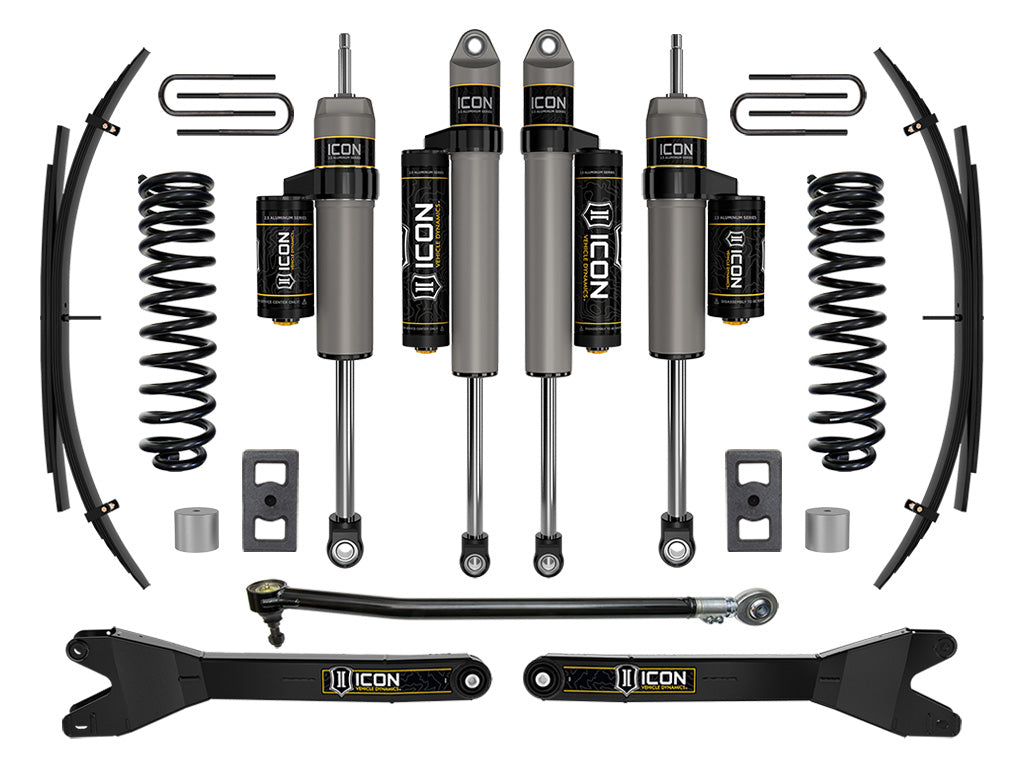

What's in the box
| Qty | Part | Description |
|---|---|---|
| 1 | 62517 | 23-25 FORD F-250/F-350 FRONT 2.5” GAS DUAL RATE SPRING KIT |
| 1 | 64038 | 17-25 FSD ADJ TRACKBAR KIT |
| 1 | 64043 | 23-25 FSD 2-5.5" LIFT RADIUS ARM SYSTEM |
| 1 | 67700P | 05-25 FSD 4WD 0-2.5" FRONT 2.5 VS PB PAIR |
| 1 | 37705P | 99-25 FSD 0-3" REAR 2.5 VS PB PAIR |
| 2 | 168507 | 08-25 F250/F350 LEAF SPRING EXPANSION PACK |
| 1 | 67004 | 11-25 FSD REAR 12" U-BOLT KIT |
| 1 | 191201 | 1" CAST BLOCK KIT |
| 1 | 61002 | 05-25 FSD 2" REAR BUMP STOP SPACER KIT |
Features
- ICON engineered dual rate coil springs provide 2.5” of front lift over stock
- Vehicle specific tuned piggyback reservoir 2.5 Aluminum Series shocks
- Fabricated radius arms offer on vehicle caster adjustment, increased strength, and improved tire clearance at steering lock
- Leaf spring expansion packs and blocks for more compliant ride quality and reduced axle wrap
- Increased wheel travel and improved ride quality over stock with no change in towing capacity
- Adjustable track bar ensures proper axle placement and improves handling
- Less body-roll than stock
- Lifetime guarantee that springs won’t sag or break
- No drive shaft modifications required
- Shocks are fully rebuildable and re-tunable
- 100% Bolt-on system - no drilling, cutting or welding necessary for install
Recommended wheels & tires
- OEM Wheels & Tires Fitment: Not compatible with all available OE wheel/tire combinations. Aftermarket wheels with lower offset/less backspace recommended.
- Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5” Backspace / 6mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.25” Backspace / 6mm Offset
- Recommended Aftermarket Tires: 35" x 12.50" (37" x 12.50" tires may fit but fender trimming and modifications will be required.)
Installation
Free install support from the Trucks R Us tech team, for you or your shop.
Overview
This ICON Vehicle Dynamics 2.5” suspension system is a great way to lift your 4WD 2023-2026 Ford F-250/F-350 Super Duty while drastically improving ride quality and performance. The Stage 3 system is perfect for on-road and off-road use including towing, job site duty and general off-road adventure. ICON's Stage 3 System is comprised of dual rate coil springs optimized for trucks equipped with gasoline engines, fabricated radius arms, on-vehicle adjustable front track bar, rear leaf spring expansion packs with blocks and U-bolts for a more compliant ride and reduced axle wrap, and ICON 2.5 Aluminum Series front and rear piggyback reservoir shocks. This stage sees the inclusion of the ICON Vehicle Dynamics Ford Super Duty Radius Arm System that feature a sealed pivot bushing that minimizes road feedback and ensures a long life and quiet operation. Additionally, their fabricated, fully boxed design ensures strength and utilizes a profile optimized for tire clearance at full steering lock, making a 37” tall tire clear without coming in contact with the radius arm. With the endless hours ICON has spent testing and tuning our suspension components and shocks as a complete package, you can rest assured you have the best suspension solution on the market.
Questions
Will this fit my truck?
Select your truck at the top of the page and the fit check will confirm it. If your exact trim is not listed, call 866-235-4715 or live chat and a fitment specialist will check it before you order.
Do you help with installation?
Yes. Our technical team helps you or your shop with installation and troubleshooting after delivery, on top of the manufacturer’s support.
What if the part has a problem?
We work the warranty claim with the manufacturer on your behalf, within the manufacturer’s warranty policy.
Can I return it?
Most items can be returned within 30 days. See our return policy for details.
Do I need an alignment after installing?
Yes. Any lift or leveling kit changes suspension geometry, so get a professional alignment after installation.
