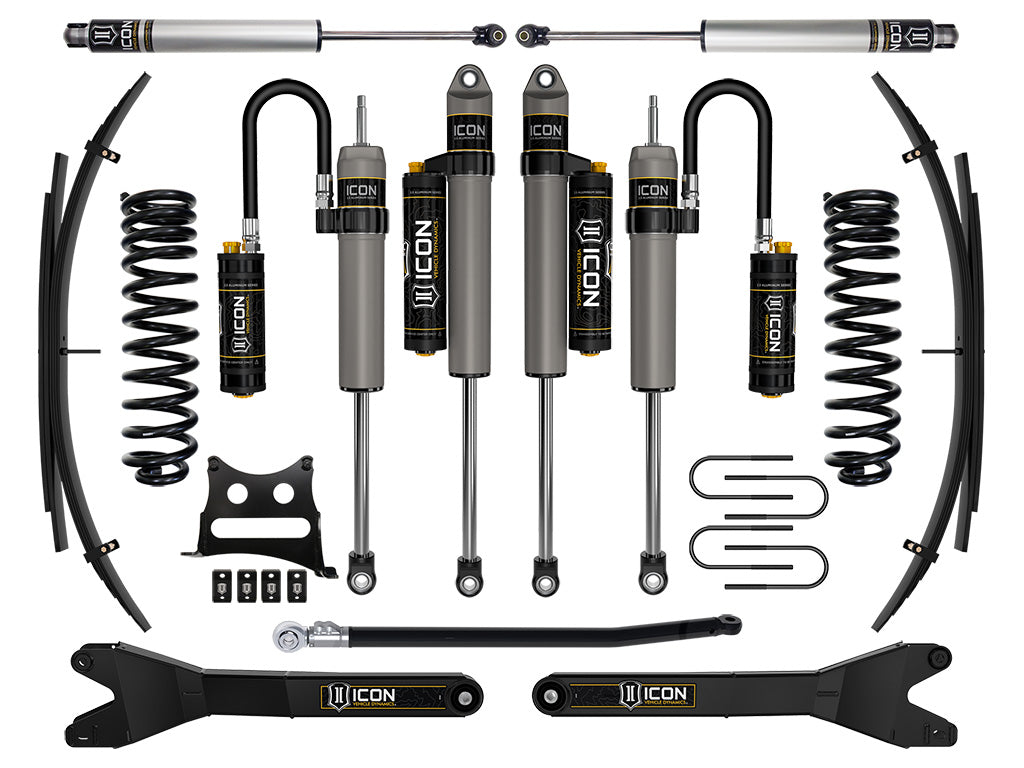

ICON 2008-2010 Ford F-250/F-350 Super Duty 4WD Diesel, 2.5" Lift, Stage 6 Suspension System w/ Expansion Packs

Name: ICON 2008-2010 Ford F-250/F-350 Super Duty 4WD Diesel, 2.5" Lift, Stage 6 Suspension System w/ Expansion Packs
Brand: ICON Vehicle Dynamics
SKU: K62576
Price: 7601.95 USD
Availability: OutOfStock

PART #

$7,601.95

SALE CALL OR CHAT TO ORDER

Shipping calculated at checkout.

Product variants

Quantity

Inventory: Special Order (Live Chat or Call)

View full details

Important: Always read the entire product description, including Features, Important Notes, Specifications, and Fitment data, before making a purchase. Components contained in images and descriptions may change based upon your selections.

This Stage 6 system sees the inclusion of the ICON Vehicle Dynamics Ford Super Duty Radius Arm System that feature a sealed pivot bushing that minimizes road feedback and ensures a long life and quiet operation. Their on vehicle caster adjustment allows for proper caster while eliminating the need for caster bushings or drop brackets. Additionally, their fabricated, fully boxed design ensures strength and utilizes a profile optimized for tire clearance at full steering lock, making a 37” tall tire clear without coming in contact with the radius arm.

Features

ICON engineered dual rate coil springs provide 2.5” of front lift over stock
Lifetime guarantee that springs won’t sag or break
No drive shaft modifications required
100% Bolt-on system - no drilling cutting or welding necessary for install
Match tuned remote reservoir front and piggyback reservoir rear 2.5 Aluminum Series shocks
Front and rear equipped with CDC Valves for 10 settings of compression damping adjustment from soft to hard
Fabricated radius arms offer on vehicle caster adjustment increased strength and improved tire clearance at steering lock
On-vehicle adjustable track bar for optimum front axle centering and minimal deflection
Dual steering stabilizer kit for smooth wheel control while driving
Leaf spring expansion packs and blocks for more compliant ride quality and reduced axle wrap
Increased wheel travel and ride quality over stock with no change in towing capacity
Less body-roll than stock

Oem wheels & tires fitment: yes; tech note: not compatible with f-350 cab & chassis models; tech note: icon track bar bracket part # 64039 is also recommended to correct bump steer geometry; recommended aftermarket wheels: icon alloys - 17x8.
5" w/ 5.
00” backspace / 6mm offset; recommended aftermarket wheels: icon alloys - 18x9" w/ 5.
25” backspace / 6mm offset; recommended aftermarket wheels: icon alloys - 20x9" w/ 5.
25” backspace / 6mm offset; recommended aftermarket tires: 35" x 12.
50" (larger tires may fit but fender trimming and modifications will be required.
); application note #6: springs are rated for diesel engines only; application note #55: shocks are fully serviceable.
Coilover heights indicated are for a stock equipped vehicle; application note #151: fits single rear wheel models only; tech note: replaces oe rear blocks for .
5" of rear lift over stock on f-250.
Lowers f-350 rear ride height by .
5" compared to stock.

Quick SpecsOverview:

Spring Material: Steel
Bushings Included: Yes
Mounting Hardware Included: Yes
Spring Color: Black
Shocks Included: Yes
Grade Type: Performance
Leaf Spring Leaf Quantity: 7
Coils Quantity Front: 2
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
Add-On Part: 64039 - 08-25 FSD TRACK BAR BUMP STEER BRACKET KIT
Add-On Part: 191014 - .25" COLLAR SPANNER PIN WRENCH
California Prop 65 Warning: Yes
California Proposition 65: WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
Front Spring Rate Type: Progressive Dual Rate
Maximum Lift Front: 2.5 IN
Maximum Lift Rear: 2 IN
OEM Wheels &
Tires Fitment: Yes
Recommended Aftermarket Tires: 35" x 12.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.25” Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.00” Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset
Title: ICON 2008-2010 Ford F-250/F-350 Super Duty 4WD Diesel 2.5" Lift Stage 6 Suspension System w/ Expansion Packs

Additional Specifications:

Country of Origin: US
Warranty: 1 Year-Shocks; Limited Lifetime-Radius Arms, Track Bar, Steering Stabilizer Bracket, Springs & U-Bolts; Excludes Wearable Items
Weight (lbs): 435.0
Vehicle Specific Fitment: Y
