ICON 2008-2010 Ford F-250/F-350 Super Duty 4WD Diesel, 2.5" Lift, Stage 2 Suspension System w/ Expansion Packs
- Front lift 2.5"
- Shocks included
Questions about fitment? Live chat or call 866-235-4715
Complete your build
Optional add-ons
Recommended Add-Ons
Add-ons selected:
Couldn't load pickup availability
- Free shippingMost orders $500+
- 30-day returnsSee policy
- Warranty supportWe work with the maker
Questions about fitment?
Talk to a TRU specialist
We’ll help you verify fitment before you buy.
Veteran-owned · Austin, Texas · Mon–Fri 9:30a–11:00a & 1:00p–5:30p CT
Important notes before you order
- APPLICATION NOTE #6: Springs Are Rated For Diesel Engines Only
- APPLICATION NOTE #30: An Adjustable Track Bar May Be Needed To Realign The Axle From Left To Right, Or To Add Additional Strength
- APPLICATION NOTE #55: Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
- APPLICATION NOTE #151: Fits Single Rear Wheel Models Only
- TECH NOTE: Replaces OE rear blocks for .5" of rear lift over stock on F-250. Lowers F-350 rear ride height by .5" compared to stock.
- TECH NOTE: ICON track bar bracket part # 64039 is also recommended to correct bump steer geometry
- TECH NOTE: Not compatible with F-350 Cab & Chassis models
TRU specialist notes
From the Trucks R Us fitment and install team, beyond the manufacturer's information.
- Plan for a professional wheel alignment after installing any lift or leveling kit.
- Going to bigger tires as well? Speedometer recalibration may be needed, and some tire and wheel combinations need trimming. Check the recommended wheels and tires, or ask us before you order.
Specifications
| Brand | ICON Vehicle Dynamics |
|---|---|
| Part number | K62572 |
| UPC / GTIN | 840103423173 |
| Front Lift Height | 2.5" |
| Active or Passive Suspension | Passive |
| Adjustable Compression | No |
| Adjustable Damping | No |
| Adjustable Rebound | No |
| Bushing(s) Included | Yes |
| Coil Spring Color | Black |
| Coil Spring End 1 Type | Closed |
| Coil Spring End 2 Type | Closed |
| Coil Spring Material | Steel |
| Coils Quantity Front | 2 |
| Front Reservoir Style | Piggyback |
| Front Shock Body Diameter | 2.5 IN |
| Front Spring Rate | 430 PPI, 550 PPI |
| Front Spring Rate Type | Progressive Dual Rate |
| Grade Type | Performance |
| Leaf Spring Bracket Color | Black |
| Leaf Spring Color | Black |
| Leaf Spring Leaf Quantity | 7 |
| Leaf Spring Material | Steel |
| Maximum Lift | 2.5 IN |
| Maximum Lift Front | 2.5 IN |
| Maximum Lift Height Front | 2.5 IN |
| Maximum Lift Rear | 2 IN |
| Minimum Lift Rear | .5 IN |
| Mounting Hardware Included | Yes |
| Rear Reservoir Style | Internal |
| Rear Shock Body Diameter | 2 IN |
| Shocks Included | Yes |
| Spring Color | Black |
| Spring Material | Steel |
| Country of Origin | US |
| Warranty | 1 Year-Shocks; Limited Lifetime-Springs, Blocks, U-Bolts |
| Installation Instructions | I168507/REVA.pdf |
California Proposition 65 warning applies to this product. www.P65Warnings.ca.gov

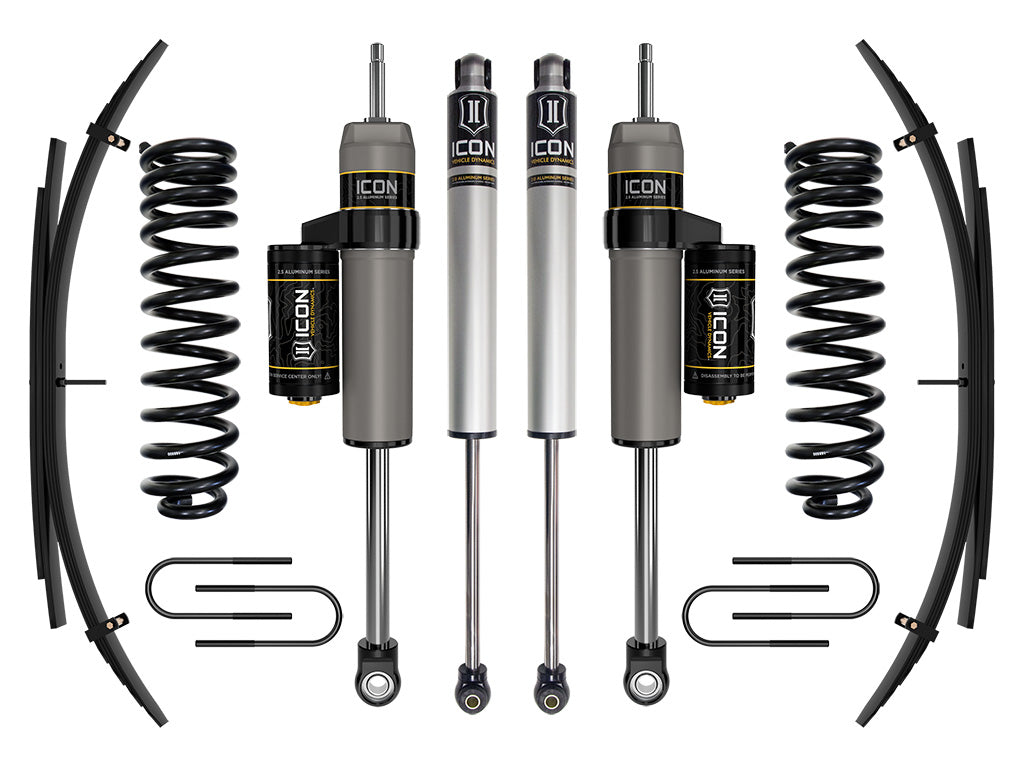

What's in the box
| Qty | Part | Description |
|---|---|---|
| 1 | 62510 | 05-19 FSD FRONT 2.5" DUAL RATE SPRING KIT |
| 1 | 67700P | 05-25 FSD 4WD 0-2.5" FRONT 2.5 VS PB PAIR |
| 2 | 36508 | 99-16 FSD 4WD 3-6" REAR 2.0 VS IR |
| 2 | 168507 | 08-25 F250/F350 LEAF SPRING EXPANSION PACK |
| 1 | 37004 | 99-10 FSD REAR 12" U-BOLT KIT |
| 1 | 191201 | 1" CAST BLOCK KIT |
| 1 | 61002 | 05-25 FSD 2" REAR BUMP STOP SPACER KIT |
Features
- ICON engineered dual rate coil springs provide 2.5” of front lift over stock
- Match tuned piggyback reservoir 2.5 Aluminum Series front shocks and internal reservoir 2.0 Aluminum series rear shocks
- Application specific alignment Cams ensure proper caster alignment
- Leaf spring expansion packs and blocks for more compliant ride quality and reduced axle wrap
- Increased wheel travel and ride quality over stock with no change in towing capacity
- Less body-roll than stock
- Lifetime guarantee that springs won’t sag or break
- No drive shaft modifications required
- 100% Bolt-on system - no drilling, cutting or welding necessary for install
Recommended wheels & tires
- OEM Wheels & Tires Fitment: Not compatible with all available OE wheel/tire combinations. Aftermarket wheels with lower offset/less backspace recommended.
- Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.00” Backspace / 6mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.25” Backspace / 6mm Offset
- Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
Installation
Free install support from the Trucks R Us tech team, for you or your shop.
Overview
The ICON 2.5” suspension system is a great way to lift your 4WD 2008-2010 Ford F-250/F-350 Super Duty while improving ride quality and performance. This upgraded Stage 2 system is great for towing, rough construction site terrains, and country dirt roads all while keeping a smooth highway feel. ICON's Stage 2 System is comprised of dual rate coil springs, 2.5 Aluminum Series piggyback reservoir front shocks, alignment cams for adding caster, rear leaf spring expansion packs with blocks and U-bolts for a more compliant ride and reduced axle wrap, and ICON 2.0 Aluminum Series internal reservoir shocks in the rear. ICON 2.5" piggyback reservoir shocks up front ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. With the endless hours ICON has spent testing and tuning our suspension components and shocks as a complete package, you can rest assured you have the best suspension solution on the market.
Questions
Will this fit my truck?
Select your truck at the top of the page and the fit check will confirm it. If your exact trim is not listed, call 866-235-4715 or live chat and a fitment specialist will check it before you order.
Do you help with installation?
Yes. Our technical team helps you or your shop with installation and troubleshooting after delivery, on top of the manufacturer’s support.
What if the part has a problem?
We work the warranty claim with the manufacturer on your behalf, within the manufacturer’s warranty policy.
Can I return it?
Most items can be returned within 30 days. See our return policy for details.
Do I need an alignment after installing?
Yes. Any lift or leveling kit changes suspension geometry, so get a professional alignment after installation.
