ICON 2023 Ford F-250/F-350 Super Duty 4WD Diesel, 2.5" Lift, Stage 5 Suspension System

Name: ICON 2023 Ford F-250/F-350 Super Duty 4WD Diesel, 2.5" Lift, Stage 5 Suspension System
Brand: ICON Vehicle Dynamics
SKU: K62565
Price: 4966.79 USD
Availability: OutOfStock

ICON 2023 Ford F-250/F-350 Super Duty 4WD Diesel, 2.5" Lift, Stage 5 Suspension System

PART #

$4,966.79

SALE Backordered

Shipping calculated at checkout.

Product variants

Quantity

Inventory: Special Order (Live Chat or Call)

View full details

Important: Always read the entire product description, including Important Notes and Fitment information, before making a purchase. Components contained in images and descriptions may change based upon your selections.

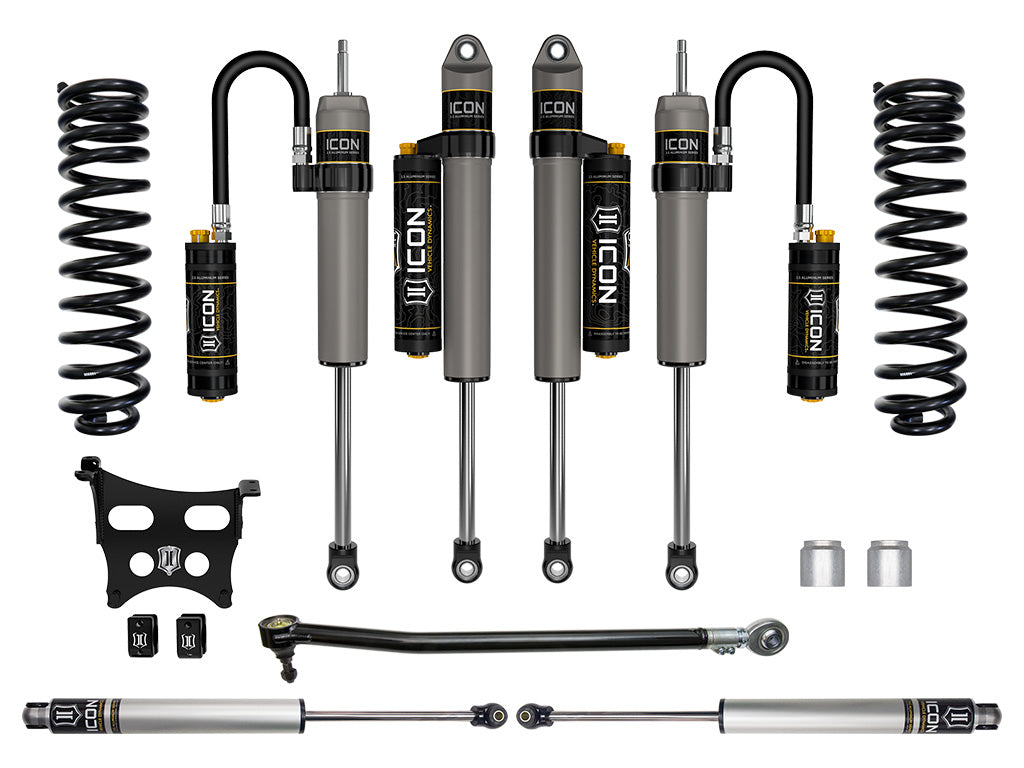

This ICON Vehicle Dynamics 2.5” suspension system is a great way to level your 4WD 2023 Ford F-250/F-350 Super Duty while drastically improving ride quality and performance. The Stage 5 system is perfect for on-road and off-road use including towing job site duty and spirited off-road adventure. ICON's Stage 4 System combines dual rate coil springs optimized for trucks equipped with diesel engines alignment cams ICON CDC Valve 2.5 Aluminum Series front remote reservoir and rear piggyback reservoir shocks dual steering stabilizer kit with ICON 2.0 Aluminum Series stabilizers and an all-new adjustable track bar designed specifically for the 2017-2024 Super Duty With the endless hours ICON has spent testing and tuning our suspension components and shocks as a complete package you can be rest assured you have the best suspension solution on the market.

Features

Fits 2023 F-250 / F-350 4WD diesel applications
Dual steering stabilizer kit for smooth wheel control while driving
Shocks are fully rebuildable and revalvable
Hard anodized corrosion resistant one-piece impact extruded aluminum shock bodies with 7/8" shafts (2.5 Aluminum Series Shocks)
FK Rod End bearings provide extended longevity and minimal deflection
Lifetime guarantee against coil spring breakage or sag
Lifetime guarantee against ICON fabricated component breakage or manufacturer defect
Approximately 25% increased front wheel travel over stock
ICON-engineered dual rate coil springs deliver exceptional vehicle control over varying terrain
ICON shocks feature vehicle specific tune for superior performance and ride quality
ICON CDC Valve allows quick and easy end user compression adjustability

Oem wheels & tires fitment: yes; application note #119: rare cases require a 2.
6 degree alignment cam on one side of vehicle for proper caster split; application note #155: requires recalibration of advanced driver assistance systems (adas) after install; tech note: will not fit 2024 models; tech note: trucks equipped with tremor package with have front lift height of 1.
5" over stock; tech note: brake line kit (part # 61111) is optional for end users who do not want to bend the factory steel lines or are looking for a braided stainless upgrade (not necessary for complete install); tech note: icon track bar bracket part # 64039 is also recommended to correct bump steer geometry; tech note: included rear shocks are compatible with 0-3" of rear lift over stock; recommended aftermarket wheels: icon alloys - 17x8.
5" w/ 5” backspace / 6mm offset; recommended aftermarket wheels: icon alloys - 18x9" w/ 5.
25” backspace / 6mm offset; recommended aftermarket wheels: icon alloys - 20x9" w/ 5.
25” backspace / 6mm offset; recommended aftermarket tires: 35" x 12.
50" (larger tires may fit but fender trimming and modifications will be required.
); application note #1: only fits 4wd models; application note #3: will not fit f-350/f-450 cab & chassis models; application note #6: springs are rated for diesel engines only; application note #115: lift heights based on 4wd crew cab diesel

Quick SpecsOverview:

Maximum Lift Height Front: 2.5 IN
Spring Material: Steel
Bushings Included: Yes
Mounting Hardware Included: Yes
Spring Color: Black
Shocks Included: Yes
Grade Type: Performance
Coil Spring Color: Black
Coil Spring Material: Steel
Maximum Lift: 2.5 IN
Coils Quantity Front: 2
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
Active or Passive Suspension: Passive
Add-On Part: 61111 - 17-25 FSD FRONT 2.5" EXTENDED SS BRAKE LINE KIT
Add-On Part: 64039 - 08-25 FSD TRACK BAR BUMP STEER BRACKET KIT
Add-On Part: 191014 - .25" COLLAR SPANNER PIN WRENCH
Adjustable Compression: Yes
Adjustable Damping: Yes
Adjustable Rebound: No
California Prop 65 Warning: Yes
California Proposition 65: WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
Coil Quantity Front: 2
Damping Adjustment Type: Manual
Front Reservoir Style: Remote
Front Shock Body Diameter: 2.5 IN
Front Spring Rate Type: Progressive Dual Rate
Maximum Lift Front: 2.5 IN
Minimum Lift Front: 1.5 IN
OEM Wheels &
Tires Fitment: Yes
Rear Reservoir Style: Piggyback
Rear Shock Body Diameter: 2.5 IN
Recommended Aftermarket Tires: 35" x 12.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5” Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.25” Backspace / 6mm Offset
Title: ICON 2023 Ford F-250/F-350 Super Duty 4WD Diesel 2.5" Lift Stage 5 Suspension System

Additional Specifications:

Country of Origin: US
Warranty: 1 Year-Shock Absorbers, Limited Lifetime-Coil Springs, Track Bar, Steering Stabilizer Bracket, Bump Stop Spacers; Excludes Wearable Items
Weight (lbs): 167.0
Vehicle Specific Fitment: Y

Instructions

I37705CP_REVB.pdf

Fitment

: N/A
