ICON 2023 Ford F-250/F-350 Super Duty 4WD Diesel, 2.5" Lift, Stage 1 Suspension System w/ Expansion Packs

Name: ICON 2023 Ford F-250/F-350 Super Duty 4WD Diesel, 2.5" Lift, Stage 1 Suspension System w/ Expansion Packs
Brand: ICON Vehicle Dynamics
SKU: K62561L
Price: 2417.68 USD
Availability: InStock

PART #

$2,417.68

SALE CALL OR CHAT TO ORDER

Shipping calculated at checkout.

Product variants

Quantity

Inventory: Special Order (Live Chat or Call)

View full details

Important: Always read the entire product description, including Features, Important Notes, Specifications, and Fitment data, before making a purchase. Components contained in images and descriptions may change based upon your selections.

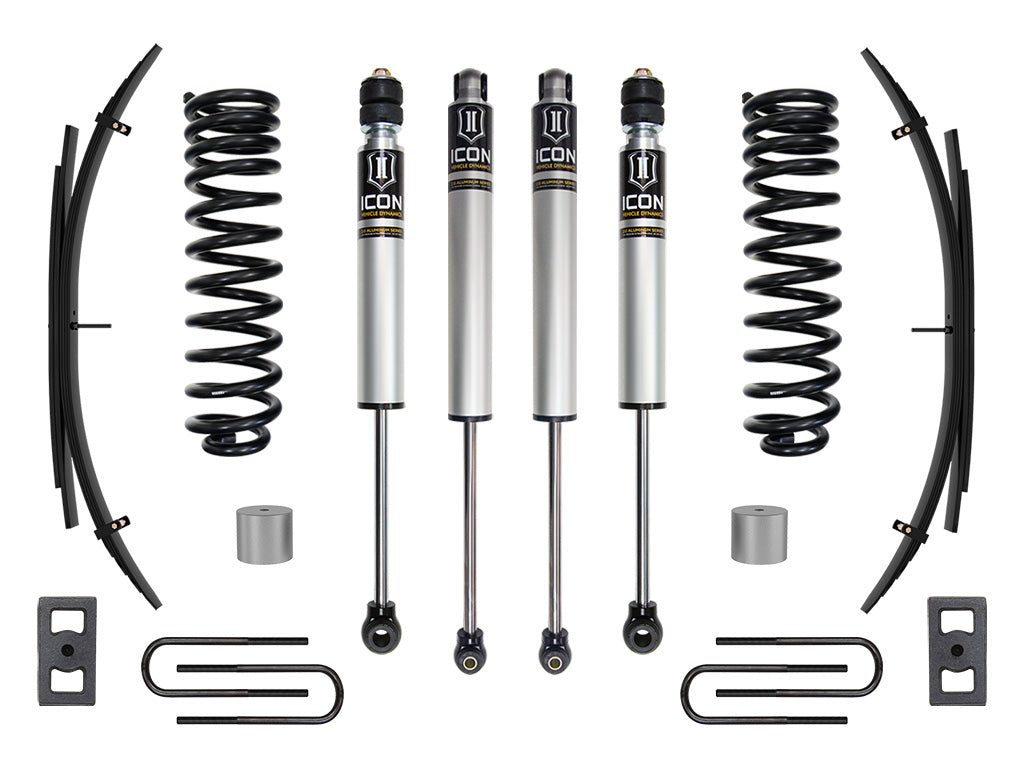

The ICON 2.5” suspension system is a great way to lift your 4WD 2023 Ford F-250/F-350 Super Duty while improving ride quality and performance. This entry level system is great for towing, rough construction site terrains, and country dirt roads all while keeping a smooth highway feel. ICON's Stage 1 System is comprised of dual rate coil springs optimized for trucks equipped with diesel engines, alignment cams for adding caster, rear leaf spring expansion packs with blocks and U-bolts for a more compliant ride and reduced axle wrap, and ICON 2.0 Aluminum Series internal reservoir shocks front and rear. With the endless hours ICON has spent testing and tuning our suspension components and shocks as a complete package, you can rest assured you have the best suspension solution on the market.

Features

ICON engineered dual rate coil springs provide 2.5” of front lift over stock
100% Bolt-on system - no drilling cutting or welding necessary for install
Vehicle specific tuned internal reservoir 2.0 Aluminum Series shocks
Application specific alignment cams ensure proper caster alignment
Leaf spring expansion packs and blocks for more compliant ride quality and reduced axle wrap
Increased wheel travel and improved ride quality over stock with no change in towing capacity
Less body-roll than stock
Lifetime guarantee that springs won’t sag or break
No drive shaft modifications required
Shocks are fully rebuildable and re-tunable

Oem wheels & tires fitment: yes; application note #115: lift heights based on 4wd crew cab diesel; application note #119: rare cases require a 2.
6 degree alignment cam on one side of vehicle for proper caster split; application note #151: fits single rear wheel models only; application note #155: requires recalibration of advanced driver assistance systems (adas) after install; application note #166: if equipped with dynamic bending headlamps and/or onboard scales part # 611081 is also required; application note #209: reduction in rear spring rate may reduce accuracy of onboard scales, if equipped; tech note: replaces oe rear blocks for .
5" of rear lift over stock on f-250.
Lowers f-350 rear ride height by .
5" compared to stock.
; tech note: will not fit 2024 models; tech note: trucks equipped with tremor package with have front lift height of 1.
5" over stock; tech note: brake line kit (part # 61111) is optional for end users who do not want to bend the factory steel lines or are looking for a braided stainless upgrade (not necessary for complete install); recommended aftermarket tires: 35" x 12.
50" (37" x 12.
50" tires may fit but fender trimming and modifications will be required.
); tech note: icon track bar bracket part # 64039 is also recommended to correct bump steer geometry; recommended aftermarket wheels: icon alloys - 17x8.
5" w/ 5” backspace / 6mm offset; recommended aftermarket wheels: icon alloys - 18x9" w/ 5.
25” backspace / 6mm offset; recommended aftermarket wheels: icon alloys - 20x9" w/ 5.
25” backspace / 6mm offset; application note #1: only fits 4wd models; application note #3: will not fit f-350/f-450 cab & chassis models; application note #6: springs are rated for diesel engines only; application note #30: an adjustable track bar may be needed to realign the axle from left to right, or to add additional strength

Quick SpecsOverview:

Maximum Lift Height Front: 2.5 IN
Maximum Lift Height Rear: .5 IN
Leaf Spring Material: Steel
Leaf Spring Color: Black
Spring Material: Steel
Bushings Included: Yes
Mounting Hardware Included: Yes
Spring Color: Black
Shocks Included: Yes
Grade Type: Performance
Coil Spring Color: Black
Coil Spring Material: Steel
Maximum Lift: 2.5 IN
Leaf Spring Leaf Quantity: 7
Coils Quantity Front: 2
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
Active or Passive Suspension: Passive
Add-On Part: 64039 - 08-25 FSD TRACK BAR BUMP STEER BRACKET KIT
Add-On Part: 611081 - F-SERIES DYNAMIC HEADLAMP REAR SENSOR KIT
Add-On Part: 61111 - 17-25 FSD FRONT 2.5" EXTENDED SS BRAKE LINE KIT
Add-On Part: 64038 - 17-25 FSD ADJ TRACK BAR KIT
Adjustable Compression: No
Adjustable Damping: No
Adjustable Rebound: No
California Prop 65 Warning: Yes
California Proposition 65: WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
Coil Quantity Front: 2
Dual Rate Coil Springs: Yes
Front Reservoir Style: Internal
Front Shock Body Diameter: 2 IN
Front Spring Rate Type: Progressive Dual Rate
Maximum Lift Front: 2.5 IN
Maximum Lift Rear: 2 IN
Minimum Lift Front: 1.5 IN
OEM Wheels &
Tires Fitment: Yes
Rear Reservoir Style: Internal
Rear Shock Body Diameter: 2 IN
Recommended Aftermarket Tires: 35" x 12.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5” Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.25” Backspace / 6mm Offset
Title: ICON 2023 Ford F-250/F-350 Super Duty 4WD Diesel 2.5" Lift Stage 1 Suspension System w/ Expansion Packs
