ICON 2023 Ford F-250/F-350 Super Duty 4WD Diesel, 2.5" Lift, Stage 1 Suspension System

Name: ICON 2023 Ford F-250/F-350 Super Duty 4WD Diesel, 2.5" Lift, Stage 1 Suspension System
Brand: ICON Vehicle Dynamics
SKU: K62561
Price: 1209.3 USD
Availability: InStock

ICON 2023 Ford F-250/F-350 Super Duty 4WD Diesel, 2.5" Lift, Stage 1 Suspension System

PART #

$1,209.30

SALE CALL OR CHAT TO ORDER

Shipping calculated at checkout.

Product variants

Quantity

Inventory: In Stock

View full details

Important: Always read the entire product description, including Important Notes and Fitment information, before making a purchase. Components contained in images and descriptions may change based upon your selections.

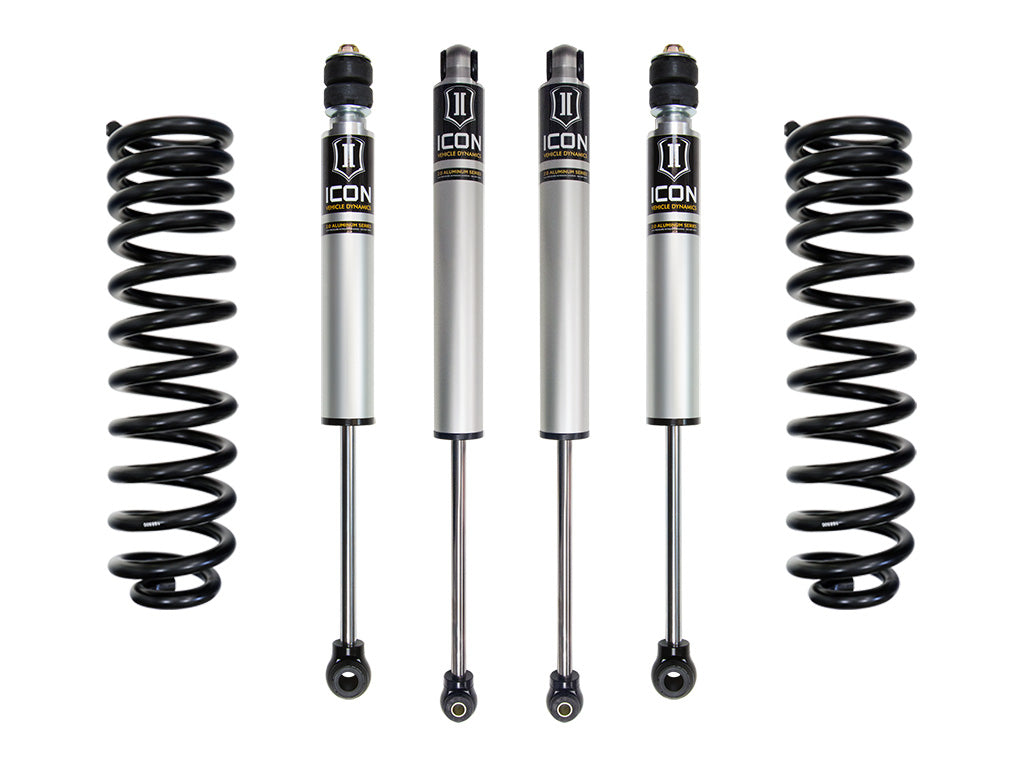

This ICON Vehicle Dynamics 2.5” suspension system is a great way to level your 4WD 2023 Ford F-250/F-350 Super Duty while drastically improving ride quality and performance. This entry level system is perfect for on-road and towing use, as well as mild off-road use like job site duty and washboard gravel roads. ICON's Stage 1 System is comprised of dual rate coil springs optimized for trucks equipped with diesel engines, alignment cams, and ICON 2.0 Aluminum Series front and rear shocks. With the endless hours ICON has spent testing and tuning our suspension components and shocks as a complete package, you can rest assured you have the best suspension solution on the market.

Features

Fits 2023 F-250 / F-350 4WD diesel applications
Approximately 25% increased front wheel travel over stock
ICON-engineered dual rate coil springs deliver exceptional vehicle control over varying terrain
ICON shocks feature vehicle specific tune for superior performance and ride quality
Shocks are fully rebuildable and revalvable
Corrosion resistant anodized shock bodies with 5/8" shafts
Lifetime guarantee against coil spring breakage or sag
Lifetime guarantee against ICON fabricated component breakage or manufacturer defect

Oem wheels & tires fitment: yes; application note #115: lift heights based on 4wd crew cab diesel; application note #119: rare cases require a 2.
6 degree alignment cam on one side of vehicle for proper caster split; application note #155: requires recalibration of advanced driver assistance systems (adas) after install; tech note: will not fit 2024 models; tech note: trucks equipped with tremor package with have front lift height of 1.
5" over stock; tech note: brake line kit (part # 61111) is optional for end users who do not want to bend the factory steel lines or are looking for a braided stainless upgrade (not necessary for complete install); tech note: icon track bar bracket part # 64039 is also recommended to correct bump steer geometry; tech note: included rear shocks are compatible with 0-2" of rear lift over stock; recommended aftermarket tires: 35" x 12.
50" (larger tires may fit but fender trimming and modifications will be required.
); recommended aftermarket wheels: icon alloys - 17x8.
5" w/ 5” backspace / 6mm offset; recommended aftermarket wheels: icon alloys - 18x9" w/ 5.
25” backspace / 6mm offset; recommended aftermarket wheels: icon alloys - 20x9" w/ 5.
25” backspace / 6mm offset; application note #1: only fits 4wd models; application note #3: will not fit f-350/f-450 cab & chassis models; application note #6: springs are rated for diesel engines only; application note #30: an adjustable track bar may be needed to realign the axle from left to right, or to add additional strength

Quick SpecsOverview:

Maximum Lift Height Front: 2.5 IN
Spring Material: Steel
Bushings Included: Yes
Mounting Hardware Included: Yes
Spring Color: Black
Shocks Included: Yes
Grade Type: Performance
Coil Spring Color: Black
Coil Spring Material: Steel
Maximum Lift: 2.5 IN
Coils Quantity Front: 2
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
Active or Passive Suspension: Passive
Add-On Part: 61111 - 17-25 FSD FRONT 2.5" EXTENDED SS BRAKE LINE KIT
Add-On Part: 64039 - 08-25 FSD TRACK BAR BUMP STEER BRACKET KIT
Adjustable Compression: No
Adjustable Damping: No
Adjustable Rebound: No
California Prop 65 Warning: Yes
California Proposition 65: WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
Coil Quantity Front: 2
Dual Rate Coil Springs: Yes
Front Reservoir Style: Internal
Front Shock Body Diameter: 2 IN
Front Spring Rate Type: Progressive Dual Rate
Minimum Lift Front: 1.5 IN
OEM Wheels &
Tires Fitment: Yes
Rear Reservoir Style: Internal
Rear Shock Body Diameter: 2 IN
Recommended Aftermarket Tires: 35" x 12.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.25” Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5” Backspace / 6mm Offset
Title: ICON 2023 Ford F-250/F-350 Super Duty 4WD Diesel 2.5" Lift Stage 1 Suspension System

Additional Specifications:

Country of Origin: US
Warranty: 1 Year-Shocks; Limited Lifetime-Coil Springs
Weight (lbs): 80.0
Vehicle Specific Fitment: Y

Instructions

I62512_REVA.pdf

Fitment

: N/A
