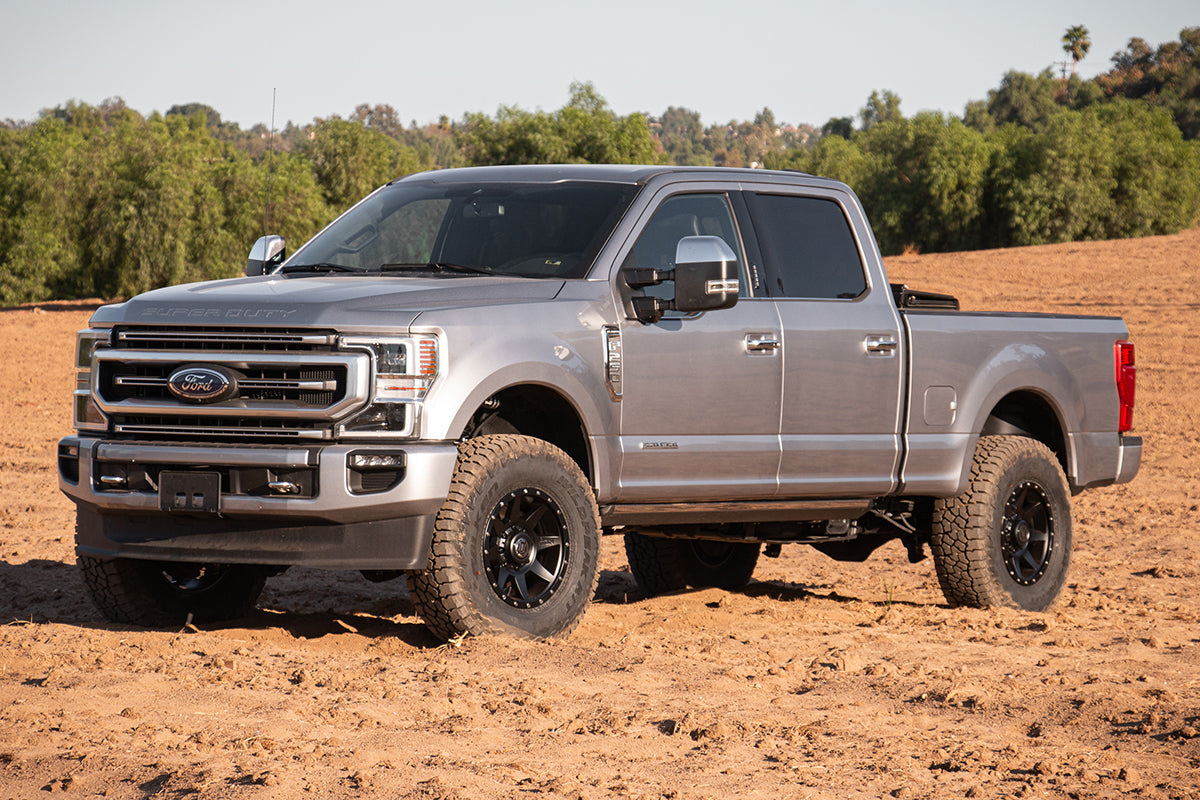

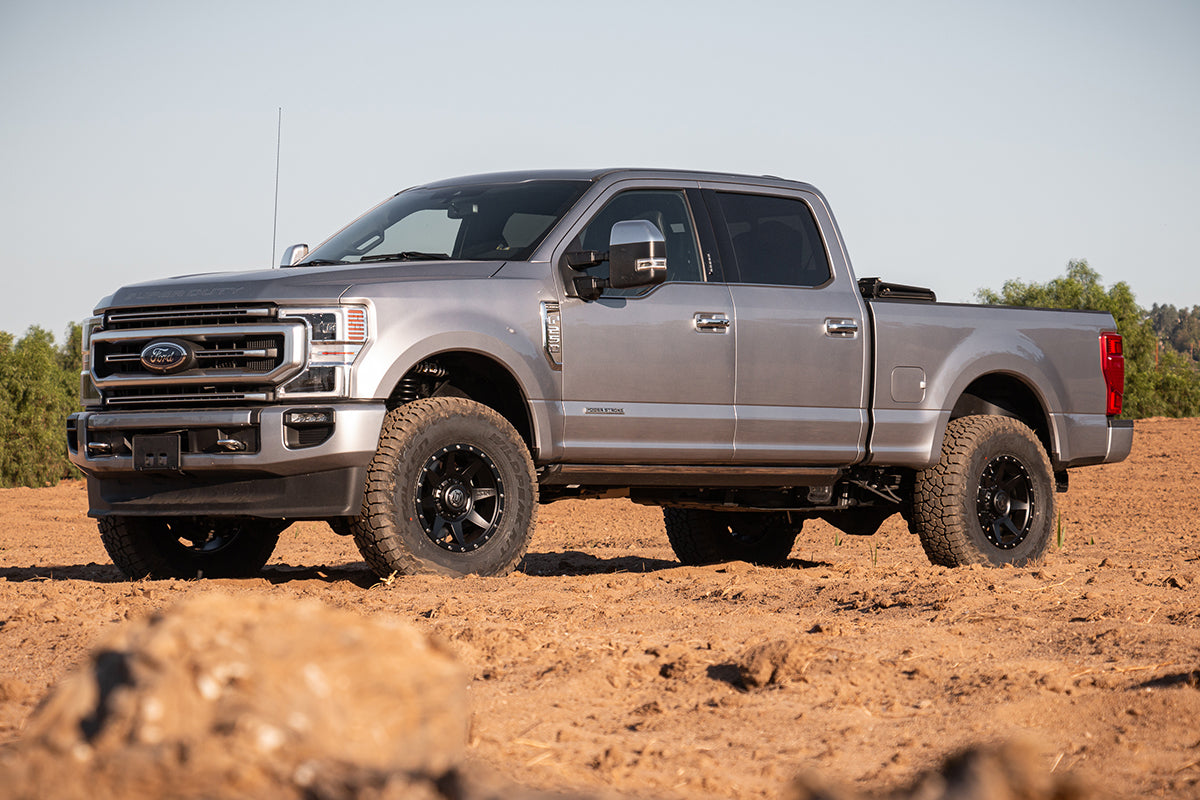

ICON 2020-2022 Ford F-250/F-350 Super Duty 4WD Diesel, 2.5" Lift, Stage 2 Suspension System
ICON 2020-2022 Ford F-250/F-350 Super Duty 4WD Diesel, 2.5" Lift, Stage 2 Suspension System
PART #
- Front lift 2.5"
- Shocks included
Couldn't load pickup availability
- Free shippingmost orders $500+
- 30-day returnssee policy
- Warranty helpwe work claims for you
Important notes before you order
- Oem wheels & tires fitment: not compatible with all available oe wheel/tire combinations.
- Aftermarket wheels with lower offset/less backspace recommended.
- tech note: trucks equipped with tremor package with have front lift height of 1.
- 5" over stock; tech note: not compatible with f-350 cab & chassis models; tech note: icon track bar bracket part # 64039 is also recommended to correct bump steer geometry; tech note: brake line kit (part # 61111) is optional for end users who do not want to bend the factory steel lines or are looking for a braided stainless upgrade (not necessary for complete install); tech note: included rear shocks are compatible with 0-3" of rear lift over stock; recommended aftermarket wheels: icon alloys - 17x8.
- 5" w/ 5” backspace / 6mm offset; recommended aftermarket wheels: icon alloys - 18x9" w/ 5.
- 25” backspace / 6mm offset; recommended aftermarket wheels: icon alloys - 20x9" w/ 5.
- 25” backspace / 6mm offset; recommended aftermarket tires: 35" x 12.
- 50" (larger tires may fit but fender trimming and modifications will be required.
- ); application note #6: springs are rated for diesel engines only; application note #30: an adjustable track bar may be needed to realign the axle from left to right, or to add additional strength; application note #115: lift heights based on 4wd crew cab diesel; application note #119: rare cases require a 2.
- 6 degree alignment cam on one side of vehicle for proper caster split
TRU specialist notes
From the Trucks R Us fitment and install team, beyond the manufacturer's information.
- Plan for a professional wheel alignment after installing any lift or leveling kit.
- Going to bigger tires as well? Speedometer recalibration may be needed, and some tire and wheel combinations need trimming. Check the recommended wheels and tires, or ask us before you order.
Specifications
| Brand | ICON Vehicle Dynamics |
|---|---|
| Part number | K62522 |
| Front Lift Height | 2.5" |
| Spring Material | Steel |
| Bushings Included | Yes |
| Mounting Hardware Included | Yes |
| Spring Color | Black |
| Shocks Included | Yes |
| Grade Type | Performance |
| Maximum Lift | 2.5 IN |
| Coils Quantity Front | 2 |
| Add-On Part | 64039 - 08-25 FSD TRACK BAR BUMP STEER BRACKET KIT |
| Dual Rate Coil Springs | Yes |
| Recommended Aftermarket Wheels | ICON Alloys - 20x9" w/ 5.25” Backspace / 6mm Offset |
| Country of Origin | US |
| Warranty | 1 Year-Shock Absorbers; Limited Lifetime-Coil Springs |
| Weight (lbs) | 113 |
California Proposition 65 warning applies to this product. www.P65Warnings.ca.gov
Features
- Fits 2020-2022 F-250 / F-350 4WD diesel applications
- Approximately 25% increased front wheel travel over stock
- ICON-engineered dual rate coil springs deliver exceptional vehicle control over varying terrain
- ICON shocks feature vehicle specific tune for superior performance and ride quality
- Shocks are fully rebuildable and revalvable
- Hard anodized corrosion resistant one-piece impact extruded aluminum shock bodies with 7/8" shafts
- FK Rod End bearings provide extended longevity and minimal deflection
- Lifetime guarantee against coil spring breakage or sag
Installation
Free install support from the Trucks R Us tech team, for you or your shop.
Overview

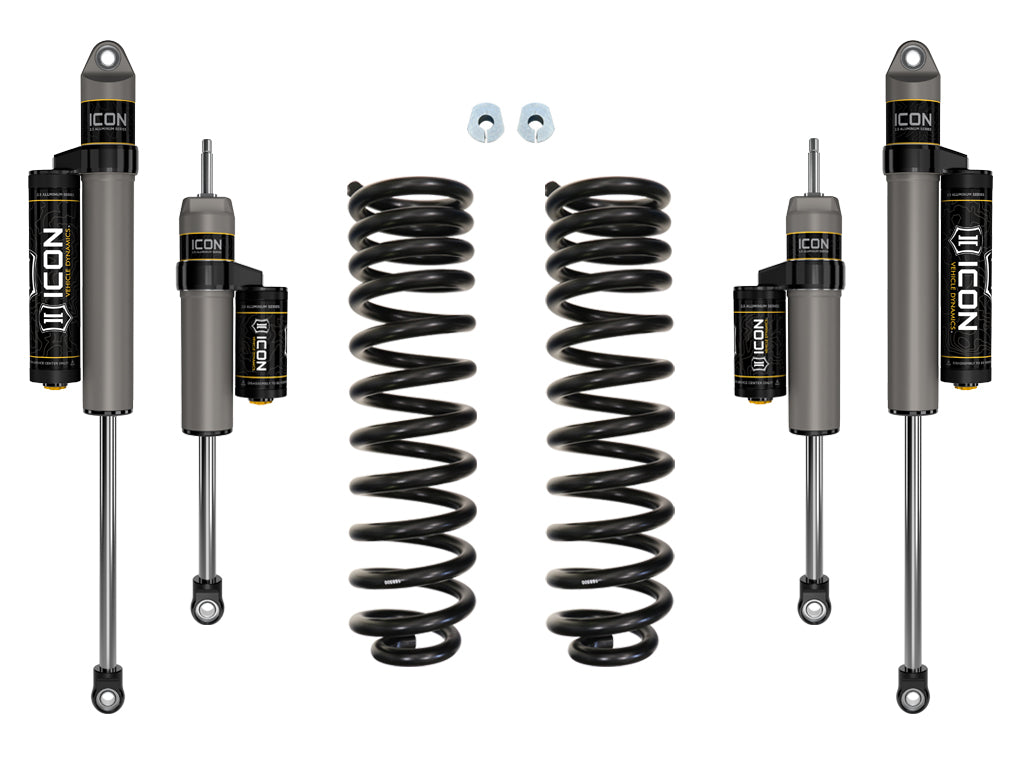

This ICON Vehicle Dynamics 2.5” suspension system is a great way to level your 4WD 2020-2022 Ford F-250/F-350 Super Duty while drastically improving ride quality and performance. The Stage 2 system is perfect for on-road and off-road use including towing, job site duty and general off-road adventure. ICON's Stage 2 System is comprised of dual rate coil springs, alignment cams, and ICON 2.5 Aluminum Series front and rear piggyback reservoir shocks. With the endless hours ICON has spent testing and tuning our suspension components and shocks as a complete package, you can rest assured you have the best suspension solution on the market.
Questions
Will this fit my truck?
Select your truck at the top of the page and the fit check will confirm it. If your exact trim is not listed, call 866-235-4715 or live chat and a fitment specialist will check it before you order.
Do you help with installation?
Yes. Our technical team helps you or your shop with installation and troubleshooting after delivery, on top of the manufacturer’s support.
What if the part has a problem?
We work the warranty claim with the manufacturer on your behalf, within the manufacturer’s warranty policy.
Can I return it?
Most items can be returned within 30 days. See our return policy for details.
Do I need an alignment after installing?
Yes. Any lift or leveling kit changes suspension geometry, so get a professional alignment after installation.
