ICON 2017-2019 Ford F-250/F-350 Super Duty 4WD Diesel, 2.5" Lift, Stage 3 Suspension System

Name: ICON 2017-2019 Ford F-250/F-350 Super Duty 4WD Diesel, 2.5" Lift, Stage 3 Suspension System
Brand: ICON Vehicle Dynamics
SKU: K62513
Price: 3487.8 USD
Availability: InStock

ICON 2017-2019 Ford F-250/F-350 Super Duty 4WD Diesel, 2.5" Lift, Stage 3 Suspension System

PART #

$3,487.80

SALE CALL OR CHAT TO ORDER

Shipping calculated at checkout.

Product variants

Quantity

Inventory: Low (Live-Chat or Call For Stock)

View full details

Important: Always read the entire product description, including Important Notes and Fitment information, before making a purchase. Components contained in images and descriptions may change based upon your selections.

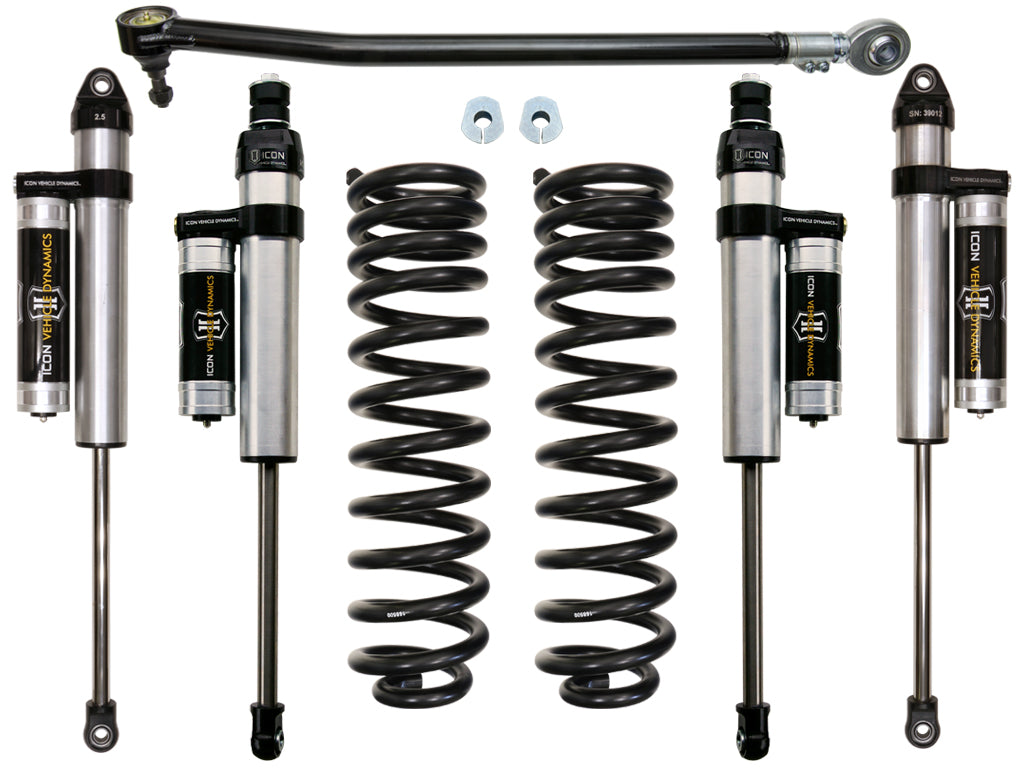

This ICON Vehicle Dynamics 2.5” suspension system is a great way to level your 4WD 2017-2019 Ford F250/350 Super Duty while drastically improving ride quality and performance. The Stage 3 system is perfect for on-road and off-road use including towing, job site duty and spirited off-road adventure. ICON's Stage 3 System is comprised of dual rate coil springs, alignment cams, ICON 2.5 Aluminum Series front and rear piggyback reservoir shocks, and an adjustable track bar designed specifically for the 2017-UP Super Duty. With the endless hours ICON has spent testing and tuning our suspension components and shocks as a complete package, you can be rest assured you have the best suspension solution on the market.

Features

Fits 2017-2019 F250 / F350 4WD applications
Approximately 25% increased front wheel travel over stock
ICON-engineered dual rate coil springs deliver exceptional vehicle control over varying terrain
ICON shocks feature vehicle specific tune for superior performance and ride quality
Shocks are fully rebuildable and revalvable
Corrosion resistant one-piece impact extruded aluminum shock bodies with 7/8" shafts
FK Rod End bearings provide extended longevity and minimal deflection
Lifetime guarantee against coil spring breakage or sag
Lifetime guarantee against ICON fabricated component breakage or manufacturer defect

Oem wheels & tires fitment: not compatible with all available oe wheel/tire combinations.
Aftermarket wheels with lower offset/less backspace recommended.
; tech note: brake line kit (part # 61111) is optional for end users who do not want to bend the factory steel lines or are looking for a braided stainless upgrade (not necessary for complete install); tech note: not compatible with f-350 cab & chassis models; tech note: icon track bar bracket part # 64039 is also recommended to correct bump steer geometry; tech note: included rear shocks are compatible with 0-3" of rear lift over stock; recommended aftermarket wheels: icon alloys - 17x8.
5" w/ 5.
00” backspace / 6mm offset; recommended aftermarket wheels: icon alloys - 18x9" w/ 5.
25” backspace / 6mm offset; recommended aftermarket wheels: icon alloys - 20x9" w/ 5.
25” backspace / 6mm offset; recommended aftermarket tires: 35" x 12.
50" (larger tires may fit but fender trimming and modifications will be required.
); application note #6: springs are rated for diesel engines only; application note #55: shocks are fully serviceable.
Coilover heights indicated are for a stock equipped vehicle; application note #119: rare cases require a 2.
6 degree alignment cam on one side of vehicle for proper caster split; tech note: compatible with 4wd models only

Quick SpecsOverview:

Spring Material: Steel
Bushings Included: Yes
Mounting Hardware Included: Yes
Spring Color: Black
Shocks Included: Yes
Grade Type: Performance
Maximum Lift: 2.5 IN
Coils Quantity Front: 2
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
Add-On Part: 64039 - 08-25 FSD TRACK BAR BUMP STEER BRACKET KIT
Add-On Part: 61111 - 17-25 FSD FRONT 2.5" EXTENDED SS BRAKE LINE KIT
Add-On Part: 191014 - .25" COLLAR SPANNER PIN WRENCH
California Prop 65 Warning: Yes
California Proposition 65: WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
Dual Rate Coil Springs: Yes
OEM Wheels &
Tires Fitment: Yes
Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5” Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.25” Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset
Title: ICON 2017-2019 Ford F-250/F-350 Super Duty 4WD Diesel 2.5" Lift Stage 3 Suspension System

Additional Specifications:

Country of Origin: US
Warranty: See Rep
Weight (lbs): 133.0
Vehicle Specific Fitment: Y

Instructions

I37705P_REVB.pdf

Fitment

: N/A
