ICON Vehicle Dynamics

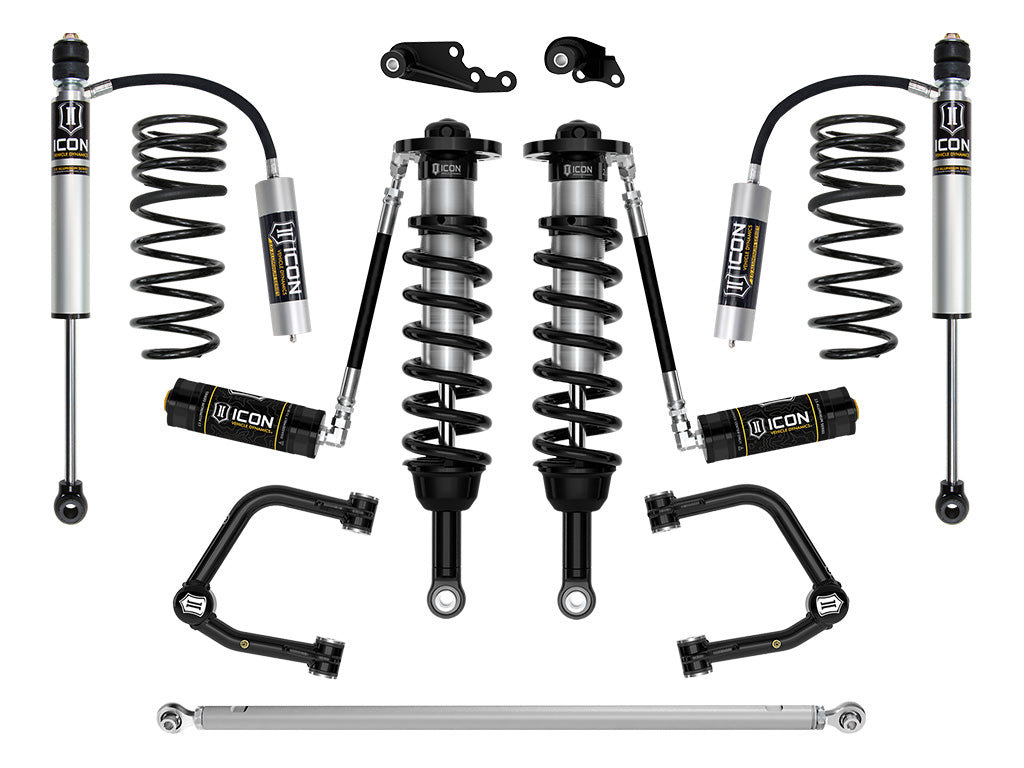

ICON 2024-2026 Lexus GX550, 1.25-3" Lift, Stage 4 Suspension System, Tubular

ICON 2024-2026 Lexus GX550, 1.25-3" Lift, Stage 4 Suspension System, Tubular

PART #

$4,183.35
$4,183.35
SALE CALL OR CHAT TO ORDER
Shipping calculated at checkout.

Inventory: Special Order (Live Chat or Call)
View full details

Important: Always read the entire product description, including Important Notes and Fitment information, before making a purchase. Components contained in images and descriptions may change based upon your selections.

The included ICON tubular upper control arm kit is designed to improve the overall performance of the GX550 with corrected front-end geometry, built in additional caster, and improved suspension component clearance. Additionally, replacing the OE ball joint with the all-new, serviceable, and rebuildable ICON Delta Joint PRO allows for full bump and droop travel of the front suspension while eliminating bind. The dual-rate rear coil design provides a softer ride height spring rate with a firmer overload rate that combine to deliver on-road comfort with excellent bottoming resistance and superior off-road performance. 2” of rear lift height over stock allows a for level stance front to rear. The ICON Billet Adjustable Rear Track Bar helps re-center the rear axle and double adjuster rod end threads allow easy “on-vehicle” fine adjustment of track bar length without requiring removal or disassembly of the track bar. ICON 2.0 Aluminum Series remote reservoir rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2024-2026 Lexus GX550 Stage 4 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.

Features

  • 2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling
  • Dual rate rear coil springs improve performance and ride quality while providing 2" of rear lift
  • FK Rod End bearings for extended longevity and minimal deflection
  • 2.0 Aluminum Series remote reservoir rear shocks with 5/8" shafts
  • Increased wheel travel and improved ride quality over stock
  • Front differential drop provides better maximum operating angle for CV joints and maximizes available wheel travel
  • Adjustable coilovers provide 1.25-3" front lift height over stock
  • Tubular UCAs for added strength durability and alignment correction for better drivability
  • UCAs feature the patented (U.S. Pat. 10 731 700) Delta Joint Pro with 90 degrees of total articulation
  • 6061 aircraft grade aluminum CNC machined components
  • Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
  • On-vehicle adjustable billet aluminum rear track bar properly centers rear axle while also improving rear suspension performance
