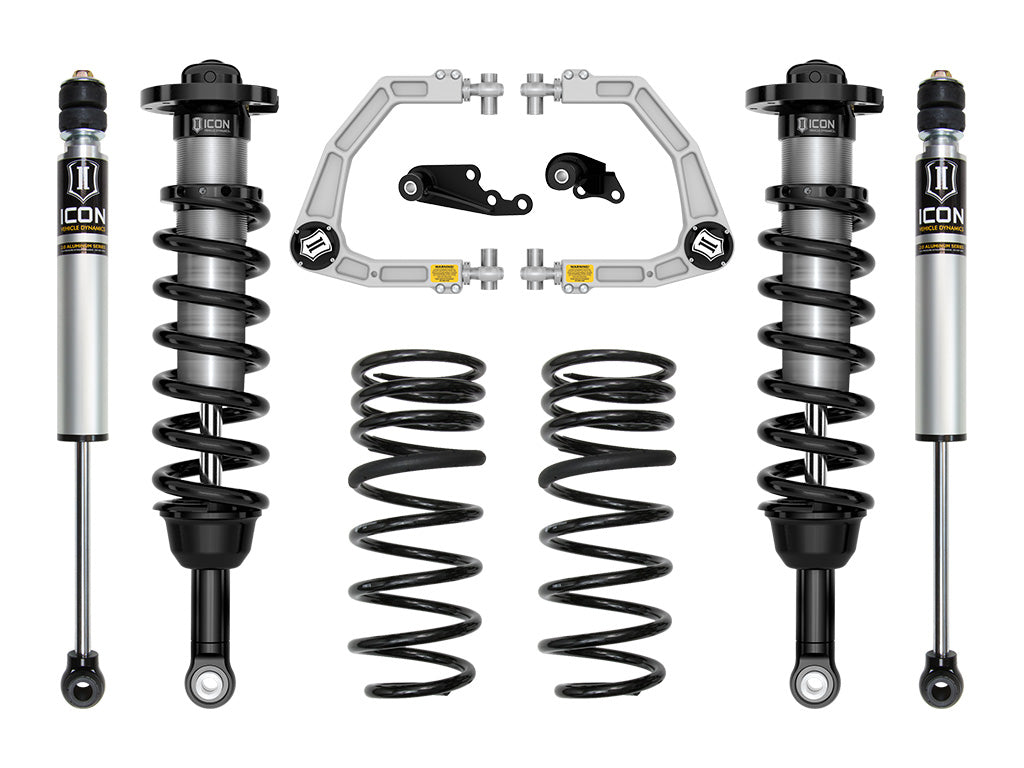

ICON 2024-2026 Lexus GX550, 1.25-3" Lift, Stage 2 Suspension System, Billet

Name: ICON 2024-2026 Lexus GX550, 1.25-3" Lift, Stage 2 Suspension System, Billet
Brand: ICON Vehicle Dynamics
SKU: K53352
Price: 3778.74 USD
Availability: InStock

ICON 2024-2026 Lexus GX550, 1.25-3" Lift, Stage 2 Suspension System, Billet

PART #

$3,778.74

SALE CALL OR CHAT TO ORDER

Shipping calculated at checkout.

Product variants

Quantity

Inventory: Low (Live-Chat or Call For Stock)

View full details

Important: Always read the entire product description, including Important Notes and Fitment information, before making a purchase. Components contained in images and descriptions may change based upon your selections.

The included ICON billet aluminum upper control arm kit is designed to improve the overall performance of the GX550 with corrected front-end geometry, increased on-vehicle camber and caster adjustment, and improved suspension component clearance. Additionally, replacing the OE ball joint with the all-new, serviceable, and rebuildable ICON Delta Joint PRO allows for full bump and droop travel of the front suspension while eliminating bind. The dual-rate rear coil design provides a softer ride height spring rate with a firmer overload rate that combine to deliver on-road comfort with excellent bottoming resistance and superior off-road performance. 2” of rear lift height over stock allows a for level stance front to rear. ICON 2.0 Aluminum Series internal reservoir rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2024-2026 Lexus GX550 Stage 2 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.

Features

Vehicle specific tuned front and rear shocks for superior shock damping and control
FK Rod End bearings for extended longevity and minimal deflection
2.0 Aluminum Series internal reservoir rear shocks with 5/8" shafts
Increased wheel travel and improved ride quality over stock
Front differential drop provides better maximum operating angle for CV joints and maximizes available wheel travel
Adjustable coilovers provide 1.25-3" front lift height over stock
Billet aluminum UCAs for added strength durability and on-vehicle caster/camber adjustment for optimum drivability
UCAs feature the patented (U.S. Pat. 10 731 700) Delta Joint Pro with 90 degrees of total articulation
6061 aircraft grade aluminum CNC machined components
Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
Dual rate rear coil springs improve performance and ride quality while providing 2" of rear lift

Oem wheels & tires fitment: yes; application note #175: will not fit gx550 overtrail; recommended aftermarket wheels: 17x8.
5 with 6.
32” backspace / 40mm offset; recommended aftermarket wheels: icon alloys - 18x9 with 6.
6” backspace / 40mm offset; recommended aftermarket tires: 34" x 11.
50" (larger tires may fit but fender trimming and modifications will be required.
); application note #30: an adjustable track bar is recommended to realign the axle but not required; application note #55: shocks are fully serviceable.
Lift heights indicated are for a stock equipped vehicle.
; application note #85: advertised lift height ranges are for a stock equipped vehicle.
Increasing weight of vehicle due to accessories will alter lift range.
; application note #153: not compatible with adaptive variable suspension (avs) equipped vehicles; application note #155: requires recalibration of advanced driver assistance systems (adas) after install

Quick SpecsOverview:

Maximum Lift Height Front: 3 IN
Maximum Lift Height Rear: 2 IN
Spring Material: Steel
Bushings Included: Yes
Mounting Hardware Included: Yes
Spring Color: Black
Shocks Included: Yes
Grade Type: Performance
Coil Spring Color: Black
Coil Spring Material: Steel
Maximum Lift: 3 IN
Coils Quantity Front: 2
Coils Quantity Rear: 2
Front Spring Rate Type: Linear
Active or Passive Suspension: Passive
Add-On Part: 54202 - 22-25 TUNDRA/23-25 SEQUOIA/24-25 TACO/LC250/GX550/25 T4R BLT ADJ TRACK BAR
Add-On Part: 191014 - .25" COLLAR SPANNER PIN WRENCH
Add-On Part: 54102 - 22-25 TUNDRA/23-25 SEQUOIA/24-25 TACO/LC250/GX550/25 T4R BLT UPR LINK KIT
Add-On Part: 198001 - BILLET SPANNER WRENCH KIT
Add-On Part: 191013 - NIPPLE GREASING ADAPTER KIT
Add-On Part: 54003 - 24-25 LC250/24-25 GX550/25 4RUNNER BILLET REAR LOWER LINK KIT
Add-On Part: 191009 - ICON LONG 2.5 COIL WRAP W/LOGO (14.5-15.5)
Add-On Part: 198000 - 2 PIN COILOVER SPANNER WRENCH KIT
Add-On Part: 56100 - 07-14 FJ/03-25 4RUNNER/22-25 TUNDRA/23-25 SEQUOIA REAR SHIN GUARDS
Add-On Part: 56118 - 24-25 GX550 FRONT SKID PLATE KIT
Add-On Part: 56119 - 24-25 GX550 TRANS SKID PLATE KIT
Add-On Part: 56124 - 24-25 LEXUS GX550 FRONT FASCIA
Adjustable Compression: No
Adjustable Control Arm: Yes
Adjustable Damping: No
Adjustable Rebound: No
California Prop 65 Warning: Yes
California Proposition 65: WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
Coil Quantity Front: 2
Front Reservoir Style: Internal
Front Shock Body Diameter: 2.5 IN
Maximum Lift Front: 3 IN
Maximum Lift Rear: 2 IN
Minimum Lift Front: 1.25 IN
OEM Wheels &
Tires Fitment: Yes
Rear Reservoir Style: Internal
Rear Shock Body Diameter: 2 IN
Rear Spring Rate Type: Progressive Dual Rate
Recommended Aftermarket Tires: 34" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
Recommended Aftermarket Wheels: ICON Alloys - 18x9 with 6.6” Backspace / 40mm Offset
Recommended Aftermarket Wheels: 17x8.5 with 6.32” Backspace / 40mm Offset
Title: ICON 2024-2025 Lexus GX550 1.25-3" Lift Stage 2 Suspension System Billet

Additional Specifications:

Country of Origin: US
Warranty: 1 Year- Shock Absorbers, Delta Joint Pros; Limited Lifetime-Coil Springs, Control Arms; Excludes Wearable Items
Weight (lbs): 156.0
Vehicle Specific Fitment: Y
