ICON Vehicle Dynamics

ICON 2022-2026 Toyota Tundra, 6" Lift, Stage 1 Suspension System

ICON 2022-2026 Toyota Tundra, 6" Lift, Stage 1 Suspension System

PART #

Regular price $3,538.94
Regular price B2B price $3,538.94
SALE CALL OR CHAT TO ORDER
Shipping calculated at checkout.

Inventory: Special Order (Live Chat or Call)

View full details

Important: Always read the entire product description, including Features, Important Notes, Specifications, and Fitment data, before making a purchase. Components contained in images and descriptions may change based upon your selections.

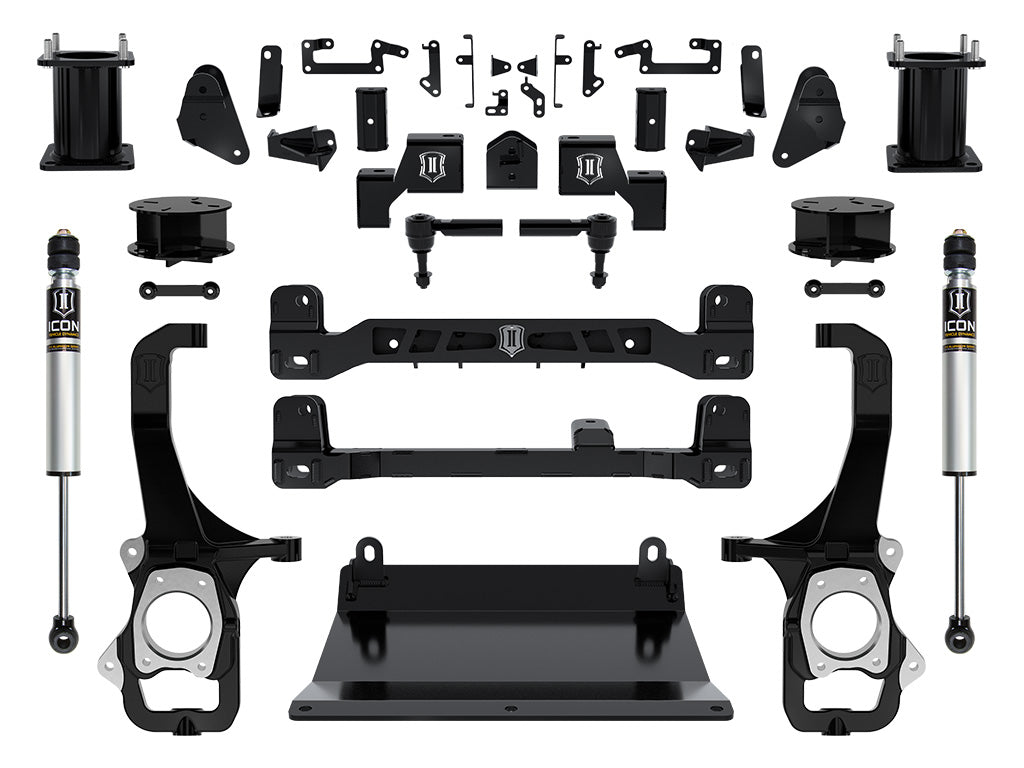

The ICON Vehicle Dynamics Stage 1 6" Suspension System is the ideal entry point into ICON's premium suspension lineup for the 2022-2026 Toyota Tundra, delivering the clearance, strength, and suspension geometry needed to fit 37-inch tires while maintaining outstanding on- and off-road performance. Designed to preserve factory track width and optimize steering geometry, the system achieves a full 6 inches of front lift with only 4 inches of crossmember drop, minimizing CV joint angles while maximizing ground clearance and suspension travel. Heavy-duty steel front coilover spacers work with the factory front coilovers, while a rear coil spring spacer kit retains the OE rear springs for an economical, well-balanced lift. High-strength, one-piece ductile iron steering knuckles, high-clearance 1/4-inch CNC laser-cut and brake-formed steel crossmembers, and an integrated front skid plate provide exceptional durability for demanding off-road use. Included sway bar drop brackets, front and rear heavy-duty bump stop brackets, improved rear sway bar links and mounts, and a rear track bar bracket work together to reduce suspension bind and maintain proper geometry throughout suspension travel. High-angle outer tie rods with greaseable metal-on-metal rod ends improve steering durability and articulation, while ICON 2.0 Aluminum Series rear shocks deliver enhanced damping performance and control over stock. As with every ICON 6" Tundra Suspension System, Stage 1 is engineered as a complete, vehicle-specific package that delivers excellent ride quality, confident handling, and uncompromising off-road capability.

Features

  • Optimized design to fit 37" tires with full articulation (larger tires may fit but fender trimming and modifications will be required)
  • 2.0 Aluminum Series rear shocks to improve rear suspension performance
  • Rear coil spring spacer kit to provide lift while retaining factory rear coil springs
  • Improved rear sway bar links and mounts and rear track bar bracket to reduce bind in the rear suspension
  • Maintains factory track width
  • Front coilover spacer kit with heavy duty steel construction
  • Provides 6" front suspension lift with only 4" of crossmember drop
  • Single piece high-strength ductile iron steering knuckles with built-in 4" drop
  • Hight clearance front crossmembers and front skid plate CNC Laser Cut and brake-formed from 1/4-inch steel plate
  • Included sway bar drop brackets reduce bind in OE sway bar links
  • Front and rear heavy-duty bump stop brackets
  • High angle outer tie-roads feature durable metal on metal greaseable tie rod ends
