ICON 2023-2025 Toyota Sequoia, 0-2.13" Lift, Stage 2 Suspension System, Tubular UCA

Name: ICON 2023-2025 Toyota Sequoia, 0-2.13" Lift, Stage 2 Suspension System, Tubular UCA
Brand: ICON Vehicle Dynamics
SKU: K53232T
Price: 2863.34 USD
Availability: OutOfStock

ICON 2023-2025 Toyota Sequoia, 0-2.13" Lift, Stage 2 Suspension System, Tubular UCA

PART #

$2,863.34

SALE Backordered

Shipping calculated at checkout.

Product variants

Quantity

Inventory: Special Order (Live Chat or Call)

View full details

Important: Always read the entire product description, including Important Notes and Fitment information, before making a purchase. Components contained in images and descriptions may change based upon your selections.

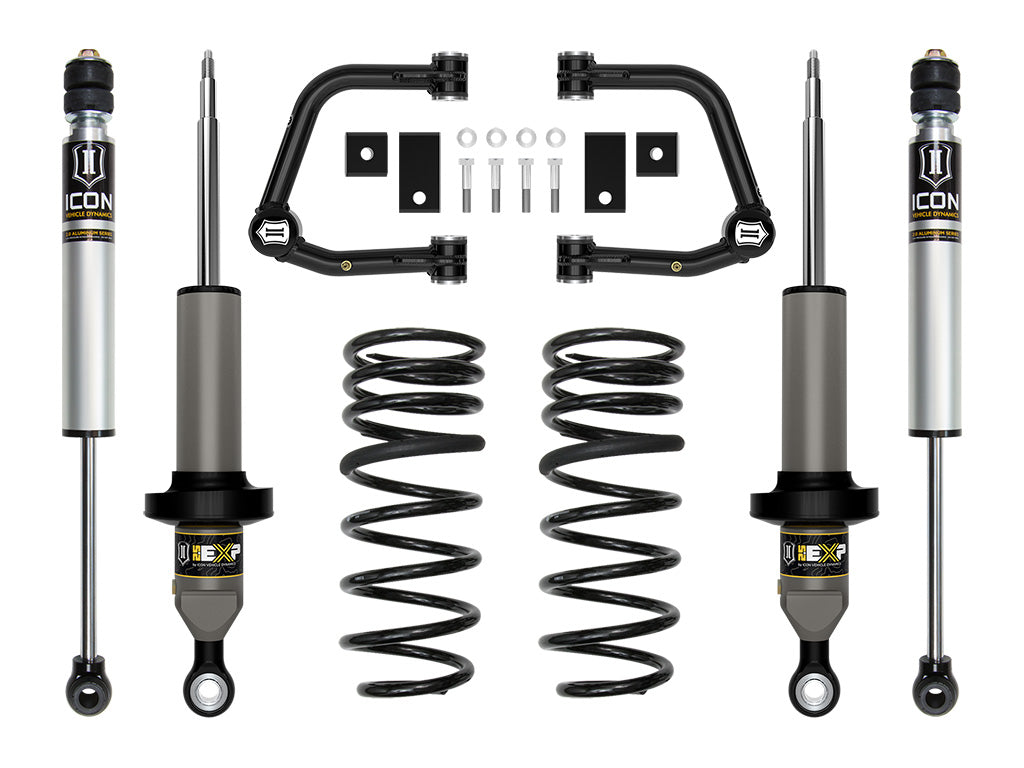

The ICON Vehicle Dynamics Stage 2 complete suspension system for the 2023-2025 Toyota Sequoia builds on ICON's 2.5 EXP Shock Kit with the addition of tubular front upper control arms providing proper alignment at any ride height improved on- and off-road performance as well as front-end lift and leveling for a proper stance and fitment of up to 35" tires. This system features the innovative new 2.5 EXP series coilover shocks and sway bar drop kit for the front of the truck along with dual rate coil springs and our proven 2.0 nitrogen charged monotube shocks with internal reservoirs for the rear.

This Stage 2 system features the 2023-2025 Toyota Sequoia EXP Series front shock absorbers that combine the performance of a fully rebuildable 2.5-inch diameter premium shock absorber with the convenience and cost-benefits of re-using the Sequoia’s factory coil spring and other components. EXP bridges the gap between spacer lifts and threaded bodied coilovers providing suspension lift custom-tuned performance and maximum travel all in an economical package.

The included ICON tubular upper control arm kit is designed to improve the overall performance of the new 2023-2025 Toyota Sequoia with corrected front-end geometry built in additional caster and improved suspension component clearance. Additionally replacing the OE ball joint with the all-new serviceable and rebuildable ICON Delta Joint PRO allows for full bump and droop travel of the front suspension while eliminating bind.

The included sway bar drop brackets help minimize sway bar link bind through the suspension travel range. This helps the suspension move more freely and allows for the full range of wheel travel without overstressing any OE components.

The dual-rate rear coil design provides a softer ride height spring rate with a firmer overload rate that combine to deliver on-road comfort with excellent bottoming resistance and superior off-road performance. 2” of rear lift height over stock allows a for level stance front to rear.

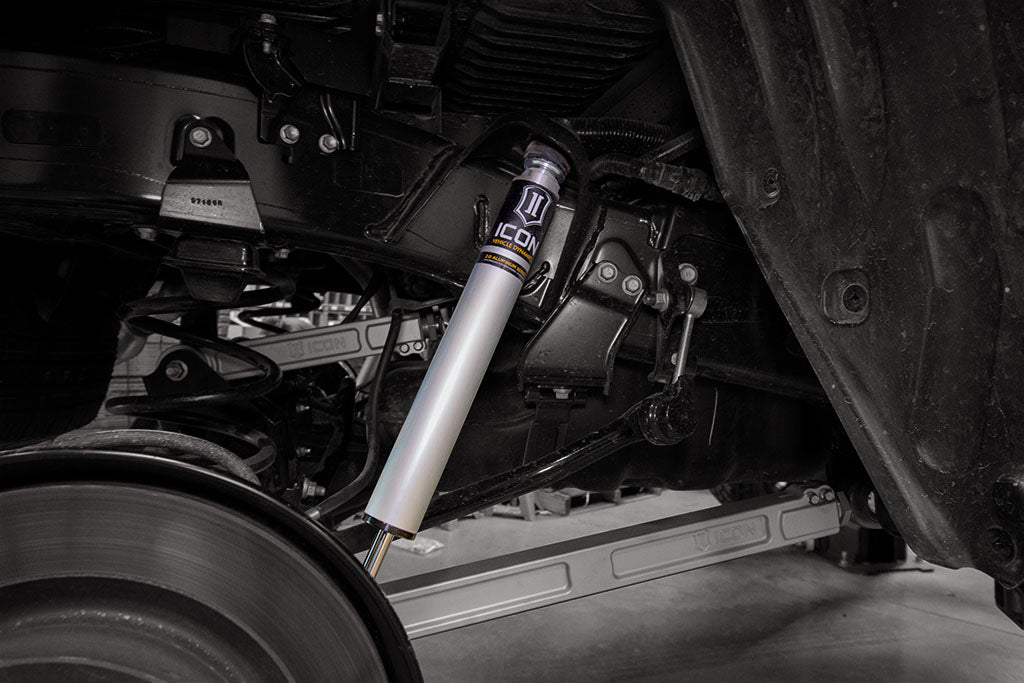

Rounding out the Stage 2 suspension system are V.S. 2.0 Aluminum Series rear shocks specially tailored for the 2023-2025 Sequoia. The 2.0 Aluminum Series shocks are a high-quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance. Their pairing with the ICON 2.5 EXP Series front coilovers results in balanced vehicle control from front to rear and an excellent overall driving experience for your Sequoia.

Features

Vehicle specific design for 2023-2025 Toyota Sequoia
All ICON shock absorbers are fully rebuildable and re-tunable
2.5 EXP Series front shocks with internal reservoirs utilize factory coil and coil hardware
Adjustable front ride heights from 0-2.13” of front lift over stock with the use of snap ring
Tubular UCAs for added strength durability and alignment correction for better drivability
UCAs feature the patented (U.S. Pat. 10 731 700) Delta Joint Pro with 90 degrees of total articulation
Included sway bar drop brackets reduce bind in OE sway bar links
Allows for full wheel travel without overstressing OE components
Dual rate rear coil springs improve performance and ride quality while providing 2" of rear lift
2.0 Aluminum Series rear shocks provide balanced tune with coilovers and increased performance

Oem wheels & tires fitment: yes; application note #153: not compatible with adaptive variable suspension (avs) equipped vehicles; application note #155: requires recalibration of advanced driver assistance systems (adas) after install; application note #171: if equipped with trd aluminum skid plate part # 55164 is also required; tech note: most sequoia submodels will have front lift height range of 0-2.
13” over stock and 2" of rear lift over stock.
Submodels equipped with trd off-road package net zero lift and remain at stock height front and rear, but with improved ride quality and suspension performance.
; recommended aftermarket wheels: icon alloys - 17x8.
5" w/ 5.
75” backspace / 25mm offset; recommended aftermarket wheels: icon alloys - 18x9" w/ 6” backspace / 25mm offset; recommended aftermarket tires: 35" x 12.
50" (minor fender trimming and modifications may be required); application note #55: shocks are fully serviceable.
Lift heights indicated are for a stock equipped vehicle.
; application note #85: advertised lift height ranges are for a stock equipped vehicle.
Increasing weight of vehicle due to accessories will alter lift range.
; application note #142: not compatible with vehicles equipped with load-leveling rear height control air suspension.
; application note #144: not compatible with trd pro; application note #149: for 4wd models without trd off-road package icon recommends using icon diff drop (part# 55156) or using toyota trd axles (part# 434200c020 driver / 434100c020 pass).
Failure to do so could result in front axle damage.
Not required for trd pro.

Quick SpecsOverview:

Spring Material: Steel
Bushings Included: Yes
Mounting Hardware Included: Yes
Spring Color: Black
Shocks Included: Yes
Grade Type: Performance
Maximum Lift: 2.13 IN
Coils Quantity Rear: 2
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
Active or Passive Suspension: Passive
Add-On Part: 55156 - 22-25 TUNDRA/23-25 SEQUOIA/24-25 GX550 DIFF DROP KIT
Add-On Part: 191013 - NIPPLE GREASING ADAPTER KIT
Add-On Part: 55164 - 22-25 TUNDRA/23-24 SEQUOIA ALUMINUM SKID PLATE SPACER KIT
Adjustable Compression: No
Adjustable Control Arm: No
Adjustable Damping: No
Adjustable Rebound: No
California Prop 65 Warning: Yes
California Proposition 65: WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
Front Reservoir Style: Internal
Front Shock Body Diameter: 2.5 IN
Maximum Lift Front: 2.13 IN
Maximum Lift Rear: 2
Minimum Lift Front: 0 IN
Minimum Lift Rear: 0 IN
OEM Wheels &
Tires Fitment: Yes
Rear Reservoir Style: Internal
Rear Shock Body Diameter: 2 IN
Rear Spring Rate Type: Progressive Dual Rate
Recommended Aftermarket Tires: 35" x 12.50" (Minor fender trimming and modifications may be required)
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.75” Backspace / 25mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 6” Backspace / 25mm Offset
Reservoir Style: Internal
Title: ICON 2023-2025 Toyota Sequoia 0-2.13" Lift Stage 2 Suspension System Tubular UCA

Additional Specifications:

Country of Origin: US
Warranty: 1 Year-Shock Absorbers, Delta Joint Pros; Limited Lifetime-Coil Springs, Front Upper Control Arms, Sway Bar Drop; Excludes Wearable Items
Weight (lbs): 97.0
Vehicle Specific Fitment: Y
