ICON Vehicle Dynamics

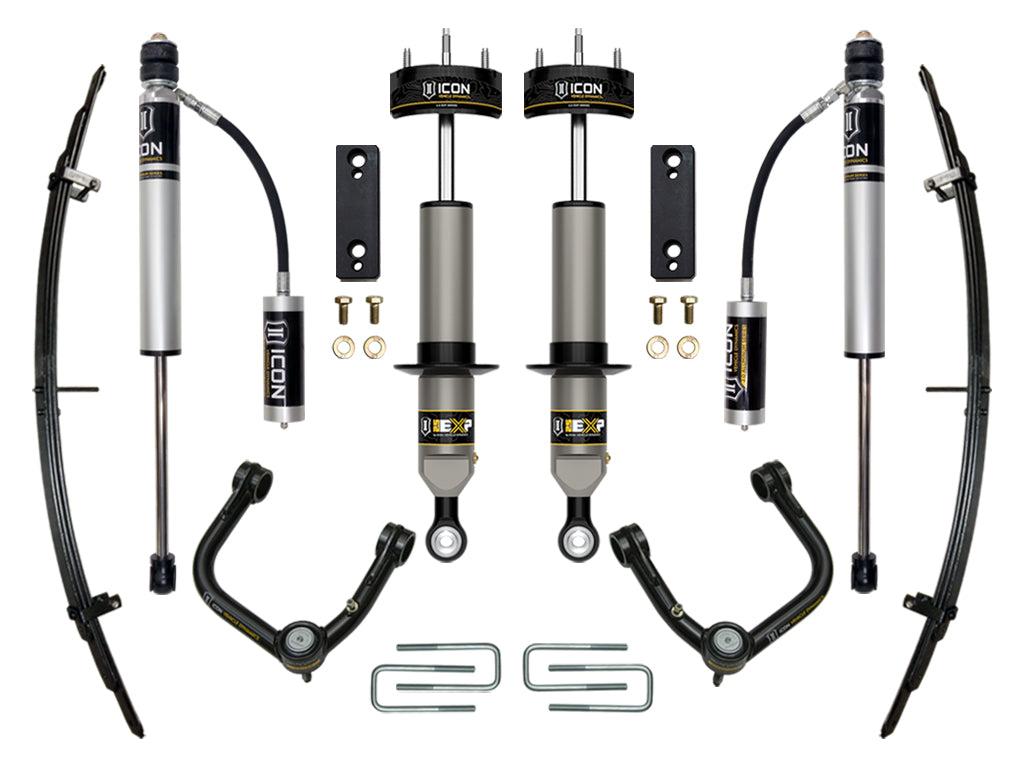

ICON 2005-2023 Toyota Tacoma, 0-2" Lift, Stage 3 EXP Suspension System, Tubular UCA
ICON 2005-2023 Toyota Tacoma, 0-2" Lift, Stage 3 EXP Suspension System, Tubular UCA
PART #
- Front lift 0-2"
- Shocks included
Couldn't load pickup availability
- Free shippingmost orders $500+
- 30-day returnssee policy
- Warranty helpwe work claims for you
Important notes before you order
- Oem wheels & tires fitment: yes; recommended aftermarket wheels: icon alloys - 17x8.
- 5 with 4.
- 75” backspace / 0mm offset; recommended aftermarket wheels: icon alloys - 18x9 with 5.
- 00” backspace / 0mm offset; recommended aftermarket wheels: icon alloys - 20x9 with 5.
- 00” backspace / 0mm offset; recommended aftermarket tires: 33" x 11.
- 50" (minor fender trimming may be required); application note #55: shocks are fully serviceable.
- Lift heights indicated are for a stock equipped vehicle.
- application note #110: trimming required for recommended tire size; application note #144: not compatible with trd pro; tech note: not compatible with 2005-2015 rear wheel drive tacomas with 5 wheel lug studs
TRU specialist notes
From the Trucks R Us fitment and install team, beyond the manufacturer's information.
- Plan for a professional wheel alignment after installing any lift or leveling kit.
- Going to bigger tires as well? Speedometer recalibration may be needed, and some tire and wheel combinations need trimming. Check the recommended wheels and tires, or ask us before you order.
Specifications
| Brand | ICON Vehicle Dynamics |
|---|---|
| Part number | K53222T |
| Front Lift Height | 0-2" |
| Bushings Included | Yes |
| Mounting Hardware Included | Yes |
| Shocks Included | Yes |
| Grade Type | Performance |
| Rear Spring Rate Type | Linear |
| Add-On Part | 191011 - TUBULAR UCA BILLET CAP SET |
| Adjustable Damping | No |
| Maximum Lift Front | 2 IN |
| Maximum Lift Rear | 1.5 IN |
| Minimum Lift Front | 1 IN |
| Tires Fitment | Yes |
| Recommended Aftermarket Tires | 33" x 11.50" (Minor fender trimming may be required) |
| Recommended Aftermarket Wheels | ICON Alloys - 20x9 with 5.00” Backspace / 0mm Offset |
| Country of Origin | US |
| Weight (lbs) | 100 |
California Proposition 65 warning applies to this product. www.P65Warnings.ca.gov
Features
- Vehicle specific design for 2005-2023 Toyota Tacoma
- All ICON shock absorbers are fully rebuildable and re-tunable
- 2.5 EXP Series front shocks with internal reservoirs utilize factory coil and coil hardware
- Adjustable front ride heights from 1-2” of front lift over stock with the use of snap ring
- Included sway bar relocation brackets reduce ensure sway bar clearance from EXP coilovers
- Allows for full wheel travel without overstressing OE components
- Tubular UCAs for added strength durability and alignment correction for better drivability
- UCAs feature the patented (U.S. Pat. 10731700) Delta Joint for extended longevity
- Rear Add-a-Leaf softens spring rate for improved ride quality while providing 1.5” of rear lift
- 2.0 Aluminum Series remote reservoir rear shocks provide balanced tune with coilovers and increased performance
Installation
Free install support from the Trucks R Us tech team, for you or your shop.
Overview
Rounding out the Stage 3 EXP suspension system are V.S. 2.0 Aluminum Series rear shocks with remote reservoirs specially tailored for the 2005-2023 Tacoma. The 2.0 Aluminum Series shocks are a high-quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance. Their pairing with the ICON 2.5 EXP Series front coilovers results in balanced vehicle control from front to rear and an excellent overall driving experience for your Tacoma.
Questions
Will this fit my truck?
Select your truck at the top of the page and the fit check will confirm it. If your exact trim is not listed, call 866-235-4715 or live chat and a fitment specialist will check it before you order.
Do you help with installation?
Yes. Our technical team helps you or your shop with installation and troubleshooting after delivery, on top of the manufacturer’s support.
What if the part has a problem?
We work the warranty claim with the manufacturer on your behalf, within the manufacturer’s warranty policy.
Can I return it?
Most items can be returned within 30 days. See our return policy for details.
Do I need an alignment after installing?
Yes. Any lift or leveling kit changes suspension geometry, so get a professional alignment after installation.
