ICON Vehicle Dynamics

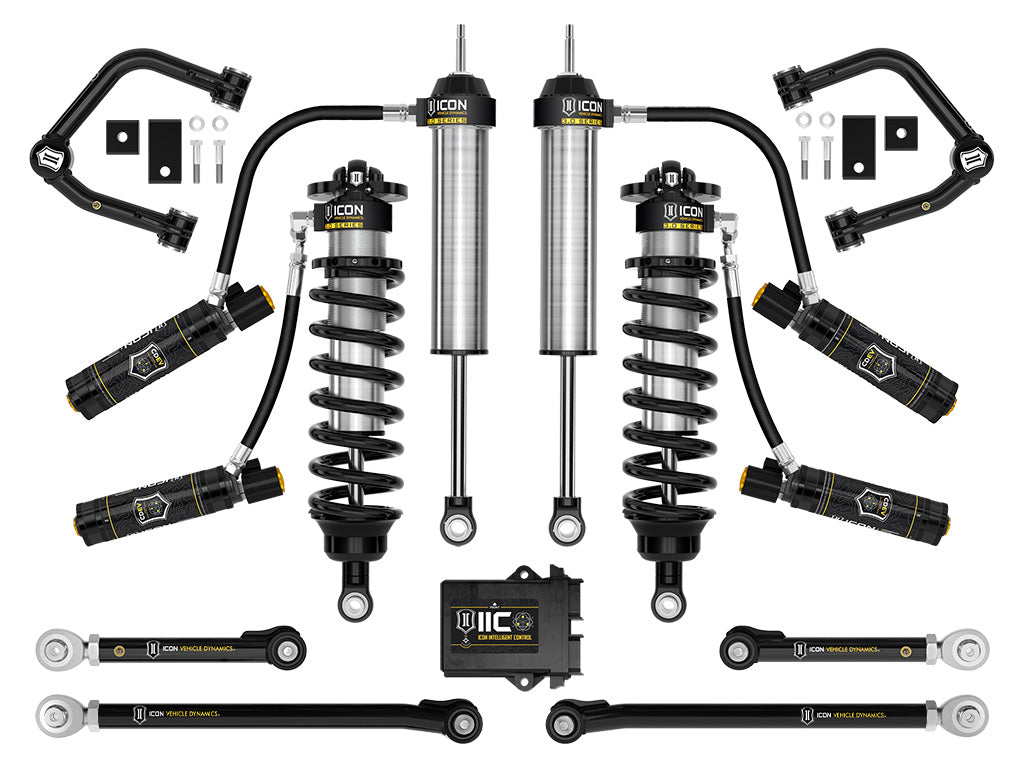

ICON 2022-2026 Toyota Tundra, 2-3.25" Lift, Stage 5, 3.0 Suspension System, Tubular

ICON 2022-2026 Toyota Tundra, 2-3.25" Lift, Stage 5, 3.0 Suspension System, Tubular

PART #

Freight Notice: $99 LTL Fee Applied At Checkout. See Shipping Policy

$10,229.65
$10,229.65
SALE CALL OR CHAT TO ORDER
Shipping calculated at checkout.

Inventory: Special Order (Live Chat or Call)
View full details

Important: Always read the entire product description, including Important Notes and Fitment information, before making a purchase. Components contained in images and descriptions may change based upon your selections.

Rounding out the Stage 5 suspension system are 3.0 Series rear remote reservoir shocks specially tailored for the 2022-2026 Tundra. 3.0 Series shocks boast 50% more piston surface area compared to 2.5 Series shocks, offering outstanding performance off-road and a smooth ride on the street. Increased internal oil volume and more external surface area compared to 2.5 Series Shocks, plus their remote reservoirs, offer even greater heat dissipation and resistance to shock fade under hard use. Also equipped with CDE Valves, these offer active, on the fly compression damping adjustment from soft to hard. Their pairing with the ICON V.S. 3.0 Series CDEV front coilovers results in balanced vehicle control from front to rear and an excellent overall driving experience for your Tundra.

Features

  • Vehicle specific design for 2022-2025 Toyota Tundra
  • Tubular rear upper and lower links improve rear end articulation and allow for pinion angle adjustment
  • 3.0 Series rear remote reservoir shocks provide maximum performance 20% increase in wheel travel and balanced tune with coilovers
  • All ICON shock absorbers are fully rebuildable and re-tunable
  • 3.0 Series front coilovers with ICON’s multi-stage tunable hydraulic “Bump Zone”
  • Adjustable front ride heights from 2-3.25” of front lift over stock when used with included tubular UCAs
  • ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
  • ICON Intelligent Control (IIC) uses onboard sensors to monitor G-forces and movement of vehicle chassis along with user defined settings to actively make near instantaneous compression damping changes
  • Tubular UCAs for added strength durability and alignment correction for better drivability
  • UCAs feature the patented (U.S. Pat. 10 731 700) Delta Joint Pro with 90 degrees of total articulation
  • Included sway bar drop brackets reduce bind in OE sway bar links
  • Allows for up to 40% increase in front wheel travel over stock without overstressing OE components
