ICON 2022-2026 Toyota Tundra, 0-2.25" Lift, Stage 1, 2.5 EXP Suspension System

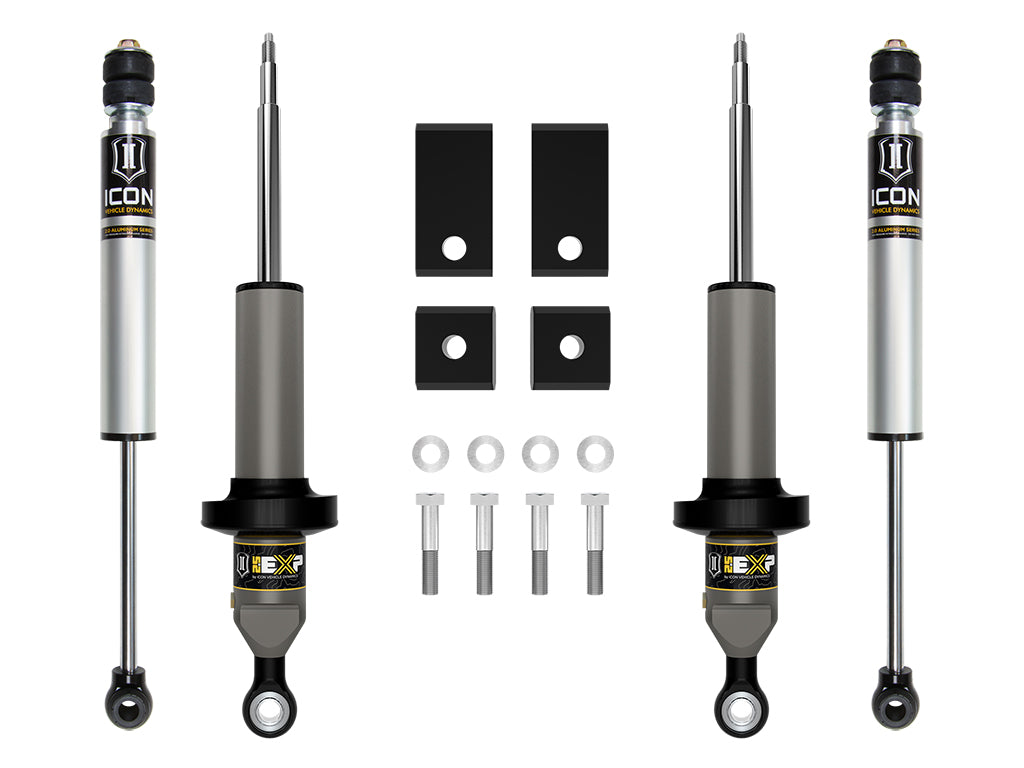

Name: ICON 2022-2026 Toyota Tundra, 0-2.25" Lift, Stage 1, 2.5 EXP Suspension System
Brand: ICON Vehicle Dynamics
SKU: K53191
Price: 1479.75 USD
Availability: InStock

ICON 2022-2026 Toyota Tundra, 0-2.25" Lift, Stage 1, 2.5 EXP Suspension System

PART #

$1,479.75

SALE CALL OR CHAT TO ORDER

Shipping calculated at checkout.

Product variants

Quantity

Inventory: In Stock

View full details

Important: Always read the entire product description, including Important Notes and Fitment information, before making a purchase. Components contained in images and descriptions may change based upon your selections.

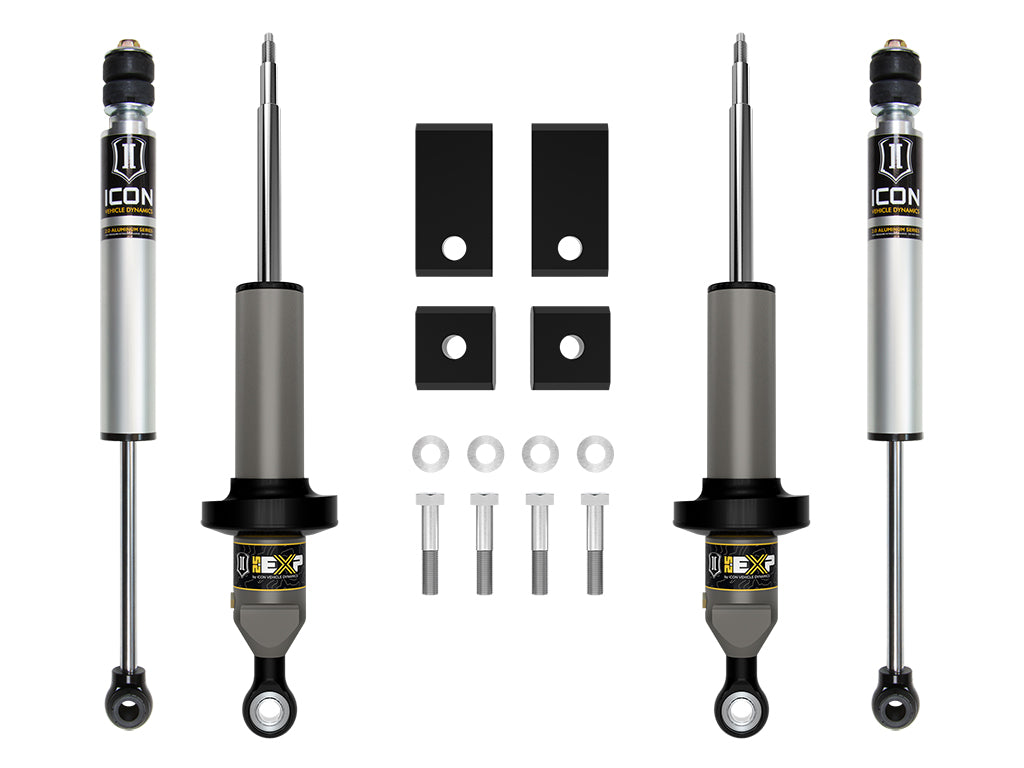

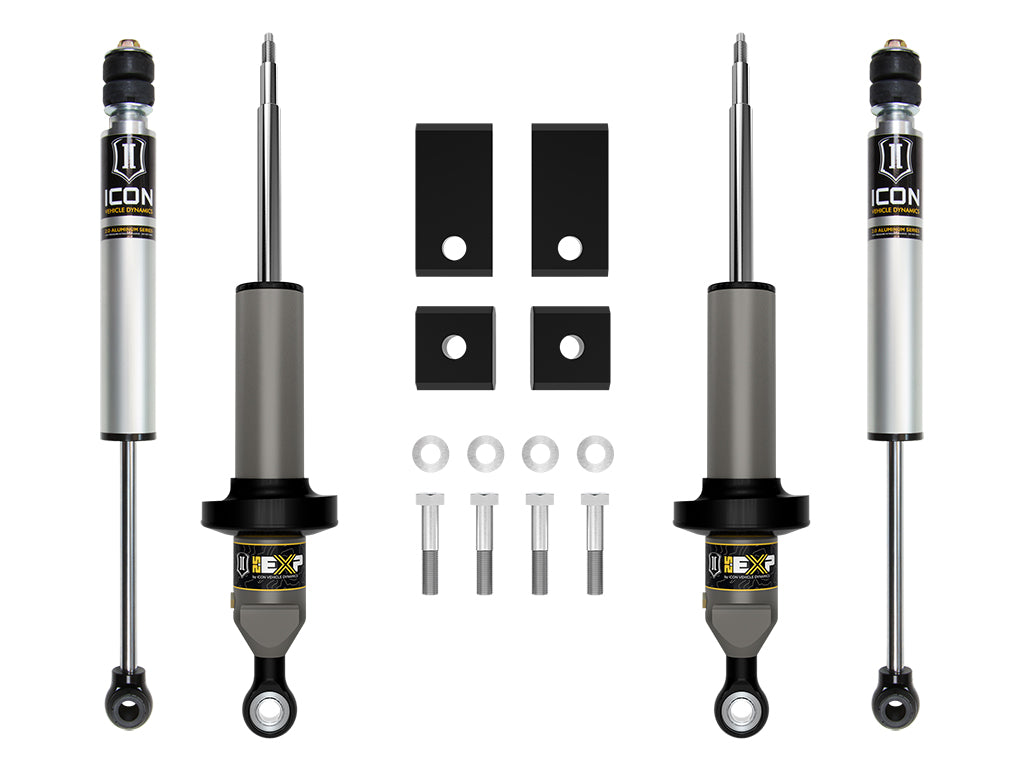

Rounding out the Stage 1 suspension system are V.S. 2.0 Aluminum Series rear shocks specially tailored for the 2022-2026 Tundra. The 2.0 Aluminum Series shocks are a high-quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance. Their pairing with the ICON 2.5 EXP Series front coilovers results in balanced vehicle control from front to rear and an excellent overall driving experience for your Tundra.

Features

Vehicle specific design for 2022-2025 Toyota Tundra

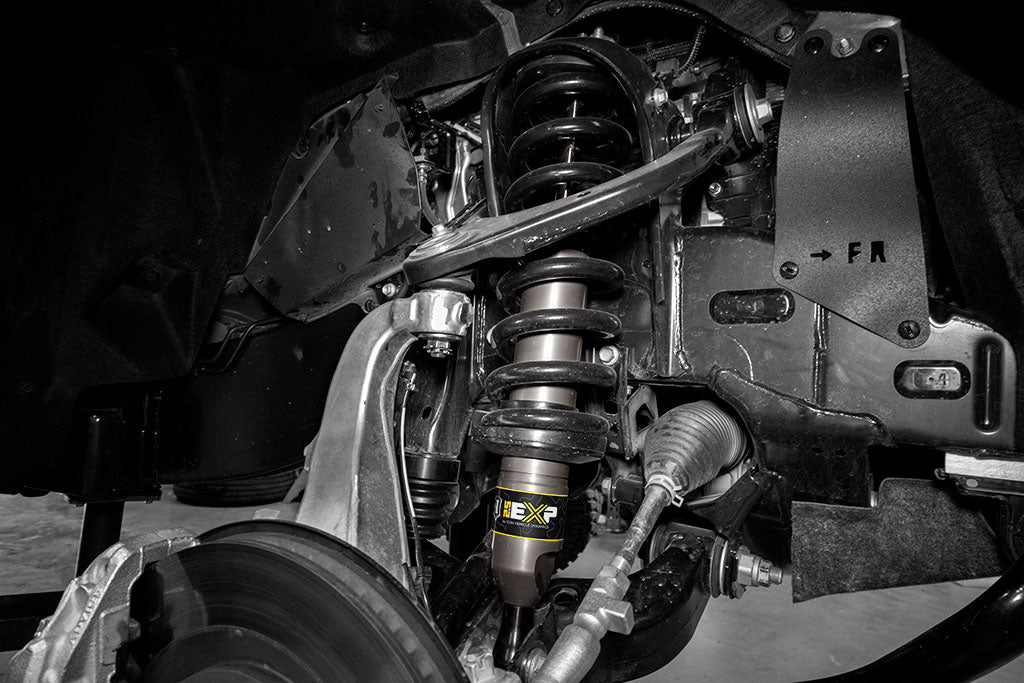

2.5 EXP Series front shocks with internal reservoirs utilize factory coil and coil hardware
Adjustable front ride heights from 0-2.25” of front lift over stock with the use of snap ring
Included sway bar drop brackets reduce bind in OE sway bar links
Allows for full wheel travel without overstressing OE components

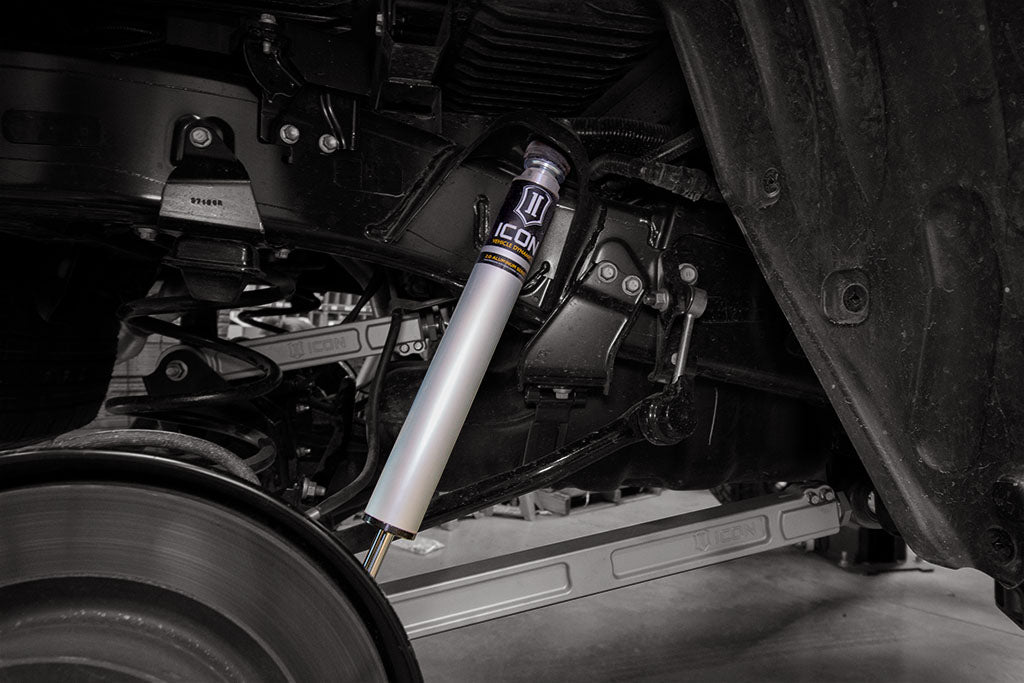

2.0 Aluminum Series rear shocks provide balanced tune with coilovers and increased performance
All ICON shock absorbers are fully rebuildable and re-tunable

Oem wheels & tires fitment: yes; application note #153: not compatible with adaptive variable suspension (avs) equipped vehicles; application note #155: requires recalibration of advanced driver assistance systems (adas) after install; application note #171: if equipped with trd aluminum skid plate part # 55164 is also required; tech note: tundra sr5 equipped with trd sport package will have lift height range of 1-3.
25” over stock; tech note: included rear shocks are compatible with 0-1.
5" of rear lift over stock on models equipped with rear coil springs without trd suspension package.
Rear shocks are compatible with 0-1" of rear lift over stock on models equipped with rear coil springs with trd suspension package.
; recommended aftermarket wheels: icon alloys - 17x8.
5" w/ 5.
75” backspace / 25mm offset; recommended aftermarket tires: 35" x 12.
50" (minor fender trimming and modifications may be required); application note #55: shocks are fully serviceable.
Lift heights indicated are for a stock equipped vehicle.
; application note #85: advertised lift height ranges are for a stock equipped vehicle.
Increasing weight of vehicle due to accessories will alter lift lange.
; application note #142: not compatible with vehicles equipped with load-leveling rear height control air suspension.
; application note #144: not compatible with trd pro; application note #148: icon does not recommend lifting above 2.
25" of lift without an icon upper control arm, failure to do so can result in improper wheel alignment and cause damage to front axles on 4wd models; application note #149: for 4wd models without trd off-road package icon recommends using icon diff drop (part# 55156) or using toyota trd axles (part# 434200c020 driver / 434100c020 pass).
Failure to do so could result in front axle damage.
Not required for trd pro.

Quick SpecsOverview:

Bushings Included: NO
Mounting Hardware Included: Yes
Shocks Included: Yes
Grade Type: Performance
Maximum Lift: 2.25 IN
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
Active or Passive Suspension: Passive
Add-On Part: 56111 - 22-25 TUNDRA REAR HYD BUMP STOP KIT
Add-On Part: 58561DJ - 22-25 TUNDRA/23-25 SEQUOIA BILLET UCA DJ PRO KIT
Add-On Part: 55164 - 22-25 TUNDRA/23-24 SEQUOIA ALUMINUM SKID PLATE SPACER KIT
Add-On Part: 56113 - 22-24 TUNDRA/23-24 SEQUOIA FRONT FOAM BUMP STOP KIT
Add-On Part: 56112 - 22-25 TUNDRA/23-25 SEQUOIA/24-25 GX550 REAR FOAM BUMP STOP KIT
Add-On Part: 191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25)
Add-On Part: 58461DJ - 22-25 TUNDRA/23-25 SEQUOIA TUBULAR UCA DJ PRO KIT
Add-On Part: 55156 - 22-25 TUNDRA/23-25 SEQUOIA/24-25 GX550 DIFF DROP KIT
Adjustable Compression: No
Adjustable Damping: No
Adjustable Rebound: No
California Prop 65 Warning: Yes
California Proposition 65: WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
Front Reservoir Style: Internal
Front Shock Body Diameter: 2.5 IN
Maximum Lift Front: 2.25 IN
Minimum Lift Front: 0 IN
OEM Wheels &
Tires Fitment: Yes
Rear Reservoir Style: Internal
Rear Shock Body Diameter: 2 IN
Recommended Aftermarket Tires: 35" x 12.50" (Minor fender trimming and modifications may be required)
Recommended Aftermarket Wheels: 17x8.5" w/ 5.75” Backspace / 25mm Offset
Reservoir Style: Internal
Title: ICON 2022-2025 Toyota Tundra 0-2.25" Lift Stage 1 2.5 EXP Suspension System

Additional Specifications:

Country of Origin: US
Weight (lbs): 31.0
Vehicle Specific Fitment: Y

Instructions

I56516_REVA.pdf

Fitment

: N/A
