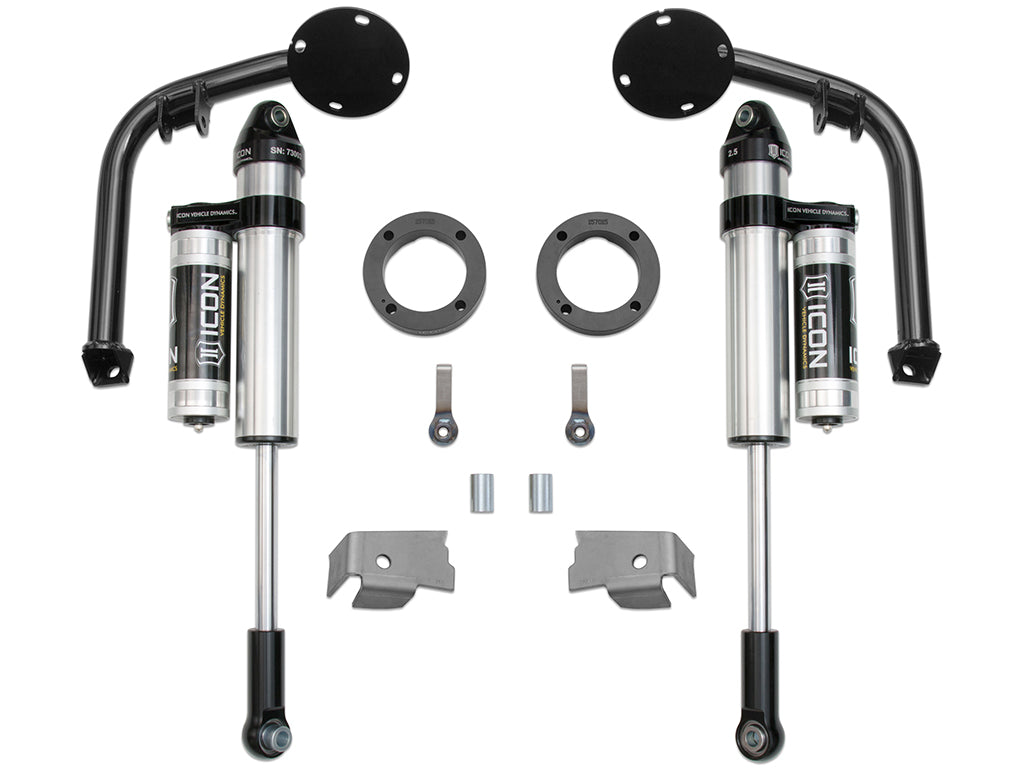

ICON 2007-21 Toyota Tundra, Stage 1 S2 Secondary Shock Upgrade System

Name: ICON 2007-21 Toyota Tundra, Stage 1 S2 Secondary Shock Upgrade System
Brand: ICON Vehicle Dynamics
SKU: K53151
Price: 2020.76 USD
Availability: OutOfStock

ICON 2007-21 Toyota Tundra, Stage 1 S2 Secondary Shock Upgrade System

PART #

$2,020.76

SALE CALL OR CHAT TO ORDER

Shipping calculated at checkout.

Product variants

Quantity

Inventory: Special Order (Live Chat or Call)

View full details

Important: Always read the entire product description, including Important Notes and Fitment information, before making a purchase. Components contained in images and descriptions may change based upon your selections.

As opposed to overly complicated and expensive long travel kits, the ICON S2 System is an affordable, mostly bolt-on upgrade that drastically increases off-road performance, is easy to install, and has a modular design that allows 2007-2021 Toyota Tundra owners to upgrade in steps or all at once. The S2 Secondary Shock System utilizes the factory lower control arms and maintains OE track width while a combination of a billet aluminum shock tower adapters, fabricated shock hoops, and steel lower shock mounts make for a straightforward install with the exceptional build quality you would expect from an ICON Vehicle Dynamics product.

Features

Drastically improves vehicle damping ability off-road
Increased vehicle stability on-road
Utilizes factory lower control arms
Maintains OE track width
Vehicle-specific tuned 2.5 Series secondary shocks provide increased damping and oil volume
Shocks are fully rebuildable and revalveable
Simple and straightforward installation

Oem wheels & tires fitment: yes; recommended aftermarket wheels: icon alloys - 17x8.
5" w/ 5.
75” backspace / 25mm offset; recommended aftermarket wheels: icon alloys - 18x9" w/ 6.
00” backspace / 25mm offset; recommended aftermarket wheels: icon alloys - 20x9" w/ 5.
625” backspace / 16mm offset; recommended aftermarket tires: 35" x 12.
50" (larger tires may fit but fender trimming and modifications will be required.
); application note #17: these are stand-alone kits and are not to be used in conjunction with any other aftermarket kits; application note #55: shocks are fully serviceable.
Coilover heights indicated are for a stock equipped vehicle; application note #59: welding required - lower control arm; ships in multiple boxes

Quick SpecsOverview:

Cylinder Diameter: 2.5 IN
Damping Type: Oil
Cylinder Material: Steel
Mounting Hardware Included: Yes
Grade Type: Performance
Lower Mount Type: Eyelet
Upper Mount Type: Eyelet
Shaft Diameter: 0.875 IN
Cylinder Color: Silver
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
Adjustable: No
Bushings Included: Yes
California Prop 65 Warning: Yes
California Proposition 65: WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
Gas Charged: Yes
OEM Wheels &
Tires Fitment: Yes
Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.75” Backspace / 25mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.625” Backspace / 16mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 6” Backspace / 25mm Offset
Shaft Material: Chrome
Shock Mounts Included: Yes
Shocks Included: Yes
Title: 07-21 TUNDRA S2 STAGE 1 UPGRADE SYSTEM

Additional Specifications:

Country of Origin: US
Warranty: See Rep
Weight (lbs): 52.0
Vehicle Specific Fitment: Y

Instructions

I56109_REVA.pdf

Fitment

: N/A
