ICON Vehicle Dynamics

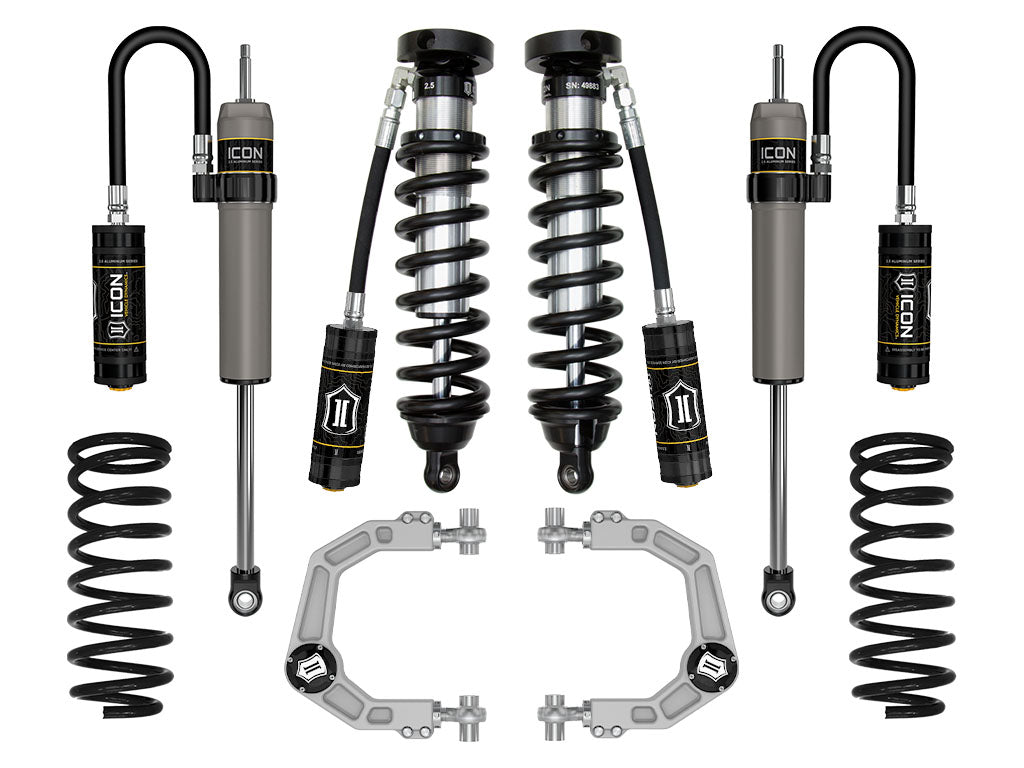

ICON 1996-2002 Toyota 4Runner, 0-3" Lift, Stage 4 Suspension System, Billet UCA

ICON 1996-2002 Toyota 4Runner, 0-3" Lift, Stage 4 Suspension System, Billet UCA

PART #

$4,562.80
$4,562.80
SALE CALL OR CHAT TO ORDER
Shipping calculated at checkout.

Inventory: Special Order (Live Chat or Call)
View full details

Important: Always read the entire product description, including Important Notes and Fitment information, before making a purchase. Components contained in images and descriptions may change based upon your selections.

This system features upper control arms with ICON's patented Delta Joint. The Delta Joint is a heavy-duty high angle ball joint that combines the durability of a ball joint with the performance characteristics of a traditional uniball. While the industry standard uniball does a great job of allowing the control arms of a vehicle to articulate with little bind, they do have an inherent weakness that leaves more to be desired when used in a daily driven application - exposure to the elements. The Delta Joint features a zinc plated housing providing the first layer of corrosion resistance, while a tough grease seal keeps potentially harmful elements out of the inner workings of the joint. Metal on metal construction and a greaseable design increase the longevity of the Delta Joint while at the same time allowing for noise-free operation. What makes the Delta Joint unique is that it brings the best of both worlds to ICON upper control arms with features that make it more robust than a uniball, and at the same time capable of greater angularity than a typical ball joint.

Features

  • Increased wheel travel and ride quality over stock
  • CNC machined 6061 aircraft-grade aluminum components
  • ICON engineered rear coils provide 1" of lift and improved performance
  • Billet aluminum UCAs for added strength durability and on-vehicle caster/camber adjustment for optimum drivability
  • Bolt-on design makes for straightforward install
  • Decreased body roll
  • Vehicle-specific tuned front and rear shocks provide superior damping and control
  • Coilovers are adjustable from 0-3" of lift height
  • Shocks are fully rebuildable and revalveable
  • Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
  • 2.5 Aluminum Series rear shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
  • FK Rod End bearings for extended longevity and minimal deflection
