ICON 2016-2023 Toyota Tacoma, Stage 3 S2 Secondary Shock Upgrade System
ICON 2016-2023 Toyota Tacoma, Stage 3 S2 Secondary Shock Upgrade System
PART #
Couldn't load pickup availability
- Free shippingmost orders $500+
- 30-day returnssee policy
- Warranty helpwe work claims for you
Important notes before you order
- Oem wheels & tires fitment: yes; application note #210: maximum steering angle is reduced for secondary shock compatibility; tech note: compatible with 0-2.
- 75" of froint lift on most tacoma submodels.
- Compatible with 0-1.
- 25" of front lift on trd pro.
- tech note: requires oe front lower control arms.
- Not compatible with other aftermarket front lower control arm kits.
- recommended aftermarket wheels: icon alloys - 17x8.
- 5" w/ 4.
- 75” backspace / 0mm offset; recommended aftermarket wheels: icon alloys - 18x9" w/ 5.
- 00” backspace / 0mm offset; recommended aftermarket wheels: icon alloys - 20x9" w/ 5.
- 00” backspace / 0mm offset; recommended aftermarket tires: 33" x 11.
- 50" (larger tires may fit but fender trimming and modifications will be required.
- ); application note #17: these are stand-alone kits and are not to be used in conjunction with any other aftermarket kits; application note #55: shocks are fully serviceable.
- Coilover heights indicated are for a stock equipped vehicle; application note #59: welding required - lower control arm; application note #95: does not work with trd big brake kit
Specifications
| Brand | ICON Vehicle Dynamics |
|---|---|
| Part number | K53127 |
| Valving Type | Digressive |
| Adjustable Compression | Yes |
| Adjustable Ride Height | No |
| Active or Passive Suspension | Passive |
| Cylinder Diameter | 2.5 IN |
| Damping Type | Oil |
| Cylinder Material | Aluminum |
| Mounting Hardware Included | Yes |
| Internal Construction Type | Single Tube |
| Grade Type | Performance |
| Lower Mount Type | Eyelet |
| Upper Mount Type | Eyelet |
| Shaft Diameter | 0.875 IN |
| Cylinder Color | Gray |
| Adjustable Rebound | Yes |
| Dust Shield Included | No |
| Remote Reservoir | Yes |
| Includes Bump Stop | No |
| Add-On Part | 252008 - 2.5 X 13 SHOCK BOOT BLACK (PAIR) |
| Bushings Included | Yes |
| Cylinder Finish | Anodized |
| Damping Adjustment Type | Manual |
| Gas Charged | Yes |
| Tires Fitment | Yes |
| Recommended Aftermarket Wheels | ICON Alloys - 20x9" w/ 5” Backspace / 0mm Offset |
| Shaft Material | Chrome |
| Shock Mounts Included | Yes |
| Shocks Included | Yes |
| Country of Origin | US |
| Warranty | 1 year-Shock Absorbers; Limited Lifetime-Shock Hoops, Skid Plates |
| Weight (lbs) | 71 |
California Proposition 65 warning applies to this product. www.P65Warnings.ca.gov
Features
- Drastically improves vehicle damping ability off-road
- Increased vehicle stability on-road
- Utilizes factory lower control arms
- Maintains OE track width
- Vehicle-specific tuned secondary shocks provide increased damping and oil volume
- Omega Series two-tube bypass allows for compression and rebound damping adjustment
- 2.5 Aluminum Series Secondary shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
- Shocks are fully rebuildable and revalveable
- Mostly bolt-on design makes for straightforward install
Installation
Free install support from the Trucks R Us tech team, for you or your shop.
Overview

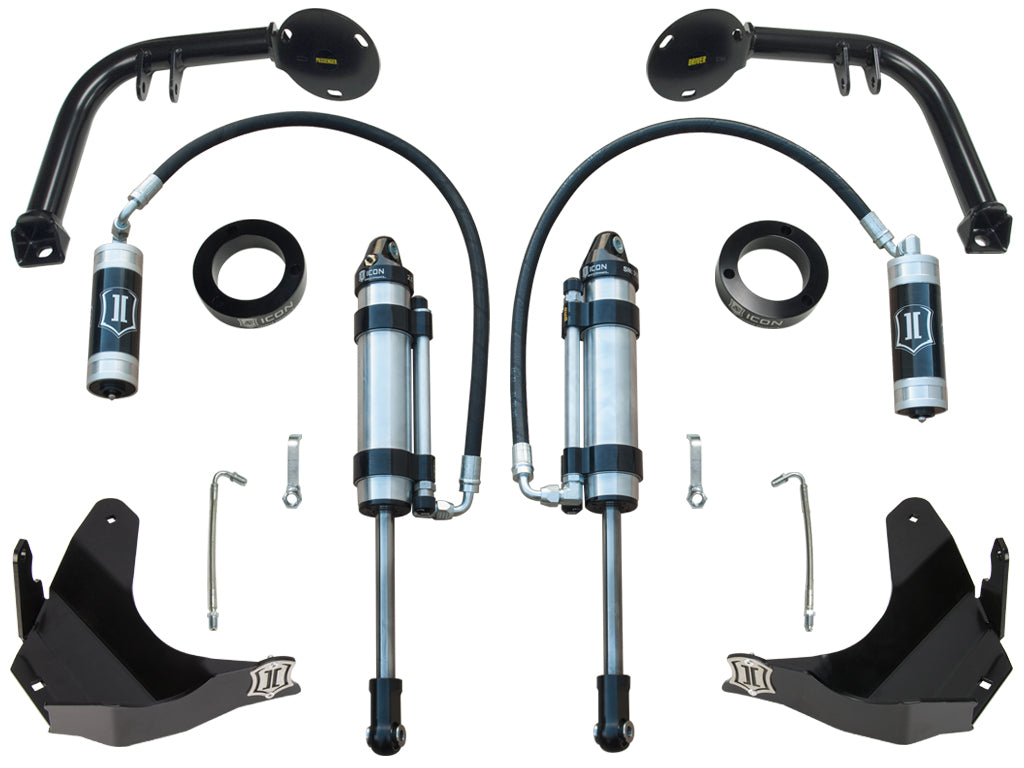

The S2 Secondary Shock System utilizes the factory lower control arms and maintains OE track width while a combination of a billet aluminum shock tower adapters, fabricated shock hoops, and steel skid plates (with incorporated shock mounts) make for a straightforward install with the exceptional build quality you would expect from an ICON Vehicle Dynamics product. The system was designed to eliminate the need for any major alteration of the vehicle’s frame or any other factory suspension components, and the components are 100% removable in case the system is to be installed on another vehicle. The modular design of the S2 kit also allows for standalone installation of the skid plates, which provides the added benefit of protecting the factory lower control arms from potential trail damage that can be experienced while off-road.
