ICON 03-09 4Runner/07-09 FJ Cruiser/05-15 Tacoma Stage 3 S2 Secondary Shock Kit
Questions about fitment? Live chat or call 866-235-4715
Complete your build
Optional add-ons
Recommended Add-Ons
Add-ons selected:
Couldn't load pickup availability
- Free shippingMost orders $500+
- 30-day returnsSee policy
- Warranty supportWe work with the maker
Questions about fitment?
Talk to a TRU specialist
We’ll help you verify fitment before you buy.
Veteran-owned · Austin, Texas · Mon–Fri 9:30a–11:00a & 1:00p–5:30p CT
Important notes before you order
- APPLICATION NOTE #17: These Are Stand-Alone Kits And Are Not To Be Used In Conjunction With Any Other Aftermarket Kits
- APPLICATION NOTE #55: Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
- APPLICATION NOTE #59: Welding Required - Lower Control Arm
- APPLICATION NOTE #95: Does Not Work With Trd Big Brake Kit
- APPLICATION NOTE #117: Not Recommended With Remote Reservoir Coilover
- APPLICATION NOTE #210: Maximum steering angle is reduced for secondary shock compatibility
- TECH NOTE: Not compatible with KDSS equipped GX470s
Specifications
| Brand | ICON Vehicle Dynamics |
|---|---|
| Part number | K53113 |
| UPC / GTIN | 840103417257 |
| Active or Passive Suspension | Passive |
| Adjustable | Yes |
| Adjustable Compression | Yes |
| Adjustable Rebound | Yes |
| Adjustable Ride Height | No |
| Bushing(s) Included | NO |
| Compressed Length | 16.050 IN |
| Cylinder Color | Silver |
| Cylinder Diameter | 2.5 IN |
| Cylinder Material | Aluminum |
| Damping Type | Oil |
| Dust Shield Included | No |
| Extended Length | 23.88 IN |
| Gas Charged | Yes |
| Grade Type | Performance |
| Includes Bump Stop | No |
| Internal Construction Type | Single Tube |
| Lower Mount Type | Eyelet |
| Mounting Hardware Included | Yes |
| Remote Reservoir | Yes |
| Shaft Diameter | 0.875 IN |
| Shaft Material | Chrome |
| Shock Mounts Included | Yes |
| Shocks Included | Yes |
| Upper Mount Type | Eyelet |
| Valving Type | Digressive |
| Country of Origin | US |
| Warranty | See Rep |
California Proposition 65 warning applies to this product. www.P65Warnings.ca.gov

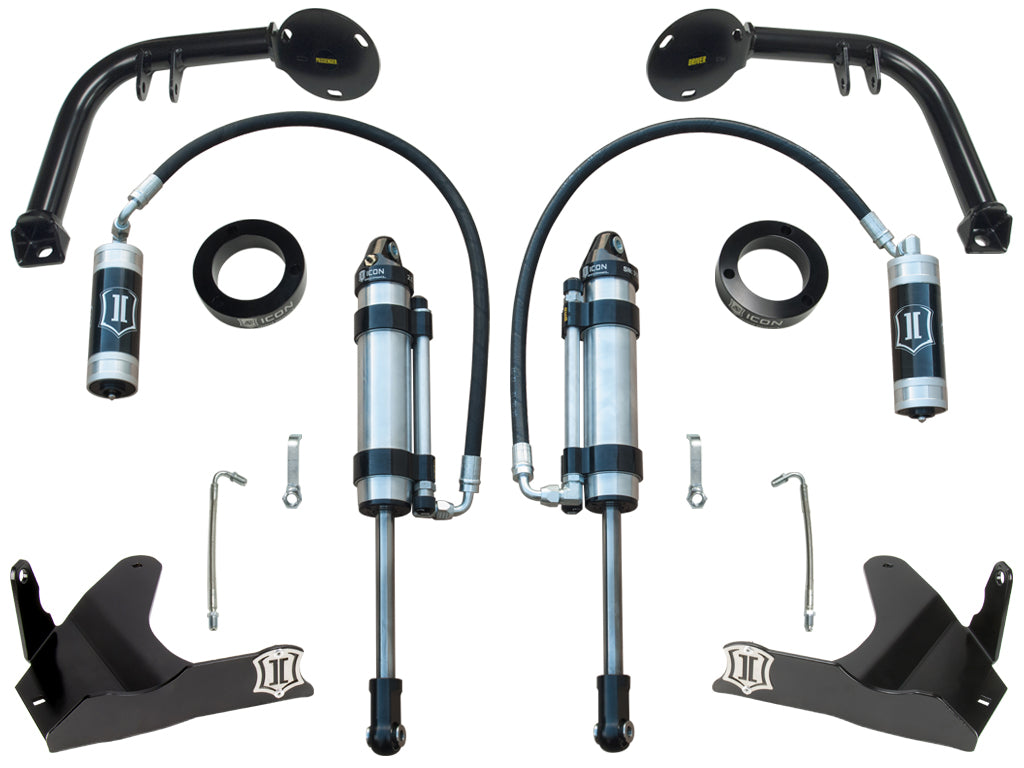

What's in the box
| Qty | Part | Description |
|---|---|---|
| 1 | 56101 | 07-09 FJ/03-09 4RUNNER /05-15 TACOMA LCA SKID PLATE KIT |
| 1 | 56102 | 07-14 FJ/03-24 4RUNNER/05-23 TACOMA S2 SHOCK HOOP KIT |
| 1 | 59906P | TOYOTA S2 FRONT 2.5 OMEGA RR PAIR |
Features
- Drastically improves vehicle damping ability off-road
- Increased vehicle stability on-road
- Utilizes factory lower control arms
- Maintains OE track width
- Vehicle-specific tuned secondary shocks provide increased damping and oil volume
- 2.5 Aluminum Series secondary shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
- Omega Series two-tube bypass allows for compression and rebound damping adjustment
- Shocks are fully rebuildable and revalveable
- Mostly bolt-on design makes for straightforward install
Recommended wheels & tires
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Wheels: ICON Alloys - 17x8.5 with 4.75” Backspace / 0mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 18x9 with 5.00” Backspace / 0mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 20x9 with 5.00” Backspace / 0mm Offset
- Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
Installation
Free install support from the Trucks R Us tech team, for you or your shop.
Overview
The ICON Vehicle Dynamics S2 Secondary Shock System redefines the off-road capability of the 2005-2015 Toyota Tacoma, 2003-2009 Toyota 4Runner, or 2007-2009 Toyota FJ Cruiser by allowing for the installation of a secondary shock to an existing ICON coilover setup. The addition of a secondary 2.5 Aluminum Series or Omega Bypass shock means rougher terrain and larger off-road obstacles can be overcome with confidence as the damping ability of the vehicle’s suspension is effectively doubled. As opposed to overly complicated and expensive long travel kits, the ICON S2 System is an affordable upgrade that drastically increases off-road performance, is easy to install, and has a modular design that allows Toyota owners to upgrade in steps or all at once.
The S2 Secondary Shock System utilizes the factory lower control arms and maintains OE track width while a combination of a billet aluminum shock tower adapters, fabricated shock hoops, and steel skid plates (with incorporated shock mounts) make for a straightforward install with the exceptional build quality you would expect from an ICON Vehicle Dynamics product. The system was designed to eliminate the need for any major alteration of the vehicle’s frame or any other factory suspension components, and the components are 100% removable in case the system is to be installed on another vehicle. The modular design of the S2 kit also allows for standalone installation of the skid plates, which provides the added benefit of protecting the factory lower control arms from potential trail damage that can be experienced while off-road.
