ICON 1991-97 Toyota 80 Series Land Cruiser, 3" Lift, Stage 1 Suspension System

Name: ICON 1991-97 Toyota 80 Series Land Cruiser, 3" Lift, Stage 1 Suspension System
Brand: ICON Vehicle Dynamics
SKU: K53091
Price: 1950.83 USD
Availability: InStock

ICON 1991-97 Toyota 80 Series Land Cruiser, 3" Lift, Stage 1 Suspension System

PART #

$1,950.83

SALE CALL OR CHAT TO ORDER

Shipping calculated at checkout.

Product variants

Quantity

Inventory: Special Order (Live Chat or Call)

View full details

Important: Always read the entire product description, including Important Notes and Fitment information, before making a purchase. Components contained in images and descriptions may change based upon your selections.

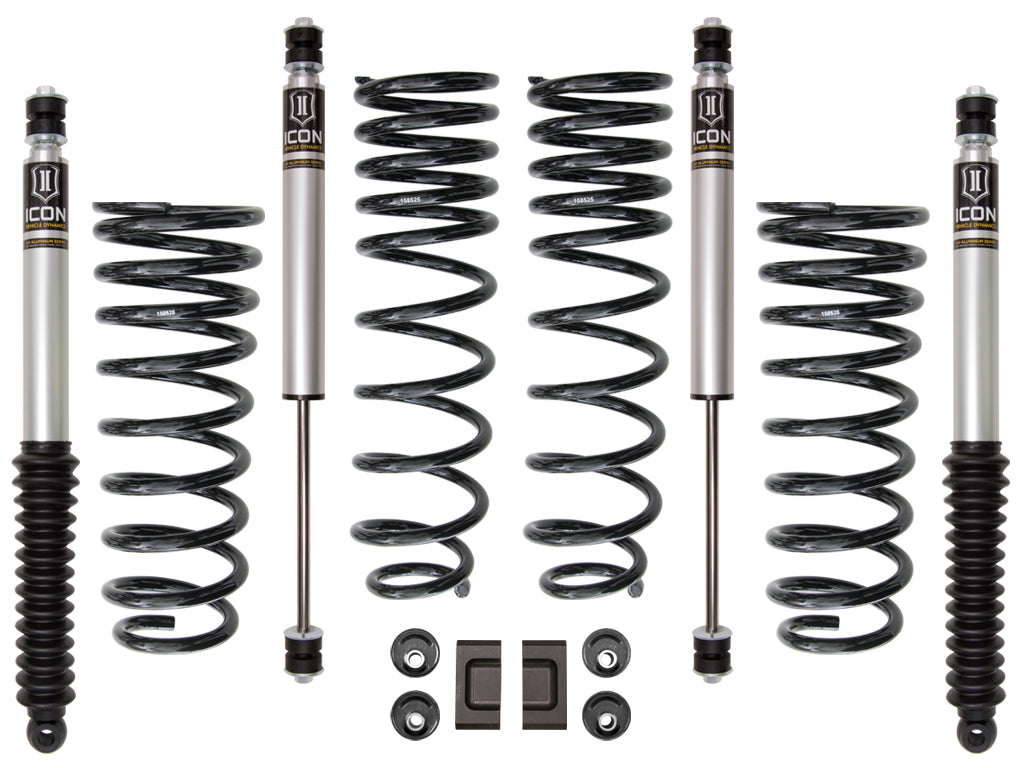

After an in-depth R&D process, ICON engineers have developed a 3” suspension system for the 80 Series that is aimed to improve on-road handling characteristics while also maximizing the Land Cruiser’s off-road potential. This Stage 1 system includes ICON-designed dual rate coil springs, caster correction bushings, sway bar relocation components, all bracketry and hardware required for install, and ICON Vehicle Dynamics 2.0 Aluminum Series shocks that feature a vehicle specific valving for optimized ride quality and balanced damping front to rear. This ICON Stage 1 System is the perfect entry level suspension system for drivers seeking a quality on-road ride with exceptional off-road characteristics as well.

Features

3” lift height
Approximately 40% increased front wheel travel over stock
Approximately 35% increased rear wheel travel over stock
ICON-engineered dual rate coil springs provide exceptional on-road ride quality and outstanding off-road performance
Vehicle specific tuned 2.0 Aluminum Series front and rear shocks offer superior shock damping and control
2.0 aluminum body IFP shocks with 5/8" shaft
Corrosion resistant anodized aluminum shock body
6061 aircraft grade aluminum CNC machined components
100% bolt-on design means no drilling cutting or welding necessary for install

Oem wheels & tires fitment: yes; recommended aftermarket wheels: 17x8.
5" with 4.
63” backspace; recommended aftermarket tires: 33" x 11.
50" (larger tires may fit but fender trimming and modifications will be required.
); application note #150: shocks are fully serviceable; tech note: icon’s advertised lift heights are based around a typical 80 series build which usually includes added weight of accessories such as heavier front bumper/winch and heavier rear bumper/spare tire.
Lift heights may be higher than advertised if installed on a stock weighted vehicle.

Quick SpecsOverview:

Spring Material: Steel
Bushings Included: Yes
Mounting Hardware Included: Yes
Spring Color: Black
Shocks Included: Yes
Grade Type: Performance
Maximum Lift: 3 IN
Coils Quantity Front: 2
Coils Quantity Rear: 2
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
California Prop 65 Warning: Yes
California Proposition 65: WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
Dual Rate Coil Springs: Yes
OEM Wheels &
Tires Fitment: Yes
Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
Recommended Aftermarket Wheels: 17x8.5" w/ 4.63” Backspace
Title: 91-97 LAND CRUISER 80 SERIES 3" STAGE 1 SUSPENSION SYSTEM

Additional Specifications:

Country of Origin: US
Warranty: See Rep
Weight (lbs): 109.0
Vehicle Specific Fitment: Y

Instructions

I53005_REVA.pdf
