ICON 1998-2007 Toyota Land Cruiser/Lexus LX470, 0-3" Lift, Stage 2 Suspension System
Questions about fitment? Live chat or call 866-235-4715
Complete your build
Optional add-ons
Recommended Add-Ons
Add-ons selected:
Couldn't load pickup availability
- Free shippingMost orders $500+
- 30-day returnsSee policy
- Warranty supportWe work with the maker
Questions about fitment?
Talk to a TRU specialist
We’ll help you verify fitment before you buy.
Veteran-owned · Austin, Texas · Mon–Fri 9:30a–11:00a & 1:00p–5:30p CT
Important notes before you order
- APPLICATION NOTE #55: Shocks are fully serviceable. Coilover heights indicated are for a stock equipped vehicle
- APPLICATION NOTE #58: Kits consist of shocks only. Additional components required to achieve desired lift height over stock.
- APPLICATION NOTE #71: Any kit with part# 57802P/CP in it with stock rear coil springs vehicle will ride in bump zone of shock. Stock or some aftermarket coil springs may come unseated at full droop.
- APPLICATION NOTE #73: Aftermarket control arm required for clearance
- APPLICATION NOTE #97: Not compatible with AHC equipped models
Specifications
| Brand | ICON Vehicle Dynamics |
|---|---|
| Part number | K53082 |
| UPC / GTIN | 840103417165 |
| Active or Passive Suspension | Passive |
| Adjustable | No |
| Adjustable Compression | No |
| Adjustable Rebound | No |
| Adjustable Ride Height | No |
| Cylinder Color | Silver |
| Cylinder Diameter | 2.5 IN |
| Cylinder Finish | Anodized |
| Cylinder Material | Aluminum |
| Damping Type | Oil |
| Dust Shield Included | No |
| Gas Charged | Yes |
| Grade Type | Performance |
| Includes Bump Stop | No |
| Internal Construction Type | Single Tube |
| Lower Mount Type | Eyelet |
| Mounting Hardware Included | Yes |
| Remote Reservoir | Yes |
| Shaft Diameter | 0.875 IN |
| Shaft Material | Chrome |
| Upper Mount Type | Stem |
| Valving Type | Digressive |
| Country of Origin | US |
California Proposition 65 warning applies to this product. www.P65Warnings.ca.gov

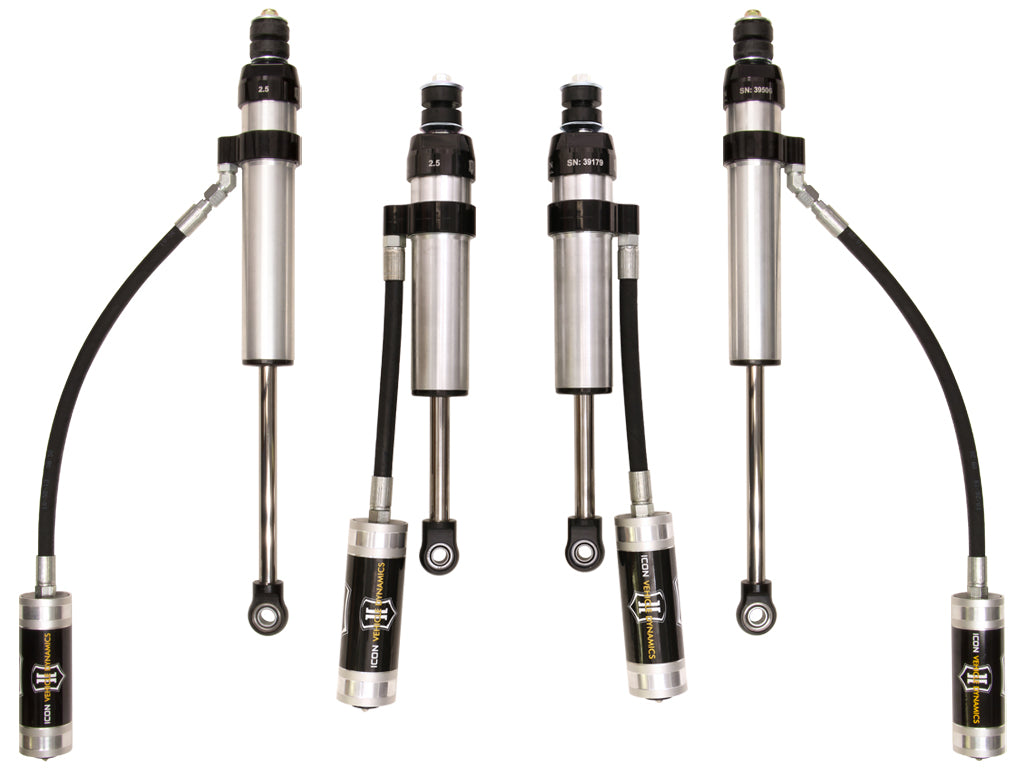

What's in the box
| Qty | Part | Description |
|---|---|---|
| 1 | 57807P | 98-07 LAND CRUISER 100 SERIES 0-3" FRONT 2.5 VS RR PAIR |
| 1 | 57802P | 91-07 LAND CRUISER 80/100 0-3" REAR 2.5 VS RR PAIR |
Features
- Vehicle specific tuned 2.5" front and rear shocks for superior shock damping and control
- Remote reservoirs provided for extended shock damping performance
- 6061 Aircraft grade aluminum CNC machined components
- 2.5 Aluminum Series front and rear shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
- FK rod end bearings for extended longevity and minimal deflection
- No cutting or welding necessary for install
Recommended wheels & tires
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Wheels: 17x8.5 with 4.75” Backspace / 0mm Offset
- Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
Installation
Free install support from the Trucks R Us tech team, for you or your shop.
Overview
The 1998 - 2007 Toyota Land Cruiser 100 Series has a compact torsion bar IFS front suspension, and requires a lot of work to be done in a small space. When lift is added via torsion bar adjustment there is even more spring energy that must be absorbed to adequately control the vehicle. Keeping this in mind, those looking to achieve 0-3" of lift (aftermarket upper control required) can install the Stage 2 shock system for maximum suspension travel and performance. ICON engineers have developed a unique 2.5” diameter shock system, with remote reservoirs front and rear, that can handle these demands. 2.5 Aluminum Series reservoir shocks front and rear ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during extended off-road use. With a lower spherical rod end bearing and heavy-duty upper stem bushings, deflection is kept to a minimum for precise control of the suspension even under high loads.
