ICON 2021-2026 Ford Bronco, HOSS 2.0 Package, 0-2" Lift, Stage 2 Suspension System, Tubular
ICON 2021-2026 Ford Bronco, HOSS 2.0 Package, 0-2" Lift, Stage 2 Suspension System, Tubular
PART #
- Front lift 0-2"
- Shocks included
Couldn't load pickup availability
- Free shippingmost orders $500+
- 30-day returnssee policy
- Warranty helpwe work claims for you
Important notes before you order
- Oem wheels & tires fitment: yes; application note #66: 2 door models will sit taller than 4 door models.
- application note #138: recommend high clearance crash bars part #42000 on non-sasquatch equipped vehicles when running 35" tires; application note #139: when running 37" tires crash bar removal may be required but is not recommended; application note #147: when running 37" tires use bump stop spacer kit part #611082 in the front; tech note: only compatible with ford broncos equipped with hoss 2.
- 0 suspension package; tech note: not compatible with bronco raptor; recommended aftermarket wheels (without sasquatch package): icon alloys - 17x8.
- 5" w/ 5.
- 75” backspace / 25mm offset; recommended aftermarket wheels (without sasquatch package): icon alloys - 18x9" w/ 6.
- 00" backspace / 25mm offset; recommended aftermarket wheels (with sasquatch package): icon alloys - 17x8.
- 5" w/ 4.
- 75” backspace / 0mm offset; recommended aftermarket wheels (with sasquatch package): icon alloys - 18x9" w/ 5.
- 00" backspace / 0mm offset; recommended aftermarket wheels (with sasquatch package): icon alloys - 20x9" w/ 5.
- 00" backspace / 0mm offset; recommended aftermarket tires (without sasquatch package): 35" x 12.
- 50" (requires high clearance crash bars, icon part number 42000.
- 37" tire packagesrequire coilover bump stop spacers along with trimming and modifications); recommended aftermarket tires (with sasquatch package): 35" x 12.
- 50" (37" tire packages require coilover bump stop spacers and may also require fender trimming and modifications); application note #55: shocks are fully serviceable.
- Lift heights indicated are for a stock equipped vehicle.
TRU specialist notes
From the Trucks R Us fitment and install team, beyond the manufacturer's information.
- Plan for a professional wheel alignment after installing any lift or leveling kit.
- Going to bigger tires as well? Speedometer recalibration may be needed, and some tire and wheel combinations need trimming. Check the recommended wheels and tires, or ask us before you order.
Specifications
| Brand | ICON Vehicle Dynamics |
|---|---|
| Part number | K40012T |
| Front Lift Height | 0-2" |
| Bushings Included | Yes |
| Mounting Hardware Included | Yes |
| Shocks Included | Yes |
| Grade Type | Performance |
| Maximum Lift | 4 IN |
| Active or Passive Suspension | Passive |
| Add-On Part | 611082 - EXP 1" SHAFT BUMP EXTENSION |
| Adjustable Compression | No |
| Adjustable Control Arm | No |
| Adjustable Damping | No |
| Adjustable Rebound | No |
| Front Shock Body Diameter | 2.5 IN |
| Maximum Lift Front | 2 IN |
| Maximum Lift Rear | 1.75 IN |
| Minimum Lift Front | 0 IN |
| Minimum Lift Rear | 0 IN |
| Rear Shock Body Diameter | 2.5 IN |
| Reservoir Style | Internal |
| Country of Origin | US |
| Weight (lbs) | 76 |
California Proposition 65 warning applies to this product. www.P65Warnings.ca.gov
Features
- Vehicle specific design for 2021-2023 Ford Bronco with HOSS 2.0 Suspension Package

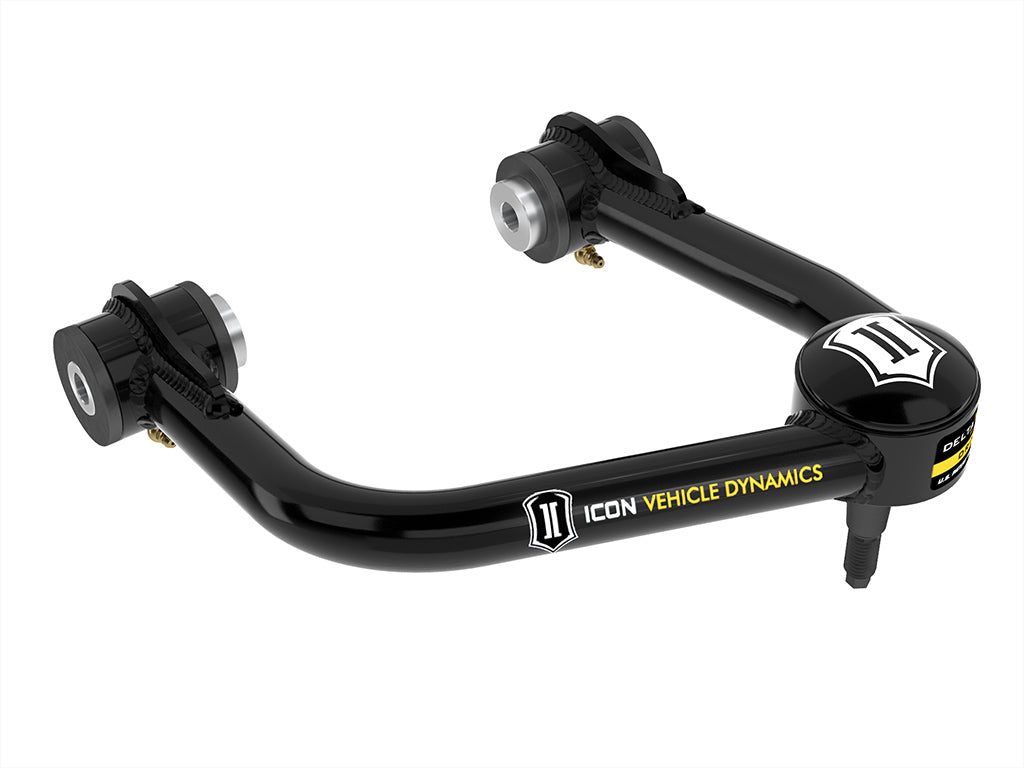

- Tubular UCAs for added strength durability and alignment correction for better drivability
- UCAs feature the patented (U.S. Pat. 10 731 700) Delta Joint Pro with 90 degrees of total articulation.
- 100% Bolt-on - no cutting or welding necessary for installation
- Fully rebuildable and re-tunable
- Vehicle specific tuned shocks for superior shock damping and vehicle control

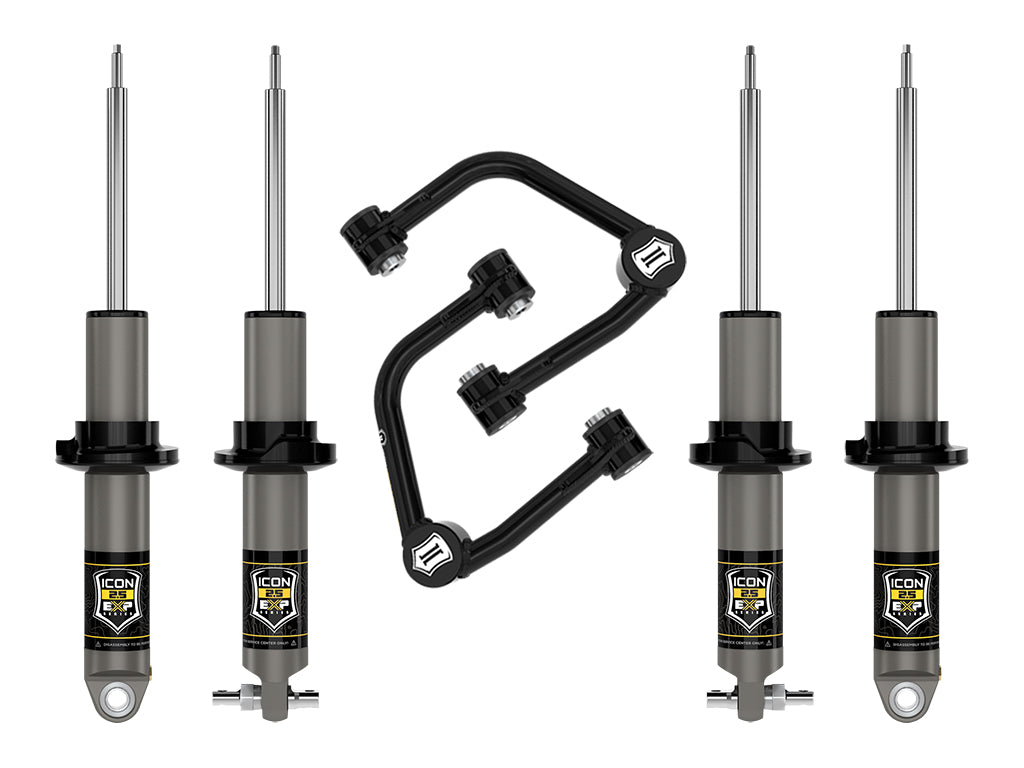

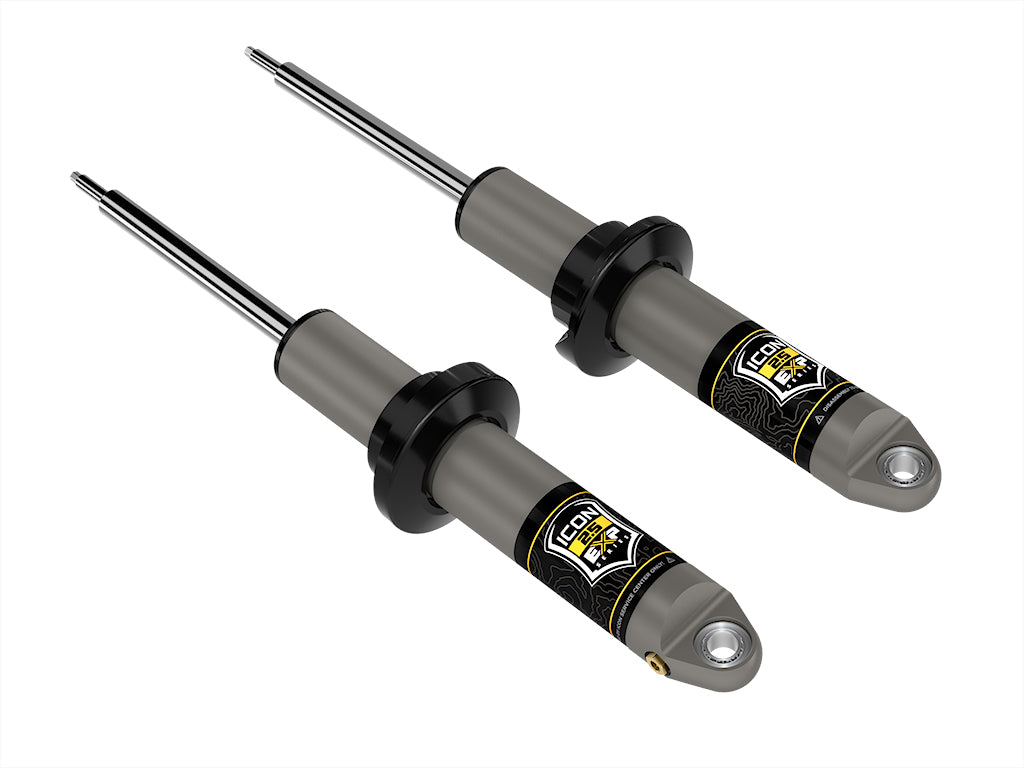

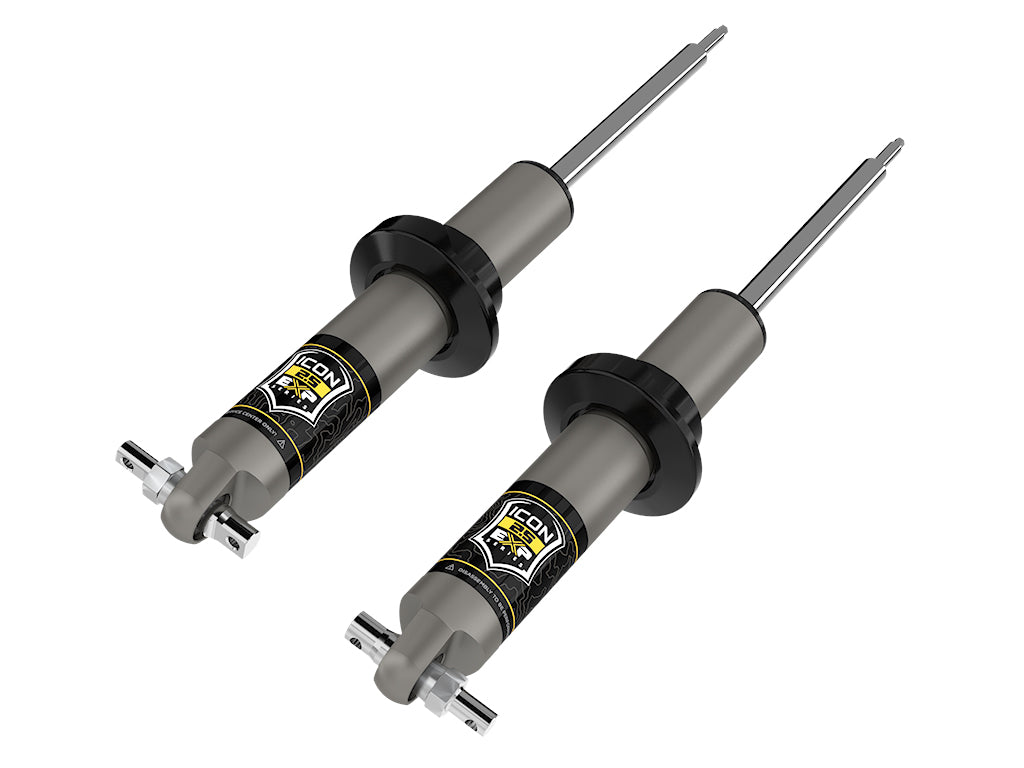

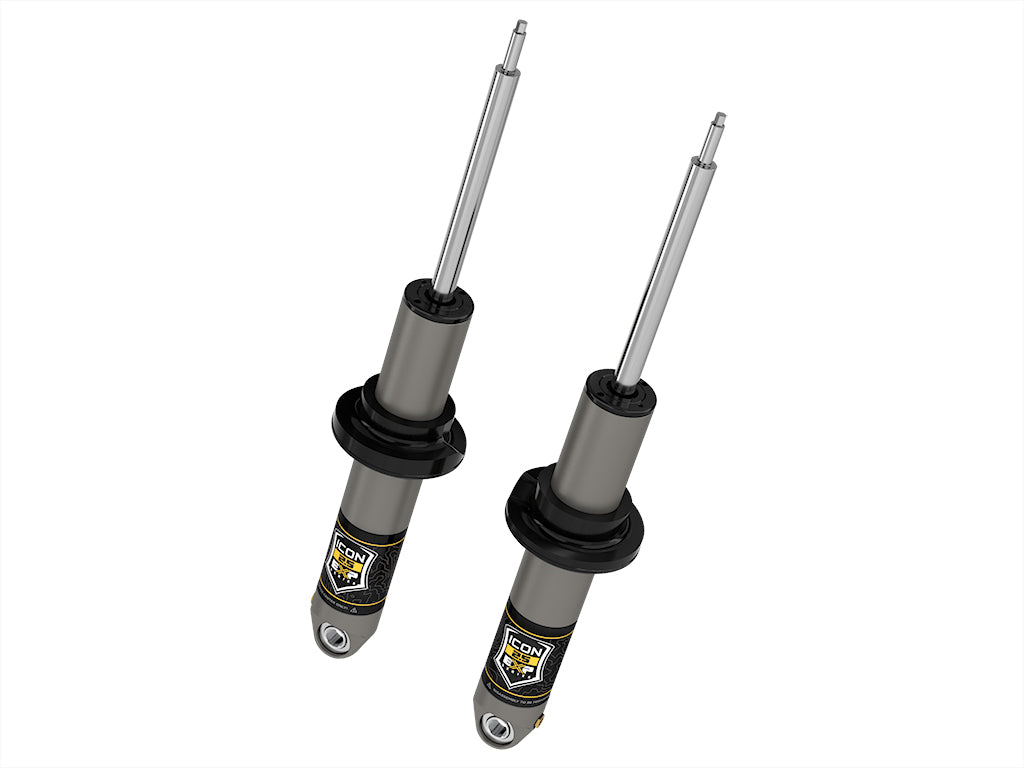

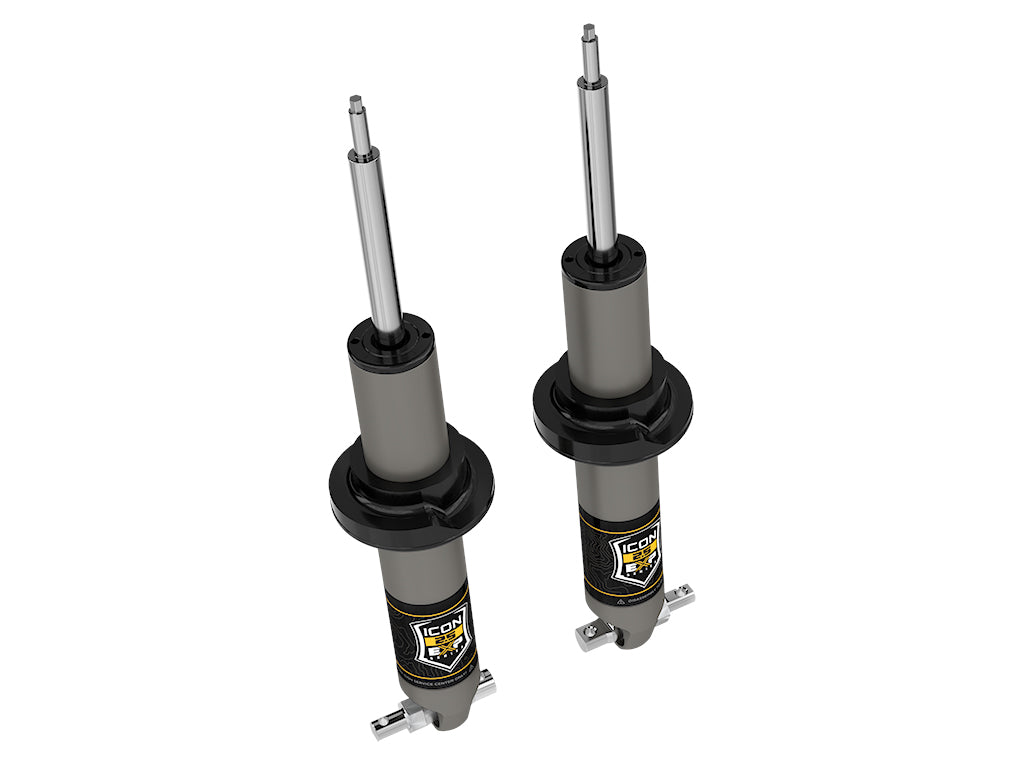

- Kit includes full set of (4) 2.5 Aluminum Series EXP Shocks with Internal Reservoirs
- Adjustable ride heights from 0-2” of front lift and 0-1.75" of rear lift over stock with the use of snap rings
- Utilizes factory coils and coil hardware
- Inverted shaft up design featuring 7/8” diameter induction hardened chrome plated shafts
- One-piece impact extruded hard anodized aluminum cylinders offer excellent corrosion resistance and consistent finish
- CNC machined 6061 aluminum components with a black anodized finish
- PTFE lined spherical bearings for extended longevity and minimal deflection
Installation
Free install support from the Trucks R Us tech team, for you or your shop.
Overview
HOSS 2.0 is Ford's upgraded suspension system for Broncos of the Base, Big Bend, Outer Banks and Black Diamond trim levels WITH the optional Sasquatch package, and it is also standard on Badlands, Wildtrak, First Edition and Everglades. HOSS 2.0 is most easily identified by the YELLOW shock bodies of the OE shocks.
