ICON 2021-2026 Ford Bronco, HOSS 2.0 Package, 0-2" Lift, Stage 1 Suspension System

Name: ICON 2021-2026 Ford Bronco, HOSS 2.0 Package, 0-2" Lift, Stage 1 Suspension System
Brand: ICON Vehicle Dynamics
SKU: K40011
Price: 1857.68 USD
Availability: InStock

ICON 2021-2026 Ford Bronco, HOSS 2.0 Package, 0-2" Lift, Stage 1 Suspension System

PART #

$1,857.68

SALE CALL OR CHAT TO ORDER

Shipping calculated at checkout.

Product variants

Quantity

Inventory: In Stock

View full details

Important: Always read the entire product description, including Important Notes and Fitment information, before making a purchase. Components contained in images and descriptions may change based upon your selections.

HOSS 2.0 is Ford's upgraded suspension system for Broncos of the Base, Big Bend, Outer Banks and Black Diamond trim levels WITH the optional Sasquatch package, and it is also standard on Badlands, Wildtrak, First Edition and Everglades. HOSS 2.0 is most easily identified by the YELLOW shock bodies of the OE shocks.

Features

Vehicle specific design for 2021-2023 Ford Bronco with HOSS 2.0 Suspension Package
100% Bolt-on - no cutting or welding necessary for installation
Fully rebuildable and re-tunable
Vehicle specific tuned shocks for superior shock damping and vehicle control

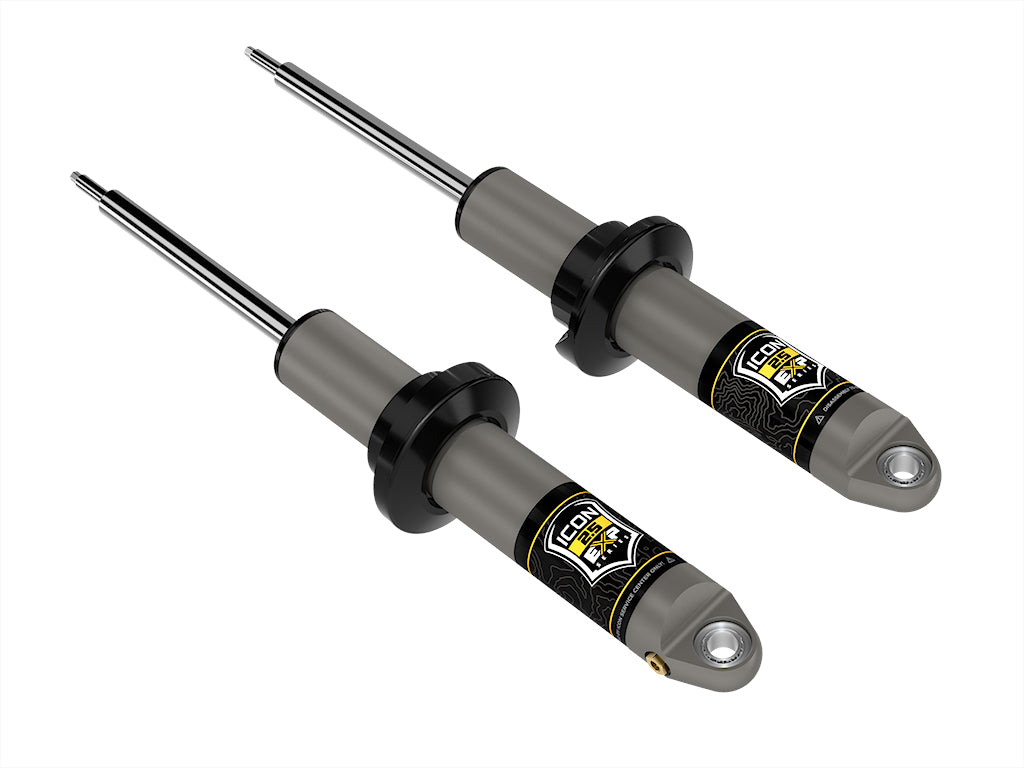

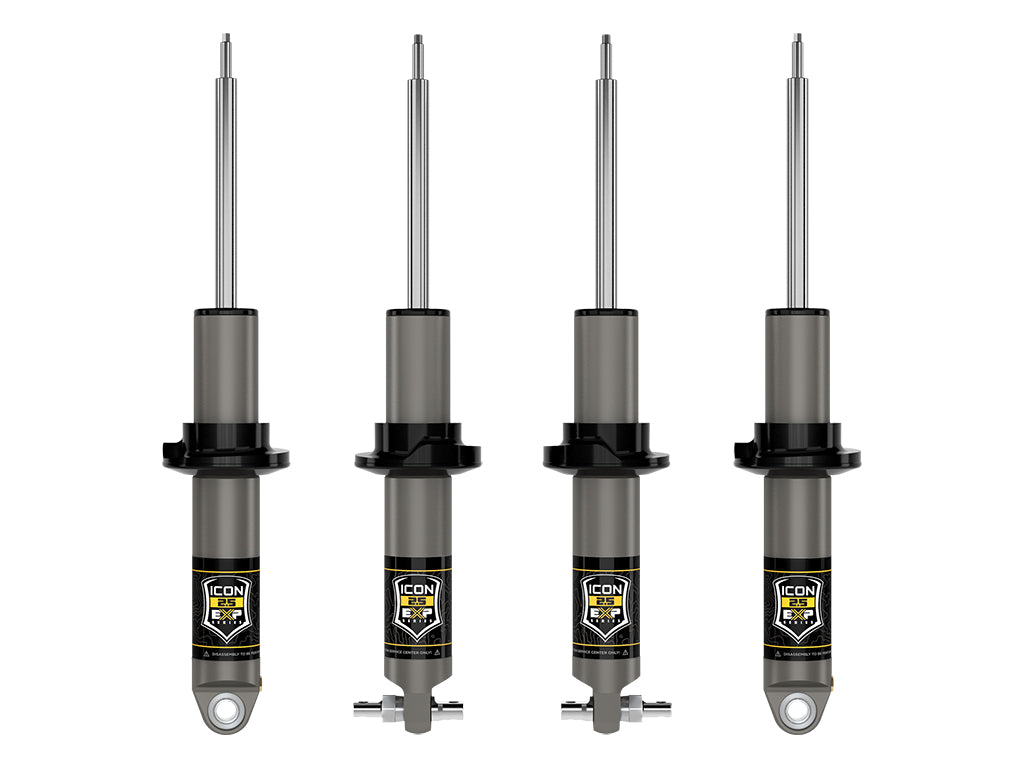

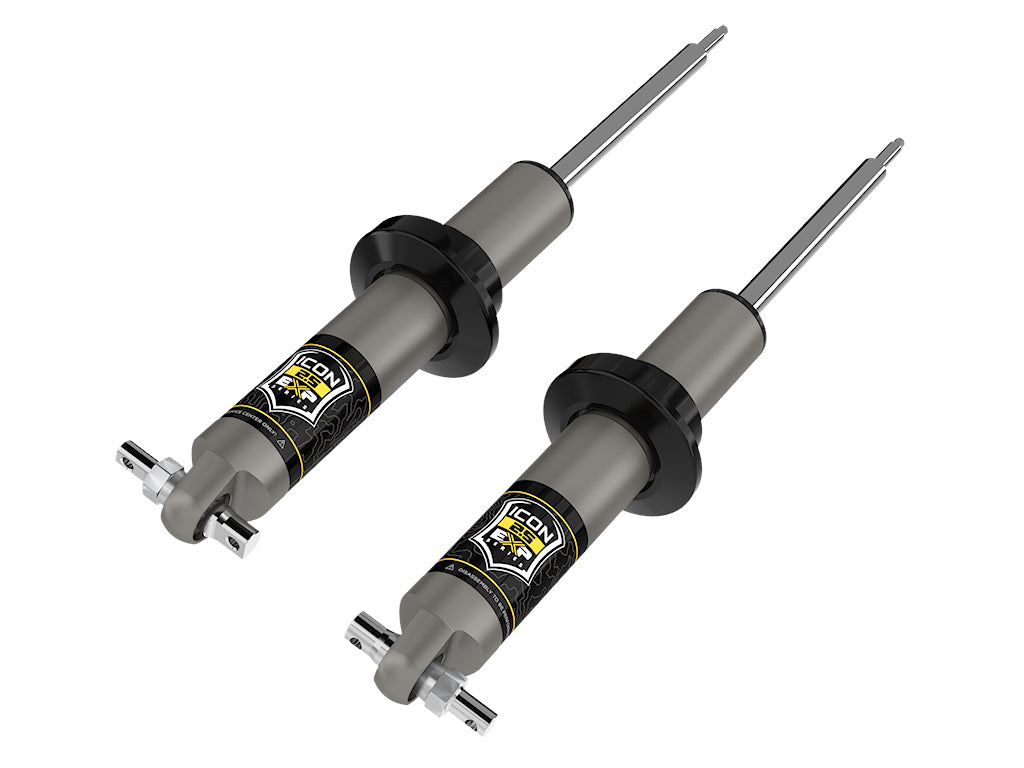

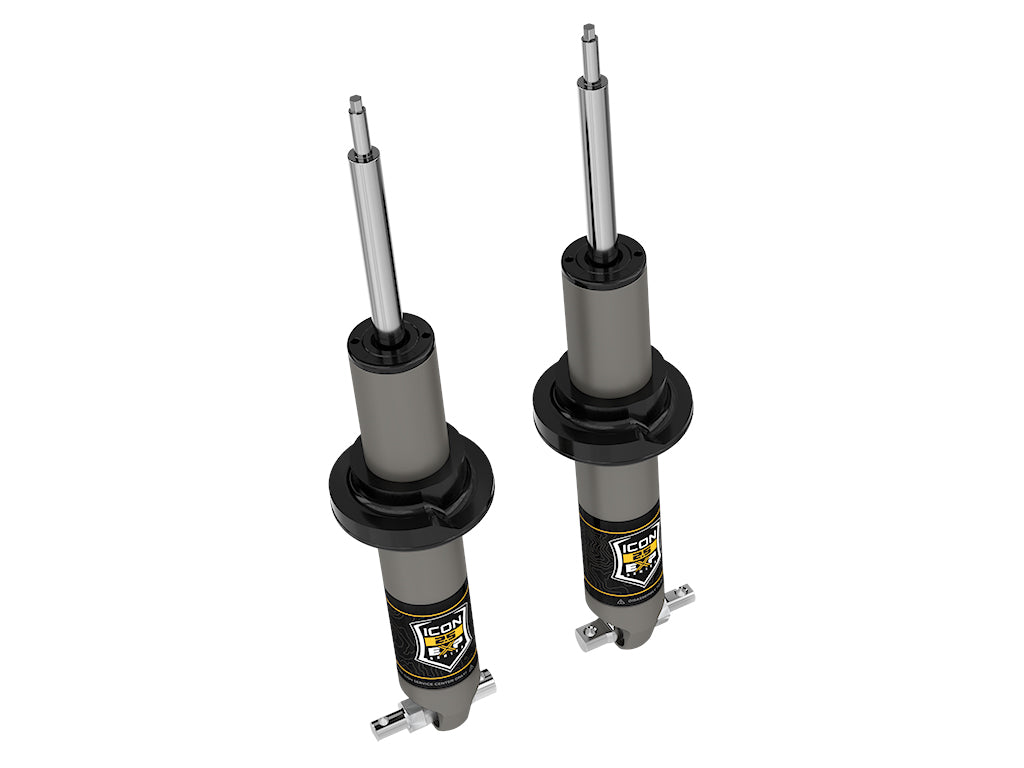

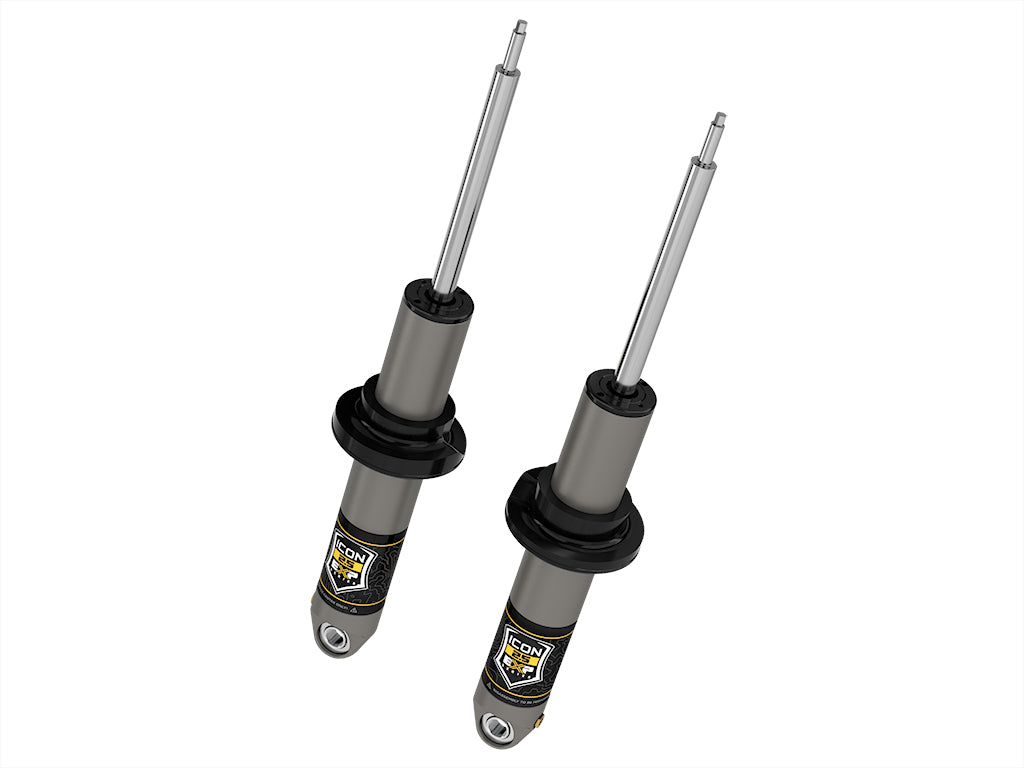

Kit includes full set of (4) 2.5 Aluminum Series EXP Shocks with Internal Reservoirs
Adjustable ride heights from 0-2” of front lift and 0-1.75" of rear lift over stock with the use of snap rings
Utilizes factory coils and coil hardware
Inverted shaft up design featuring 7/8” diameter induction hardened chrome plated shafts
One-piece impact extruded hard anodized aluminum cylinders offer excellent corrosion resistance and consistent finish
CNC machined 6061 aluminum components with a black anodized finish
PTFE lined spherical bearings for extended longevity and minimal deflection

Oem wheels & tires fitment: yes; application note #66: 2 door models will sit taller than 4 door models.
; application note #138: recommend high clearance crash bars part #42000 on non-sasquatch equipped vehicles when running 35" tires; application note #139: when running 37" tires crash bar removal may be required but is not recommended; application note #147: when running 37" tires use bump stop spacer kit part #611082 in the front; tech note: only compatible with ford broncos equipped with hoss 2.
0 suspension package; tech note: lift heights above 1.
5” over stock may require aftermarket front upper control arms to maintain ideal front end alignment; tech note: not compatible with bronco raptor; recommended aftermarket wheels (without sasquatch package): icon alloys - 17x8.
5" w/ 5.
75” backspace / 25mm offset; recommended aftermarket wheels (without sasquatch package): icon alloys - 18x9" w/ 6.
00" backspace / 25mm offset; recommended aftermarket wheels (with sasquatch package): icon alloys - 17x8.
5" w/ 4.
75” backspace / 0mm offset; recommended aftermarket wheels (with sasquatch package): icon alloys - 18x9" w/ 5.
00" backspace / 0mm offset; recommended aftermarket wheels (with sasquatch package): icon alloys - 20x9" w/ 5.
00" backspace / 0mm offset; recommended aftermarket tires (without sasquatch package): 35" x 12.
50" (requires high clearance crash bars, icon part number 42000.
37" tire packagesrequire coilover bump stop spacers along with trimming and modifications); recommended aftermarket tires (with sasquatch package): 35" x 12.
50" (37" tire packages require coilover bump stop spacers and may also require fender trimming and modifications); application note #55: shocks are fully serviceable.
Lift heights indicated are for a stock equipped vehicle.

Quick SpecsOverview:

Bushings Included: Yes
Mounting Hardware Included: Yes
Shocks Included: Yes
Grade Type: Performance
Maximum Lift: 2 IN
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
Active or Passive Suspension: Passive
Add-On Part: 48500DJ - 21-23 BRONCO BILLET UCA DJ PRO KIT
Add-On Part: 42000 - 21-23 BRONCO HIGH CLEARANCE CRASH BAR KIT
Add-On Part: 45212 - 21-23 BRONCO XD TIE ROD KIT
Add-On Part: 48400DJ - 21-23 BRONCO TUBULAR UCA DJ PRO KIT
Add-On Part: 44200T - 21-23 BRONCO REAR ADJ TRACK BAR KIT
Add-On Part: 611082 - EXP 1" SHAFT BUMP EXTENSION
Adjustable Compression: No
Adjustable Damping: No
California Prop 65 Warning: Yes
California Proposition 65: WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
Front Shock Body Diameter: 2.5 IN
Maximum Lift Front: 2 IN
Maximum Lift Rear: 1.75 IN
Minimum Lift Front: 0 IN
Minimum Lift Rear: 0 IN
Rear Shock Body Diameter: 2.5 IN
Reservoir Style: Internal
Title: ICON 2021-2023 Ford Bronco HOSS 2.0 Pkg 0-2" Lift Stage 1 Suspension System

Additional Specifications:

Country of Origin: US
Warranty: 1 Years
Weight (lbs): 52.0
Vehicle Specific Fitment: Y

Instructions

I48602_REVD.pdf

Fitment

: N/A
