ICON 2020-Up Jeep Gladiator, 2.5" Lift, Stage 8 Suspension System, Tubular UCA
ICON 2020-Up Jeep Gladiator, 2.5" Lift, Stage 8 Suspension System, Tubular UCA
PART #
- Front lift 2.5"
- Shocks included
Couldn't load pickup availability
- Free shippingmost orders $500+
- 30-day returnssee policy
- Warranty helpwe work claims for you
Important notes before you order
- Oem wheels & tires fitment: yes; recommended aftermarket wheels: icon alloys - 17x8.
- 5" w/ 4.
- 5” backspace / -6mm offset; recommended aftermarket wheels: icon alloys - 18x9" w/ 4.
- 5” backspace / -12mm offset; recommended aftermarket tires: 35" x 12.
- 50" (37" x 12.
- 50" with optional bump stop spacer kit pn: 22071); application note #128: gladiator mojave trim requires 14mm misalignment spacer kit part # 611070; application note #150: shocks are fully serviceable; tech note: icon’s advertised lift heights are based around a typical jeep jt build which usually includes added weight of accessories such as heavier front bumper/winch.
- Lift heights may be higher than advertised if installed on a stock weighted vehicle.
- tech note: only compatible with models equipped with 3.
- 6l v6 pentastar engine.
- ships in multiple boxes
TRU specialist notes
From the Trucks R Us fitment and install team, beyond the manufacturer's information.
- Plan for a professional wheel alignment after installing any lift or leveling kit.
- Going to bigger tires as well? Speedometer recalibration may be needed, and some tire and wheel combinations need trimming. Check the recommended wheels and tires, or ask us before you order.
Specifications
| Brand | ICON Vehicle Dynamics |
|---|---|
| Part number | K22108T |
| Front Lift Height | 2.5" |
| Spring Material | Steel |
| Bushings Included | Yes |
| Mounting Hardware Included | Yes |
| Spring Color | Black |
| Shocks Included | Yes |
| Grade Type | Performance |
| Maximum Lift | 2.5 IN |
| Coil Spring End 1 Type | Open |
| Coil Spring End 2 Type | Open |
| Coils Quantity Front | 2 |
| Coils Quantity Rear | 2 |
| Add-On Part | 252012 - -4 TO -10 HOSE SHIELD KIT |
| Tires Fitment | Yes |
| Recommended Aftermarket Tires | 35" x 12.50" (37" x 12.50" with optional bump stop spacer kit part # 22071) |
| Recommended Aftermarket Wheels | ICON Alloys - 18x9 w/ 4.5" Backspace / -12mm Offset |
| Country of Origin | US |
| Warranty | See Rep |
| Weight (lbs) | 219 |
California Proposition 65 warning applies to this product. www.P65Warnings.ca.gov
Features
- 2.5" lift height
- Easy-to-adjust CDC Valve (Compression Damping Control) allows for end-user compression damping changes to suit all types of terrain and vehicle cargo configurations
- Front and rear track bars ensure proper alignment and improved articulation
- Adjustable billet aluminum front sway bar links
- 100% bolt-on system makes for an easy install
- “ICON 1K” tested under rigorous off-road conditions to validate tune performance strength and durability
- Fits 35" tires (37" with extended bump stop spacer kit)
- 33% front 23% rear increase in wheel travel
- Improves on and off-road ride quality over stock
- Front upper and lower links included for caster angle correction and improved front end articulation
- Rear tubular upper and lower links improve rear end articulation and allow for pinion angle adjustment
- Dual rate front coil springs with lifetime guarantee against sagging/breakage
- Triple rate rear coil springs with ICON-engineered droop ride and overload rates
- 2.5 Aluminum Series front and rear shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
Installation
Free install support from the Trucks R Us tech team, for you or your shop.
Overview

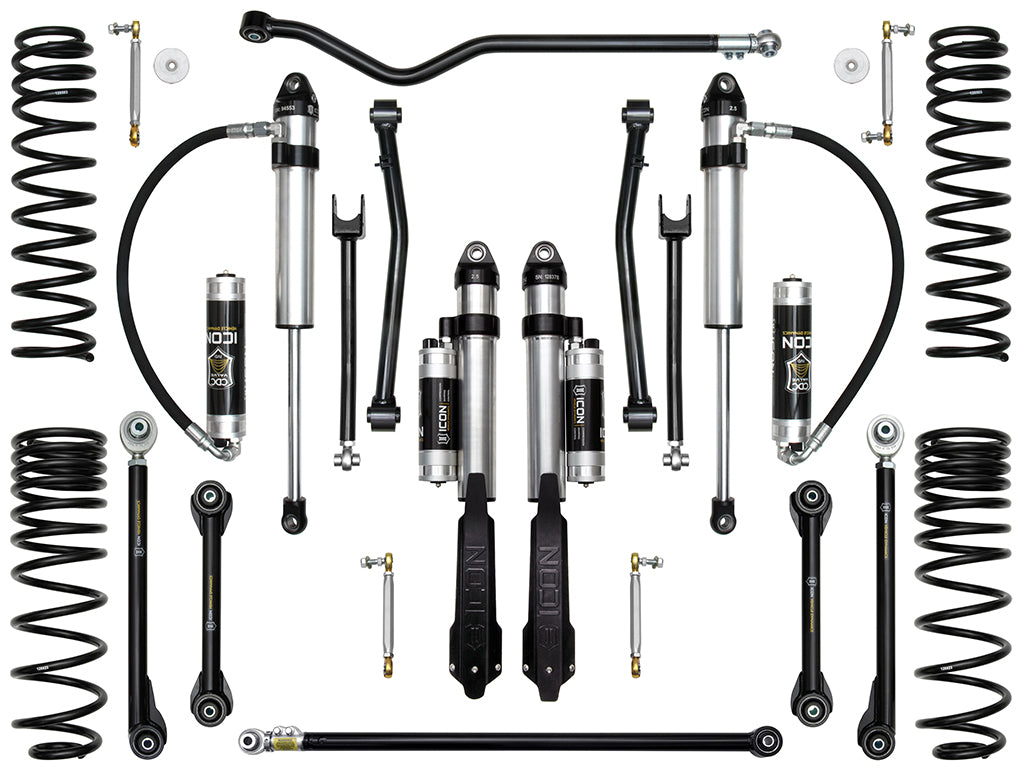

The Stage 8 ICON 2.5” Suspension System for the Jeep Gladiator is the ultimate setup for drastically improving off-road performance and providing an end-user adjustable ride quality for the application that will see heavy off-road use across a wide variety of vehicle loadouts and terrains. This complete suspension system features ICON’s proven 2.5 Aluminum Series shocks with CDC Valve technology, 2.5” lift dual-rate front coil springs, tubular steel fixed lower and adjustable upper front links, billet front sway bar links, a triple-rate rear coil spring kit, tubular steel fixed upper and adjustable lower rear links, a billet rear sway bar link kit, front and rear adjustable track bars, and all necessary hardware for install. This system provides an increase of over 30% front and 20% rear wheel travel and was designed around the use of a 35” tire. For those looking to run a 37” tire this can be achieved with the ICON Jeep JT Bump Stop Spacer Kit (Part #22071).
