ICON 2020-Up Jeep Gladiator, 2.5" Lift, Stage 6 Suspension System

Name: ICON 2020-Up Jeep Gladiator, 2.5" Lift, Stage 6 Suspension System
Brand: ICON Vehicle Dynamics
SKU: K22106
Price: 4195.15 USD
Availability: OutOfStock

ICON 2020-Up Jeep Gladiator, 2.5" Lift, Stage 6 Suspension System

PART #

$4,195.15

SALE CALL OR CHAT TO ORDER

Shipping calculated at checkout.

Product variants

Quantity

Inventory: Special Order (Live Chat or Call)

View full details

Important: Always read the entire product description, including Important Notes and Fitment information, before making a purchase. Components contained in images and descriptions may change based upon your selections.

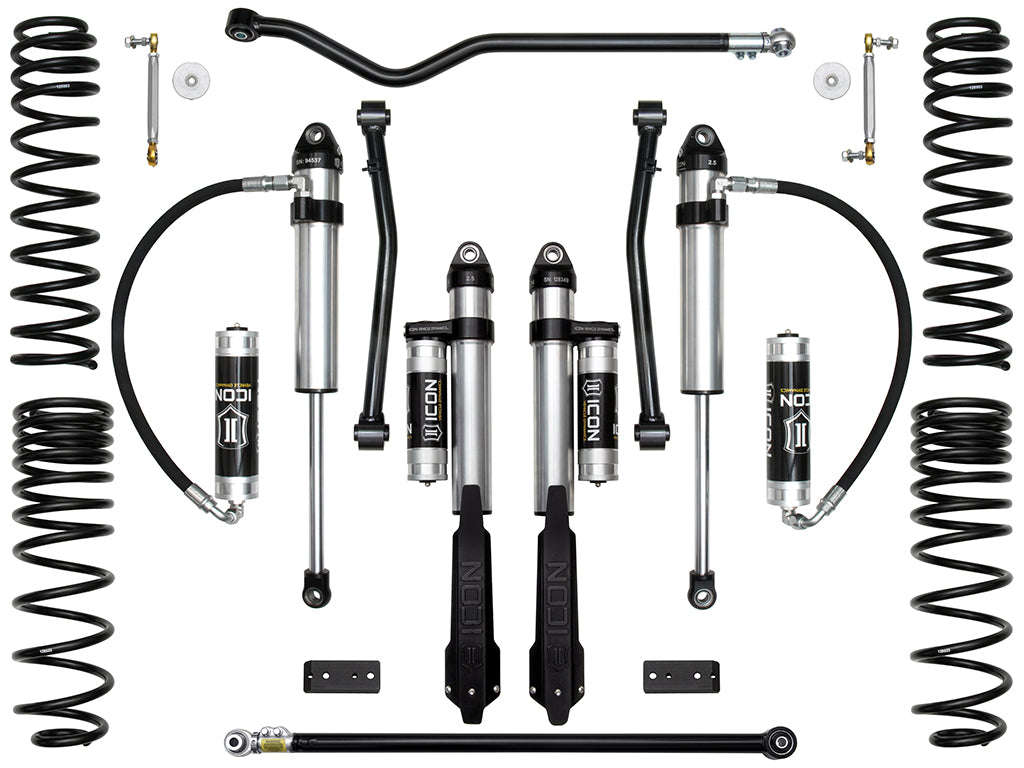

The Stage 6 ICON 2.5” Suspension System for the Jeep Gladiator is the ideal setup for drastically improving off-road performance and overall ride quality for the application that will see occasional heavy off-road use. This complete suspension system features ICON’s proven 2.5 Aluminum Series shocks, 2.5” lift dual-rate front coil springs, a tubular steel fixed front lower link kit, billet front sway bar links, a triple-rate rear coil spring kit, a rear sway bar relocation kit, front and rear adjustable track bars, and all necessary hardware for install. This system provides an increase of over 30% front and 20% rear wheel travel and was designed around the use of a 35” tire. For those looking to run a 37” tire this can be achieved with the ICON Jeep JT Bump Stop Spacer Kit (Part #22071).

Features

2.5" lift height
Adjustable billet aluminum front sway bar links
100% bolt-on system makes for an easy install
“ICON 1K” tested under rigorous off-road conditions to validate tune performance strength and durability
Fits 35" tires (37" with extended bump stop spacer kit)
33% front 23% rear increase in wheel travel
Improves on and off-road ride quality over stock
Front lower links included for caster angle correction and improved front end articulation
Dual rate front coil springs with lifetime guarantee against sagging/breakage
Triple rate rear coil springs with ICON-engineered droop ride and overload rates
2.5 Aluminum Series shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
Front and rear track bars ensure proper alignment and improved articulation

Oem wheels & tires fitment: yes; recommended aftermarket wheels: icon alloys - 17x8.
5" w/ 4.
5” backspace / -6mm offset; recommended aftermarket wheels: icon alloys - 18x9" w/ 4.
5” backspace / -12mm offset; recommended aftermarket tires: 35" x 12.
50" (37" x 12.
50" with optional bump stop spacer kit pn: 22071); application note #128: gladiator mojave trim requires 14mm misalignment spacer kit part # 611070; application note #150: shocks are fully serviceable; tech note: icon’s advertised lift heights are based around a typical jeep jt build which usually includes added weight of accessories such as heavier front bumper/winch.
Lift heights may be higher than advertised if installed on a stock weighted vehicle.
; tech note: only compatible with models equipped with 3.
6l v6 pentastar engine.
; ships in multiple boxes

Quick SpecsOverview:

Spring Material: Steel
Bushings Included: Yes
Mounting Hardware Included: Yes
Spring Color: Black
Shocks Included: Yes
Grade Type: Performance
Maximum Lift: 2.5 IN
Coil Spring End 1 Type: Open
Coil Spring End 2 Type: Open
Coils Quantity Front: 2
Coils Quantity Rear: 2
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
Add-On Part: 191014 - .25" COLLAR SPANNER PIN WRENCH
Add-On Part: 22042 - 20-UP JT / 18-UP JL / 07-18 JK FRONT HYD BUMP STOP KIT
Add-On Part: 611070 - 20-UP JT MOJAVE FRONT 2.5 MISALIGNMENT SPACER KIT
Add-On Part: 22071 - 20-UP JT EXTENDED BUMP STOP SPACER KIT
Add-On Part: 252012 - -4 TO -10 HOSE SHIELD KIT
California Prop 65 Warning: Yes
California Proposition 65: WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
OEM Wheels &
Tires Fitment: Yes
Recommended Aftermarket Tires: 35" x 12.50" (37" x 12.50" with optional bump stop spacer kit part # 22071)
Recommended Aftermarket Wheels: ICON Alloys - 18x9 w/ 4.5" Backspace / -12mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5 w/ 4.5" Backspace / -6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9 w/ 4.5" Backspace / -12mm Offset
Title: 20-UP GLADIATOR 2.5" STAGE 6 SUSPENSION SYSTEM

Additional Specifications:

Country of Origin: US
Warranty: 1 Year-Shocks; Limited Lifetime-Coil Springs, Links, Track Bars; Excludes Wearable Items
Weight (lbs): 148.0
Vehicle Specific Fitment: Y

Instructions

I22021_REVA.pdf

Fitment

: N/A
