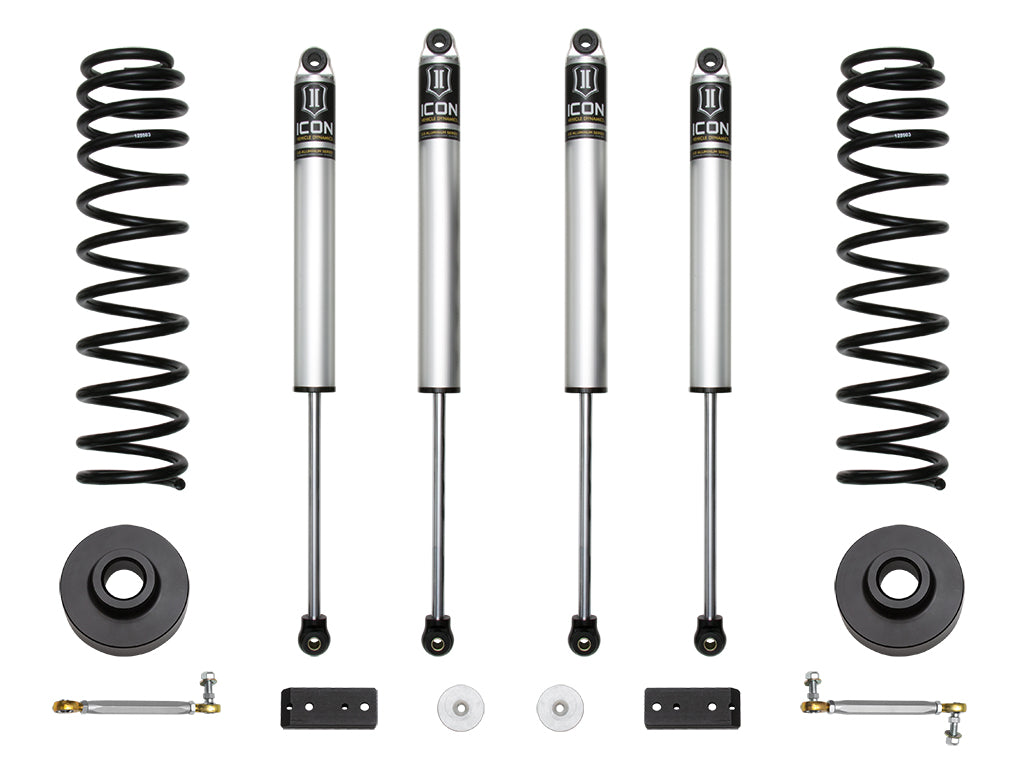

ICON 2020-2023 Jeep Gladiator, 2" Lift, Stage 1 Suspension System

Name: ICON 2020-2023 Jeep Gladiator, 2" Lift, Stage 1 Suspension System
Brand: ICON Vehicle Dynamics
SKU: K22101
Price: 1531.12 USD
Availability: InStock

ICON 2020-2023 Jeep Gladiator, 2" Lift, Stage 1 Suspension System

PART #

$1,531.12

SALE CALL OR CHAT TO ORDER

Shipping calculated at checkout.

Product variants

Quantity

Inventory: Low (Live-Chat or Call For Stock)

View full details

Important: Always read the entire product description, including Important Notes and Fitment information, before making a purchase. Components contained in images and descriptions may change based upon your selections.

Through an accelerated testing process dubbed the “ICON1K” R&D program, ICON has logged over a thousand miles in the dirt pushing the JT to off-road extremes to identify limiting factors in OE components, develop products that remove these limits, and further extrapolate performance out of this vehicle. This 2” suspension system has been tweaked, tuned, and revised several times over the course of this ICON1K testing in an effort to provide unparalleled ride quality and vehicle dynamics for everything from rock crawling to high-speed desert running. By removing the aforementioned “limiting factors” this ICON suspension system completely redefines the potential of the 2020-2023 Jeep Gladiator with wheel travel gains over 30%!

Features

2" front lift height over stock
“ICON 1K” tested under rigorous off-road conditions to validate tune performance strength and durability
Fits 35" tires (37" with extended bump stop spacer kit)
33% front 23% rear increase in wheel travel
Improves on and off-road ride quality over stock
Dual rate coil springs with lifetime guarantee against sagging/breakage
Billet aluminum rear 1.375" coil spacers eliminate the factory rake
2.0 Aluminum Series shocks with vehicle specific valving
Adjustable billet aluminum front sway bar links
100% bolt-on system makes for an easy install

Oem wheels & tires fitment: yes; tech note: icon’s advertised lift heights are based around a typical jeep jt build which usually includes added weight of accessories such as heavier front bumper/winch.
Lift heights may be higher than advertised if installed on a stock weighted vehicle.
; recommended aftermarket wheels: icon alloys - 17x8.
5" w/ 4.
5” backspace / -6mm offset; recommended aftermarket wheels: icon alloys - 18x9" w/ 4.
5” backspace / -12mm offset; recommended aftermarket wheels: icon alloys - 20x9" w/ 4.
5” backspace / -12mm offset; recommended aftermarket tires: 35" x 12.
50" (37" x 12.
50" with optional bump stop spacer kit pn: 22071); application note #30: an adjustable track bar may be needed to realign the axle from left to right, or to add additional strength; application note #127: will not fit gladiator mojave trim; application note #150: shocks are fully serviceable; tech note: diesel models will net approx.
1.
75" of front lift over stock due to their heavier weight.

Quick SpecsOverview:

Spring Material: Steel
Bushings Included: Yes
Mounting Hardware Included: Yes
Spring Color: Black
Shocks Included: Yes
Grade Type: Performance
Coil Spring End 1 Type: Open
Coil Spring End 2 Type: Open
Coils Quantity Front: 2
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
Add-On Part: 22071 - 20-UP JT EXTENDED BUMP STOP SPACER KIT
Add-On Part: 22042 - 20-UP JT / 18-UP JL / 07-18 JK FRONT HYD BUMP STOP KIT
Adjustable Damping: No
California Prop 65 Warning: Yes
California Proposition 65: WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
Front Spring Rate Type: Progressive Dual Rate
Maximum Lift Front: 2 IN
Maximum Lift Rear: 1.38 IN
OEM Wheels &
Tires Fitment: Yes
Recommended Aftermarket Tires: 35" x 12.50" (37" x 12.50" with optional bump stop spacer kit part # 22071)
Recommended Aftermarket Wheels: ICON Alloys - 20x9 w/ 4.5" Backspace / -12mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9 w/ 4.5" Backspace / -12mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5 w/ 4.5" Backspace / -6mm Offset
Title: ICON 2020-2023 Jeep Gladiator 2" Lift Stage 1 Suspension System

Additional Specifications:

Country of Origin: US
Warranty: 1 Year-Shock Absorbers; Limited Lifetime-Coil Springs, Coil Spacers, Sway Bar Links, Sway Bar Bracket; Excludes Wearable Items
Weight (lbs): 53.0
Vehicle Specific Fitment: Y

Instructions

I22025_REVB.pdf
