ICON 2018-Up Jeep JL Wrangler, 2.5" Lift, Stage 5 Suspension System

Name: ICON 2018-Up Jeep JL Wrangler, 2.5" Lift, Stage 5 Suspension System
Brand: ICON Vehicle Dynamics
SKU: K22015
Price: 4165.63 USD
Availability: OutOfStock

ICON 2018-Up Jeep JL Wrangler, 2.5" Lift, Stage 5 Suspension System

PART #

$4,165.63

SALE CALL OR CHAT TO ORDER

Shipping calculated at checkout.

Product variants

Quantity

Inventory: Special Order (Live Chat or Call)

View full details

Important: Always read the entire product description, including Important Notes and Fitment information, before making a purchase. Components contained in images and descriptions may change based upon your selections.

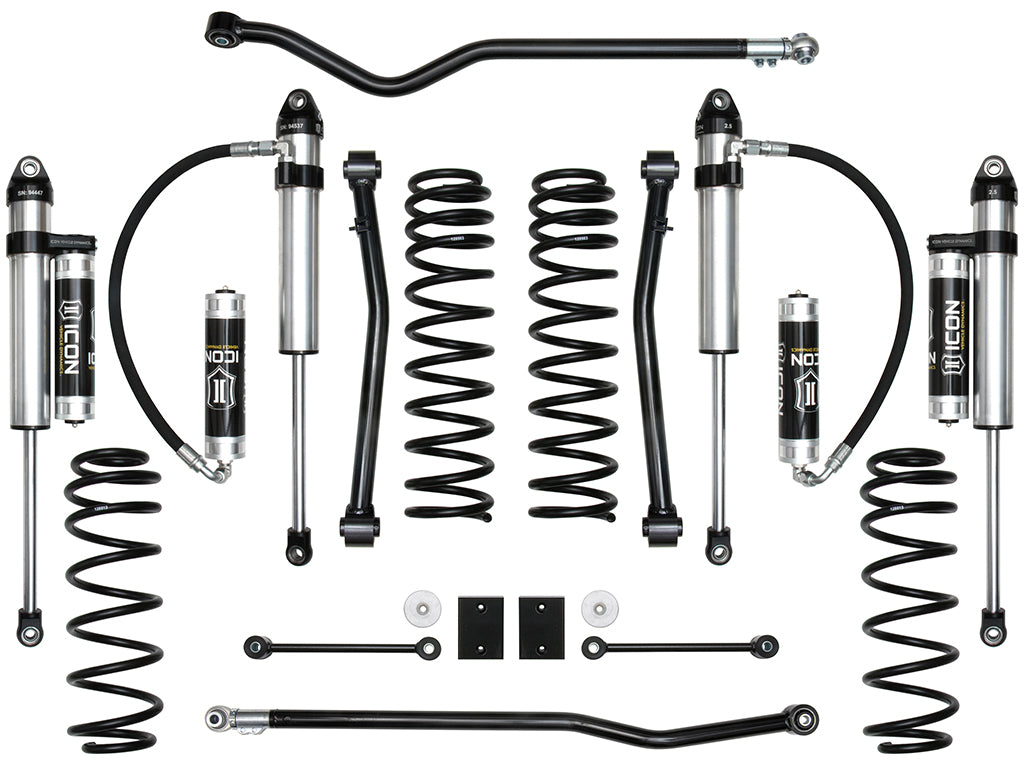

The ICON Vehicle Dynamics Stage 5 2.5" Suspension System for the 2018-UP Jeep Wrangler JL is designed for the driver looking to drastically improve the performance and ride quality of their vehicle. This Stage 5 system includes 2.5" lift dual rate coil springs, upgraded 2.5 Aluminum Series shocks with vehicle specific valving, tubular steel front lower links, adjustable front and rear track bars, bump stop spacers, sway bar links, and all necessary hardware to complete the installation. With this combination of components, ICON was able to increase wheel travel numbers by over 30% (3" front, 2" rear), redefining the potential of the 2018-UP JL. The front lower links included with this system are constructed from thick wall steel tubing, provide increased castor numbers, and feature dual durometer bushings for noise free operation, maximum articulation, and minimal bind. The Stage 5 system allows for fitment of 35" tires when used with ICON's recommended wheel specifications. For users looking to install 37" tires, an optional bump stop spacer kit (PN: 22029) is available.

Features

2.5" lift height
Fits 35" tires (37" with optional bump stop spacer kit PN: 22029)
3" front 2" rear increase in wheel travel
Improves on and off-road ride quality over stock
Dual rate coil springs with lifetime guarantee against sagging/breakage
2.5 Aluminum Series shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
Tubular steel link arms with dual durometer bushings for noise free performance maximum articulation and minimal bind
100% bolt-on system makes for an easy install
“ICON 1K” tested under rigorous off-road conditions to validate tune performance strength and durability

Oem wheels & tires fitment: yes; recommended aftermarket wheels: icon alloys - 17x8.
5" w/ 4.
5” backspace / -6mm offset; recommended aftermarket wheels: icon alloys - 18x9" w/ 4.
5” backspace / -12mm offset; recommended aftermarket tires: 35" x 12.
50" (37" x 12.
50" with optional bump stop spacer kit pn: 22029); application note #66: 2 door models sit slightly higher than 4 door models but remain level when installed; application note #150: shocks are fully serviceable; tech note: icon’s advertised lift heights are based around a typical jeep jl build which usually includes added weight of accessories such as heavier front bumper/winch and heavier rear bumper/spare tire.
Lift heights may be higher than advertised if installed on a stock weighted vehicle.
; tech note: only compatible with models equipped with 3.
6l v6 pentastar engine.
Not compatible with 3.
6l v6 etorque engine.
; ships in multiple boxes

Quick SpecsOverview:

Spring Material: Steel
Bushings Included: Yes
Mounting Hardware Included: Yes
Spring Color: Black
Shocks Included: Yes
Grade Type: Performance
Maximum Lift: 2.5 IN
Coils Quantity Front: 2
Coils Quantity Rear: 2
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
Add-On Part: 22038 - 18-23 JL/20-23 JT 2.0 CENTERLINE STABILIZER KIT
Add-On Part: 22042 - 20-UP JT / 18-UP JL / 07-18 JK FRONT HYD BUMP STOP KIT
Add-On Part: 22061 - 18-23 JL/20-23 JT FRONT SWAY BAR LINK KIT
Add-On Part: 191014 - .25" COLLAR SPANNER PIN WRENCH
Add-On Part: 252012 - -4 TO -10 HOSE SHIELD KIT
Add-On Part: 22029 - 18-UP JL EXTENDED BUMP STOP SPACER KIT
California Prop 65 Warning: Yes
California Proposition 65: WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
Dual Rate Coil Springs: Yes
OEM Wheels &
Tires Fitment: Yes
Recommended Aftermarket Tires: 35" x 12.50" (37" x 12.50" with optional bump stop spacer kit part # 22029)
Recommended Aftermarket Wheels: (Non-Rubicon) ICON Alloys - 17x8.5 w/ 4.5" Backspace / -6mm Offset
Recommended Aftermarket Wheels: (Non-Rubicon) ICON Alloys - 18x9 w/ 4.5" Backspace / -12mm Offset
Recommended Aftermarket Wheels: (Non-Rubicon) ICON Alloys - 20x9 w/ 4.5" Backspace / -12mm Offset
Recommended Aftermarket Wheels: (Rubicon) ICON Alloys - 20x9 w/ 4.5" Backspace / -12mm Offset
Recommended Aftermarket Wheels: (Rubicon) ICON Alloys - 18x9 w/ 4.5" Backspace / -12mm Offset
Recommended Aftermarket Wheels: (Rubicon) ICON Alloys - 17x8.5 w/ 4.75" Backspace / 0mm Offset
Title: 18-UP JEEP JL 2.5" STAGE 5 SUSPENSION SYSTEM

Additional Specifications:

Country of Origin: US
Warranty: See Rep
Weight (lbs): 131.0
Vehicle Specific Fitment: Y

Instructions

I22021_REVA.pdf

Fitment

: N/A
