ICON 2018-Up Jeep JL Wrangler, 2.5" Lift, Stage 1 Suspension System
- Front lift 2.5"
- Shocks included
Questions about fitment? Live chat or call 866-235-4715
Couldn't load pickup availability
- Free shippingMost orders $500+
- 30-day returnsSee policy
- Warranty supportWe work with the maker
Questions about fitment?
Talk to a TRU specialist
We’ll help you verify fitment before you buy.
Veteran-owned · Austin, Texas · Mon–Fri 9:30a–11:00a & 1:00p–5:30p CT
Important notes before you order
- APPLICATION NOTE #30: An Adjustable Track Bar May Be Needed To Realign The Axle From Left To Right, Or To Add Additional Strength
- APPLICATION NOTE #66: 2 Door Models Sit Slightly Higher Than 4 Door Models But Remain Level When Installed
- APPLICATION NOTE #150: Shocks Are Fully Serviceable
- TECH NOTE: ICON’s advertised lift heights are based around a typical Jeep JL build which usually includes added weight of accessories such as heavier front bumper/winch and heavier rear bumper/spare tire. Lift heights may be higher than advertised if installed on a stock weighted vehicle.
- TECH NOTE: Not compatible with Wrangler 4xe or Unlimited Rubicon 392 trims. See ICON Help Center for more information.
- TECH NOTE: Diesel models will net approx. 1.75" of front lift over stock due to their heavier weight.
- Ships In Multiple Boxes
TRU specialist notes
From the Trucks R Us fitment and install team, beyond the manufacturer's information.
- Plan for a professional wheel alignment after installing any lift or leveling kit.
- Going to bigger tires as well? Speedometer recalibration may be needed, and some tire and wheel combinations need trimming. Check the recommended wheels and tires, or ask us before you order.
Specifications
| Brand | ICON Vehicle Dynamics |
|---|---|
| Part number | K22011 |
| UPC / GTIN | 840103415772 |
| Front Lift Height | 2.5" |
| Active or Passive Suspension | Passive |
| Adjustable Compression | No |
| Adjustable Damping | No |
| Adjustable Rebound | No |
| Bushing(s) Included | Yes |
| Coil Spring Color | Black |
| Coil Spring End 1 Type | Closed |
| Coil Spring End 2 Type | Open, Closed |
| Coil Spring Material | Steel |
| Coil Spring Maximum Inside Diameter | 4.03 IN, 3.09 IN |
| Coil Spring Maximum Outside Diameter | 5.6 IN, 5.16 IN |
| Coil Spring Wire Diameter | .562 IN, .563 IN |
| Coils Quantity Front | 2 |
| Coils Quantity Rear | 2 |
| Dual Rate Coil Springs | Yes |
| Front Reservoir Style | Internal |
| Front Shock Body Diameter | 2 IN |
| Front Spring Rate | 140 PPI, 200 PPI |
| Front Spring Rate Type | Progressive Dual Rate |
| Grade Type | Performance |
| Maximum Lift | 2.5 IN |
| Maximum Lift Height Front | 2.5 IN |
| Maximum Lift Height Rear | 2.5 IN |
| Mounting Hardware Included | Yes |
| Rear Reservoir Style | Internal |
| Rear Shock Body Diameter | 2 IN |
| Rear Spring Rate | 170 PPI, 200 PPI |
| Rear Spring Rate Type | Progressive Dual Rate |
| Shocks Included | Yes |
| Spring Color | Black |
| Spring Material | Steel |
| Spring Rate | 170 PPI, 200 PPI |
| Strut(s) Included | No |
| Country of Origin | US |
| Warranty | 1 Year-Shocks; Limited Lifetime-Coil Springs; Excludes Wearable Items |
California Proposition 65 warning applies to this product. www.P65Warnings.ca.gov

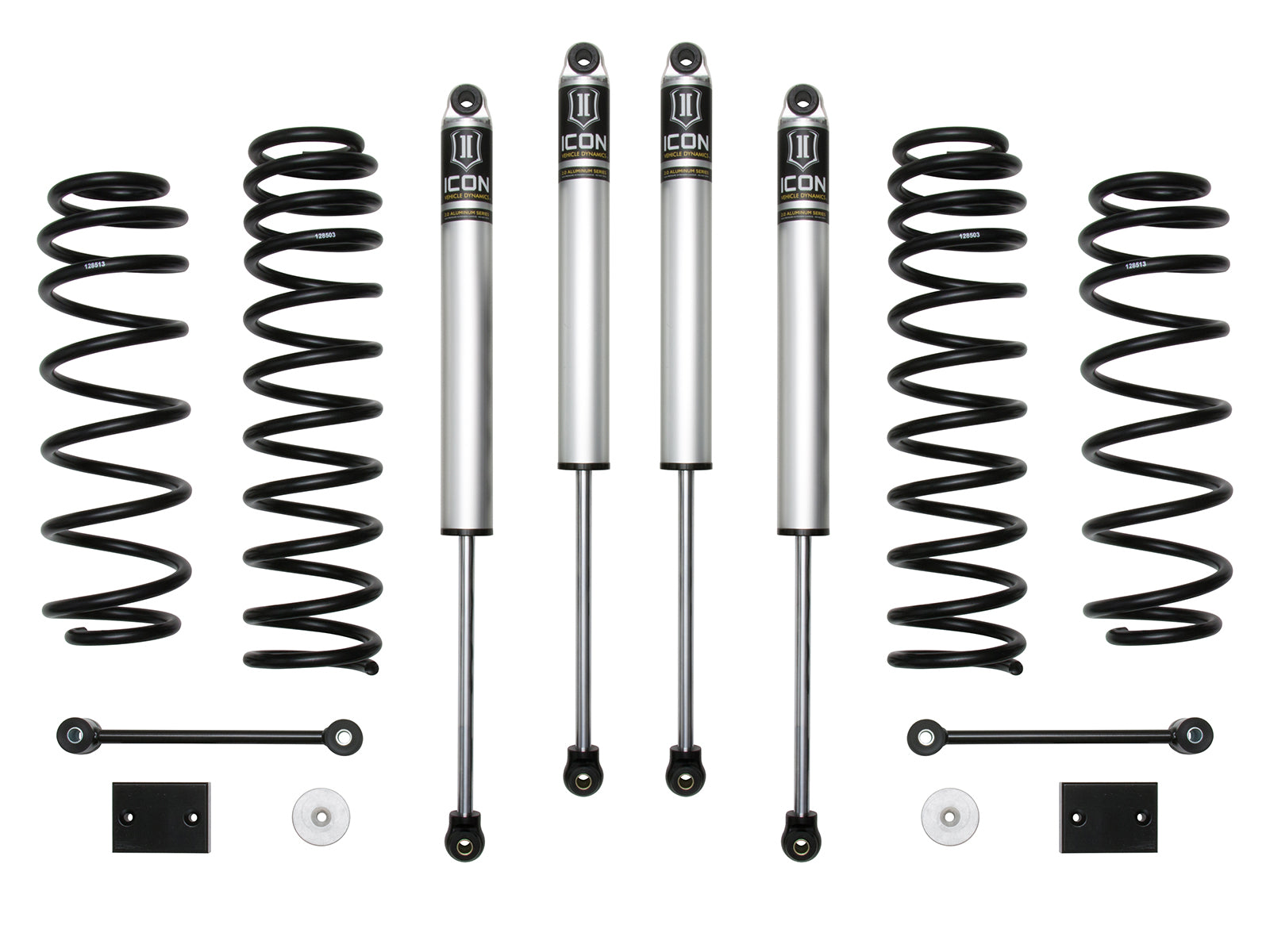

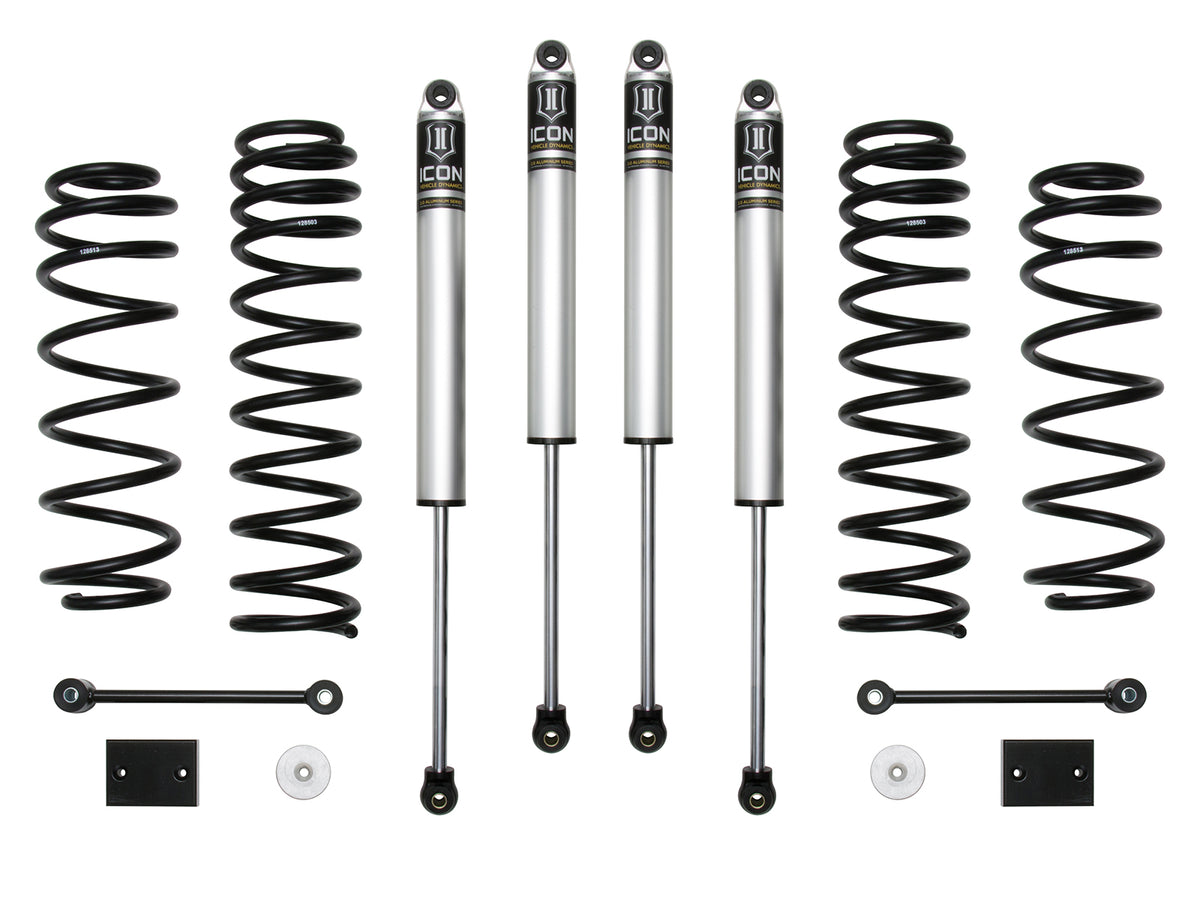

What's in the box
| Qty | Part | Description |
|---|---|---|
| 1 | 22025 | 18-23 JL 2.5"/20-23 JT 2" FRONT DUAL RATE SPRING KIT |
| 1 | 22026 | 18-23 JL 2.5" REAR DUAL RATE SPRING KIT |
| 2 | 26523 | 18-UP JL/20-UP JT 2.5" FRONT 2.0 VS IR |
| 2 | 26524 | 18-UP JL 2.5" REAR 2.0 VS IR |
Features
- 2.5" lift height
- Fits 35" tires (37" with optional extended bump stop spacer kit PN: 22029)
- 3" front, 2" rear increase in wheel travel
- Improves on and off-road ride quality over stock
- Dual rate coil springs with lifetime guarantee against sagging/breakage
- 2.0 Aluminum Series shocks with vehicle specific valving
- 100% bolt-on system makes for an easy install
- “ICON 1K” tested under rigorous off-road conditions to validate tune, performance, strength, and durability
Recommended wheels & tires
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 4.5” Backspace / -6mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 4.5” Backspace / -12mm Offset
- Recommended Aftermarket Tires: 35" x 12.50" (37" x 12.50" with optional bump stop spacer kit PN: 22029)
Installation
Free install support from the Trucks R Us tech team, for you or your shop.
Overview
Through an accelerated testing process dubbed the “ICON1K” R&D program, ICON has logged over a thousand miles in the dirt pushing the JL to off-road extremes to identify limiting factors in OE components, develop products that remove these limits, and further extrapolate performance out of this vehicle. This 2.5” suspension system has been tweaked, tuned, and revised several times over the course of this ICON1K testing in an effort to provide unparalleled ride quality and vehicle dynamics for everything from rock crawling to high-speed desert running.
The ICON Vehicle Dynamics Stage 1 2.5" Suspension System for the 2018-UP Wrangler JL is designed for the driver looking to drastically improve the performance and ride quality of their vehicle. The Stage 1 system is ICON's entry level offering for Jeep enthusiasts looking to add lift height and wheel travel to their JL without breaking the bank. This system includes 2.5" lift dual rate coil springs, Vehicle Specific 2.0 Aluminum Series shocks, bump stop spacers, sway bar links, and all necessary hardware to complete the installation. With this combination of components, ICON was able to increase wheel travel numbers by over 30% (3" front, 2" rear), redefining the potential of the 2018-UP JL. The Stage 1 system allows for fitment of 35" tires when used with ICON's recommended wheel specifications. For users looking to install 37" tires, an optional extended bump stop spacer kit (PN: 22029) is available.
Holistic Engineering - the ICON Difference: When developing suspension components for a new vehicle, ICON takes a different approach than many others. Rather than focusing in on one particular part, ICON engineers look at the vehicle as a whole, identify inherent strengths and weaknesses, and set a target for performance. With a focus on maximizing wheel travel and improving ride quality, ICON will develop components that address (and often times replace) OE limiting factors. This "holistic engineering" philosophy often results in the development of several parts designed to work together as a system to provide a balanced on and off-road performance upgrade. Because ICON is designing and manufacturing all of the components necessary to improve the performance of a vehicle from front to back, end-users can rest easy knowing they are dealing with ONE manufacturer, ONE standard of quality, and ONE awesome warranty to back it all up.
Questions
Will this fit my truck?
Select your truck at the top of the page and the fit check will confirm it. If your exact trim is not listed, call 866-235-4715 or live chat and a fitment specialist will check it before you order.
Do you help with installation?
Yes. Our technical team helps you or your shop with installation and troubleshooting after delivery, on top of the manufacturer’s support.
What if the part has a problem?
We work the warranty claim with the manufacturer on your behalf, within the manufacturer’s warranty policy.
Can I return it?
Most items can be returned within 30 days. See our return policy for details.
Do I need an alignment after installing?
Yes. Any lift or leveling kit changes suspension geometry, so get a professional alignment after installation.
