ICON 2007-18 Jeep JK Wrangler, 3" Lift, Stage 5 Suspension System
- Front lift 3"
- Shocks included
Questions about fitment? Live chat or call 866-235-4715
Complete your build
Optional add-ons
Recommended Add-Ons
Add-ons selected:
Couldn't load pickup availability
- Free shippingMost orders $500+
- 30-day returnsSee policy
- Warranty supportWe work with the maker
Questions about fitment?
Talk to a TRU specialist
We’ll help you verify fitment before you buy.
Veteran-owned · Austin, Texas · Mon–Fri 9:30a–11:00a & 1:00p–5:30p CT
Important notes before you order
- APPLICATION NOTE #63: 2012-Up Jk Models Require The Use Of ICON Part #22011 Exhaust Extension Spacer Or Aftermarket Driveshaft Part #22014
- APPLICATION NOTE #66: 2 Door Models Sit Slightly Higher Than 4 Door Models But Remain Level When Installed
- APPLICATION NOTE #123: May Require Rear Alignment Cam Kit
- APPLICATION NOTE #150: Shocks Are Fully Serviceable
- TECH NOTE: ICON’s advertised lift heights are based around a typical Jeep JK build which usually includes added weight of accessories such as heavier front bumper/winch and heavier rear bumper/spare tire. Lift heights may be higher than advertised if installed on a stock weighted vehicle.
- Ships in Multiple Boxes
TRU specialist notes
From the Trucks R Us fitment and install team, beyond the manufacturer's information.
- Plan for a professional wheel alignment after installing any lift or leveling kit.
- Going to bigger tires as well? Speedometer recalibration may be needed, and some tire and wheel combinations need trimming. Check the recommended wheels and tires, or ask us before you order.
Specifications
| Brand | ICON Vehicle Dynamics |
|---|---|
| Part number | K22005 |
| UPC / GTIN | 840103415765 |
| Front Lift Height | 3" |
| Active or Passive Suspension | Passive |
| Adjustable Compression | Yes |
| Adjustable Control Arm | Yes |
| Adjustable Damping | Yes |
| Adjustable Rebound | No |
| Bushing(s) Included | Yes |
| Coil Spring Color | Black |
| Coil Spring End 1 Type | Closed |
| Coil Spring End 2 Type | Closed, Open |
| Coil Spring Material | Steel |
| Coil Spring Maximum Inside Diameter | 4 IN, 4.13 IN |
| Coil Spring Maximum Outside Diameter | 5.12 IN, 5.6 IN |
| Coil Spring Wire Diameter | .562 IN |
| Coils Quantity Front | 2 |
| Coils Quantity Rear | 2 |
| Damping Adjustment Type | Manual |
| Dual Rate Coil Springs | Yes |
| Front Reservoir Style | Remote |
| Front Shock Body Diameter | 2.5 IN |
| Front Spring Rate | 150 PPI, 200 PPI |
| Front Spring Rate Type | Progressive Dual Rate |
| Grade Type | Performance |
| Maximum Lift | 3 IN |
| Maximum Lift Height Front | 3 IN |
| Maximum Lift Height Rear | 3 IN |
| Mounting Hardware Included | Yes |
| Rear Reservoir Style | Piggyback |
| Rear Shock Body Diameter | 2.5 IN |
| Rear Spring Rate | 170 PPI, 200 PPI |
| Rear Spring Rate Type | Progressive Dual Rate |
| Shocks Included | Yes |
| Spring Color | Black |
| Spring Material | Steel |
| Spring Rate | 150 PPI, 170 PPI, 200 PPI |
| Strut(s) Included | No |
| Country of Origin | US |
| Installation Instructions | I21020/REVD.pdf |
California Proposition 65 warning applies to this product. www.P65Warnings.ca.gov

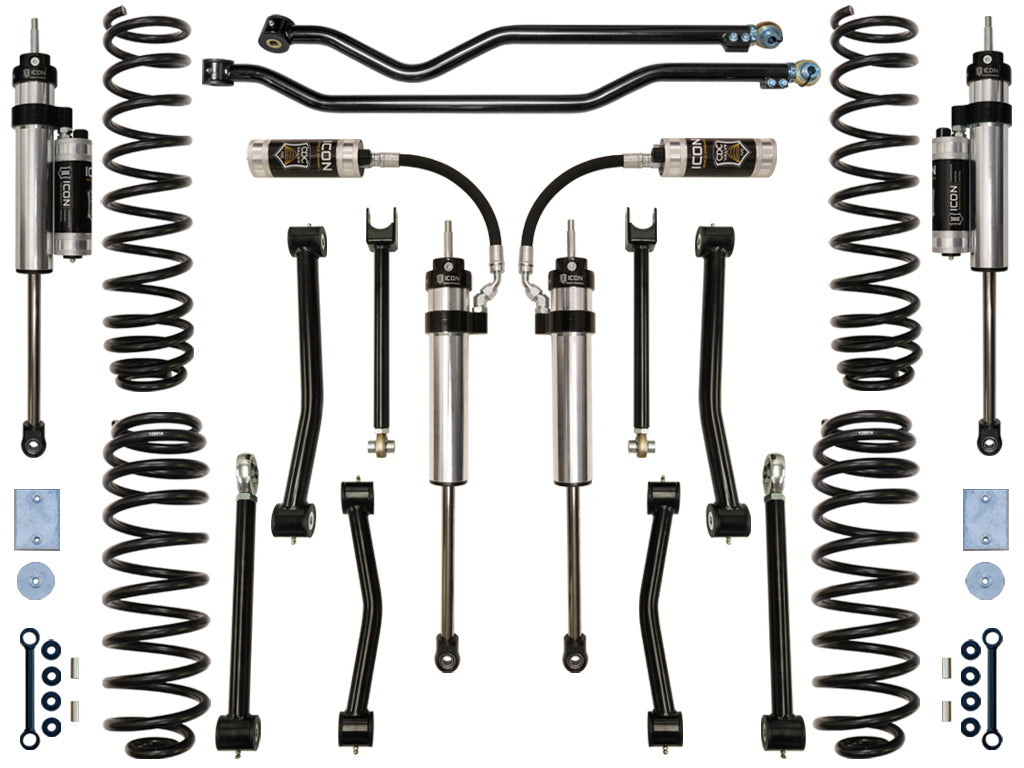

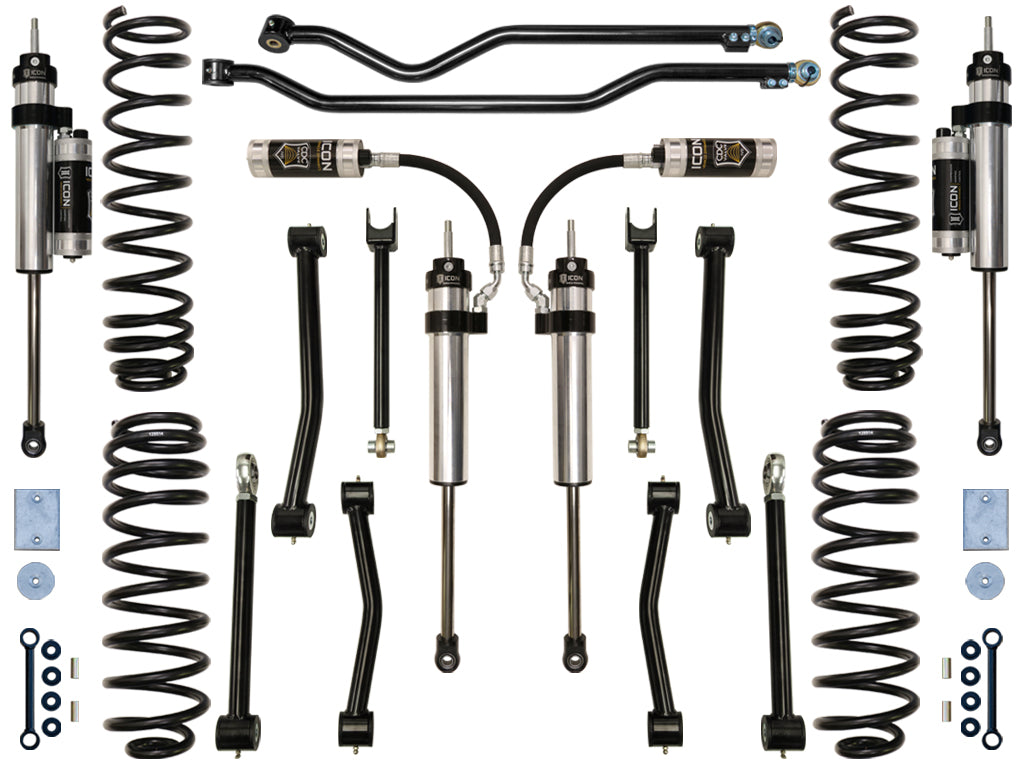

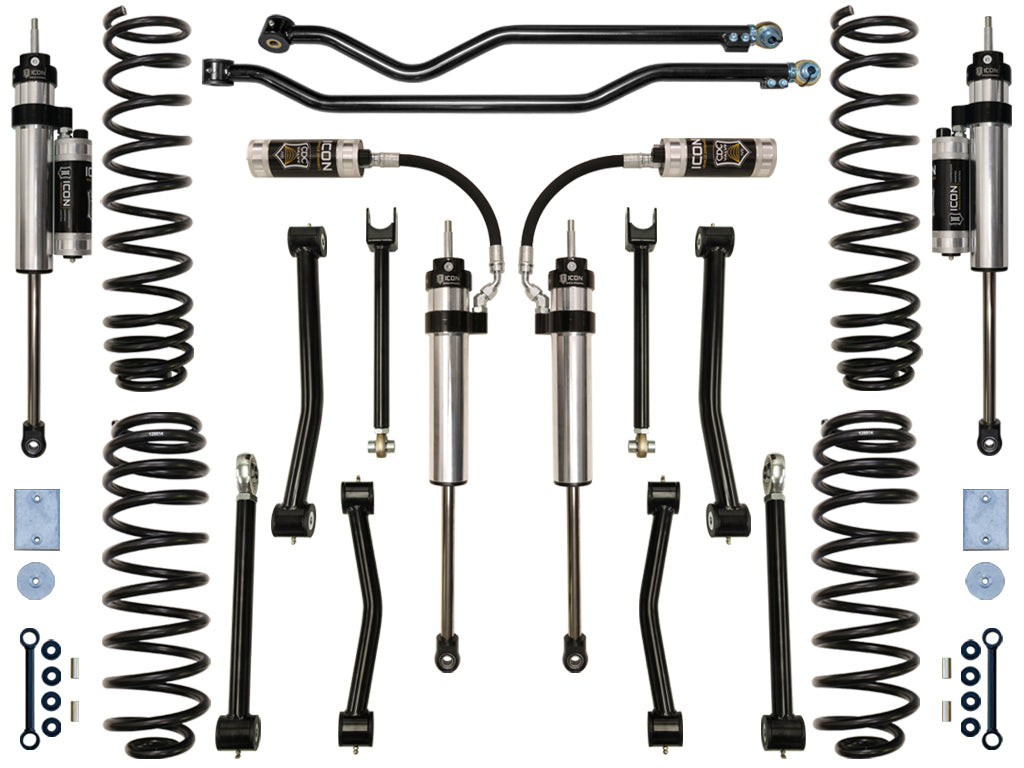

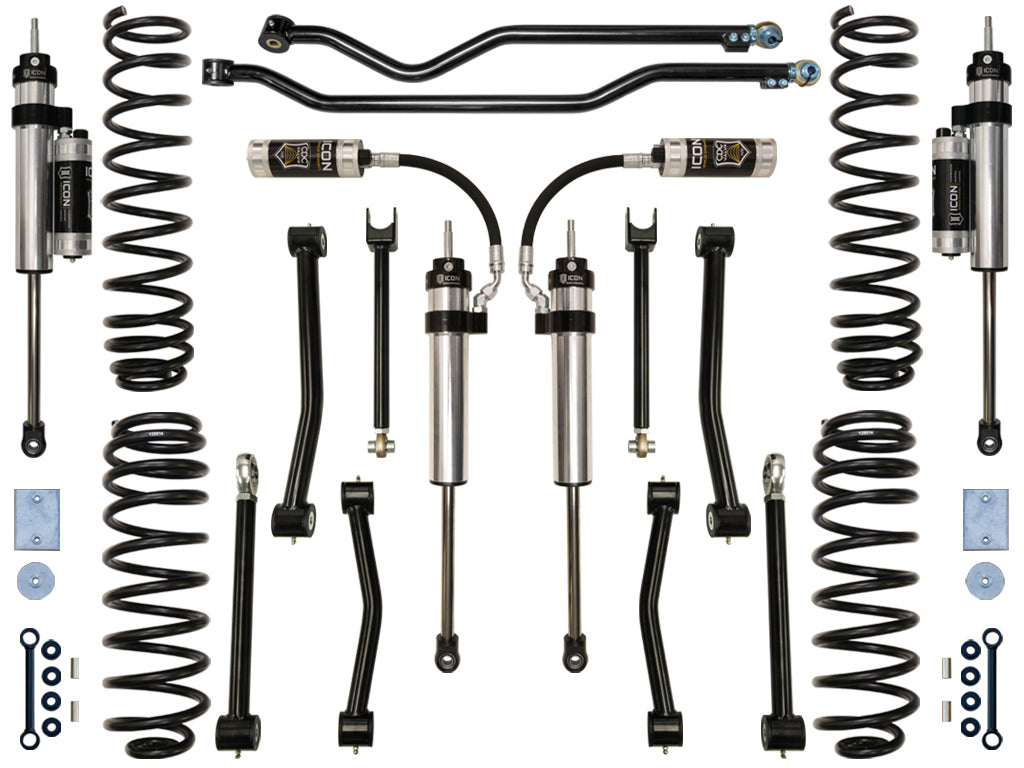

What's in the box
| Qty | Part | Description |
|---|---|---|
| 1 | 22010 | 07-18 JK FRONT 3" DUAL RATE SPRING KIT |
| 1 | 22015 | 07-18 JK REAR 2" DUAL RATE SPRING KIT |
| 1 | 22040 | 07-18 JK 3" FRONT/REAR BOX KIT |
| 1 | 21020 | 07-18 JK FRONT ADJ TRACK BAR KIT |
| 1 | 21025 | 07-18 JK REAR ADJ TRACK BAR KIT |
| 1 | 21031 | 07-18 JK FRONT LOWER FIXED LINK KIT |
| 1 | 21041 | 07-18 JK REAR LOWER ADJ LINK KIT |
| 1 | 21036 | 07-18 JK FRONT UPPER ADJ LINK KIT |
| 1 | 21046 | 07-18 JK REAR UPPER FIXED LINK KIT |
| 1 | 27820CP | 07-18 JK 3" FRONT 2.5 VS RR CDCV PAIR |
| 1 | 27725CP | 07-18 JK 3" REAR 2.5 VS PB CDCV PAIR |
Features
- Dual Rate Coil Springs Front and Rear
- Adds 30% More Wheel Travel over Stock
- Vehicle can be Returned Back to Stock
- Includes High Performance Rebuildable / Revalvable Reservoir 2.5 Series Shocks w/ CDCV
- 2.5 Aluminum Series shocks feature one-piece impact extruded aluminum cylinders that offer lighter weight, improved corrosion resistance, and a more uniform finish than traditional plated steel cylinders
- Out Articulates Most Long Arm Kits of Comparable Height
- Includes Adjustable Track Bars for Optimized Axle Positioning
- Pan Rod Bars include Dual Stage Bushing System and JM12T Rod End to minimize deflection while maximizing responsiveness
- Lifetime Guarantee that Coil Springs Won’t Sag
Recommended wheels & tires
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 4.5” Backspace / -6mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 4.5” Backspace / -12mm Offset
- Recommended Aftermarket Tires: 33" x 11.50" (Larger 35" tire packages will fit with minor modifications or aftermarket high clearance fenders, test fitment recommended)
Installation
Free install support from the Trucks R Us tech team, for you or your shop.
Overview
The ICON Vehicle Dynamics 3" Lift Suspension System is designed for Jeep JK owner's demanding the ultimate in performance and ride quality, without the larger stance you find in bigger lift systems on today's market. ICON's Jeep Wrangler JK 3" lift system is engineered with front and rear dual rate progressive wound springs which is the foundation for on and off-road performance and suspension articulation. The dual rate design gives you a softer initial rate for superb on road comfort and a firmer than stock secondary rate that increases during compression for excellent bottom out control. ICON 2.5 Aluminum Series reservoir shocks are included front and rear to ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. The ICON CDC Valve upgrade is included in this stage for those desiring an easy way to tune the ride externally. Together the combination of ICON dual rate coils and 2.5 Aluminum Series shocks adds 30% more wheel travel over stock, helping you rock crawl safer or soak up larger terrain at higher speeds keeping those wheels on the ground. In this Stage 4 system adjustable track bars are included front and rear for optimizing axle position to ensure your axles are perfectly centered under the vehicle. Upgraded tubular steel upper & lower link arms are designed to add performance, strength, and improved alignment range. This ICON 3" JK lift system is designed from the ground up to give the Jeep Wrangler JK's the best performance, suspension handling / ride quality, and clearance for 33" tall tires (35" tall with installation of aftermarket high-clearance fenders).
Questions
Will this fit my truck?
Select your truck at the top of the page and the fit check will confirm it. If your exact trim is not listed, call 866-235-4715 or live chat and a fitment specialist will check it before you order.
Do you help with installation?
Yes. Our technical team helps you or your shop with installation and troubleshooting after delivery, on top of the manufacturer’s support.
What if the part has a problem?
We work the warranty claim with the manufacturer on your behalf, within the manufacturer’s warranty policy.
Can I return it?
Most items can be returned within 30 days. See our return policy for details.
Do I need an alignment after installing?
Yes. Any lift or leveling kit changes suspension geometry, so get a professional alignment after installation.
