ICON 2007-18 Jeep JK Wrangler, 3" Lift, Stage 1 Suspension System
- Front lift 3"
- Shocks included
Questions about fitment? Live chat or call 866-235-4715
Complete your build
Optional add-ons
Recommended Add-Ons
Add-ons selected:
Couldn't load pickup availability
- Free shippingMost orders $500+
- 30-day returnsSee policy
- Warranty supportWe work with the maker
Questions about fitment?
Talk to a TRU specialist
We’ll help you verify fitment before you buy.
Veteran-owned · Austin, Texas · Mon–Fri 9:30a–11:00a & 1:00p–5:30p CT
Important notes before you order
- APPLICATION NOTE #30: An Adjustable Track Bar May Be Needed To Realign The Axle From Left To Right, Or To Add Additional Strength
- APPLICATION NOTE #63: 2012-Up Jk Models Require The Use Of ICON Part #22011 Exhaust Extension Spacer Or Aftermarket Driveshaft Part #22014
- APPLICATION NOTE #66: 2 Door Models Sit Slightly Higher Than 4 Door Models But Remain Level When Installed
- APPLICATION NOTE #123: May Require Rear Alignment Cam Kit
- APPLICATION NOTE #150: Shocks Are Fully Serviceable
- TECH NOTE: ICON’s advertised lift heights are based around a typical Jeep JK build which usually includes added weight of accessories such as heavier front bumper/winch and heavier rear bumper/spare tire. Lift heights may be higher than advertised if installed on a stock weighted vehicle.
- Ships in Multiple Boxes
TRU specialist notes
From the Trucks R Us fitment and install team, beyond the manufacturer's information.
- Plan for a professional wheel alignment after installing any lift or leveling kit.
- Going to bigger tires as well? Speedometer recalibration may be needed, and some tire and wheel combinations need trimming. Check the recommended wheels and tires, or ask us before you order.
Specifications
| Brand | ICON Vehicle Dynamics |
|---|---|
| Part number | K22001 |
| UPC / GTIN | 840103415727 |
| Front Lift Height | 3" |
| Active or Passive Suspension | Passive |
| Adjustable Compression | No |
| Adjustable Damping | No |
| Adjustable Rebound | No |
| Bushing(s) Included | Yes |
| Coil Spring Color | Black |
| Coil Spring End 1 Type | Closed |
| Coil Spring End 2 Type | Closed, Open |
| Coil Spring Material | Steel |
| Coil Spring Maximum Inside Diameter | 4 IN, 4.13 IN |
| Coil Spring Maximum Outside Diameter | 5.12 IN, 5.6 IN |
| Coil Spring Wire Diameter | .562 IN |
| Coils Quantity Front | 2 |
| Coils Quantity Rear | 2 |
| Dual Rate Coil Springs | Yes |
| Front Reservoir Style | Internal |
| Front Shock Body Diameter | 2 IN |
| Front Spring Rate | 150 PPI, 200 PPI |
| Front Spring Rate Type | Progressive Dual Rate |
| Grade Type | Performance |
| Maximum Lift | 3 IN |
| Maximum Lift Height Front | 3 IN |
| Maximum Lift Height Rear | 3 IN |
| Mounting Hardware Included | Yes |
| Rear Reservoir Style | Internal |
| Rear Shock Body Diameter | 2 IN |
| Rear Spring Rate | 200 PPI, 170 PPI |
| Rear Spring Rate Type | Progressive Dual Rate |
| Shocks Included | Yes |
| Spring Color | Black |
| Spring Material | Steel |
| Spring Rate | 150 PPI, 200 PPI, 170 PPI |
| Strut(s) Included | No |
| Country of Origin | US |
California Proposition 65 warning applies to this product. www.P65Warnings.ca.gov

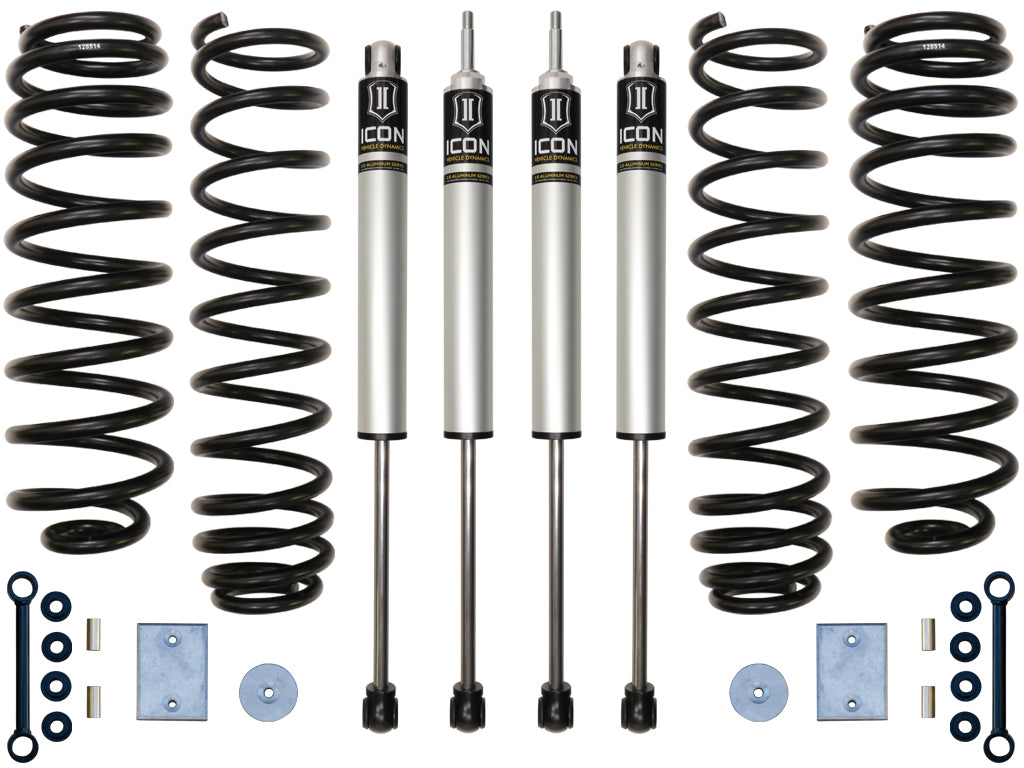

What's in the box
| Qty | Part | Description |
|---|---|---|
| 1 | 22010 | 07-18 JK FRONT 3" DUAL RATE SPRING KIT |
| 1 | 22015 | 07-18 JK REAR 2" DUAL RATE SPRING KIT |
| 1 | 22040 | 07-18 JK 3" FRONT/REAR BOX KIT |
| 2 | 26519 | 07-18 JK 2-3" FRONT 2.0 VS NR |
| 2 | 26520 | 07-18 JK 2-3" REAR 2.0 VS IR |
Features
- Dual Rate Coil Springs Front and Rear
- Adds 30% More Wheel Travel over Stock
- No Welding or Cutting
- Vehicle can be Returned Back to Stock
- Includes High Performance Re-buildable / Re-valvable IFP 2.0 Aluminum Series Shocks
- Level Stance Front to Rear
- Out Articulates Most Long Arm Kits of Comparable Height
- Lifetime Guarantee that Coil Springs Won’t Sag
Recommended wheels & tires
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 4.5” Backspace / -6mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 4.5” Backspace / -12mm Offset
- Recommended Aftermarket Tires: 33" x 11.50" (Larger 35" tire packages will fit with minor modifications or aftermarket high clearance fenders, test fitment recommended)
Installation
Free install support from the Trucks R Us tech team, for you or your shop.
Overview
The ICON Vehicle Dynamics 3" Lift Suspension System is designed for Jeep JK owner's demanding the ultimate in performance and ride quality, without the larger stance you find in bigger lift systems on today's market. ICON's Jeep Wrangler JK 3" lift system is engineered with front and rear dual rate progressive wound springs which is the foundation for on and off road performance and suspension articulation. The dual rate design gives you a softer initial rate for superb on road comfort and a firmer secondary rate that increases during compression for excellent bottom out control. ICON V.S. 2.0 Aluminum Series shocks add the finishing touch with OE mounting, aircraft grade components, and vehicle specific valving. Together the combination of ICON dual rate coils and V.S. 2.0 Aluminum Series shocks adds 30% more wheel travel over stock, helping you rock crawl safer or soak up larger terrain at higher speeds keeping those wheels on the ground. This ICON 3" JK lift system is designed from the ground up to give the 07-18 Jeep Wrangler JK's the best performance, suspension handling / ride quality, and clearance for 33" tall tires (35" tall with installation of aftermarket high-clearance fenders).
Questions
Will this fit my truck?
Select your truck at the top of the page and the fit check will confirm it. If your exact trim is not listed, call 866-235-4715 or live chat and a fitment specialist will check it before you order.
Do you help with installation?
Yes. Our technical team helps you or your shop with installation and troubleshooting after delivery, on top of the manufacturer’s support.
What if the part has a problem?
We work the warranty claim with the manufacturer on your behalf, within the manufacturer’s warranty policy.
Can I return it?
Most items can be returned within 30 days. See our return policy for details.
Do I need an alignment after installing?
Yes. Any lift or leveling kit changes suspension geometry, so get a professional alignment after installation.
