ICON 2009-2013 Ram 2500/2009-2012 Ram 3500 4WD, Ultimate Front End Kit, Stage 1
Questions about fitment? Live chat or call 866-235-4715
Couldn't load pickup availability
- Free shippingMost orders $500+
- 30-day returnsSee policy
- Warranty supportWe work with the maker
Questions about fitment?
Talk to a TRU specialist
We’ll help you verify fitment before you buy.
Veteran-owned · Austin, Texas · Mon–Fri 9:30a–11:00a & 1:00p–5:30p CT
Important notes before you order
- TECH NOTE: Fits 2014-2022 Ram 2500/3500 4WD
Specifications
| Brand | ICON Vehicle Dynamics |
|---|---|
| Part number | K2151 |
| UPC / GTIN | 840103429847 |
| Adjustable | No |
| Adjustable Damping | No |
| Cotter Pin Hole | Yes |
| Dust Boot Included | Yes |
| Grade Type | Heavy Duty |
| Grease Fitting Included | Yes |
| Greaseable | Yes |
| Mount Type | Press In |
| Country of Origin | US |
California Proposition 65 warning applies to this product. www.P65Warnings.ca.gov

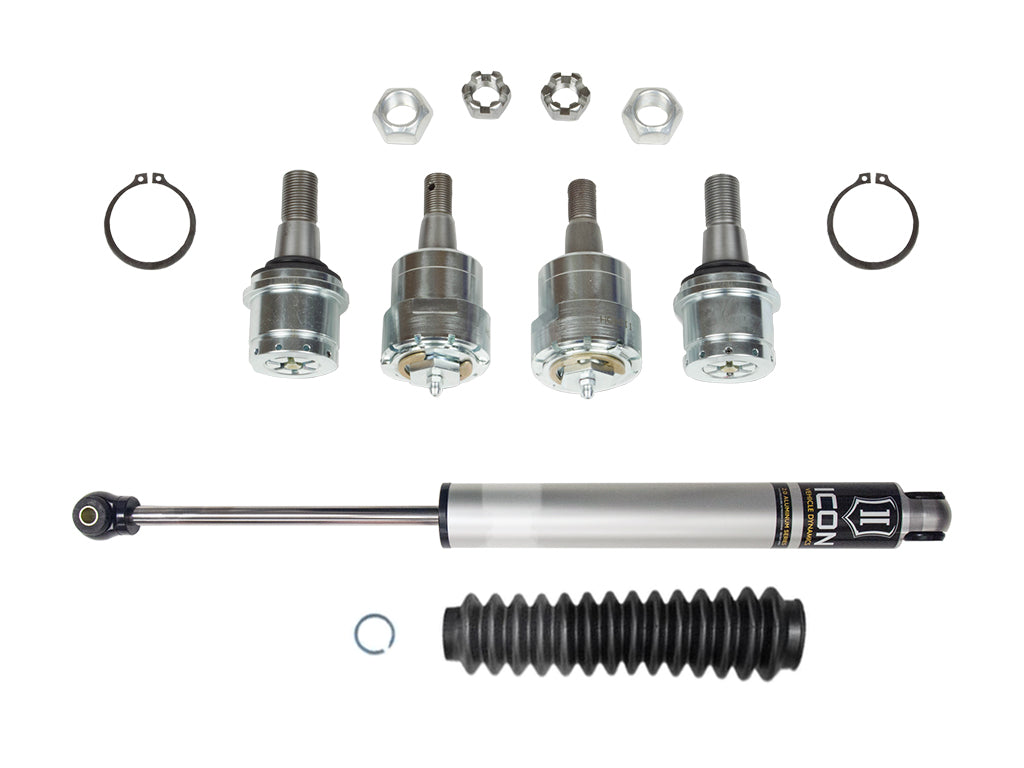

What's in the box
| Qty | Part | Description |
|---|---|---|
| 1 | 216520 | 09-UP RAM HD STEERING STABILIZER |
| 1 | BJK-CR92A | DYNATRAC HD BALLJOINTS FOR 2003-2013 DODGE 2500 4X4, 2003-2012 DODGE 3500 4X4 |
Features

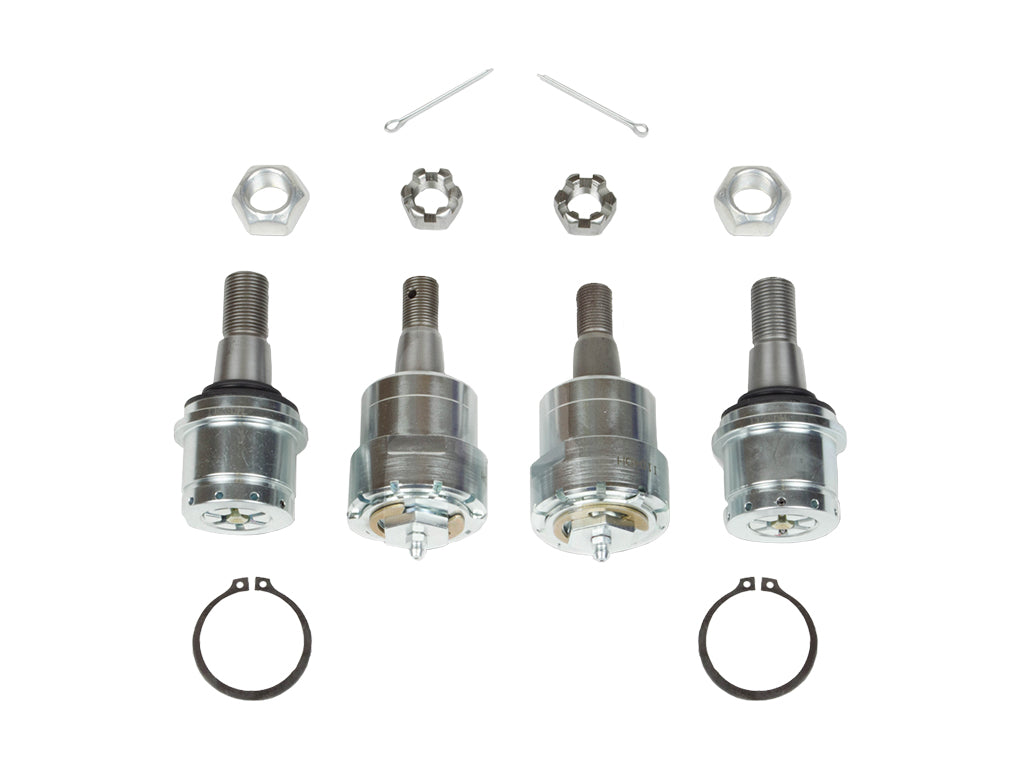

- Full set of genuine Dynatrac front upper and lower ball joints
- Improves steering feel and vehicle control
- CNC machined, high-strength components
- Heat-treated, high-strength billet bodies with chromoly stems
- Heat-treated, precision-ground stainless-steel ball
- Sealed, greaseable design and PTFE coated wear points ensure long service life
- On-vehicle rebuildable design
- Nitrogen charged monotube steering stabilizer design with internal reservoir
- Internal floating piston design eliminates dead zone typical in emulsion shocks
- 6063 Anodized aluminum body for superb heat dissipation, excellent corrosion resistance
- 6061 aluminum rod end and internals insure strength and durability
- Polyurethane bushings and zinc plated sleeves for OE factory type fitment
Installation
Free install support from the Trucks R Us tech team, for you or your shop.
Overview
The ICON Vehicle Dynamics Ultimate Front End Kits are designed to improve the steering feel, vehicle control, and overall drivability of your vehicle by replacing and upgrading critical worn OE components. Partnering with our friends at Dynatrac, ICON is happy to pair our suspension components with Dynatrac HD BallJoints to provide a complete front-end suspension solution to solve common steering problems that can lead to loose steering feel, decreased stability, erratic tracking down the road, uneven tire wear, and even death-wobble.
This Stage 1 Ultimate Front End Kit for the 2009-2013 Dodge Ram 2500 4WD and 2009-2012 Dodge Ram 3500 4WD features a full set of front upper and lower Dynatrac HD BallJoints. Dynatrac HD Balljoints feature heat-treated high-strength billet bodies with chromoly stems along with a heat-treated, precision-ground stainless-steel ball. Unique seals prevent contamination, and the ball joints have greaseable fittings and PTFE-coated wear points to provide a long, durable service life. These high-end ball joints Are also rebuildable what still installed in the front axle housing. The OEM ball joints often wear quickly with larger off-road tires, many road miles, or extreme off-roading. Replacing worn factory ball joints with Dynatrac HD BallJoints, built specifically for the rigorous demands of these vehicles, provides a long-term solution and help maximize the overall drivability of the Ram 2500/3500.
Rounding out Stage 1 is a stock-replacement steering stabilizer based on the ICON 2.0 Aluminum Series shock absorber line, and has been specifically tuned to compensate for the additional weight of larger wheels and tires on the RAM 3/4-ton trucks. The ICON 2.0 stabilizer is a direct fit replacement, meaning install is as simple as removing the original unit, and bolting up the ICON part in its place. Ease of installation combined with Increased damping ability over stock, a corrosion-resistant shock body, and a fully rebuildable design make the ICON steering stabilizer the best choice for replacing or upgrading worn out 2009-2013 Ram 2500/3500 components.
Questions
Will this fit my truck?
Select your truck at the top of the page and the fit check will confirm it. If your exact trim is not listed, call 866-235-4715 or live chat and a fitment specialist will check it before you order.
Do you help with installation?
Yes. Our technical team helps you or your shop with installation and troubleshooting after delivery, on top of the manufacturer’s support.
What if the part has a problem?
We work the warranty claim with the manufacturer on your behalf, within the manufacturer’s warranty policy.
Can I return it?
Most items can be returned within 30 days. See our return policy for details.
No reviews for this part yet. Trucks R Us is rated on Trustpilot, Google and the BBB.
About ICON Vehicle Dynamics
ICON Vehicle Dynamics specializes in performance suspension components, shocks, and accessories for today’s most popular trucks & SUVs. Since 2008, ICON has been developing products that redefine the limits of what a “stock” vehicle is capable of. ICON is part... Shop all ICON Vehicle Dynamics
