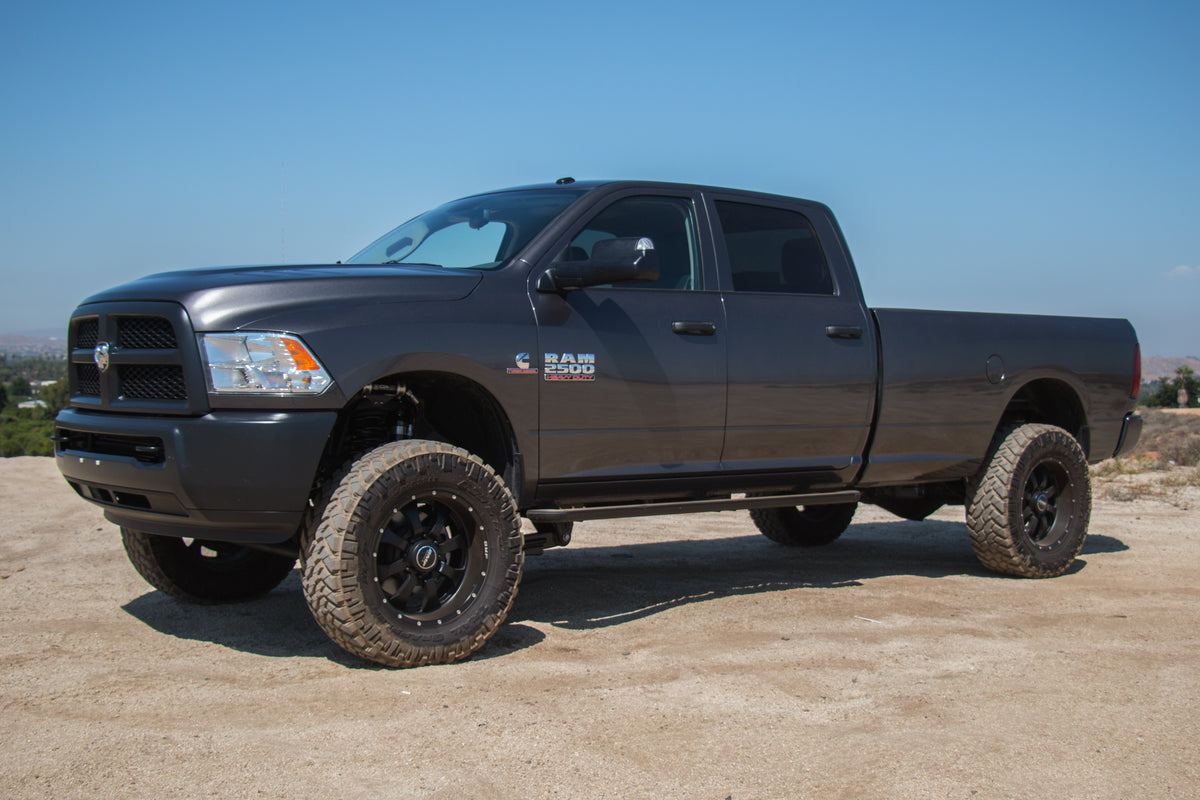

ICON 2014-2026 Ram 2500 4WD, Diesel, Coil Spring Rear, 4.5" Lift, Stage 4 Suspension System

Name: ICON 2014-2026 Ram 2500 4WD, Diesel, Coil Spring Rear, 4.5" Lift, Stage 4 Suspension System
Brand: ICON Vehicle Dynamics
SKU: K214524
Price: 6094.51 USD
Availability: OutOfStock

PART #

$6,094.51

SALE CALL OR CHAT TO ORDER

Shipping calculated at checkout.

Product variants

Quantity

Inventory: Special Order (Live Chat or Call)

View full details

Important: Always read the entire product description, including Features, Important Notes, Specifications, and Fitment data, before making a purchase. Components contained in images and descriptions may change based upon your selections.

ICON Vehicle Dynamics suspension systems for the 2014-2026 Ram 2500 4WD were designed with exceptional performance and ride quality in mind. This Stage 4 system includes ICON-engineered 4.5” dual rate coil springs, high-strength laser cut bracketry, billet bump stop spacers, fabricated rear coil spacers, and all hardware necessary for a complete install. Vehicle-specific ICON 2.5 Aluminum Series remote reservoir shocks help deliver balanced performance front to rear, while CDC (Compression Damping Control) Valve technology allows the user to adjust compression characteristics of the shocks with the turn of a knob. These features make this Stage 4 system a huge upgrade for 2014-2026 Ram 2500 4WD trucks that are in need of a comfortable on-road ride, but also require the ability to be used to their full potential during spirited off-road driving.

Features

Increased wheel travel and ride quality over stock with no change in towing capacity
Decreased body roll
Level stance from front to rear of vehicle
ICON-engineered dual rate coil springs deliver exceptional vehicle control over varying terrain
Vehicle specific tuned front and rear 2.5 Aluminum Series shocks provide superior damping and ride quality

Oem wheels & tires fitment: yes; application note #105: not for vehicles with rear factory air ride; ships in multiple boxes; recommended aftermarket wheels: icon alloys - 17x8.
5" w/ 5.
25” backspace / 13mm offset; recommended aftermarket wheels: icon alloys - 18x9" w/ 5.
50" backspace / 12mm offset; recommended aftermarket wheels: icon alloys - 20x9" w/ 5.
50" backspace / 12mm offset; recommended aftermarket tires: 37" x 12.
50" (larger tires may fit but fender trimming and modifications will be required); application note #6: springs are rated for diesel engines only; application note #55: shocks are fully serviceable.
Coilover heights indicated are for a stock equipped vehicle; application note #90: may not be compatible with other manufacturers aftermarket trackbars; application note #103: vehicles equipped with 2 piece driveshafts require carrier shim kit 214211

Quick SpecsOverview:

Spring Material: Steel
Bushings Included: Yes
Mounting Hardware Included: Yes
Spring Color: Black
Shocks Included: Yes
Grade Type: Performance
Maximum Lift: 4.5 IN
Coils Quantity Front: 2
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
Add-On Part: 214211 - 14-UP RAM HD 1.75" CARRIER BEARING DROP KIT
Add-On Part: 191014 - .25" COLLAR SPANNER PIN WRENCH
Add-On Part: 252012 - -4 TO -10 HOSE SHIELD KIT
California Prop 65 Warning: Yes
California Proposition 65: WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
Dual Rate Coil Springs: Yes
OEM Wheels &
Tires Fitment: Yes
Recommended Aftermarket Tires: 37" x 12.50" (Larger tires may fit but fender trimming and modifications will be required)
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.25” BS / 13mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.50" BS / 12mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.50" BS / 12mm Offset
Title: 14-18 RAM 2500 4WD 4.5" STAGE 4 SUSPENSION SYSTEM

Additional Specifications:

Country of Origin: US
Warranty: See Rep
Weight (lbs): 226.0
Vehicle Specific Fitment: Y

Instructions

I214201_REVB.pdf
