ICON 2014-2026 Ram 2500 4WD, Diesel, Coil Spring Rear, 4.5" Lift, Stage 1 Suspension System
ICON 2014-2026 Ram 2500 4WD, Diesel, Coil Spring Rear, 4.5" Lift, Stage 1 Suspension System
PART #
- Front lift 4.5"
- Shocks included
Couldn't load pickup availability
- Free shippingMost orders $500+
- 30-day returnsSee policy
- Warranty supportWe work with the maker
Important notes before you order
- Oem wheels & tires fitment: yes; application note #105: not for vehicles with rear factory air ride; ships in multiple boxes; recommended aftermarket wheels: icon alloys - 17x8.
- 5" w/ 5.
- 25” backspace / 13mm offset; recommended aftermarket wheels: icon alloys - 18x9" w/ 5.
- 50" backspace / 12mm offset; recommended aftermarket wheels: icon alloys - 20x9" w/ 5.
- 50" backspace / 12mm offset; recommended aftermarket tires: 37" x 12.
- 50" (larger tires may fit but fender trimming and modifications will be required); application note #6: springs are rated for diesel engines only; application note #55: shocks are fully serviceable.
- Coilover heights indicated are for a stock equipped vehicle; application note #90: may not be compatible with other manufacturers aftermarket trackbars; application note #103: vehicles equipped with 2 piece driveshafts require carrier shim kit 214211
TRU specialist notes
From the Trucks R Us fitment and install team, beyond the manufacturer's information.
- Plan for a professional wheel alignment after installing any lift or leveling kit.
- Going to bigger tires as well? Speedometer recalibration may be needed, and some tire and wheel combinations need trimming. Check the recommended wheels and tires, or ask us before you order.
Specifications
| Brand | ICON Vehicle Dynamics |
|---|---|
| Part number | K214521 |
| Front Lift Height | 4.5" |
| Spring Material | Steel |
| Bushings Included | Yes |
| Mounting Hardware Included | Yes |
| Spring Color | Black |
| Shocks Included | Yes |
| Grade Type | Performance |
| Maximum Lift | 4.5 IN |
| Coils Quantity Front | 2 |
| Add-On Part | 191014 - .25" COLLAR SPANNER PIN WRENCH |
| Dual Rate Coil Springs | Yes |
| Tires Fitment | Yes |
| Recommended Aftermarket Wheels | ICON Alloys - 20x9" w/ 5.50" BS / 12mm Offset |
| Country of Origin | US |
| Warranty | See Rep |
| Weight (lbs) | 166 |
California Proposition 65 warning applies to this product. www.P65Warnings.ca.gov
Features
- Increased wheel travel and ride quality over stock with no change in towing capacity
- Decreased body roll
- Level stance from front to rear of vehicle
- ICON-engineered dual rate coil springs deliver exceptional vehicle control over varying terrain
- Vehicle specific tuned front and rear 2.0 Aluminum Series shocks provide superior damping and ride quality
Installation
Free install support from the Trucks R Us tech team, for you or your shop.
Overview

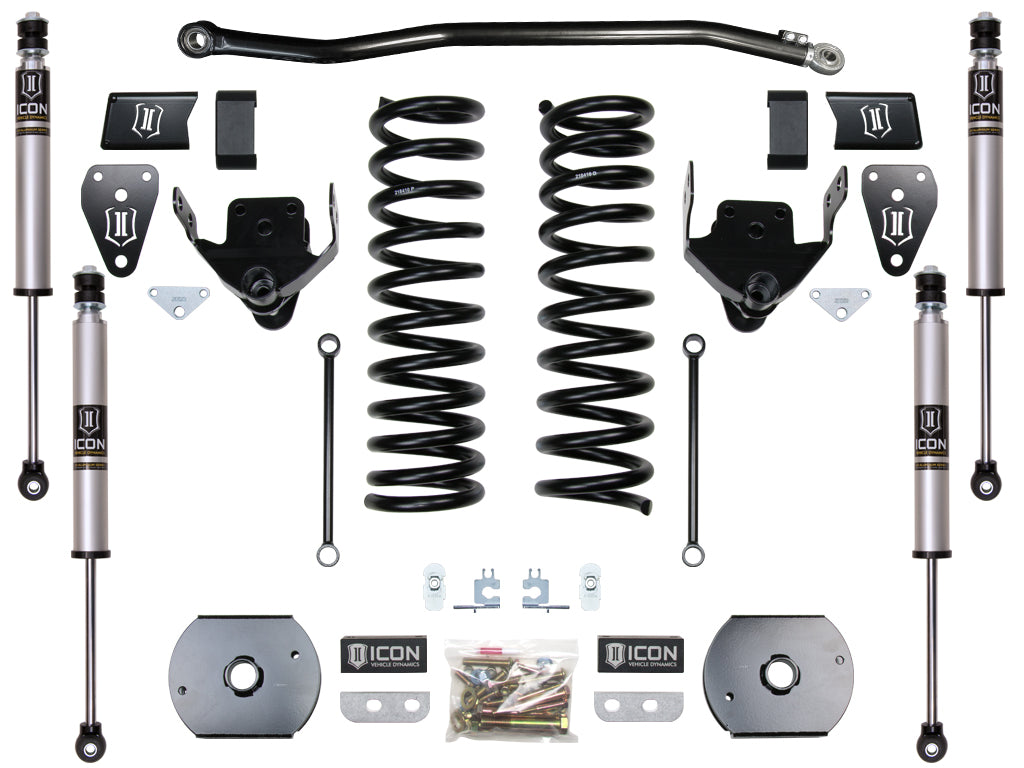

ICON Vehicle Dynamics suspension systems for the 2014-2026 Ram 2500 4WD were designed with exceptional performance and ride quality in mind. This Stage 1 system includes ICON-engineered 4.5” dual rate coil springs, high-strength laser cut bracketry, billet bump stop spacers, fabricated rear coil spacers, and all hardware necessary for a complete install. Vehicle-specific ICON 2.0 Aluminum Series shocks help deliver balanced performance front to rear, making it the perfect suspension system for any 2014-2026 Ram 2500 4WD that's tasked with daily driving, towing, and light off-road use.
Questions
Will this fit my truck?
Select your truck at the top of the page and the fit check will confirm it. If your exact trim is not listed, call 866-235-4715 or live chat and a fitment specialist will check it before you order.
Do you help with installation?
Yes. Our technical team helps you or your shop with installation and troubleshooting after delivery, on top of the manufacturer’s support.
What if the part has a problem?
We work the warranty claim with the manufacturer on your behalf, within the manufacturer’s warranty policy.
Can I return it?
Most items can be returned within 30 days. See our return policy for details.
Do I need an alignment after installing?
Yes. Any lift or leveling kit changes suspension geometry, so get a professional alignment after installation.
