ICON 2003-12 Ram 2500/3500 4WD, 2.5" Lift, Stage 2 Suspension System
ICON 2003-12 Ram 2500/3500 4WD, 2.5" Lift, Stage 2 Suspension System
PART #
- Front lift 2.5"
- Shocks included
Couldn't load pickup availability
- Free shippingmost orders $500+
- 30-day returnssee policy
- Warranty helpwe work claims for you
Important notes before you order
- Oem wheels & tires fitment: yes; recommended aftermarket wheels: icon alloys - 17x8.
- 5" w/ 5.
- 25” bs / 13mm offset; recommended aftermarket wheels: icon alloys - 18x9" w/ 5.
- 50" bs / 12mm offset; recommended aftermarket wheels: icon alloys - 20x9" w/ 5.
- 50" bs / 12mm offset; recommended aftermarket tires: 33" x 11.
- 50" (larger tires may fit but fender trimming and modifications will be required); application note #6: springs are rated for diesel engines only; application note #55: shocks are fully serviceable.
- Coilover heights indicated are for a stock equipped vehicle; ships in multiple boxes
TRU specialist notes
From the Trucks R Us fitment and install team, beyond the manufacturer's information.
- Plan for a professional wheel alignment after installing any lift or leveling kit.
- Going to bigger tires as well? Speedometer recalibration may be needed, and some tire and wheel combinations need trimming. Check the recommended wheels and tires, or ask us before you order.
Specifications
| Brand | ICON Vehicle Dynamics |
|---|---|
| Part number | K212502 |
| Front Lift Height | 2.5" |
| Spring Material | Steel |
| Bushings Included | Yes |
| Mounting Hardware Included | Yes |
| Spring Color | Black |
| Shocks Included | Yes |
| Grade Type | Performance |
| Maximum Lift | 2.5 IN |
| Coil Spring End 1 Type | Open |
| Coil Spring End 2 Type | Open |
| Coils Quantity Front | 2 |
| Dual Rate Coil Springs | Yes |
| Tires Fitment | Yes |
| Recommended Aftermarket Wheels | ICON Alloys - 20x9" w/ 5.50" BS / 12mm Offset |
| Country of Origin | US |
| Warranty | See Rep |
| Weight (lbs) | 129 |
California Proposition 65 warning applies to this product. www.P65Warnings.ca.gov
Features
- ICON engineered dual rate coil springs with match tuned 2.0 Aluminum Series remote reservoir shocks
- Adjustable track bar with PTFE lined FK bearings
- Increased wheel travel and ride quality over stock with no change in towing capacity
- Level stance front to rear
- Less body roll than stock
- No drive shaft modifications needed
Installation
Free install support from the Trucks R Us tech team, for you or your shop.
Overview

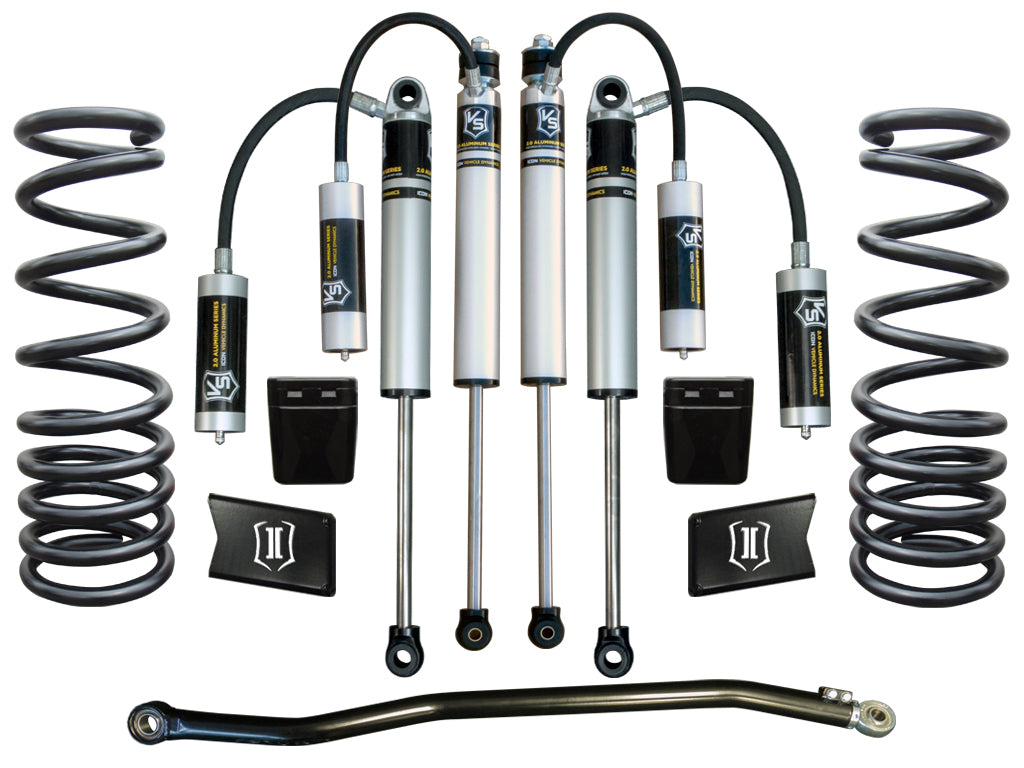

2003-2012 Ram 2500/3500 2.5 Inch Stage 2 Suspension System is our performance system for the novice off road enthusiast. This system not only levels out the stance, it increases ride quality and performance both on and off road. The Stage 2 System is comprised of dual rate coil springs, polyurethane bumpstops, sway bar, 2.0 Aluminum Series remote reservoir shocks, and our bearing style adjustable track bar. Remote reservoir shocks will extend performance of the kit by increasing the duration of consistent damping regardless of situation. The adjustable track bar with FK bearings not only improves rigidity over flexible factory joints, but offers adjustability to center the front axle under the truck. This performance system is great for towing, rough construction site terrains, and country dirt roads all while keeping a smooth highway feel. ICON has spent endless hours testing and tuning our suspension components and shocks together, so you can rest assured you have the best suspension solution on the market.
Questions
Will this fit my truck?
Select your truck at the top of the page and the fit check will confirm it. If your exact trim is not listed, call 866-235-4715 or live chat and a fitment specialist will check it before you order.
Do you help with installation?
Yes. Our technical team helps you or your shop with installation and troubleshooting after delivery, on top of the manufacturer’s support.
What if the part has a problem?
We work the warranty claim with the manufacturer on your behalf, within the manufacturer’s warranty policy.
Can I return it?
Most items can be returned within 30 days. See our return policy for details.
Do I need an alignment after installing?
Yes. Any lift or leveling kit changes suspension geometry, so get a professional alignment after installation.
