ICON 2003-12 Ram 2500/3500 4WD, 2.5" Lift, Stage 1 Suspension System
ICON 2003-12 Ram 2500/3500 4WD, 2.5" Lift, Stage 1 Suspension System
PART #
- Front lift 2.5"
- Shocks included
Couldn't load pickup availability
- Free shippingmost orders $500+
- 30-day returnssee policy
- Warranty helpwe work claims for you
Important notes before you order
- Ships in Multiple Boxes
TRU specialist notes
From the Trucks R Us fitment and install team, beyond the manufacturer's information.
- Plan for a professional wheel alignment after installing any lift or leveling kit.
- Going to bigger tires as well? Speedometer recalibration may be needed, and some tire and wheel combinations need trimming. Check the recommended wheels and tires, or ask us before you order.
Specifications
| Brand | ICON Vehicle Dynamics |
|---|---|
| Part number | K212501 |
| Front Lift Height | 2.5" |
| Active or Passive Suspension | Passive |
| Add-On Part | 191014 - .25" COLLAR SPANNER PIN WRENCH |
| Adjustable Compression | No |
| Adjustable Control Arm | No |
| Adjustable Damping | No |
| Adjustable Rebound | No |
| Bushing(s) Included | Yes |
| Coil Quantity Front | 2 |
| Coil Spring Color | Black |
| Coil Spring End 1 Type | Open |
| Coil Spring End 2 Type | Open |
| Coil Spring Material | Steel |
| Coil Spring Maximum Inside Diameter | 5.9 IN |
| Coil Spring Maximum Outside Diameter | 7.65 IN |
| Coil Spring Wire Diameter | .875 IN |
| Coils Quantity Front | 2 |
| Coils Quantity Rear | 0 |
| Dual Rate Coil Springs | Yes |
| Front Reservoir Style | Internal |
| Front Shock Body Diameter | 2 IN |
| Front Spring Rate | 600 PPI |
| Front Spring Rate Type | Progressive Dual Rate |
| Grade Type | Performance |
| Maximum Lift | 2.5 IN |
| Maximum Lift Height Front | 2.5 IN |
| Mounting Hardware Included | Yes |
| OEM Wheels & Tires Fitment | Yes |
| Rear Reservoir Style | Internal |
| Rear Shock Body Diameter | 2 IN |
| Recommended Aftermarket Wheels | ICON Alloys - 17x8.5" w/ 5.25” BS / 13mm Offset |
| Shocks Included | Yes |
| Spring Color | Black |
| Spring Material | Steel |
California Proposition 65 warning applies to this product. www.P65Warnings.ca.gov
Features
- No drive shaft modifications needed
Installation
Free install support from the Trucks R Us tech team, for you or your shop.
Overview

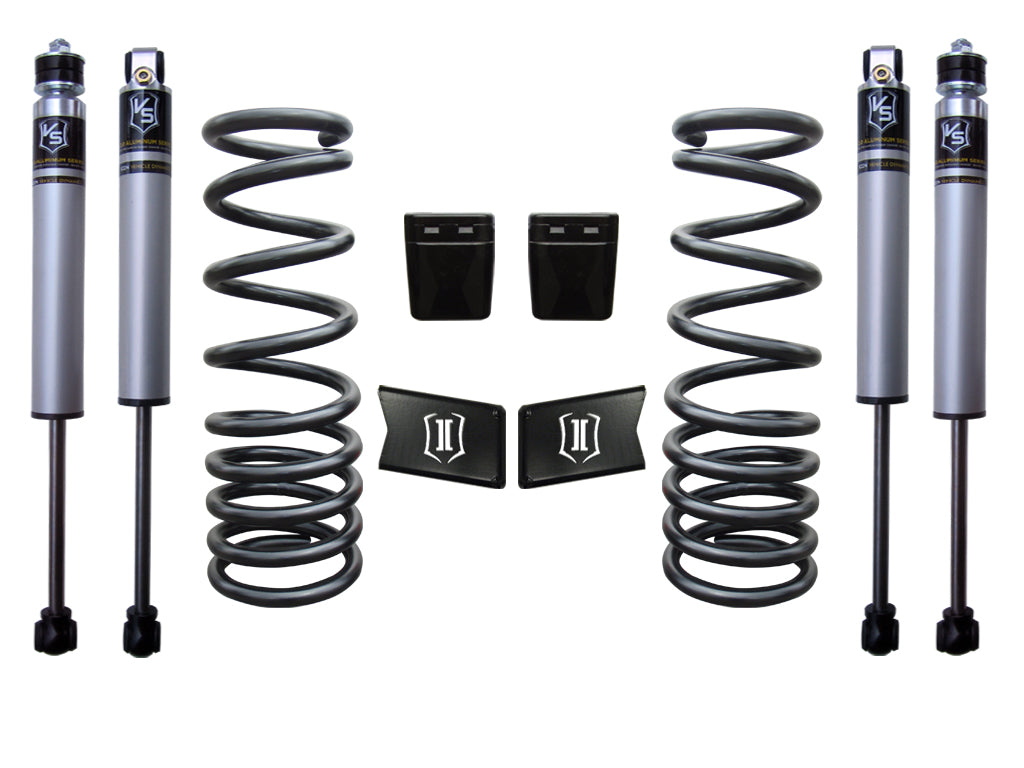

2003-2012 Ram 2500/3500 2.5 Inch Stage 1 Suspension System is ICON's entry level system. This system not only levels out the stance, it increases ride quality and performance both on and off road. The Stage 1 System is comprised of dual rate coil springs, polyurethane bumpstops, sway bar drop brackets, and ICON 2.0 Aluminum Series internal reservoir shocks. This entry level system is great for towing, rough construction site terrains, and country dirt roads all while keeping a smooth highway feel. With the endless hours ICON has spent testing and tuning our suspension components and shocks as a complete package, you can rest assured you have the best suspension solution on the market.
Questions
Will this fit my truck?
Select your truck at the top of the page and the fit check will confirm it. If your exact trim is not listed, call 866-235-4715 or live chat and a fitment specialist will check it before you order.
Do you help with installation?
Yes. Our technical team helps you or your shop with installation and troubleshooting after delivery, on top of the manufacturer’s support.
What if the part has a problem?
We work the warranty claim with the manufacturer on your behalf, within the manufacturer’s warranty policy.
Can I return it?
Most items can be returned within 30 days. See our return policy for details.
Do I need an alignment after installing?
Yes. Any lift or leveling kit changes suspension geometry, so get a professional alignment after installation.
