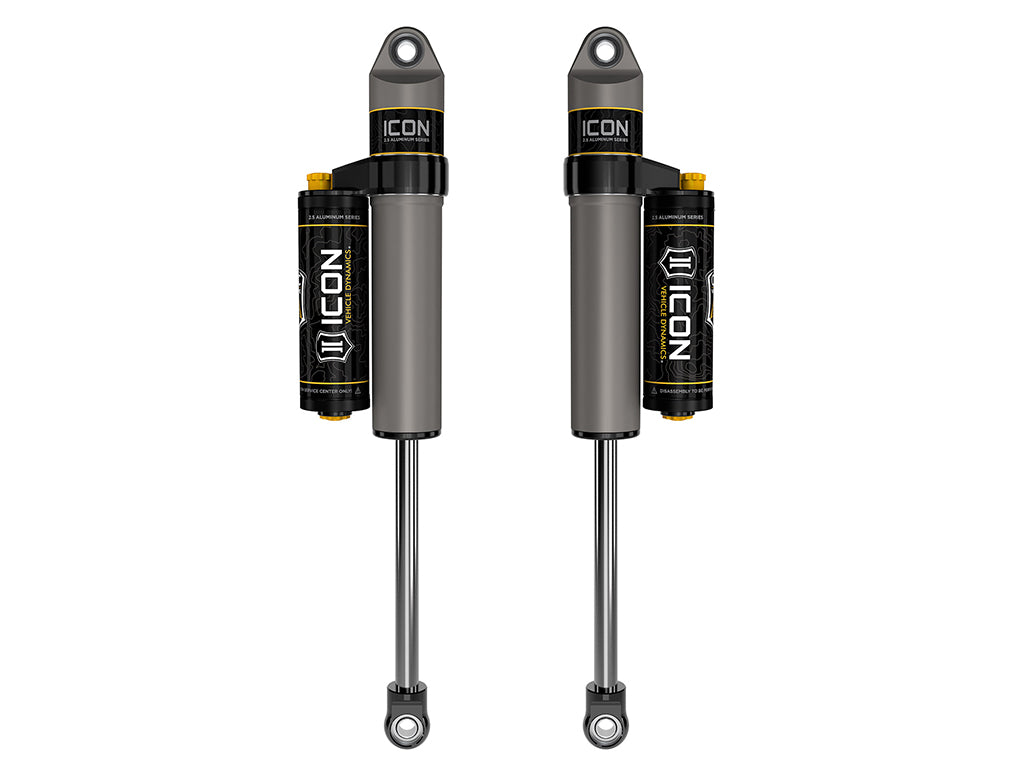

ICON 2021-2026 Ford F-150 4WD/F-150 Tremor, 0-2" Lift, Rear, V.S. 2.5 Aluminum Series Shock Absorbers, Piggyback Reservoir w/ CDCV, Pair
ICON 2021-2026 Ford F-150 4WD/F-150 Tremor, 0-2" Lift, Rear, V.S. 2.5 Aluminum Series Shock Absorbers, Piggyback Reservoir w/ CDCV, Pair
PART #
Couldn't load pickup availability
- Free shippingmost orders $500+
- 30-day returnssee policy
- Warranty helpwe work claims for you
Important notes before you order
- APPLICATION NOTE #671: Compatible with 0-2" of rear lift over stock on most F-150 4WD models
Specifications
| Brand | ICON Vehicle Dynamics |
|---|---|
| Part number | 97721CP |
| Active or Passive Suspension | Passive |
| Adjustable | Yes |
| Adjustable Compression | Yes |
| Adjustable Damping | Yes |
| Adjustable Rebound | No |
| Boot Included | NO |
| Bore Diameter | 2.25 IN |
| Cylinder Color | Grey |
| Cylinder Diameter | 2.5 IN |
| Cylinder Material | Aluminum |
| Damping Adjustment Type | Manual |
| Damping Type | Oil |
| External Reservoir | Yes |
| Gas Charged | Yes |
| Grade Type | Performance |
| Lower Mount Type | EYELET |
| Mounting Hardware Included | Yes |
| Reservoir Type | Piggyback |
| Service Parts | 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0) |
| Shaft Diameter | 0.875 IN |
| Shaft Material | Chrome |
| Shock Absorber Body End Measuring Point | Center of Eylet |
| Shock Absorber Rod End Measuring Point | Center of Eylet |
| Tube Outside Diameter | 2.5 IN |
| Upper Mount Type | EYELET |
| Valving Type | Digressive |
California Proposition 65 warning applies to this product. www.P65Warnings.ca.gov
Features
- 100% Revalveable
Installation
Free install support from the Trucks R Us tech team, for you or your shop.
Overview
ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks with CDCV are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON'S Shock Absorbers, V.S. 2.5 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. The included ICON CDC Valve is an externally adjustable valve that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges.
Questions
Will this fit my truck?
Select your truck at the top of the page and the fit check will confirm it. If your exact trim is not listed, call 866-235-4715 or live chat and a fitment specialist will check it before you order.
Do you help with installation?
Yes. Our technical team helps you or your shop with installation and troubleshooting after delivery, on top of the manufacturer’s support.
What if the part has a problem?
We work the warranty claim with the manufacturer on your behalf, within the manufacturer’s warranty policy.
Can I return it?
Most items can be returned within 30 days. See our return policy for details.
No reviews for this part yet. Trucks R Us is rated on Trustpilot, Google and the BBB.
About ICON Vehicle Dynamics
ICON Vehicle Dynamics specializes in performance suspension components, shocks, and accessories for today’s most popular trucks & SUVs. Since 2008, ICON has been developing products that redefine the limits of what a “stock” vehicle is capable of. ICON is part... Shop all ICON Vehicle Dynamics
