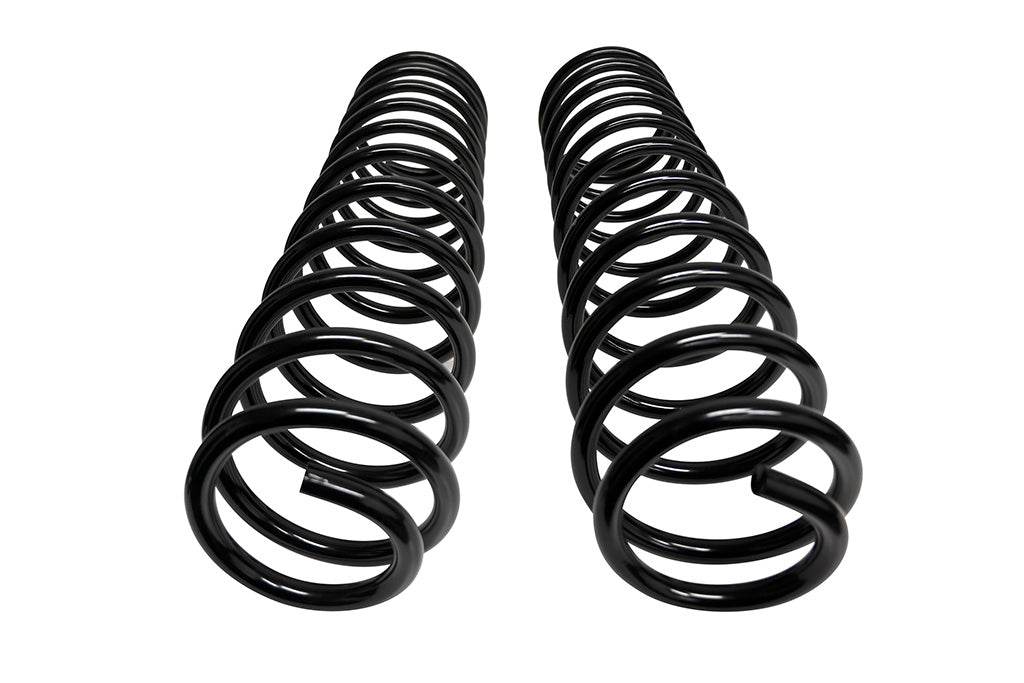

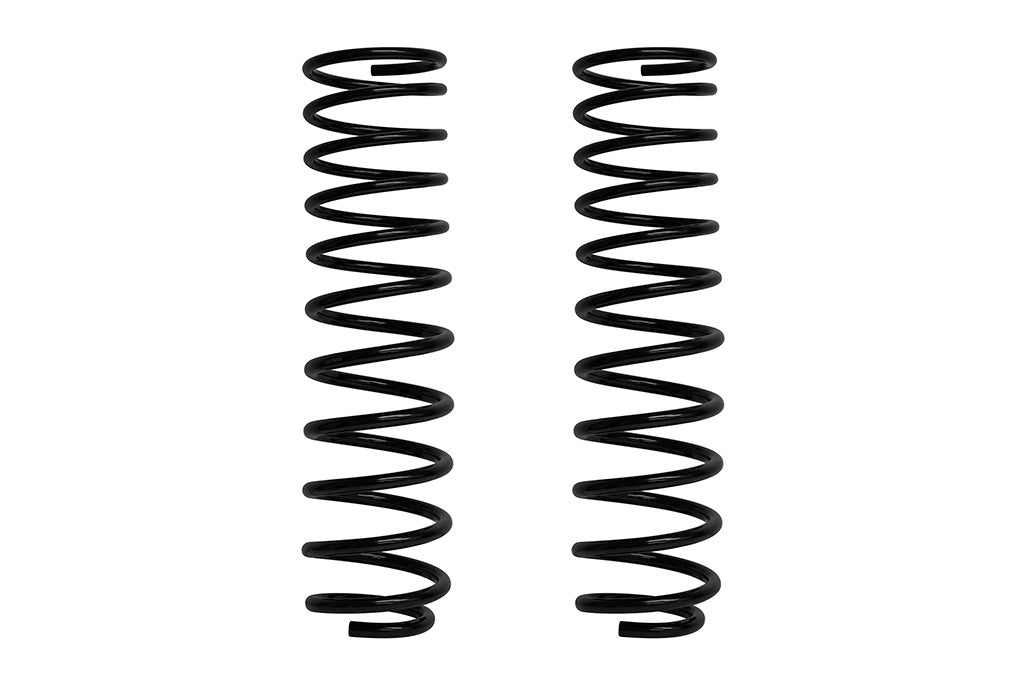

ICON 2021-2026 Ford F-150 Raptor, Rear, 1" Lift, Triple Rate Coil Spring Kit
- Finish Powdercoated
- Material Steel
Questions about fitment? Live chat or call 866-235-4715
Complete your build
Optional add-ons
Recommended Add-Ons
Add-ons selected:
Couldn't load pickup availability
- Free shippingMost orders $500+
- 30-day returnsSee policy
- Warranty supportWe work with the maker
Questions about fitment?
Talk to a TRU specialist
We’ll help you verify fitment before you buy.
Veteran-owned · Austin, Texas · Mon–Fri 9:30a–11:00a & 1:00p–5:30p CT
Important notes before you order
- APPLICATION NOTE #85: Advertised lift height ranges are for a stock equipped vehicle. Increasing weight of vehicle due to accessories will alter lift range.
- APPLICATION NOTE #155: Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install
- APPLICATION NOTE #180: Do not combine with coil spacers or damage may occur
Specifications
| Brand | ICON Vehicle Dynamics |
|---|---|
| Part number | 95230 |
| UPC / GTIN | 840103431291 |
| Bump Stops Included | No |
| Color | Black |
| Finish | Powdercoated |
| Grade Type | Performance |
| Material | Steel |
| Maximum Lift Height | 1 IN |
| Rear Spring Compressed Length | 7.01 IN |
| Rear Spring Inside Diameter | 3.94 IN |
| Rear Spring Rate | 250 PPI, 70 PPI, 180 PPI |
| Rear Spring Rate Type | Progressive Triple Rate |
| Rear Spring Relaxed Length | 26.57 IN |
| Rear Spring Seat Included | No |
| Spring Color | Black |
| Spring Material | Steel |
| Wire Diameter | .69 IN, .53 IN |
| Country of Origin | US |
| Warranty | Lifetime |
California Proposition 65 warning applies to this product. www.P65Warnings.ca.gov
Features
- Vehicle specific design for the Gen3 F-150 Raptor
- 1" rear lift height over stock on Raptors without additional weight in the rear
- Triple rate rear coil springs with ICON-engineered droop, ride, and overload rates
- Performance ride rate for compliance and comfort, overload rate for load and bottom out resistance, extra soft initial rate for maximum droop travel
- Tapered wire design achieves maximum travel and efficiency
- Tall free height - will not come loose from coil buckets for up to 17” of droop
- Significantly improves on- and off-road ride quality and performance over stock

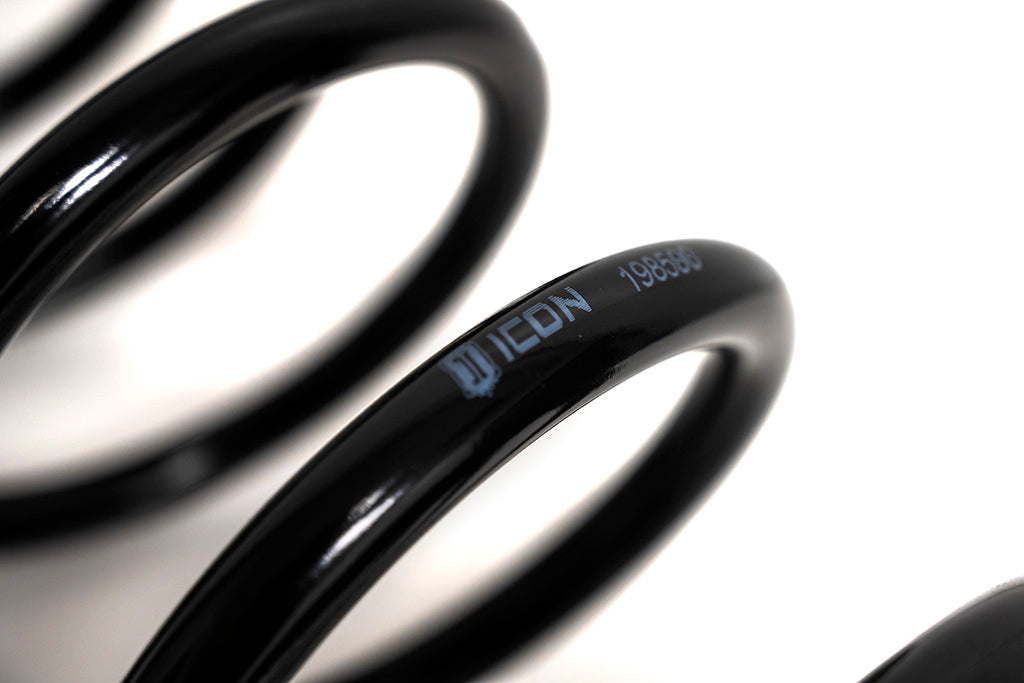

- Dual stage powder coating for maximum corrosion resistance
- Lifetime guarantee against sagging/breakage
Recommended wheels & tires
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5” Backspace / 6mm Offset
- Recommended Aftermarket Tires: 35" x 12.50" (Minor fender trimming and modifications may be required)
Installation
Free install support from the Trucks R Us tech team, for you or your shop.
Overview
ICON Triple Rate rear coil springs for 2021-2026 Ford F-150 Raptor provides a modest increase in ground clearance while greatly enhancing on- and off-road performance, especially when used with ICON shocks and suspension components. The triple-rate coil design combines a performance ride rate for compliance and comfort, with an overload rate for load and bottom out resistance, and an extra soft initial rate for maximum droop travel. A unique tapered wire design helps achieve maximum travel and efficiency and an extra-long free height ensures the coils stay seated in their coil buckets for up to 17” of droop travel. In addition, these springs are also designed to net 1" of rear lift on a stock weight Gen3 Raptor for a more aggressive stance and increased fender clearance for larger wheels and tires. Like all ICON coil springs, these feature a lifetime guarantee against sagging/breakage to provide confidence in knowing that you have the best suspension products available for the 2021-2026 Ford F-150 Raptor.
Questions
Will this fit my truck?
Select your truck at the top of the page and the fit check will confirm it. If your exact trim is not listed, call 866-235-4715 or live chat and a fitment specialist will check it before you order.
Do you help with installation?
Yes. Our technical team helps you or your shop with installation and troubleshooting after delivery, on top of the manufacturer’s support.
What if the part has a problem?
We work the warranty claim with the manufacturer on your behalf, within the manufacturer’s warranty policy.
Can I return it?
Most items can be returned within 30 days. See our return policy for details.
No reviews for this part yet. Trucks R Us is rated on Trustpilot, Google and the BBB.
About ICON Vehicle Dynamics
ICON Vehicle Dynamics specializes in performance suspension components, shocks, and accessories for today’s most popular trucks & SUVs. Since 2008, ICON has been developing products that redefine the limits of what a “stock” vehicle is capable of. ICON is part... Shop all ICON Vehicle Dynamics
