ICON Vehicle Dynamics

ICON 2021-2025 Ford F-150 4WD/Tremor, 3.5-4.5"/2.5-3" Lift, Front, V.S. 2.5 Series Coilovers, Remote Reservoir w/ CDXS, Pair

ICON 2021-2025 Ford F-150 4WD/Tremor, 3.5-4.5"/2.5-3" Lift, Front, V.S. 2.5 Series Coilovers, Remote Reservoir w/ CDXS, Pair

PART #

$2,495.95
$2,495.95
SALE CALL OR CHAT TO ORDER
Shipping calculated at checkout.

Inventory: Special Order (Live Chat or Call)
View full details

Important: Always read the entire product description, including Important Notes and Fitment information, before making a purchase. Components contained in images and descriptions may change based upon your selections.

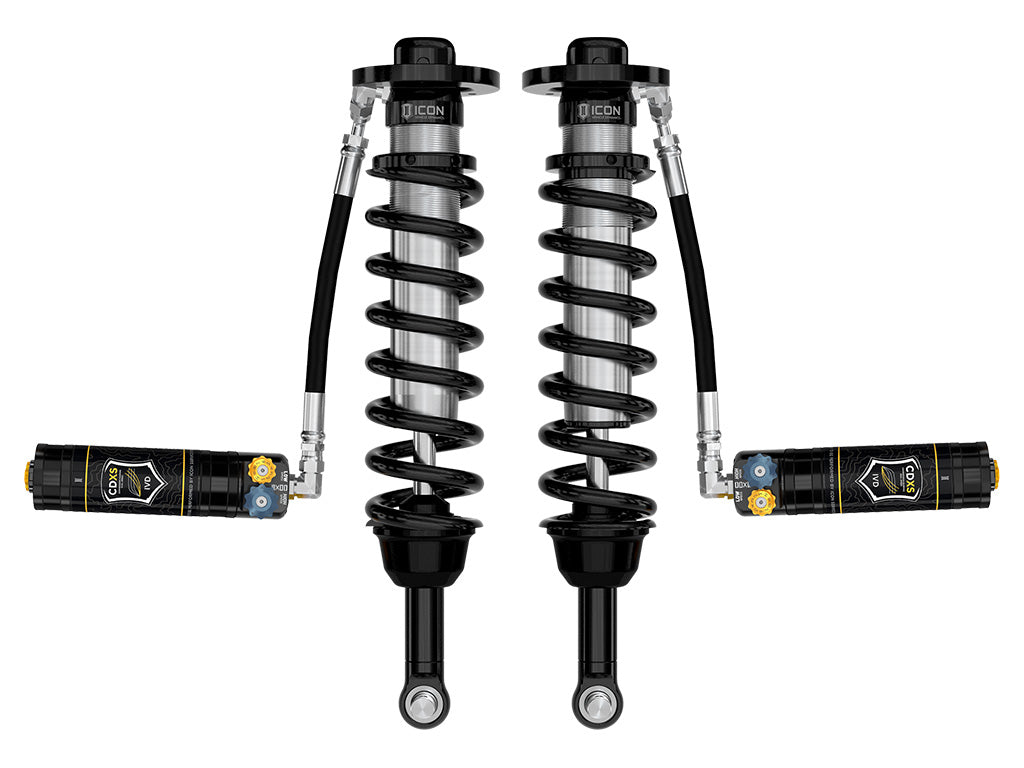

ICON Vehicle Dynamics V.S. Series 2.5” coilover shocks are an incredible upgrade for the front end of 2021-2025 Ford F-150 Tremor and F-150 4WD trucks equipped with ICON's Front Knuckle Kit. These coilovers feature an application specific length for F-150 Tremor or other F-150 sub-models equipped with ICON’s Front Knuckle Kit, allowing the most wheel travel possible as well as a taller lift height range than other ICON coilover options. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while 2.5-3” of lift height adjustability on F-150 Tremor or 3.5-4.5” of lift height adjustability on other F-150 sub-models allow the use of larger, more aggressive wheel and tire combinations. The larger 2.5” shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. ICON's exclusive Compression Damping Dual Speed (CDXS) valves are included for precisely dialing in your suspension performance. CDXS controls fluid flow under compression, with independent adjustability of high speed and low speed compression force. 10 discreet detented settings for both low and high-speed adjustment knobs allow separate adjustments for handling response and overall aggressiveness. When paired with ICON rear 2.0 Aluminum Series or 2.5 Aluminum Series shocks, vehicle control will be balanced front to rear, resulting in the best overall driving experience for your F-150.

Features

  • 100% Bolt-on - no drilling, cutting, or welding necessary for installation

Brand Overview

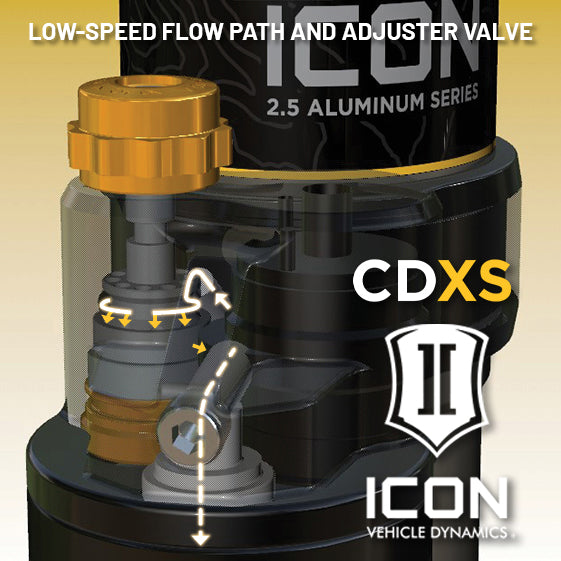

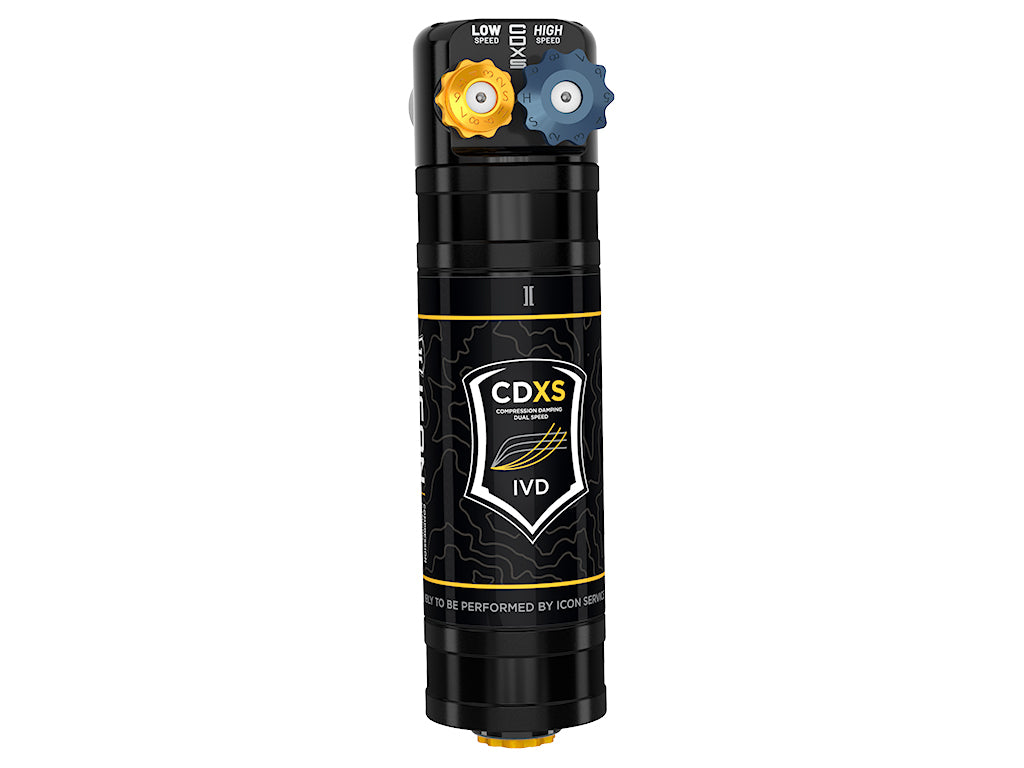

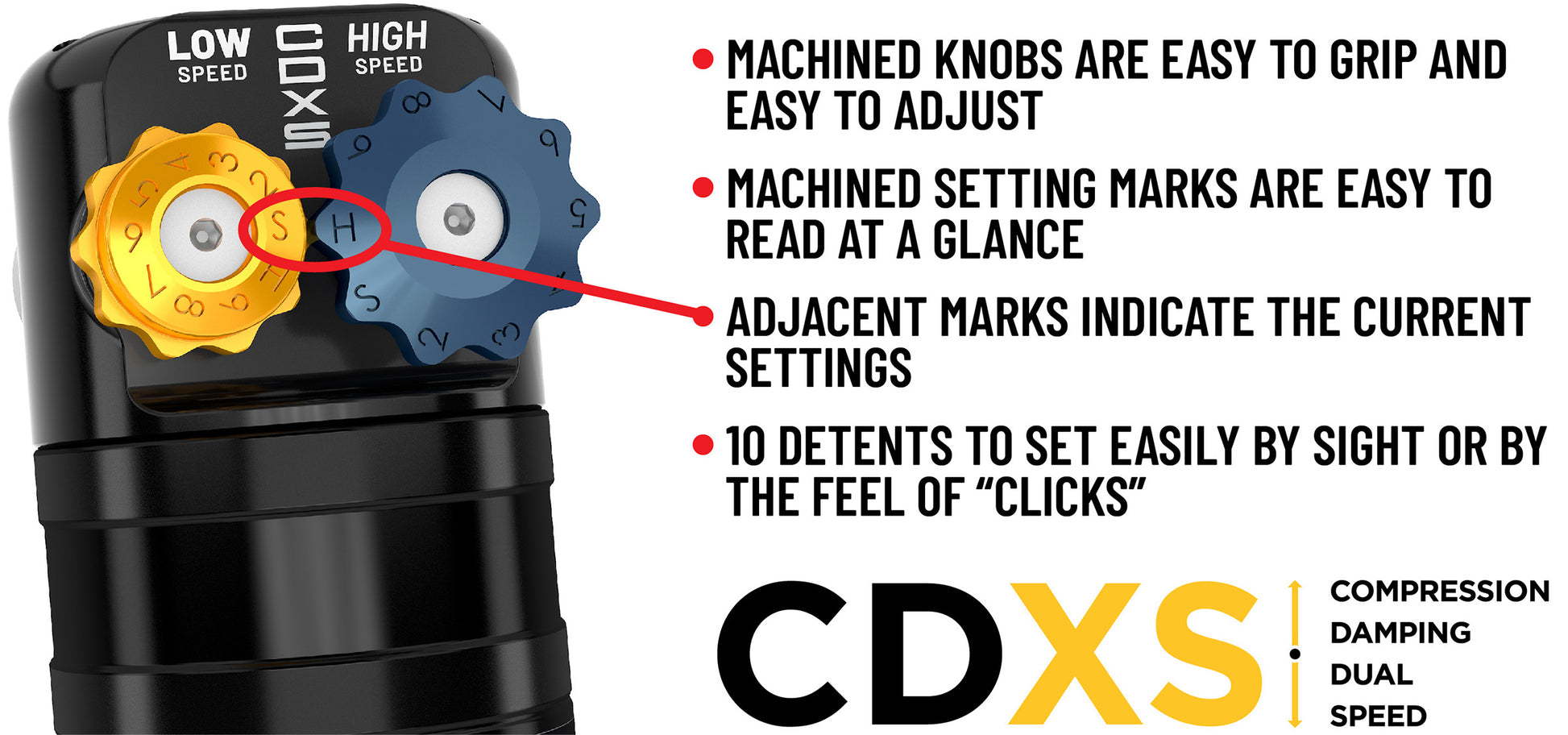

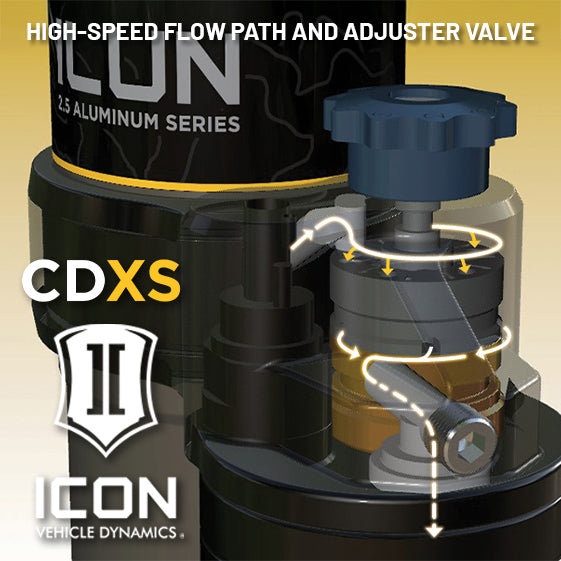

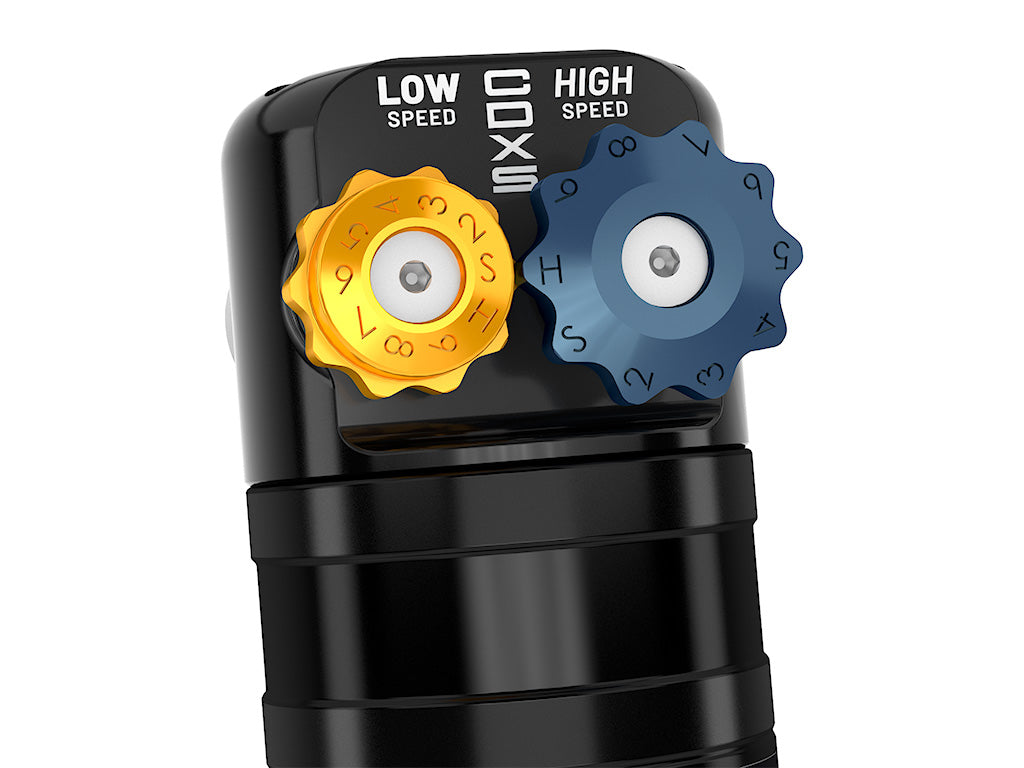

The CDXS Compression Damping Dual Speed Adjustability System represents the next evolution in vehicle suspension, delivering unmatched performance and customization for our most popular platforms. With the CDXS system from ICON Vehicle Dynamics, we've taken the low-speed knob found in our proven CDCV system and refined it with finer adjustment increments in the low-speed range of the shock. We then added a high-speed knob to adjust the upper limit of force the shock can generate, allowing drivers to fully tune the shock's compression damping performance over a wide range of driving scenarios. High and low-speed settings are clearly marked on easy-to-grip knobs, making adjustments simple and intuitive. If the knobs are not visible in their mounted position, settings can be adjusted by counting clicks—turning the knob fully counterclockwise to the stop, then count up to the desired setting. Each knob offers 360° operating range with 10 detents and hard stops at both ends.
