ICON Vehicle Dynamics

ICON 2021-2026 Ford F-150 2WD, 0-3" Lift, Front, V.S. 2.5 Series Coilovers, Extended Travel, Remote Reservoir w/ CDXS, Pair

ICON 2021-2026 Ford F-150 2WD, 0-3" Lift, Front, V.S. 2.5 Series Coilovers, Extended Travel, Remote Reservoir w/ CDXS, Pair

PART #

Regular price $2,345.88
Regular price B2B price $2,345.88
SALE CALL OR CHAT TO ORDER
Shipping calculated at checkout.
Read the important notes before ordering
Inventory: Call or Live Chat
  • Free shippingMost orders $500+
  • 30-day returnsSee policy
  • Warranty supportWe work with the maker
Not sure it fits? Ask a specialist. Live chat 866-235-4715
View full details

Important notes before you order

  1. APPLICATION NOTE #649: Models equipped with Power-Stroke diesel engines will have lift height range of 0-2.5" over stock

Specifications

BrandICON Vehicle Dynamics
Part number91819X
Active or Passive SuspensionPassive
Add-On Part252012 - -4 TO -10 HOSE SHIELD KIT
Adjustable CompressionYes
Adjustable DampingYes
Adjustable ReboundNo
Adjustable Ride HeightYes
AssembledYes
Body Diameter2.5 IN
Coil Over Springs IncludedYes
Compressed Length11.23 IN
Cylinder ColorSilver
Cylinder FinishCadmium Plated
Cylinder MaterialSteel
Damping Adjustment TypeDual Speed/Manual
Damping TypeOil
Dust Shield IncludedNo
Extended Length22.48 IN
Front Spring Rate500 PPI
Gas ChargedYes
Grade TypePerformance
Includes Bump StopYes
Internal Construction TypeSingle Tube
Lower Mount TypeBAR PIN
Maximum Lift3 IN
Maximum Ride Height Raising Distance3 IN
Minimum Lift0 IN
OEM Wheels & Tires FitmentYes
Recommended Aftermarket WheelsICON Alloys - 20x9" w/ 5.625" Backspace / 16mm Offset
Remote ReservoirYes
Reservoir StyleRemote
Self-LevelingNo
Service Parts257337 - 7/8 SHAFT 11.25 OAL, 7.00 TRAVEL
Shaft Diameter0.875 IN
Shock Absorber Body End Measuring PointTop of Upper Mount Plate
Shock Absorber Rod End Measuring PointFlat on Bar Pin
Spring ColorBlack
Spring MaterialSteel
Spring Rate TypeLinear
Travel Length5.065 IN
Upper Mount TypeMounting Plate
Valving TypeDigressive

California Proposition 65 warning applies to this product. www.P65Warnings.ca.gov

Features

  • FK rod end bearings for extended longevity and minimal deflection

Installation

    Free install support from the Trucks R Us tech team, for you or your shop.

    Overview

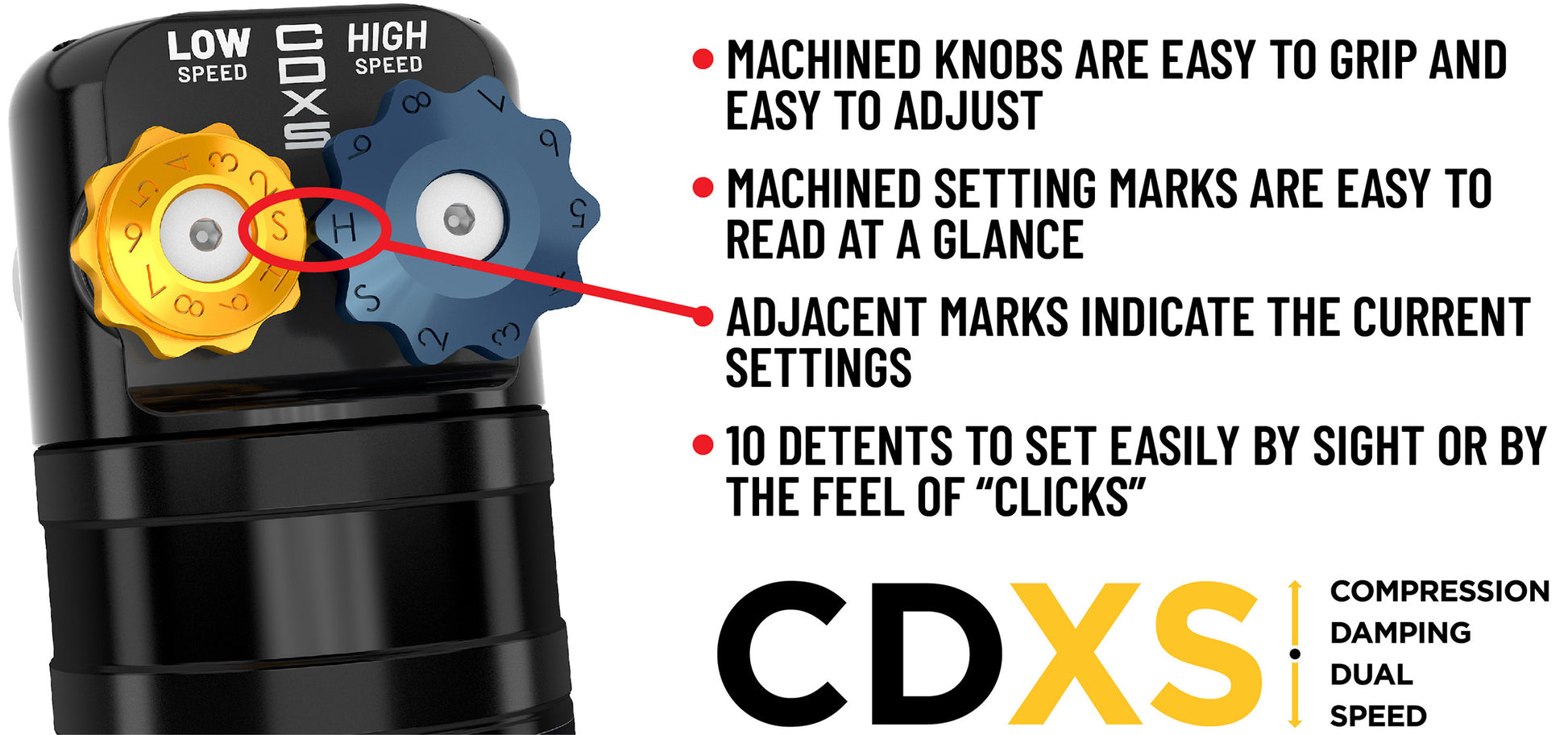

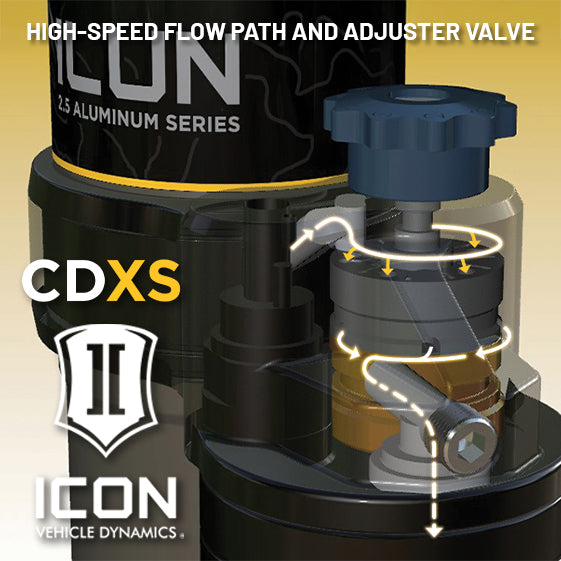

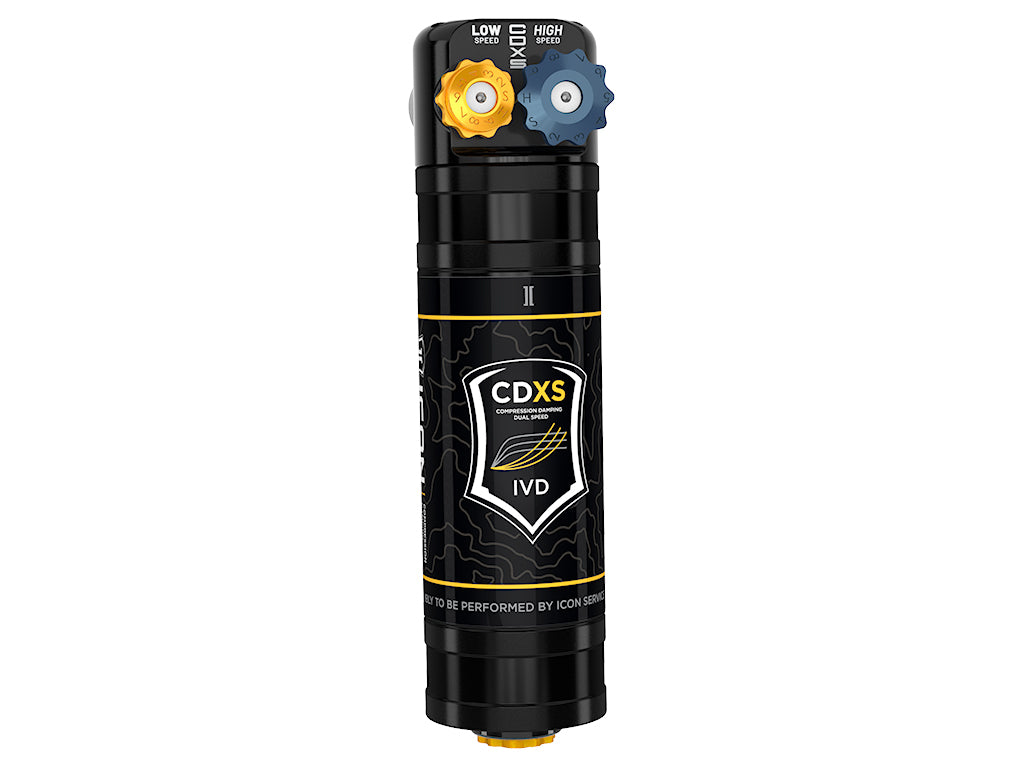

    The ICON Vehicle Dynamics V.S. Series 2.5” extended travel remote reservoir coilover shocks w/ CDXS are an incredible upgrade for the front end of the 2021-2026 Ford F-150 2WD truck. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while offering 0-3” of lift height adjustability for use of larger, more aggressive wheel and tire combinations. ICON's larger 2.5” shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. Their extended travel length allows for more wheel travel but also requires the installation of the ICON Delta Joint PRO upper control arm. Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. ICON's exclusive Compression Damping Dual Speed (CDXS) valves are included for precisely dialing in your suspension performance. CDXS controls fluid flow under compression, with independent adjustability of high speed and low speed compression force. 10 discreet detented settings for both low and high-speed adjustment knobs allow separate adjustments for handling response and overall aggressiveness. When paired with ICON rear 2.0 Aluminum Series or 2.5 Aluminum Series shocks, vehicle control will be balanced front to rear resulting in the best overall driving experience for your 2021-2026 F-150 2WD.

    Questions

    Will this fit my truck?

    Select your truck at the top of the page and the fit check will confirm it. If your exact trim is not listed, call 866-235-4715 or live chat and a fitment specialist will check it before you order.

    Do you help with installation?

    Yes. Our technical team helps you or your shop with installation and troubleshooting after delivery, on top of the manufacturer’s support.

    What if the part has a problem?

    We work the warranty claim with the manufacturer on your behalf, within the manufacturer’s warranty policy.

    Can I return it?

    Most items can be returned within 30 days. See our return policy for details.

    No reviews for this part yet. Trucks R Us is rated on Trustpilot, Google and the BBB.

    About ICON Vehicle Dynamics

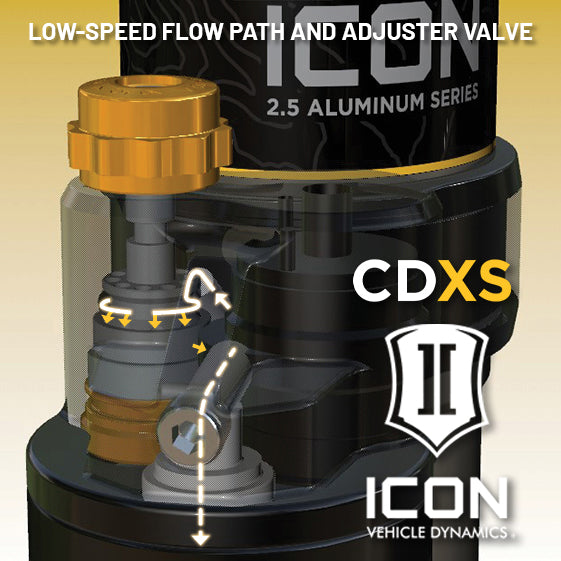

    The CDXS Compression Damping Dual Speed Adjustability System represents the next evolution in vehicle suspension, delivering unmatched performance and customization for our most popular platforms. With the CDXS system from ICON Vehicle Dynamics, we've taken the low-speed knob found in... Shop all ICON Vehicle Dynamics
