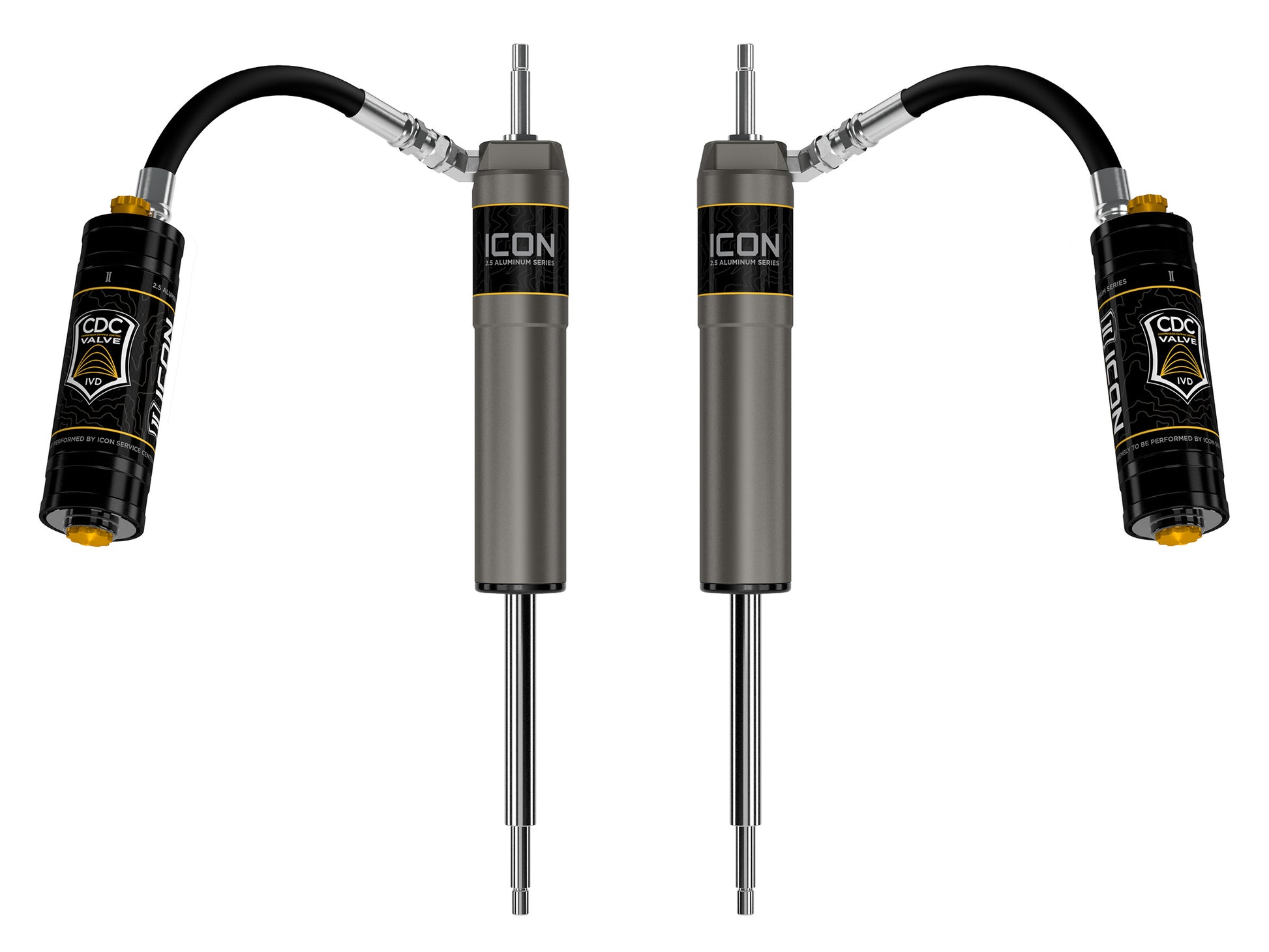

ICON 1997-2023 Nissan Patrol Y61, 0-2.5" Lift, Front, V.S. 2.5 Aluminum Series Shock Absorbers, Remote Reservoir w/ CDCV, Pair
Questions about fitment? Live chat or call 866-235-4715
Complete your build
Optional add-ons
Recommended Add-Ons
Add-ons selected:
Couldn't load pickup availability
- Free shippingMost orders $500+
- 30-day returnsSee policy
- Warranty supportWe work with the maker
Questions about fitment?
Talk to a TRU specialist
We’ll help you verify fitment before you buy.
Veteran-owned · Austin, Texas · Mon–Fri 9:30a–11:00a & 1:00p–5:30p CT
Important notes before you order
- APPLICATION NOTE #55: Shocks Are Fully Serviceable. Lift Heights Indicated Are For A Stock Equipped Vehicle.
- TECH NOTE: Compatible with 0-2.5" of front lift over stock
Specifications
| Brand | ICON Vehicle Dynamics |
|---|---|
| Part number | 87842CP |
| UPC / GTIN | 840103412238 |
| Active or Passive Suspension | Passive |
| Adjustable | Yes |
| Adjustable Compression | Yes |
| Adjustable Damping | Yes |
| Adjustable Rebound | No |
| Boot Included | NO |
| Bore Diameter | 2.25 IN |
| Cylinder Color | Grey |
| Cylinder Diameter | 2.5 IN |
| Cylinder Material | Aluminum |
| Damping Adjustment Type | Manual |
| Damping Type | Oil |
| External Reservoir | Yes |
| Gas Charged | Yes |
| Grade Type | Performance |
| Includes Bump Stop | No |
| Lower Mount Type | Stem |
| Mounting Hardware Included | Yes |
| Reservoir Type | Remote |
| Shaft Diameter | 0.875 IN |
| Shaft Material | Chrome |
| Shock Absorber Body End Measuring Point | Shoulder of Stem |
| Shock Absorber Rod End Measuring Point | Shoulder of Stem |
| Tube Outside Diameter | 2.5 IN |
| Upper Mount Type | Stem |
| Valving Type | Digressive |
| Country of Origin | US |
California Proposition 65 warning applies to this product. www.P65Warnings.ca.gov
Features
- ICON's CDC Valve technology allows for 10 levels of high-resolution compression adjustability with the turn of a knob
- Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
- 6061 aircraft grade aluminum CNC machined components
- 7/8” diameter induction hardened, chrome plated shock shaft
- Polyurethane bushings and application specific mounting hardware
- One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
- Nitrogen charged monotube design with piggyback reservoir
- 100% Rebuildable
- 100% Revalveable
- One-piece, hard anodized, impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
- Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
Installation
Free install support from the Trucks R Us tech team, for you or your shop.
Overview
ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON'S Shock Absorbers, V.S. 2.5 Aluminum Series shocks are 100% rebuildable and 100% revalveable. The larger 2.5” shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. The ICON CDC Valve is an externally adjustable valve that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges.
