ICON 2020-2026 GM 2500/3500 HD, 0-2” Lift, V.S. 2.5 Aluminum Series Shock System, Internal Reservoir, Tubular
ICON 2020-2026 GM 2500/3500 HD, 0-2” Lift, V.S. 2.5 Aluminum Series Shock System, Internal Reservoir, Tubular
PART #
- Finish Powdercoated
- Material Aluminum
Couldn't load pickup availability
- Free shippingmost orders $500+
- 30-day returnssee policy
- Warranty helpwe work claims for you
Important notes before you order
- TECH NOTE: The additional down travel provided by an ICON Suspension System can cause clearance issues between the sway bar and the stock splash guard as the suspension approaches full extension. ICON Vehicle Dynamics 2020-UP GM HD Splash Guard Kit, part number 77202 recommended.
Specifications
| Brand | ICON Vehicle Dynamics |
|---|---|
| Part number | 78732T |
| Add-On Part | 191011 - TUBULAR UCA BILLET CAP SET |
| Adjustable | No |
| Adjustable Control Arm | No |
| Adjustable Damping | No |
| Ball Joint Included | Yes |
| Ball Joint Mounting Type | Press In |
| Ball Joint Stud Type | Threaded |
| Ball Joint Thread Size | M12 - 1.75 |
| Ball Joint Thread Type Standard | Metric |
| Bushing Color | Black |
| Bushing Material | Polyurethane |
| Bushing(s) Included | Yes |
| Construction | Tubular |
| Control Arm Color | Black |
| Control Arm Construction | Tubular |
| Control Arm Material | DOM Steel |
| Finish | Powdercoated |
| Grade Type | Performance |

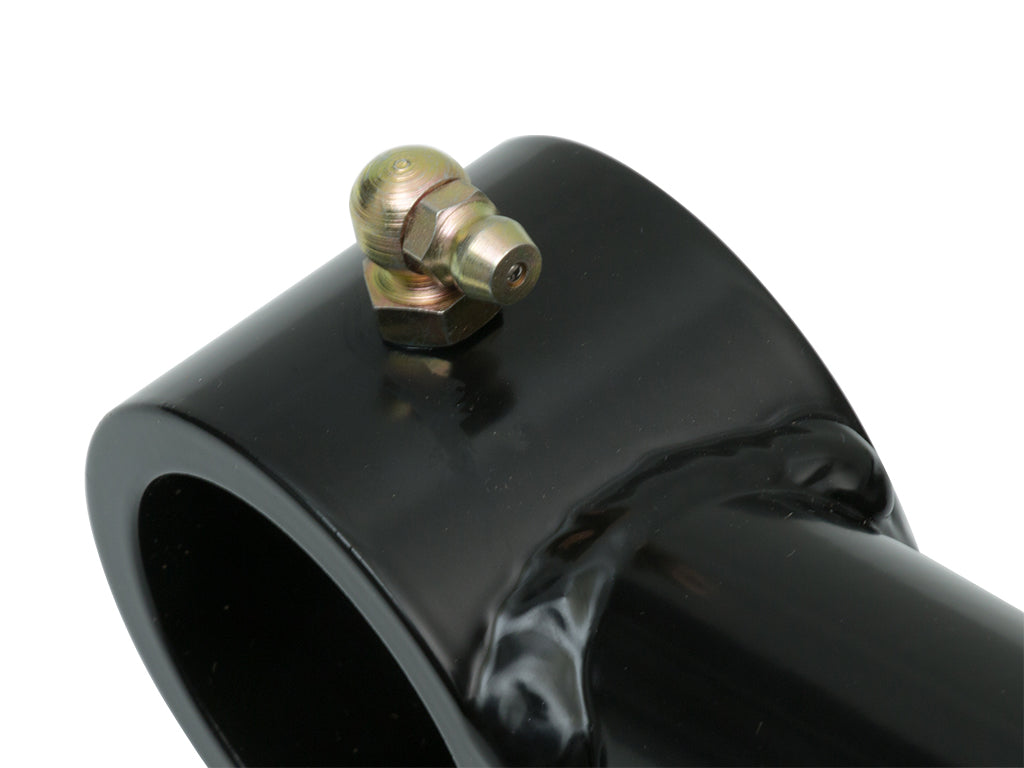

| Grease Fitting Included | yes |
| Material | Aluminum |
| Mounting Bracket Included | No |
| Mounting Hardware Included | Yes |
| OEM Wheels & Tires Fitment | Yes |
| Pre-Assembled | Yes |
| Pre-Greased | No |
| Recommended Aftermarket Wheels | ICON Alloys - 18x9" w/ 5.5” Backspace / 12mm Offset |
| Reinforced | Yes |

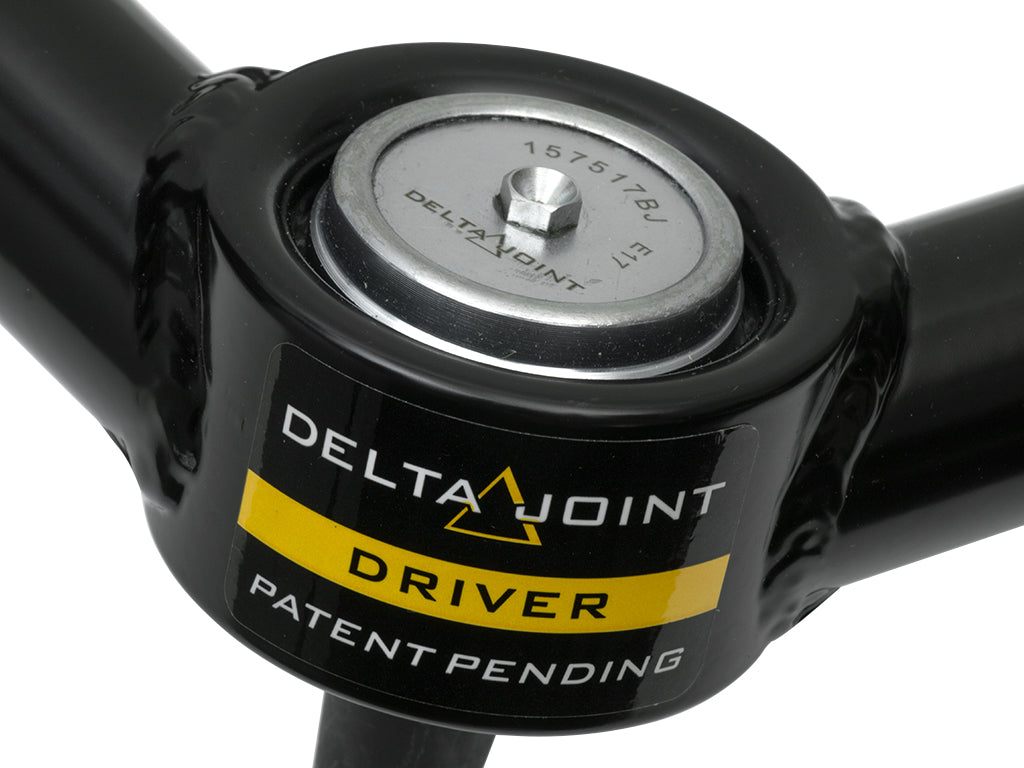

| Service Parts | 614519 - DELTA JOINT INSTALL PRESS ADAPTER TUBE |
| Stabilizer Bar Link Included | No |
| Suspension Grade Type | Performance |
| Suspension Type | Spring |
California Proposition 65 warning applies to this product. www.P65Warnings.ca.gov
Features
- Nitrogen charged monotube design with internal reservoir
Installation
Free install support from the Trucks R Us tech team, for you or your shop.
Overview

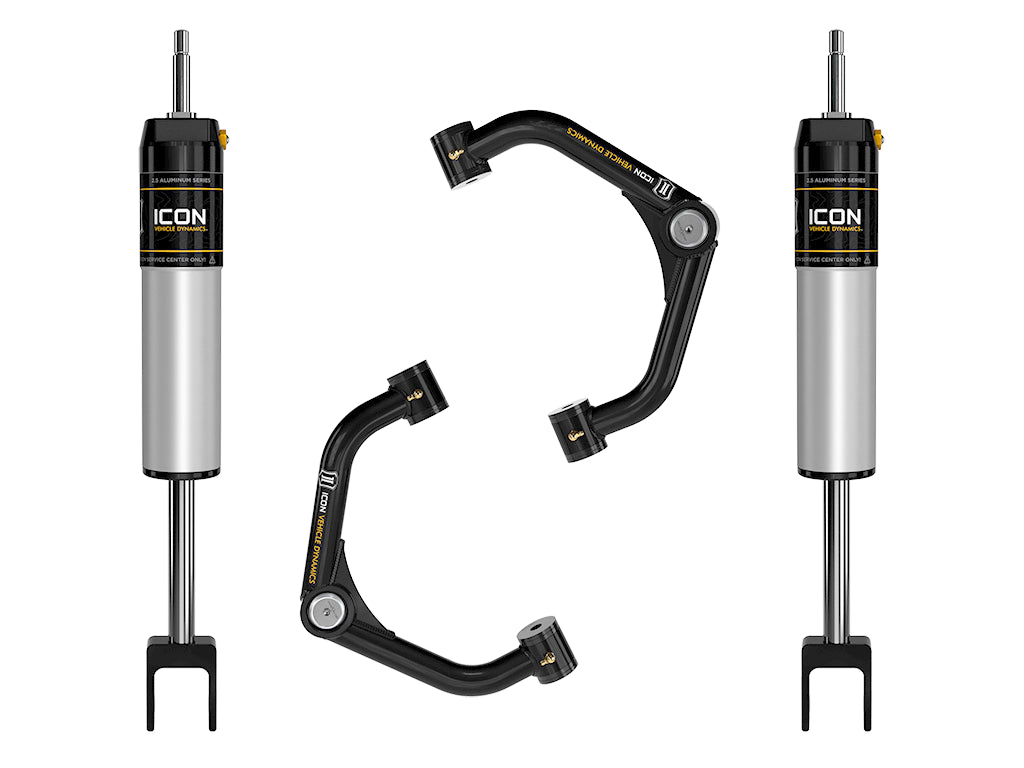

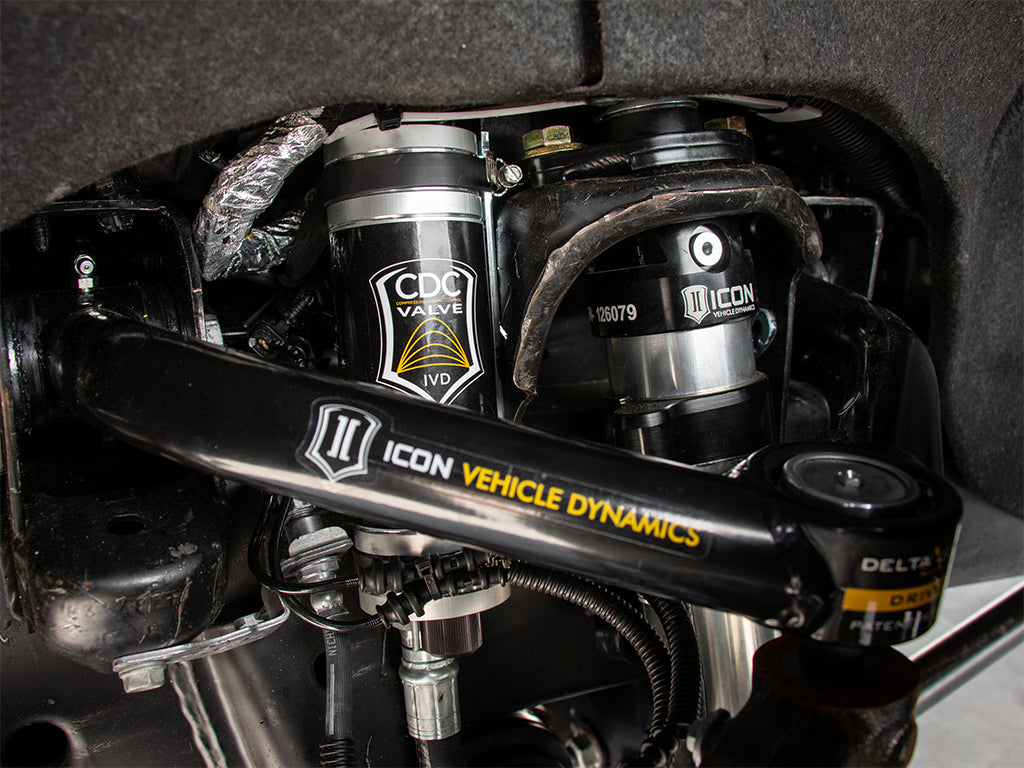

To ensure compatibility, ICON is no longer offering GM 2500HD/3500HD upper control arms as individual components. Upper control arms can only be purchased in unison with ICON shock absorbers as a complete system. The included ICON Vehicle Specific (V.S.) 2.5 Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON'S Shock Absorbers, V.S. 2.5 Series shocks are 100% rebuildable and 100% revalveable. The larger diameter and oil volume of ICON 2.5 IR Series shocks provide better ride quality and heat dissipation properties than the standard 2.0 Aluminum Series IR Shocks. If you are looking for a more user defined tune, consider looking into the Compression Damping Control Valve (CDC Valve) shocks.
