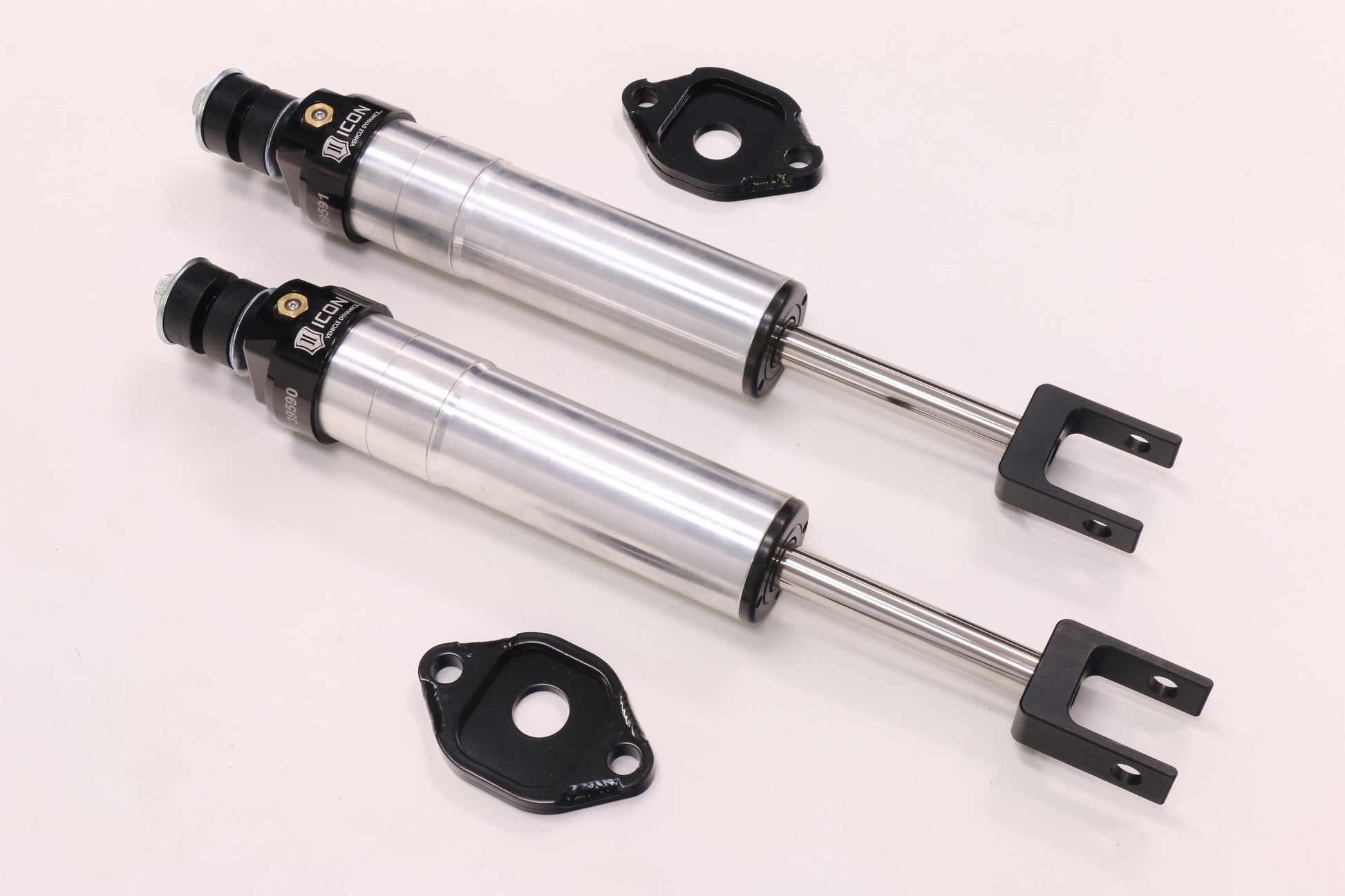

ICON 2011-19 GM 2500/3500 HD 0-2” Lift Front 2.5 VS Extended Travel Shocks, Pair
ICON 2011-19 GM 2500/3500 HD 0-2” Lift Front 2.5 VS Extended Travel Shocks, Pair
PART #
Couldn't load pickup availability
- Free shippingmost orders $500+
- 30-day returnssee policy
- Warranty helpwe work claims for you
Important notes before you order
- TECH NOTE: Aftermarket upper control arms with high angle ball joint required for install
Specifications
| Brand | ICON Vehicle Dynamics |
|---|---|
| Part number | 77606P |
| Adjustable | NO |
| Boot Included | NO |
| Bore Diameter | 2.25 IN |
| Cylinder Color | Silver |
| Cylinder Material | Steel |
| Damping Type | Oil |
| External Reservoir | NO |
| Gas Charged | Yes |
| Grade Type | Performance |
| Lower Mount Type | Clevis |
| Mounting Hardware Included | Yes |
| Service Parts | 252001 - 2.5 FIXED SPANNER WRENCH |
| Shaft Diameter | 0.875 IN |
| Shaft Material | Chrome |
| Shock Absorber Body End Measuring Point | Shoulder of Stem |
| Shock Absorber Rod End Measuring Point | Center of Clevis Holes |
| Tube Outside Diameter | 2.5 IN |
| Upper Mount Type | Stem |
California Proposition 65 warning applies to this product. www.P65Warnings.ca.gov
Features
- 100% Revalveable
Installation
Free install support from the Trucks R Us tech team, for you or your shop.
Overview
ICON Vehicle Specific (V.S.) 2.5 Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON'S Shock Absorbers, V.S. 2.5 Series shocks are 100% rebuildable and 100% revalveable. The larger diameter and oil volume of ICON 2.5 IR Series shocks provide better ride quality and heat dissipation properties than the standard 2.0 Aluminum Series IR Shocks. If you are looking for a more user defined tune, consider looking into the Compression Damping Control Valve (CDC Valve) or the Omega Series bypass shocks.
