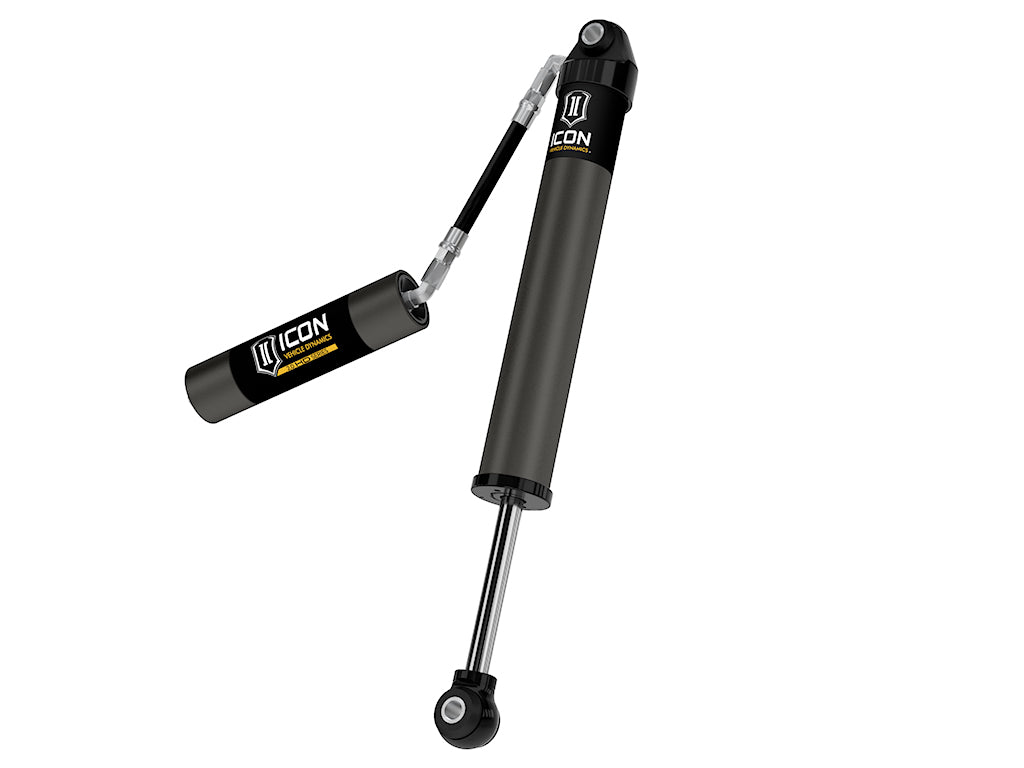

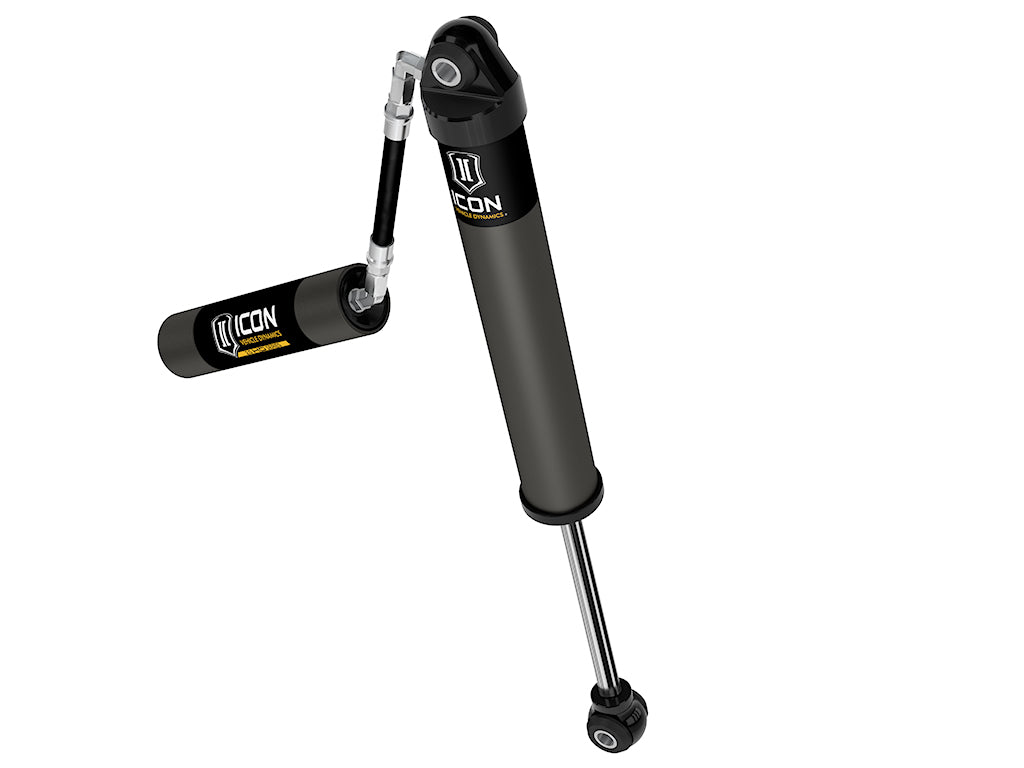

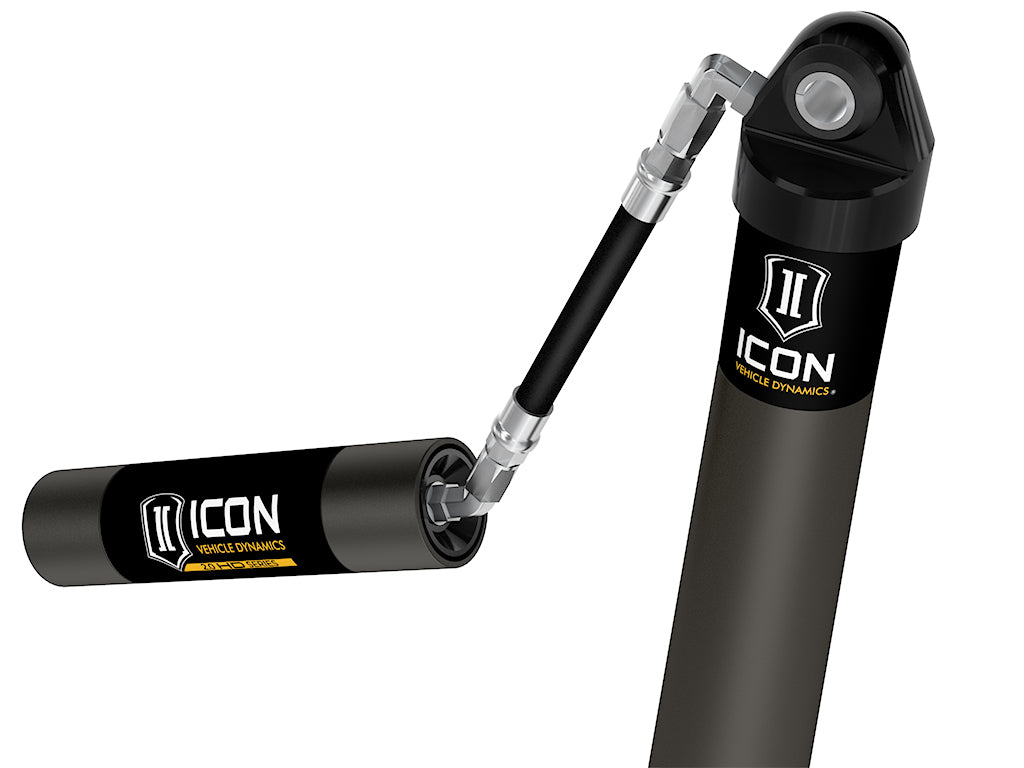

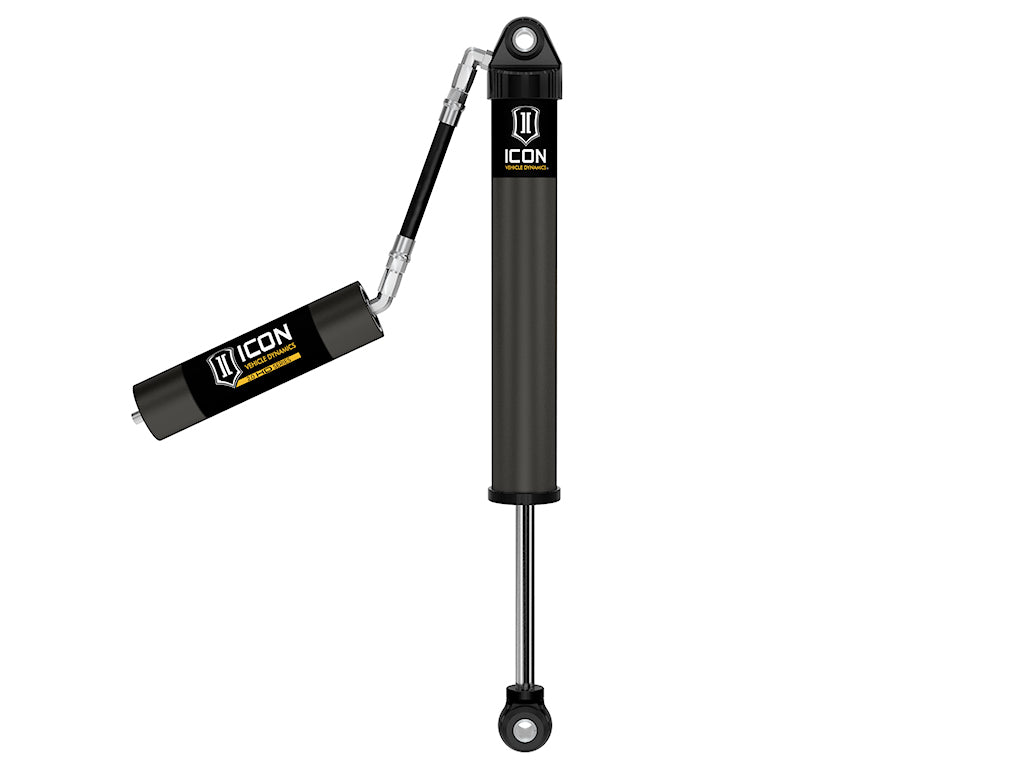

ICON 2011-2026 Chevrolet Silverado/GMC Sierra 2500/3500 HD, 0-1.5” Lift, Driver Rear, V.S. 2.0 HD Series Shock Absorber, Remote Reservoir
- Finish Hard Anodized
- Material Steel, Aluminum
Questions about fitment? Live chat or call 866-235-4715
Complete your build
Optional add-ons
Recommended Add-Ons
Add-ons selected:
Couldn't load pickup availability
- Free shippingMost orders $500+
- 30-day returnsSee policy
- Warranty supportWe work with the maker
Questions about fitment?
Talk to a TRU specialist
We’ll help you verify fitment before you buy.
Veteran-owned · Austin, Texas · Mon–Fri 9:30a–11:00a & 1:00p–5:30p CT
Important notes before you order
- APPLICATION NOTE #3: Will not fit Cab & Chassis models
- APPLICATION NOTE #55: Shocks Are Fully Serviceable. Lift Heights Indicated Are For A Stock Equipped Vehicle.
- APPLICATION NOTE #294: Included rear shocks are compatible with 0-1.5" of rear lift over stock
- APPLICATION NOTE #296: Shocks are sold individually. Passenger side shock part number 76552RP is also required.
Specifications
| Brand | ICON Vehicle Dynamics |
|---|---|
| Part number | 76552RD |
| UPC / GTIN | 840103436173 |
| Active or Passive Suspension | Passive |
| Adjustable | No |
| Adjustable Compression | No |
| Adjustable Damping | No |
| Adjustable Rebound | No |
| Adjustable Ride Height | No |
| Body Color | Gray |
| Body Diameter | 2.125 IN |
| Body Material | Aluminum |
| Boot Included | NO |
| Bore Diameter | 1.75 IN |
| Bushing Color | Black |
| Bushing Included | yes |
| Bushing Material | Polyurethane |
| Coil Over Springs Included | NO |
| Coil Spring Insulator(s) Included | No |
| Color | Black, Gray |
| Compressed Length | 16.08 IN |
| Configuration | Performance |
| Cylinder Color | Gray |
| Cylinder Diameter | 2.125 IN |
| Cylinder Finish | Hard Anodized |
| Cylinder Material | Aluminum |
| Cylinder Outside Diameter | 2.125 IN |
| Damping Type | Oil |
| Dust Boot Included | No |
| Dust Shield | NO |
| Dust Shield Included | No |
| Extended Length | 26.23 IN |
| External Reservoir | Yes |
| Finish | Hard Anodized |
| Gas Charged | Yes |
| Grade Type | Performance |
| Hydraulic Lockout | No |
| Includes Bump Stop | No |
| Internal Construction Type | Single Tube |
| Internal Rebound Bumper | Yes |
| Internal Rebound Spring | No |
| Lower Mount Sleeve Inside Diameter | .56 IN |
| Lower Mount Sleeve Overall Length | 1.65 IN |
| Lower Mount Type | EYELET |
| Material | Steel, Aluminum |
| Maximum Ride Height Raising Distance | 1.5 IN |
| Minimum Ride Height Raising Distance | 0 IN |
| Mounting Hardware Included | No |
| Quantity | 1 |
| Remote Reservoir | Yes |
| Reservoir Diameter | 2 IN |
| Reservoir Hose Inside Diameter | .25 IN |
| Reservoir Hose Length | 3.25 IN |
| Reservoir Length | 8 IN |
| Reservoir Type | Remote |
| Rod Diameter | .625 IN |
| Self-Leveling | No |
| Shaft Diameter | 0.625 IN |
| Shaft Material | Chrome |
| Shock Absorber Body End Measuring Point | CENTER OF EYELET |
| Shock Absorber Bore Size | 1.75 IN |
| Shock Absorber Rod End Measuring Point | CENTER OF EYELET |
| Shock Stroke | 10.16 IN |
| Stroke Length Rear | 10.16 IN |
| Suspension Type | Spring |
| Travel Length | 10.16 IN |
| Tube Outside Diameter | 2.125 IN |
| Type | Telescopic |
| Upper Mount Sleeve Inside Diameter | .56 IN |
| Upper Mount Sleeve Overall Length | 1.65 IN |
| Upper Mount Type | EYELET |
| Valving Type | Digressive, Linear |
| Country of Origin | US |
California Proposition 65 warning applies to this product. www.P65Warnings.ca.gov
Features
- Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
- Nitrogen charged monotube design with remote reservoir
- Hard anodized 6061 aluminum body tubing for superb heat dissipation, excellent corrosion resistance, and high-tech appearance
- Increased cylinder wall thickness and DU bearing height compared to ICON 2.0 Aluminum Series shocks offers improved strength
- One piece linear/digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
- 5/8” chrome plated hardened steel shaft resists corrosion and pits
- 6061 aluminum rod end, top cap, and internals ensure strength and durability
- Polyurethane bushings and zinc plated sleeves for OE factory type fitment
- Nitrile rubber top out bumper for noise free operation
- 100% rebuildable
- 100% revalveable
Overview
ICON Vehicle Specific (V.S.) 2.0 HD Series shock absorbers are the ultimate in cost effective upgrades, specifically tailored by ICON engineers for heavy duty applications. The V.S. 2.0 HD Series shocks are a high-quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road ride quality and performance. ICON 2.0 HD shocks feature hard anodized 6061 aluminum cylinders with increased wall thickness and taller DU bearings, significantly improving pull apart and side load strength compared to ICON 2.0 Aluminum Series shock absorbers. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. Like all ICON shock absorbers, V.S. 2.0 HD Series shocks are 100% rebuildable and 100% revalveable. For those using their vehicle in extreme off road situations, consider the ICON V.S. 2.5 Aluminum Series shocks to handle extra abuse and punishment your suspension will need to endure.
