ICON 2011-2026 Chevrolet Silverado/GMC Sierra 2500/3500 HD, 0-3.5” Lift, Driver Front, V.S. 2.0 HD Series Shock Absorber, Remote Reservoir

Name: ICON 2011-2026 Chevrolet Silverado/GMC Sierra 2500/3500 HD, 0-3.5” Lift, Driver Front, V.S. 2.0 HD Series Shock Absorber, Remote Reservoir
Brand: ICON Vehicle Dynamics
SKU: 76551RD
Price: 319.95 USD
Availability: InStock

ICON 2011-2026 Chevrolet Silverado/GMC Sierra 2500/3500 HD, 0-3.5” Lift, Driver Front, V.S. 2.0 HD Series Shock Absorber, Remote Reservoir

PART #

$319.95

SALE Backordered

Shipping calculated at checkout.

Product variants

Quantity

Inventory: Low (Live-Chat or Call For Stock)

View full details

Important: Always read the entire product description, including Important Notes and Fitment information, before making a purchase. Components contained in images and descriptions may change based upon your selections.

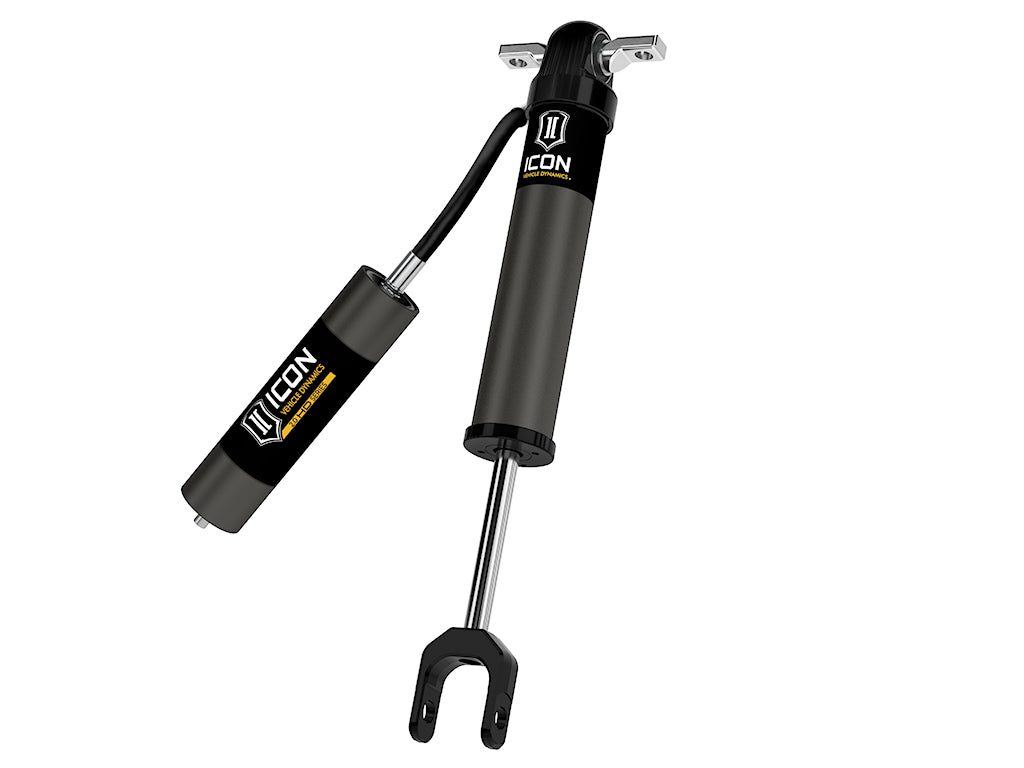

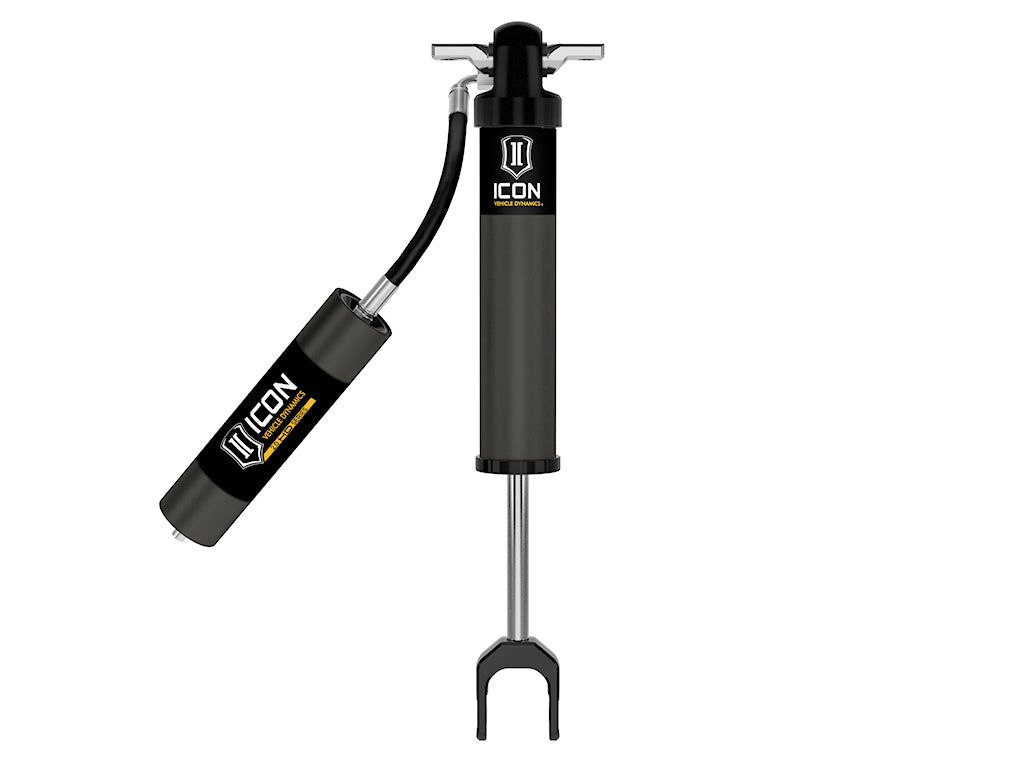

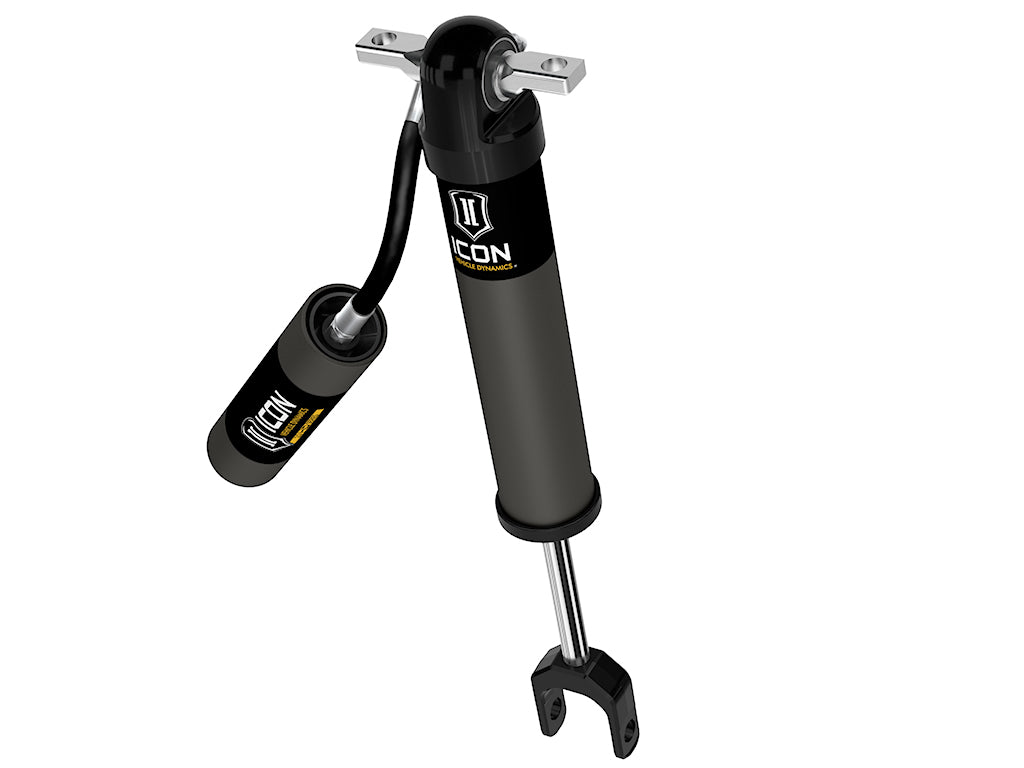

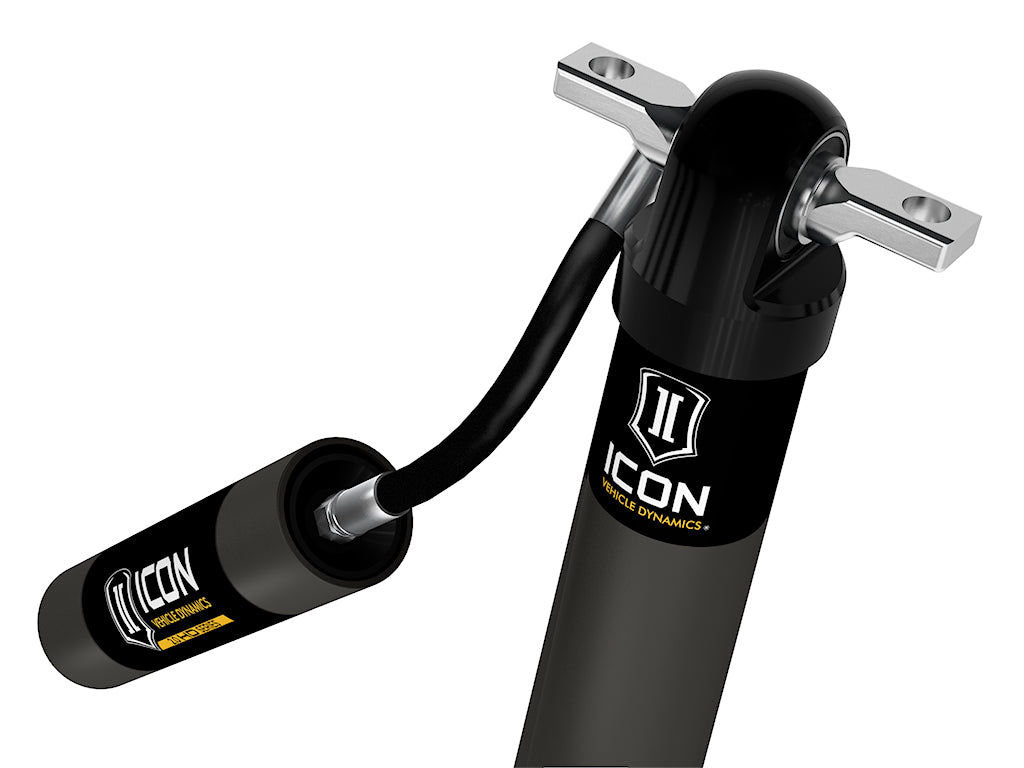

ICON Vehicle Specific (V.S.) 2.0 HD Series shock absorbers are the ultimate in cost effective upgrades, specifically tailored by ICON engineers for heavy duty applications. The V.S. 2.0 HD Series shocks are a high-quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road ride quality and performance. ICON 2.0 HD shocks feature hard anodized 6061 aluminum cylinders with increased wall thickness and taller DU bearings, significantly improving pull apart and side load strength compared to ICON 2.0 Aluminum Series shock absorbers. Press in, bonded rubber upper bushing/bar pin assembly provides factory like fitment and ease of install while also isolating road vibration. Forged aluminum lower mounting clevis maintains factory like fitment and ensures maximum strength. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. Like all ICON shock absorbers, V.S. 2.0 HD Series shocks are 100% rebuildable and 100% revalveable. For those using their vehicle in extreme off road situations, consider the ICON V.S. 2.5 Aluminum Series shocks to handle extra abuse and punishment your suspension will need to endure.

Features

100% revalveable

Brand Overview

ICON Vehicle Dynamics specializes in performance suspension components, shocks, and accessories for today’s most popular trucks & SUVs. Since 2008, ICON has been developing products that redefine the limits of what a “stock” vehicle is capable of. ICON is part of a family of manufacturing companies that includes state of the art machining, laser cutting, and metal forming processes. This unique situation allows ICON to develop products that are at the forefront of technology quickly and efficiently, while maintaining a standard of quality unrivaled in the industry.

APPLICATION NOTE #299: Shocks are sold individually. Passenger side shock part number 76551RP is also required.

Quick Specs

Specs: AAP_UDA_12: EA
Specs: AAP_UDA_22: 1
Specs: AAP_UDA_4: 55
Specs: Active or Passive Suspension: Passive
Specs: Add-On Part: 76551RP - 11-26 GM 2500/3500 HD 0-3.5" PASSENGER FRONT VS 2.0 HD RR
Specs: Add-On Part: 73033 - 20-26 GM 2500/3500 HD TORSION KEY KIT
Specs: Add-On Part: 77202 - 20-26 GM HD FRONT SPLASH GUARD KIT
Specs: Add-On Part: 252012 - -4 TO -10 HOSE SHIELD KIT
Specs: Add-On Part: 73034 - 11-26 GM 2500/3500 HD XD TIE ROD KIT
Specs: Adjustable: No
Specs: Adjustable Compression: No
Specs: Adjustable Damping: No
Specs: Adjustable Rebound: No
Specs: Adjustable Ride Height: No
Specs: Attributed Description: ICON Vehicle Dynamics; Shock Absorber; Adjustable: No; Boot Included: No; Coil Over Springs Included: No; Dust Shield: No; Gas Charged: Yes; Lower Mount Type: Eyelet; Shock Absorber Body End Measuring Point: Center of Eyelet; Shock Absorber Rod End Measuring Point: Center of Eyelet; Upper Mount Type: Eyelet; Remote Reservoir: No; Body Diameter: 2 IN; Compressed Length: 16.100 IN; Fully Open Length: 26.17 IN; Shock Stroke: 10.07 IN; Travel Length: 10.07 IN
Specs: Body Color: Gray
Specs: Body Diameter: 2.125 IN
Specs: Body Material: Aluminum
Specs: Boot Included: NO
Specs: Bore Diameter: 1.75 IN
Specs: Bushing Color: Black
Specs: Bushing Included: yes
Specs: Bushing Material: Polyurethane
Specs: California Prop 65 Warning: Yes
Specs: California Proposition 65: WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Specs: Coil Over Springs Included: NO
Specs: Coil Spring Insulator(s) Included: No
Specs: Color: Gray
Specs: Color: Black
Specs: Compressed Length: 16.08 IN
Specs: Configuration: Performance
Specs: Cylinder Color: Gray
Specs: Cylinder Diameter: 2.125 IN
Specs: Cylinder Finish: Hard Anodized
Specs: Cylinder Material: Aluminum
Specs: Cylinder Outside Diameter: 2.125 IN
Specs: Damping Type: Oil
Specs: Dust Boot Included: No
Specs: Dust Shield: NO
Specs: Dust Shield Included: No
Specs: Extended Length: 26.23 IN
Specs: External Reservoir: Yes
Specs: Finish: Hard Anodized
Specs: Gas Charged: Yes
Specs: Grade Type: Performance
Specs: Hydraulic Lockout: No
Specs: Includes Bump Stop: No
Specs: Internal Construction Type: Single Tube
Specs: Internal Rebound Bumper: Yes
Specs: Internal Rebound Spring: No
Specs: Lower Mount Sleeve Inside Diameter: .56 IN
Specs: Lower Mount Sleeve Overall Length: 1.65 IN
Specs: Lower Mount Type: Clevis
Specs: Material: Steel
Specs: Material: Aluminum
Specs: Maximum Ride Height Raising Distance: 1.5 IN
Specs: Minimum Ride Height Raising Distance: 3.5 IN
Specs: Mounting Hardware Included: No
Specs: Quantity: 1
Specs: Remote Reservoir: Yes
Specs: Reservoir Diameter: 2 IN
Specs: Reservoir Hose Inside Diameter: .25 IN
Specs: Reservoir Type: Remote
Specs: Rod Diameter: .625 IN
Specs: Self-Leveling: No
Specs: Service Parts: 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)
Specs: Service Parts: 254101G - 1/2 GALLON ICON PERFORMANCE SHOCK OIL
Specs: Service Parts: 202002 - 2.0 IFP REBUILD KIT
Specs: Shaft Diameter: 0.625 IN
Specs: Shaft Material: Chrome
Specs: Shock Absorber Body End Measuring Point: Flat of Barpin
Specs: Shock Absorber Bore Size: 1.75 IN
Specs: Shock Absorber Rod End Measuring Point: Center of Mounting Hole in Clevis
Specs: Shock Stroke: 10.16 IN
Specs: Stroke Length Rear: 10.16 IN
Specs: Suspension Type: Spring
Specs: Title: ICON 2011-2026 Chevrolet Silverado/GMC Sierra 2500/3500 HD, 0-3.5” Lift, Driver Front, V.S. 2.0 HD Series Shock Absorber, Remote Reservoir
Specs: Travel Length: 10.16 IN
Specs: Tube Outside Diameter: 2.125 IN
Specs: Type: Telescopic
Specs: Upper Mount Sleeve Inside Diameter: .56 IN
Specs: Upper Mount Sleeve Overall Length: 1.65 IN
Specs: Upper Mount Type: Barpin
Specs: Valving Type: Digressive
Specs: Valving Type: Linear

Fitment

: N/A
