ICON Vehicle Dynamics

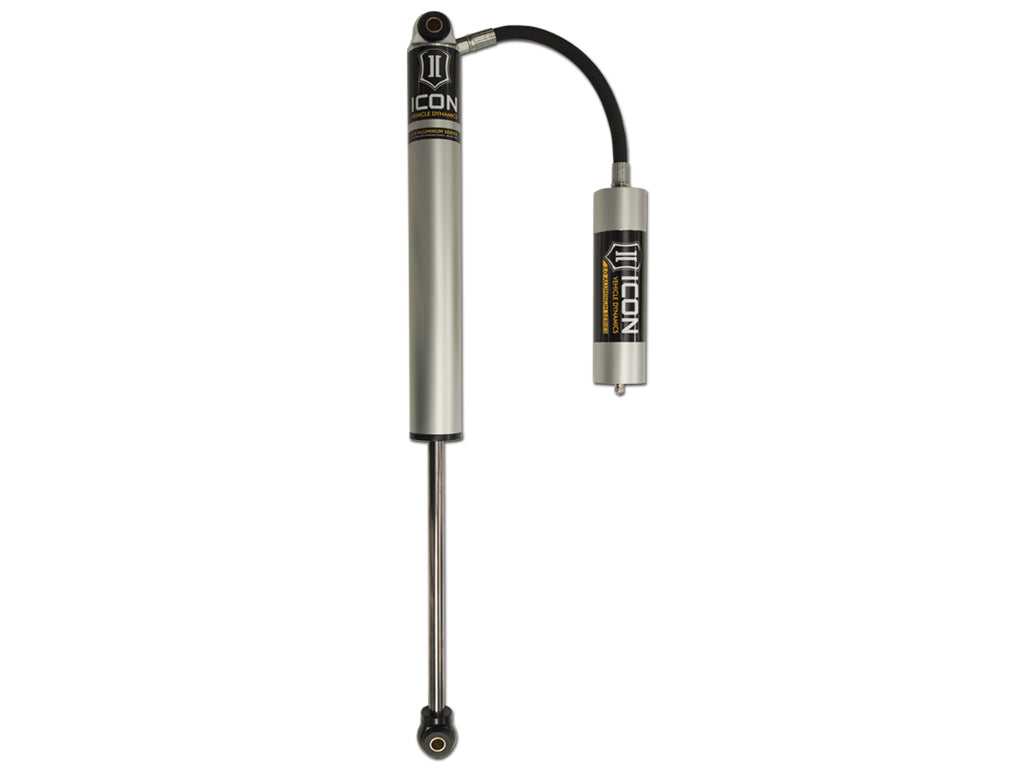

ICON 2007-2026 Chevrolet Silverado 1500/GMC Sierra 1500/2007-2020 GM 1500 SUV, 0-2” Lift, Rear, V.S. 2.0 Aluminum Series Shock Absorber, Remote Reservoir
ICON 2007-2026 Chevrolet Silverado 1500/GMC Sierra 1500/2007-2020 GM 1500 SUV, 0-2” Lift, Rear, V.S. 2.0 Aluminum Series Shock Absorber, Remote Reservoir
PART #
- Finish Anodized
- Material Steel
Couldn't load pickup availability
- Free shippingmost orders $500+
- 30-day returnssee policy
- Warranty helpwe work claims for you
Important notes before you order
- APPLICATION NOTE #342: Silverado 1500 and Sierra 1500 submodels equipped with Adaptive Ride Control also require concurrent installation of aftermarket front coilovers
Specifications
| Brand | ICON Vehicle Dynamics |
|---|---|
| Part number | 76526R |
| Active or Passive Suspension | Passive |
| Add-On Part | 71021 - 19-26 GM ARC ELECTRONIC SHOCK SIMULATOR |
| Adjustable Compression | No |
| Adjustable Damping | No |
| Adjustable Rebound | No |
| Adjustable Ride Height | No |
| Body Color | Gray |
| Body Diameter | 2 IN |
| Body Material | Aluminum |
| Boot Included | NO |
| Bore Diameter | 1.75 IN |
| Bushing Color | Black |
| Bushing Included | yes |
| Bushing Material | Polyurethane |
| Coil Over Springs Included | NO |
| Coil Spring Insulator(s) Included | No |
| Color | Silver |
| Compressed Length | 15.6 IN |
| Configuration | Performance |
| Cylinder Color | Gray |
| Cylinder Diameter | 2 IN |
| Cylinder Finish | Anodized |
| Cylinder Material | Aluminum |
| Cylinder Outside Diameter | 2 IN |
| Damping Type | Oil |
| Dust Boot Included | No |
| Dust Shield | NO |
| Dust Shield Included | No |
| Extended Length | 25.05 IN |
| External Reservoir | Yes |
| Finish | Anodized |
| Gas Charged | Yes |
| Grade Type | Performance |
| Hydraulic Lockout | No |
| Includes Bump Stop | No |
| Internal Construction Type | Single Tube |
| Internal Rebound Bumper | Yes |
| Internal Rebound Spring | No |
| Lower Mount Sleeve Inside Diameter | .56 IN |
| Lower Mount Sleeve Overall Length | 1.65 IN |
| Lower Mount Type | EYELET |
| Material | Steel |
| Maximum Ride Height Raising Distance | 2 IN |
| Minimum Ride Height Raising Distance | 0 IN |
| Mounting Hardware Included | Yes |
| Quantity | 1 |
| Remote Reservoir | Yes |
| Reservoir Diameter | 2 IN |
| Reservoir Hose Inside Diameter | .25 IN |
| Reservoir Hose Length | 3.25 IN |
| Reservoir Length | 6 IN |
| Reservoir Type | Remote |
| Rod Diameter | .625 IN |
| Self-Leveling | No |
| Service Parts | 254101G - 1/2 GALLON ICON PERFORMANCE SHOCK OIL |
| Shaft Diameter | 0.625 IN |
| Shaft Material | Chrome |
| Shock Absorber Body End Measuring Point | Center of Eylet |
| Shock Absorber Bore Size | 1.75 IN |
| Shock Absorber Rod End Measuring Point | Center of Eylet |
| Shock Stroke | 9.45 IN |
| Suspension Type | Spring |
| Travel Length | 9.45 IN |
| Type | Telescopic |
| Upper Mount Sleeve Inside Diameter | .56 IN |
| Upper Mount Sleeve Overall Length | 1.65 IN |
| Upper Mount Type | EYELET |
| Valving Type | Digressive |
California Proposition 65 warning applies to this product. www.P65Warnings.ca.gov
Features
- 100% revalveable
Installation
Free install support from the Trucks R Us tech team, for you or your shop.
Overview
ICON Vehicle Specific (V.S.) 2.0 Aluminum Series shock absorbers are the ultimate in cost effective upgrades, specifically tailored by ICON engineers for your application. The V.S. 2.0 Aluminum Series shocks are a high quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance. Like all ICON shock absorbers, V.S. 2.0 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For those using their vehicle in extreme off road situations, consider the ICON V.S. 2.5 Series shock to handle extra abuse and punishment your suspension will need to endure.
Questions
Will this fit my truck?
Select your truck at the top of the page and the fit check will confirm it. If your exact trim is not listed, call 866-235-4715 or live chat and a fitment specialist will check it before you order.
Do you help with installation?
Yes. Our technical team helps you or your shop with installation and troubleshooting after delivery, on top of the manufacturer’s support.
What if the part has a problem?
We work the warranty claim with the manufacturer on your behalf, within the manufacturer’s warranty policy.
Can I return it?
Most items can be returned within 30 days. See our return policy for details.
No reviews for this part yet. Trucks R Us is rated on Trustpilot, Google and the BBB.
About ICON Vehicle Dynamics
ICON Vehicle Dynamics specializes in performance suspension components, shocks, and accessories for today’s most popular trucks & SUVs. Since 2008, ICON has been developing products that redefine the limits of what a “stock” vehicle is capable of. ICON is part... Shop all ICON Vehicle Dynamics
