ICON Vehicle Dynamics

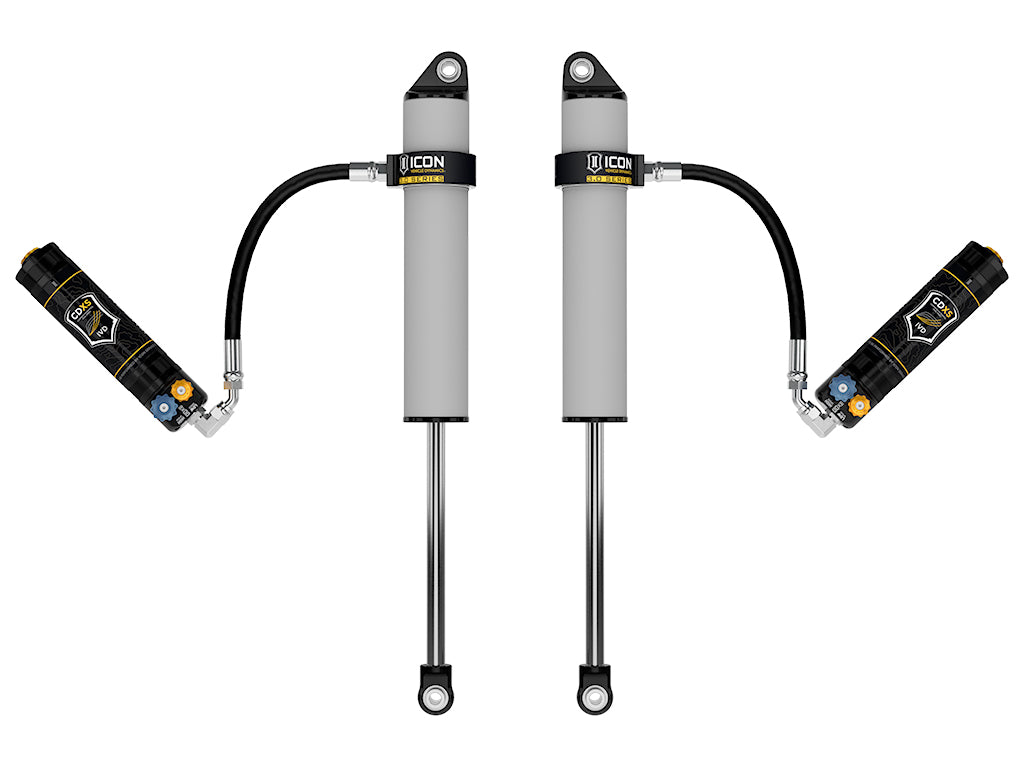

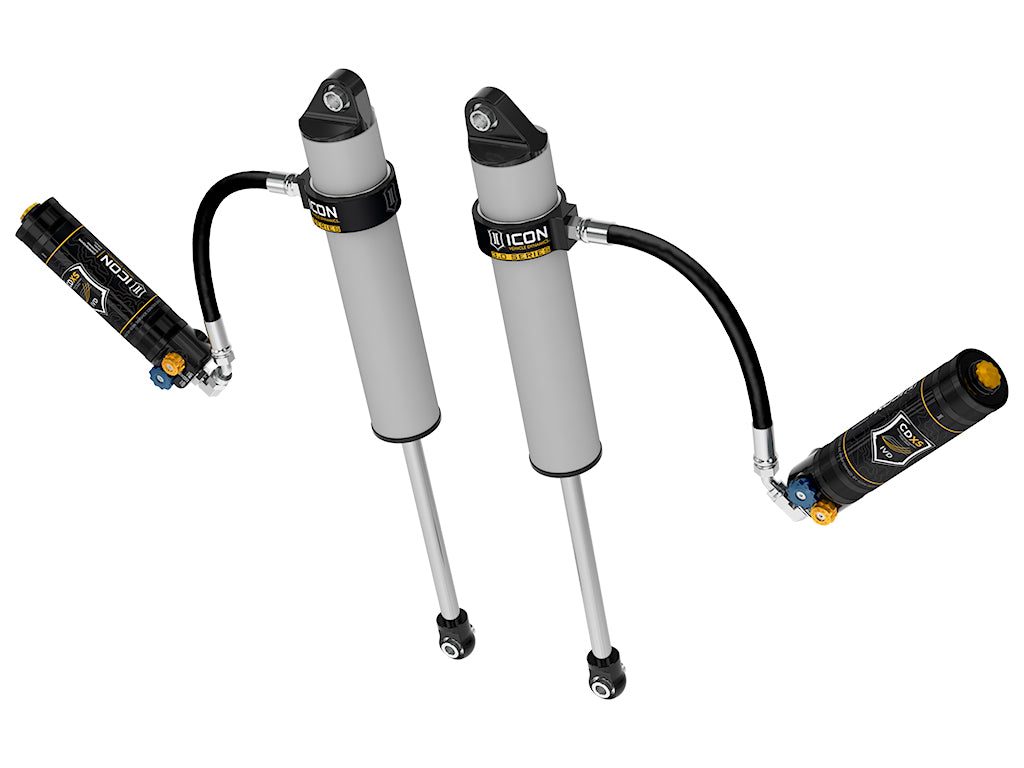

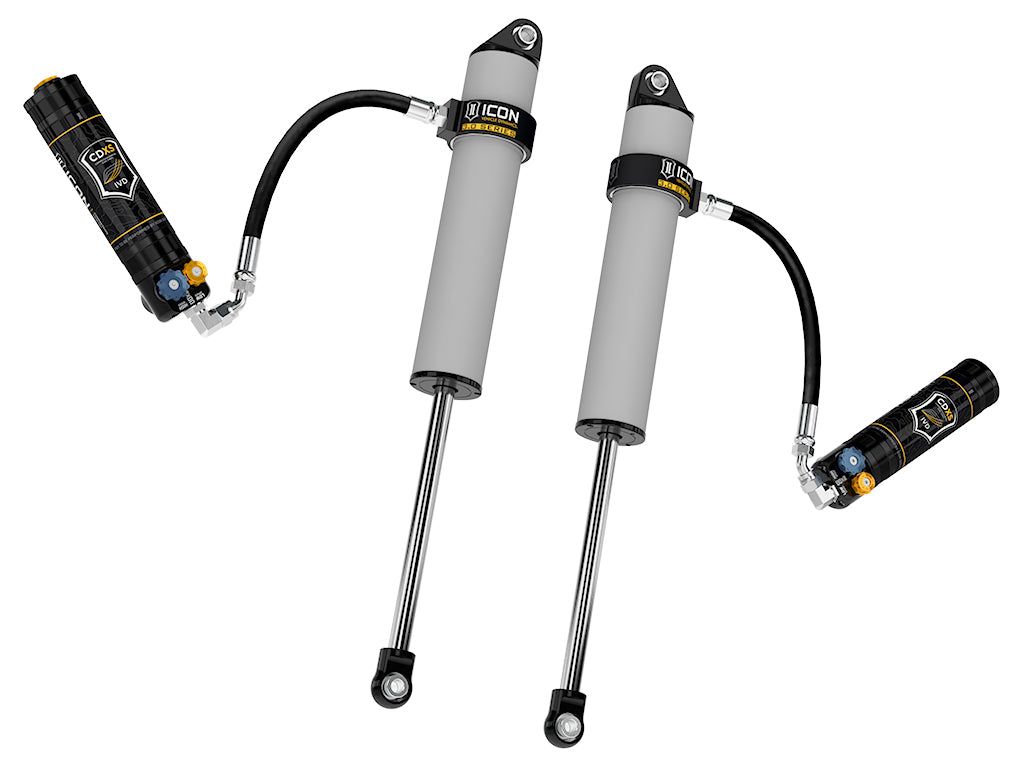

ICON 2011-2026 GM 2500/3500 HD, 0-2" Lift, Rear, V.S. 3.0 Series Shock Absorbers, Remote Reservoir w/ CDXS, Pair

ICON 2011-2026 GM 2500/3500 HD, 0-2" Lift, Rear, V.S. 3.0 Series Shock Absorbers, Remote Reservoir w/ CDXS, Pair

PART #

$2,379.95
$2,379.95
SALE Backordered
Shipping calculated at checkout.

Inventory: Low (Live-Chat or Call For Stock)
View full details

Important: Always read the entire product description, including Important Notes and Fitment information, before making a purchase. Components contained in images and descriptions may change based upon your selections.

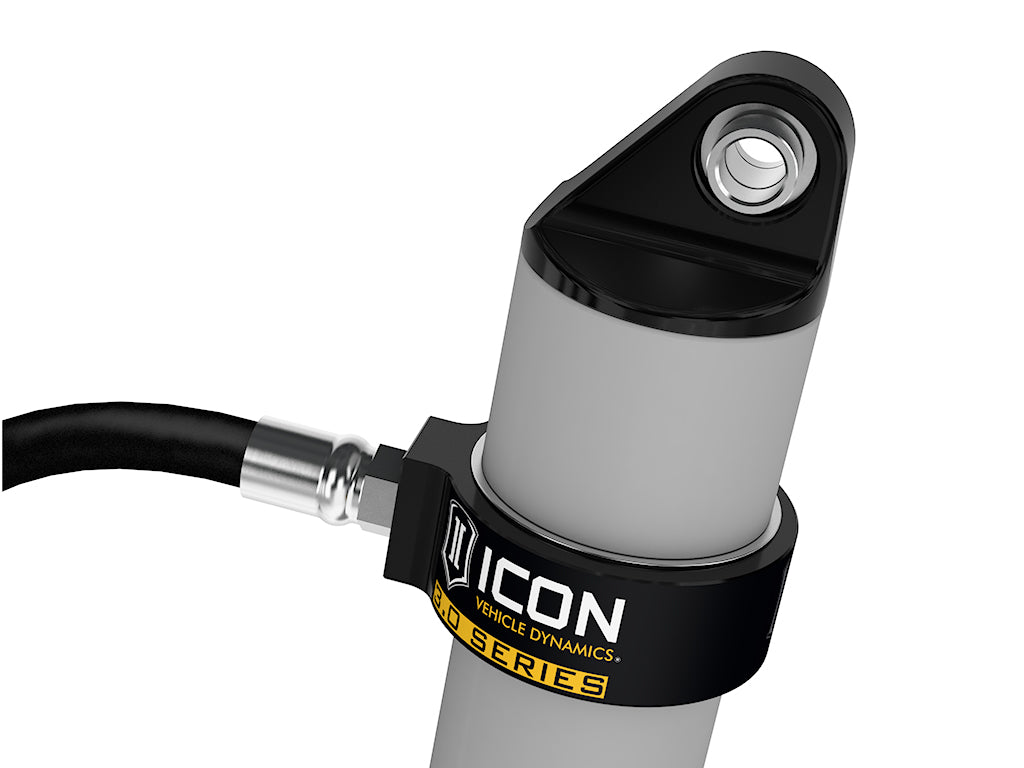

ICON Vehicle Specific (V.S.) 3.0 Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. 3.0 Series shocks boast 50% more piston surface area compared to 2.5 Series shocks. This translates into increased stability and vehicle control at the extremes of off-road use, with benefits also making themselves apparent in on-road driving conditions. Increased internal oil volume and more external surface area compared to 2.5 Series shocks offer improved heat dissipation and resistance to shock fade under hard use. Like all ICON shock absorbers, V.S. 3.0 Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON’s unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal “Bump Zone” that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. ICON's exclusive Compression Damping Dual Speed (CDXS) valves are included for precisely dialing in your suspension performance. CDXS controls fluid flow under compression, with independent adjustability of high speed and low speed compression force. 10 discreet detented settings for both low and high-speed adjustment knobs allow separate adjustments for handling response and overall aggressiveness.

Features

  • 100% Revalveable

Brand Overview

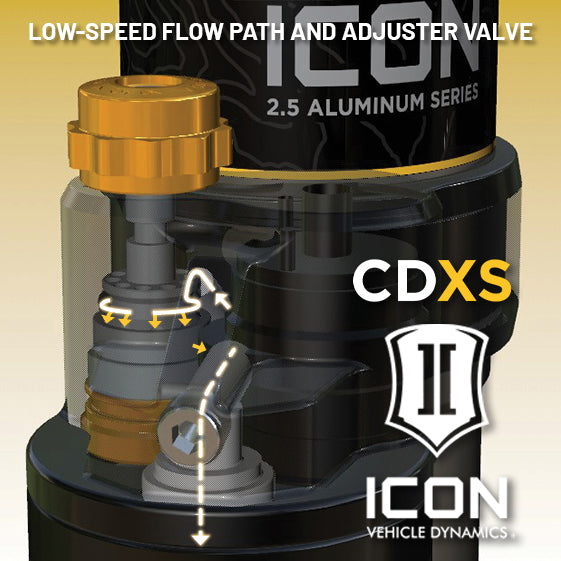

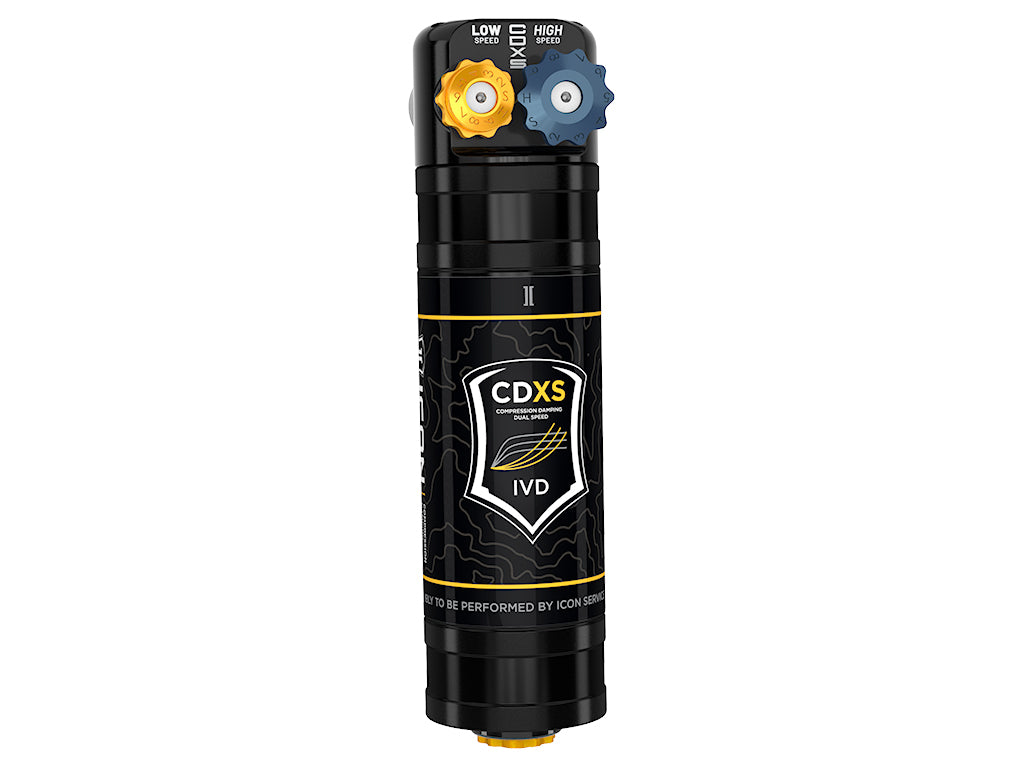

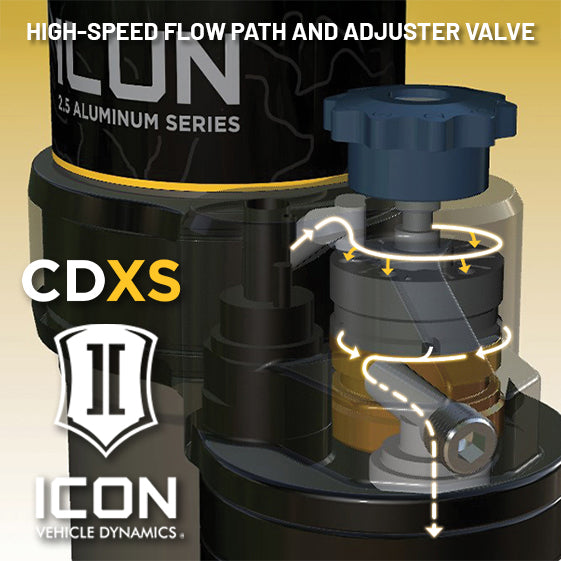

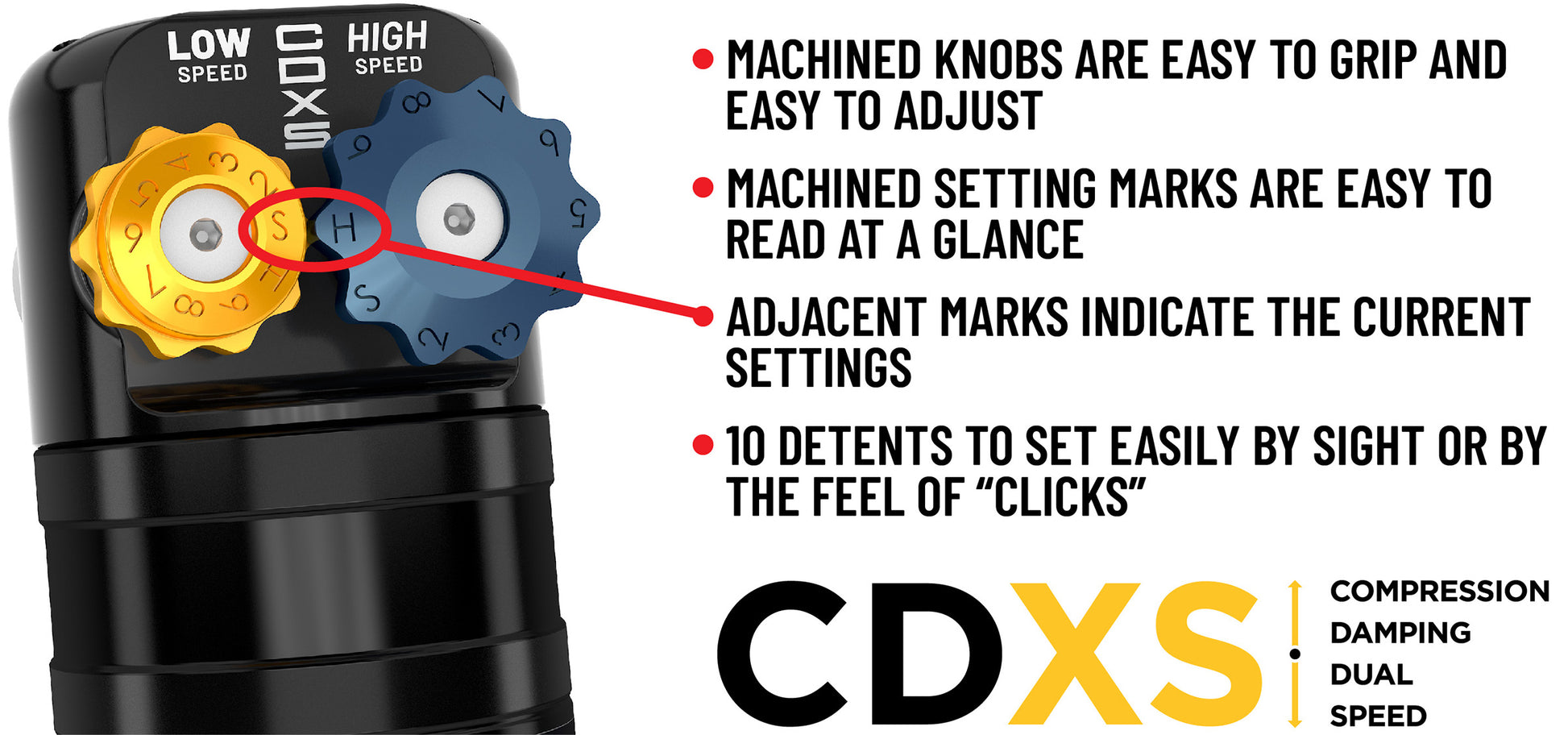

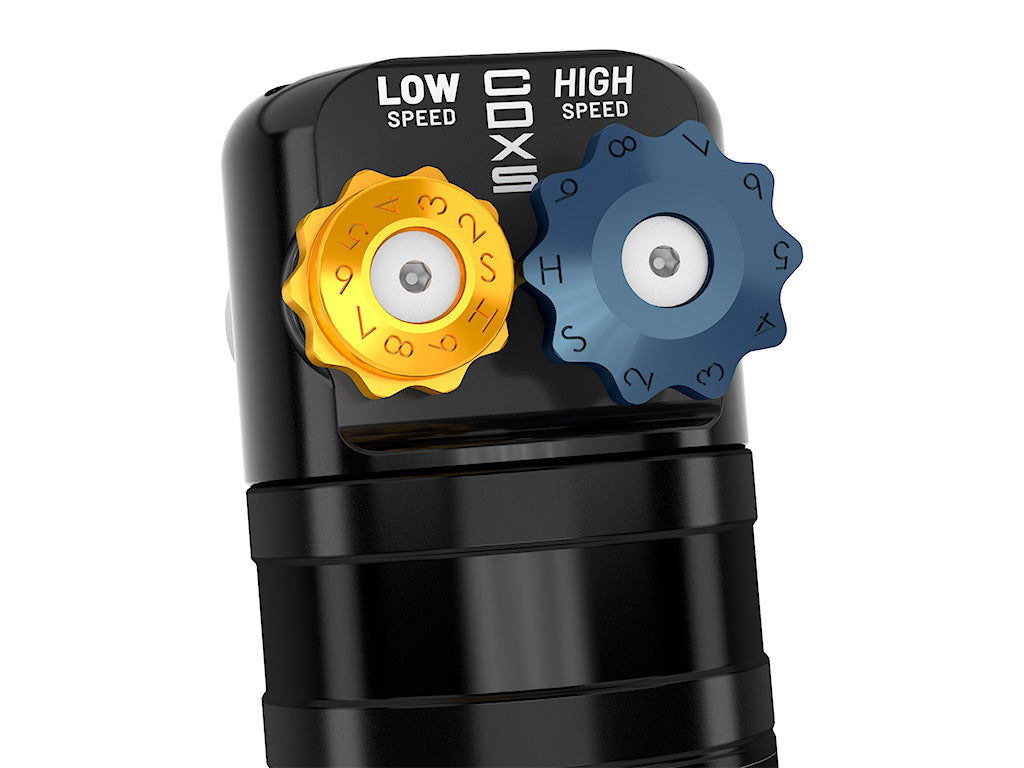

The CDXS Compression Damping Dual Speed Adjustability System represents the next evolution in vehicle suspension, delivering unmatched performance and customization for our most popular platforms. With the CDXS system from ICON Vehicle Dynamics, we've taken the low-speed knob found in our proven CDCV system and refined it with finer adjustment increments in the low-speed range of the shock. We then added a high-speed knob to adjust the upper limit of force the shock can generate, allowing drivers to fully tune the shock's compression damping performance over a wide range of driving scenarios. High and low-speed settings are clearly marked on easy-to-grip knobs, making adjustments simple and intuitive. If the knobs are not visible in their mounted position, settings can be adjusted by counting clicks—turning the knob fully counterclockwise to the stop, then count up to the desired setting. Each knob offers 360° operating range with 10 detents and hard stops at both ends.
