ICON Vehicle Dynamics

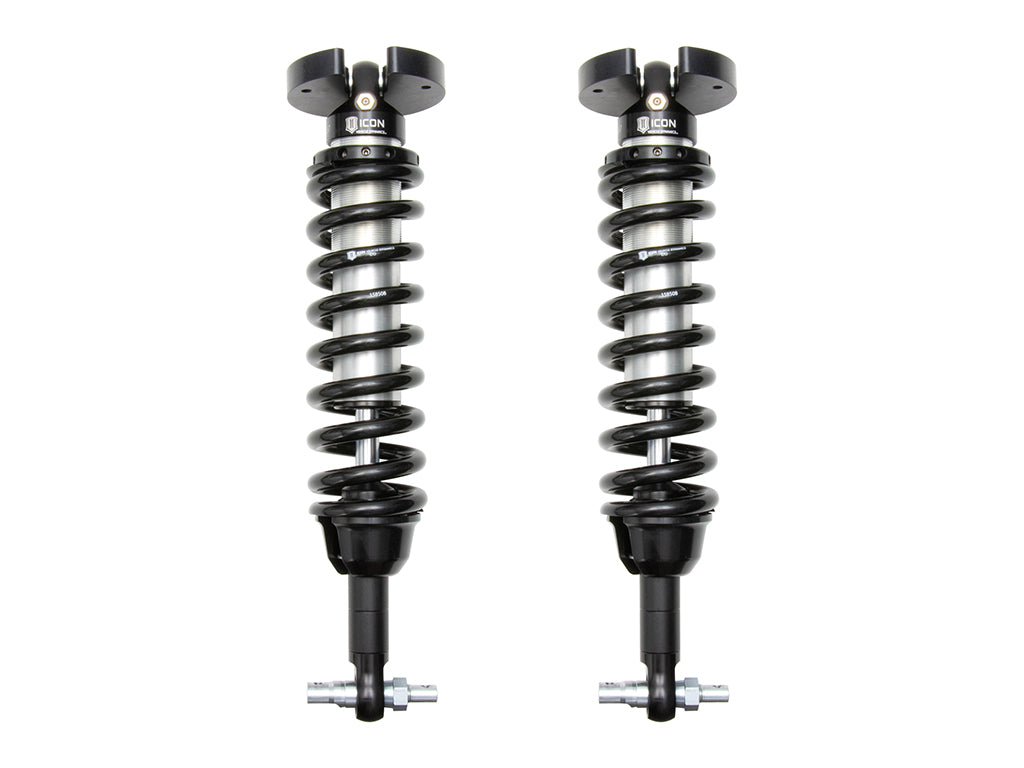

ICON 2019-2026 Chevrolet Silverado1500/GMC Sierra 1500, 1.5-3.5” Lift, Front, V.S. 2.5 Series Coilover Kit, Extended Travel, Internal Reservoir, Pair

ICON 2019-2026 Chevrolet Silverado1500/GMC Sierra 1500, 1.5-3.5” Lift, Front, V.S. 2.5 Series Coilover Kit, Extended Travel, Internal Reservoir, Pair

PART #

Regular price $1,923.95
Regular price B2B price $1,923.95
SALE CALL OR CHAT TO ORDER
Shipping calculated at checkout.
Will this fit your truck? Select your truck to check fit, or ask a fitment specialist.Read the important notes before ordering
Stock and ship time: call or live chat for the latest.
  • Free shippingmost orders $500+
  • 30-day returnssee policy
  • Warranty helpwe work claims for you
Not sure it fits? Ask a fitment specialist. Real people, U.S.-based
View full details

Important notes before you order

  1. APPLICATION NOTE #338: Silverado 1500 and Sierra 1500 submodels equipped with Adaptive Ride Control also require concurrent installation of aftermarket rear shocks

Specifications

BrandICON Vehicle Dynamics
Part number71606
Active or Passive SuspensionPassive
Add-On Part198000 - 2 PIN COILOVER SPANNER WRENCH KIT
Adjustable CompressionNo
Adjustable DampingNO
Adjustable ReboundNo
Adjustable Ride HeightYes
AssembledYes
Body Diameter2.5 IN
Coil Over Springs IncludedYes
Compressed Length17.97 IN
Cylinder ColorSilver
Cylinder FinishCadmium Plated
Cylinder MaterialSteel
Damping TypeOil
Dust Shield IncludedNo
Extended Length23.83 IN
Front Spring Rate700 PPI
Gas ChargedYes
Grade TypePerformance
Includes Bump StopYes
Internal Construction TypeSingle Tube
Lower Mount TypeBAR PIN
MaterialSteel
Maximum Lift3.5 IN
Maximum Ride Height Raising Distance3.5 IN
Minimum Lift1.5 IN
OEM Wheels & Tires FitmentYes
Recommended Aftermarket WheelsICON Alloys - 17x8.5" w/ 4.75” Backspace / 0mm Offset
Remote ReservoirNO
Reservoir StyleInternal
Self-LevelingNo
Service Parts611019 - COILOVER HARDWARE KIT PAIR
Shaft Diameter0.875 IN
Shock Absorber Body End Measuring PointTop of Upper Mount Plate
Shock Absorber Rod End Measuring PointFlat on Bar Pin
Spring ColorBlack
Spring MaterialSteel
Spring Rate TypeLinear
Travel Length5.87 IN
Upper Mount TypeMounting Plate
Valving TypeDigressive

California Proposition 65 warning applies to this product. www.P65Warnings.ca.gov

Features

  • Bolt-in design makes for an easy install into OEM shock location

Installation

    Free install support from the Trucks R Us tech team, for you or your shop.

    Overview

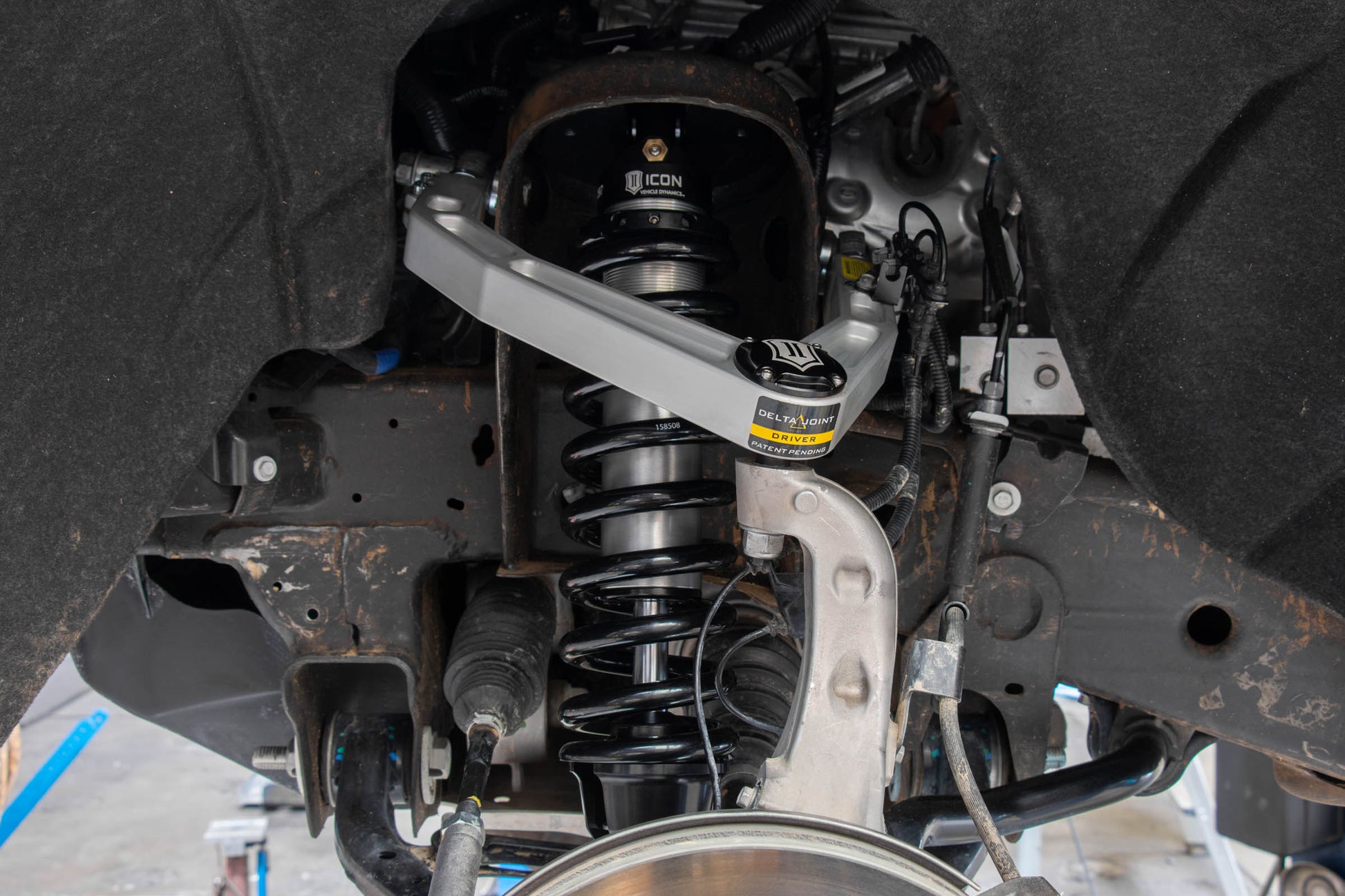

    ICON Vehicle Dynamics V.S. Series 2.5” coilover shocks are an incredible upgrade for the front-end of 2019-2026 Chevrolet Silverado 1500/GMC Sierra 1500 trucks. Their extended length and pairing with ICON front upper control arms offers an increase in total front wheel travel compared to ICON standard travel coilovers, for a total of approximately 10” of front wheel travel. ICON’s vehicle-specific valving provides a sport tuned feel on and off-road while 1.5-3.5” of lift height adjustability allows the use of larger, more aggressive wheel and tire combinations. The larger 2.5” diameter shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. When paired with ICON rear 2.0 Aluminum Series or 2.5 Series shocks vehicle control will be balanced front to rear, resulting in the best overall driving experience for your GM pickup.

    Questions

    Will this fit my truck?

    Select your truck at the top of the page and the fit check will confirm it. If your exact trim is not listed, call 866-235-4715 or live chat and a fitment specialist will check it before you order.

    Do you help with installation?

    Yes. Our technical team helps you or your shop with installation and troubleshooting after delivery, on top of the manufacturer’s support.

    What if the part has a problem?

    We work the warranty claim with the manufacturer on your behalf, within the manufacturer’s warranty policy.

    Can I return it?

    Most items can be returned within 30 days. See our return policy for details.

    No reviews for this part yet. Trucks R Us is rated on Trustpilot, Google and the BBB.

    About ICON Vehicle Dynamics

    ICON Vehicle Dynamics specializes in performance suspension components, shocks, and accessories for today’s most popular trucks & SUVs. Since 2008, ICON has been developing products that redefine the limits of what a “stock” vehicle is capable of. ICON is part... Shop all ICON Vehicle Dynamics
