ICON Vehicle Dynamics

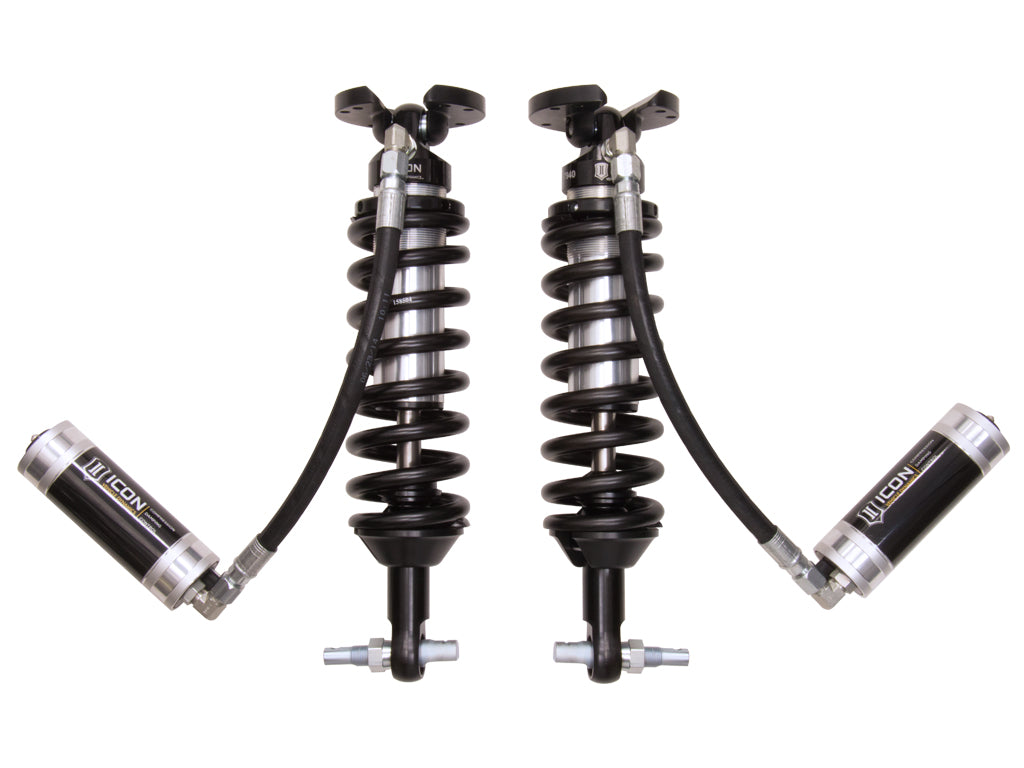

07-18 GM 1500 1-2.5" 2.5 VS RR CDCV COILOVER KIT

Name: 07-18 GM 1500 1-2.5" 2.5 VS RR CDCV COILOVER KIT
Brand: ICON Vehicle Dynamics
SKU: 71555C
Price: 2287.95 USD
Availability: OutOfStock

PART #

$2,287.95

SALE Backordered

Shipping calculated at checkout.

Product variants

Quantity

Inventory: Special Order (Live Chat or Call)

View full details

Important: Always read the entire product description, including important notes and fitment information, before making a purchase. Components contained in images and descriptions may change based upon your selections.

Oem wheels & tires fitment: yes; recommended aftermarket wheels: icon alloys - 17x8.
5 with 4.
75” backspace / 0mm offset; recommended aftermarket wheels: icon alloys - 18x9 with 5” backspace / 0mm offset; recommended aftermarket wheels: icon alloys - 20x9 with 5” backspace / 0mm offset; recommended aftermarket tires: 33" x 11.
50" (larger tires may fit but fender trimming and modifications will be required.
); tech note: installation of icon delta joint upper control arms recommended.
Shock length requires trimming of factory droop stop to retain stock upper control arms.
; tech note: not compatible with models equipped magnetic ride control; tech note: not compatible with hybrid models

Quick SpecsOverview:

Spring Material: Steel
Adjustable Height: yes
Grade Type: Performance
Shock Absorber Rod End Measuring Point: Flat on Bar Pin
Shock Absorber Body End Measuring Point: Top of Upper Mount Plate
Lower Mount Type: BAR PIN
Upper Mount Type: Mounting Plate
Boot Included: No
Gas Charged: yes
Body Diameter: 2.5 IN
Adjustable Damping: Yes
Remote Reservoir: Yes
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
Add-On Part: 252012 - -4 TO -10 HOSE SHIELD KIT
California Prop 65 Warning: Yes
California Proposition 65: WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
Coil Over Springs Included: Yes
Damping Type: Oil
Dust Shield: No
Material: Aluminum
Material: Steel
OEM Wheels &
Tires Fitment: Yes
Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required)
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5” Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 4.75” Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5” Backspace / 0mm Offset
Service Parts: 252001 - 2.5 FIXED SPANNER WRENCH
Service Parts: 252011 - 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KIT
Service Parts: 191016 - 7.5" FINNED RESI UPGRADE KIT
Service Parts: 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)
Service Parts: 252003 - SEAL INSTALL TOOL 2.5/3.0
Service Parts: 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL
Service Parts: 257306 - 7/8 SHAFT 9.65 OAL 5.40 TRAVEL
Service Parts: 611019 - COILOVER HARDWARE KIT PAIR
Shaft Diameter: 0.875 IN
Spring Color: Black
Title: 07-18 GM 1500 1-2.5" 2.5 VS RR CDCV COILOVER KIT

Additional Specifications:

Country of Origin: US
Warranty: 1 Years
Weight (lbs): 50.0
Vehicle Specific Fitment: Y

Instructions

I71555C_REVC.pdf

Fitment

: N/A
